Fuyuang NiMH LiFePO4 Lithium Battery Charger 4.2V-29.4V 2A-5A for E-bike, Scooter, Drone, Power Tool and Robot

Fuyuang NiMH LiFePO4 Lithium Battery Charger 4.2V-29.4V 2A-5A for E-bike, Scooter, Drone, Power Tool and Robot

Name: Fuyuang NiMH LiFePO4 Lithium Battery Charger 4.2V-29.4V 2A-5A for E-bike, Scooter, Drone, Power Tool and Robot
Brand: Fuyuang
Rating: 5.0 (35 reviews)

The FY2922000 is a compact desktop charger that handles multiple battery chemistries, including NiMH, LiFePO4 and lithium-ion packs. Outputs range from 4.2V 5A single-cell charging up to 29.2V and 29.4V packs at 2A, with 12.6V 2A, 12.6V 3A and 14.6V 3A variants covering 3S and 4S battery configurations. It runs from 100-240Vac 50/60Hz input and charges using a CC-CV-trickle profile with automatic stop, so batteries are brought to full capacity without being held at high voltage. Free-air convection cooling removes the fan, keeping operation quiet and preventing dust ingress, and the PC fireproof housing carries over-voltage, over-current, overload, over-temperature and short-circuit protection. The charger is produced by Fuyuan Electronic Co., Ltd, a 2005-established manufacturer with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models spanning 60W to 10KW. A 3-year warranty applies.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

The FY2922000 is a multi-chemistry desktop battery charger supporting NiMH, LiFePO4 and lithium-ion battery packs. It covers 4.2V, 12.6V, 14.6V, 29.2V and 29.4V outputs at 2A to 5A, covering 1S to 8S small-format packs. With a 100-240Vac 50/60Hz input it can be used worldwide, and the CC-CV-trickle charge profile with stop charge keeps cells safe during long standby periods. Typical applications include e-bikes, scooters, drones, power tools and robots.

Key Features

• Multi-chemistry support for NiMH, LiFePO4 and lithium-ion packs • Output range from 4.2V 5A to 29.4V 2A • Universal 100-240Vac 50/60Hz input • CC-CV-trickle charge mode with stop charge • Charging efficiency above 89% • Fanless cooling by free air convection, no noise • Over-voltage, over-current, overload, over-temperature and short-circuit protection • Red/green LED charge indicator with OEM/ODM design service

Technical Specifications

• Model: FY2922000 • Input: 100-240Vac, 50/60Hz • Outputs: 29.2V 2A / 29.4V 2A / 14.6V 3A / 14.6V 2A / 12.6V 3A / 12.6V 2A / 4.2V 5A • Voltage range: 4.2V to 29.4V • Platform power: 90W / 120W / 150W / 200W / 450W / 600W • Battery compatibility: NiMH, LiFePO4, lithium-ion • Charge mode: CC-CV-Trickle Charge, stop charge • Charging efficiency: above 89% • Housing: PC fireproof material, black • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• E-bikes and scooters • Drones • Electric tools • Robots and AGV equipment • Household rechargeable battery packs • Security and camera equipment

Customization & Service

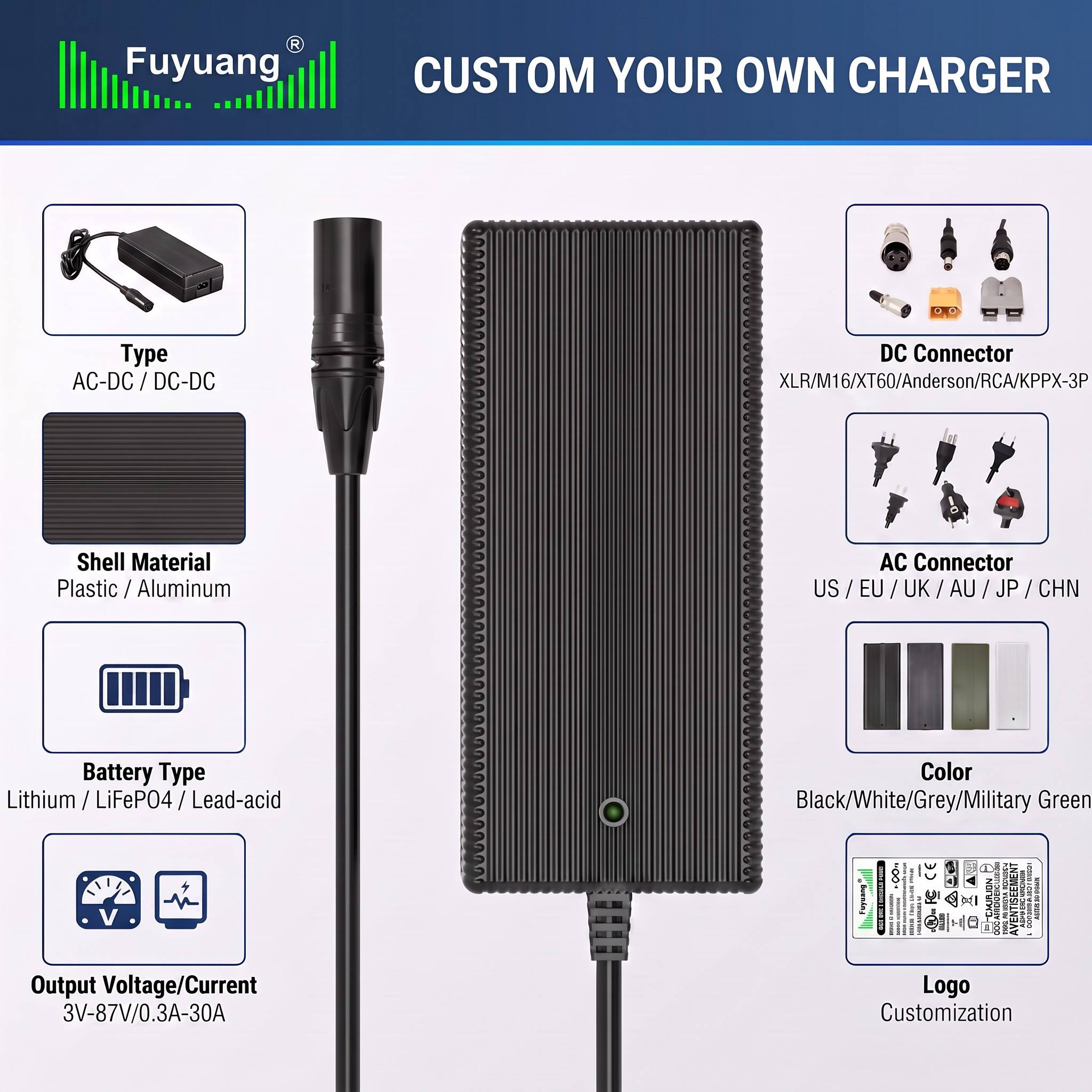

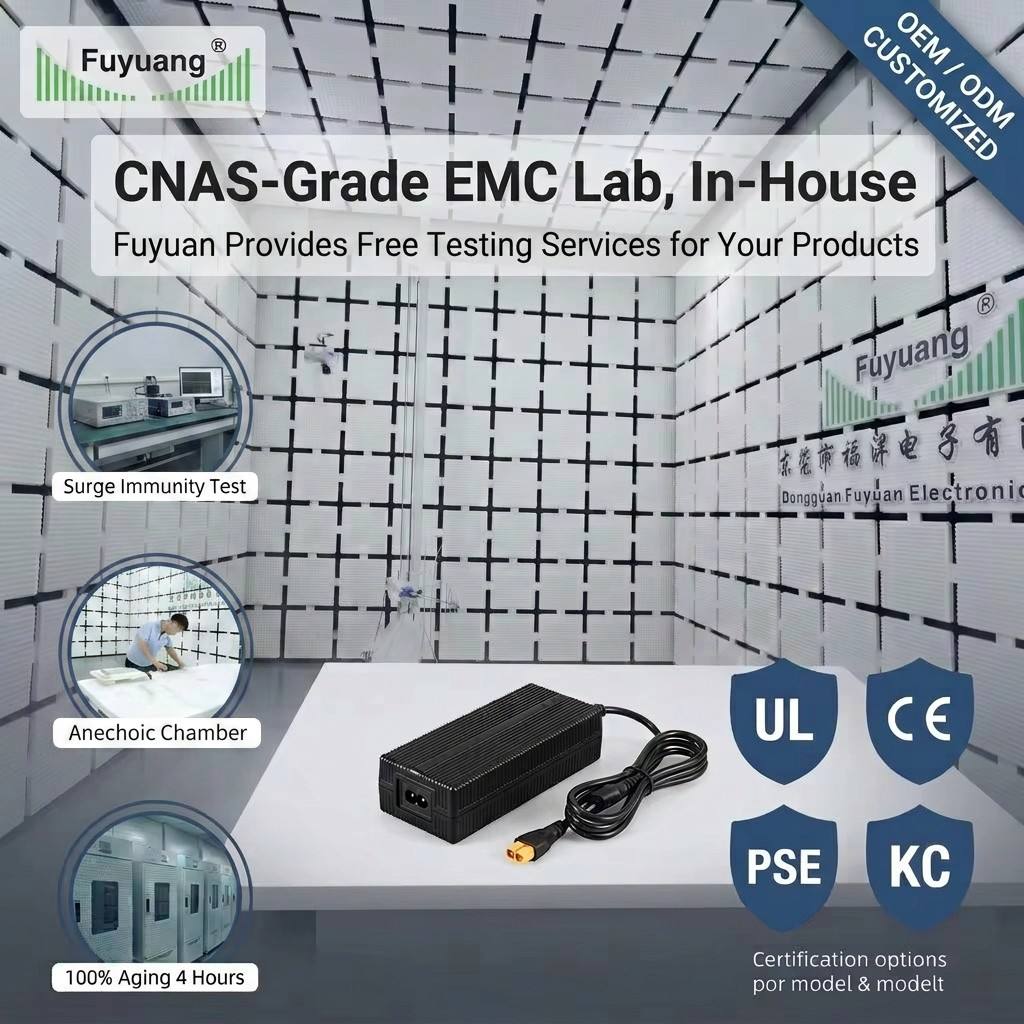

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this charger, including custom output voltage and current, custom DC connectors, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance testing during development so certification preparation can begin before final tooling. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
