Fuyuang 29.2V 2A CC/CV Smart Battery Charger for 24V Li-ion, LiFePO4 and Lead-acid Battery Packs

Fuyuang 29.2V 2A CC/CV Smart Battery Charger for 24V Li-ion, LiFePO4 and Lead-acid Battery Packs

Name: Fuyuang 29.2V 2A CC/CV Smart Battery Charger for 24V Li-ion, LiFePO4 and Lead-acid Battery Packs
Brand: Fuyuang
Rating: 5.0 (15 reviews)

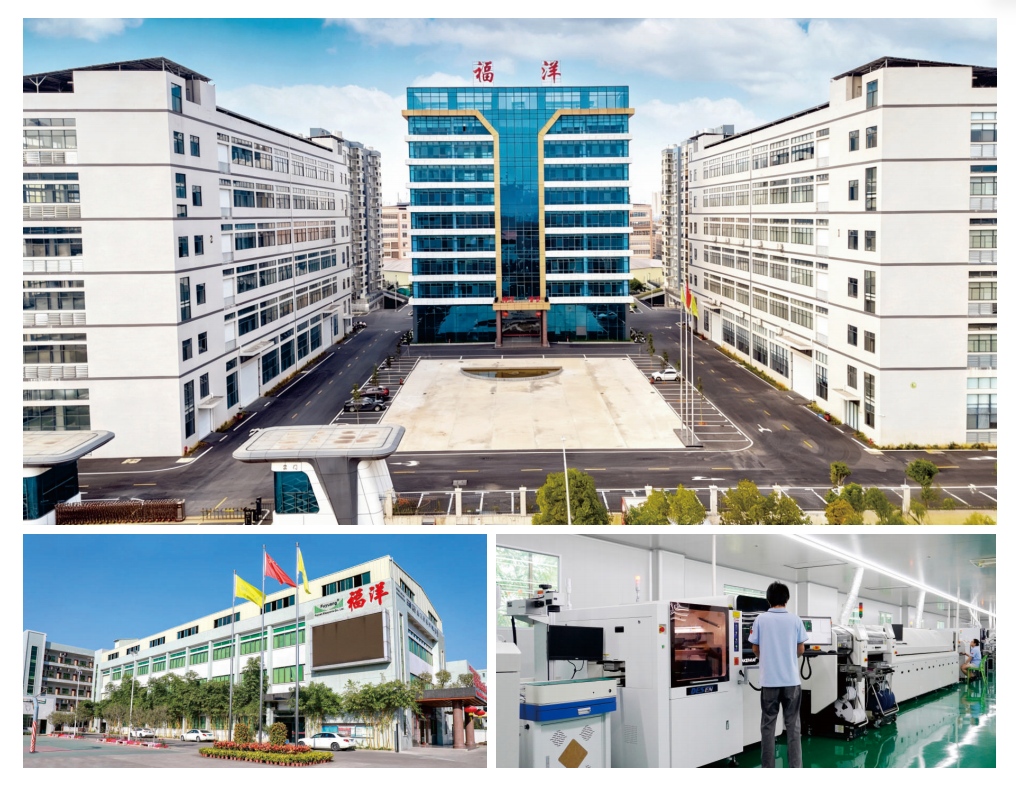

The Fuyuang FY2922000 is a smart Li-ion / LiFePO4 / lead-acid (AGM, GEL) 8S / 24V battery charger rated 29.2V 2A, designed for 24V battery packs across multiple chemistries. It runs from a 100-240VAC 50/60Hz universal input and terminates charge automatically, so packs can be left connected without risk of over-charging. Typical installations are AGV robots, e-scooters, energy storage and cleaning machines. Universal 100-240VAC input, >89% efficiency and low standby power make the unit export-ready, and factory-direct OEM/ODM covers custom connector, housing, logo and cable length. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees. More than 3,000 models have been developed across a 60W to 10KW range, and every unit ships with a 3-year warranty.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

The FY2922000 is a desktop Li-ion / LiFePO4 / lead-acid (AGM, GEL) 8S / 24V battery charger for 24V battery packs across multiple chemistries. It takes a universal 100-240VAC 50/60Hz input and delivers 29.2V 2A of stable output through a precision constant-current / constant-voltage algorithm with automatic cut-off when the pack reaches full charge. The FY2922000 platform accepts 24V Li-ion, LiFePO4 and lead-acid (AGM / GEL) battery packs and applies the correct charging profile for each chemistry, with CC/CV control, automatic cut-off and a red / green LED status indicator.

Key Features

• One platform with correct CC/CV charging profiles for Li-ion, LiFePO4 and lead-acid packs • 60W rated output at 29.2V 2A for 24V battery packs • Automatic cut-off at end of charge with red / green LED status indication • Efficiency above 89% with low standby power consumption • PC fireproof material housing, colour black or white • Protection set includes OVP, OCP, SCP, OTP, OLP, low-tension and reverse polarity protection • Desktop form factor with customizable AC and DC connectors and cable length

Technical Specifications

• Model: FY2922000 • Input: 100-240VAC, 50/60Hz • Output: 29.2V 2A • Output power: 60W • Battery chemistry: Li-ion / LiFePO4 / lead-acid (AGM, GEL) • Battery configuration: 8S / 24V • Charging mode: CC / CV charging with correct profile per chemistry, automatic cut-off • Protection: short circuit, over-current (OCP), over-voltage (OVP), over-temperature (OTP), over-load (OLP) and low-tension protection • Efficiency: >89% (low standby power) • Housing material: PC fireproof material, colour black or white • Certification: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • MOQ: 100 PCS

Applications

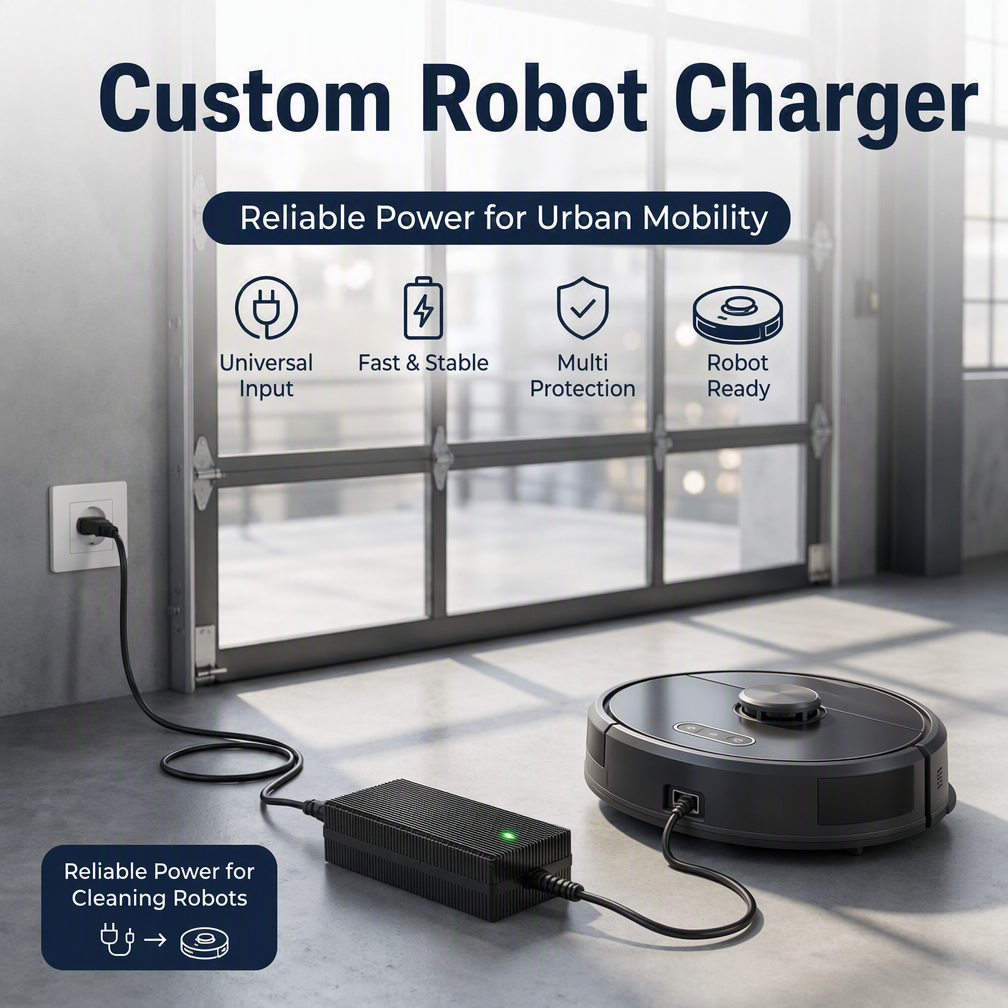

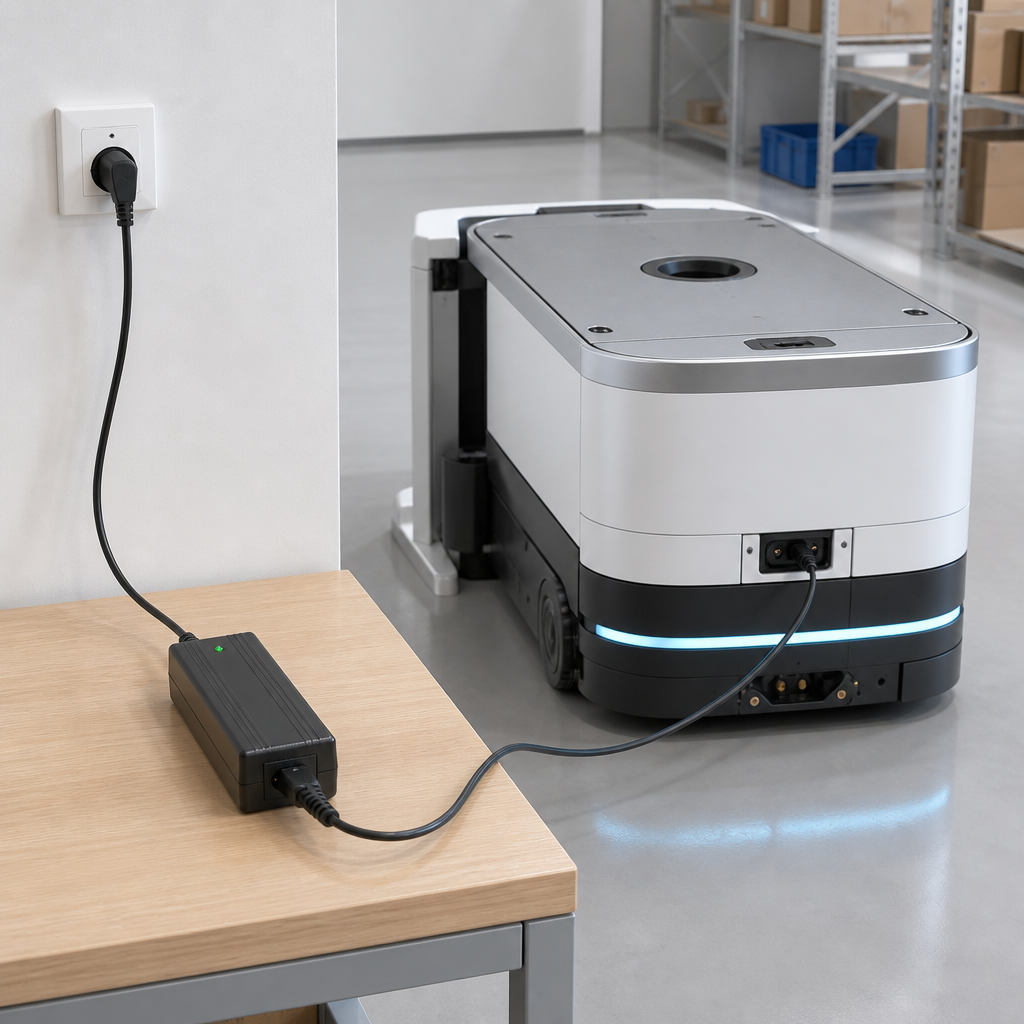

• AGV robots • Electric scooters • Energy storage systems • Cleaning machines • 24V Li-ion battery packs • 24V LiFePO4 and lead-acid battery packs

Customization & Service

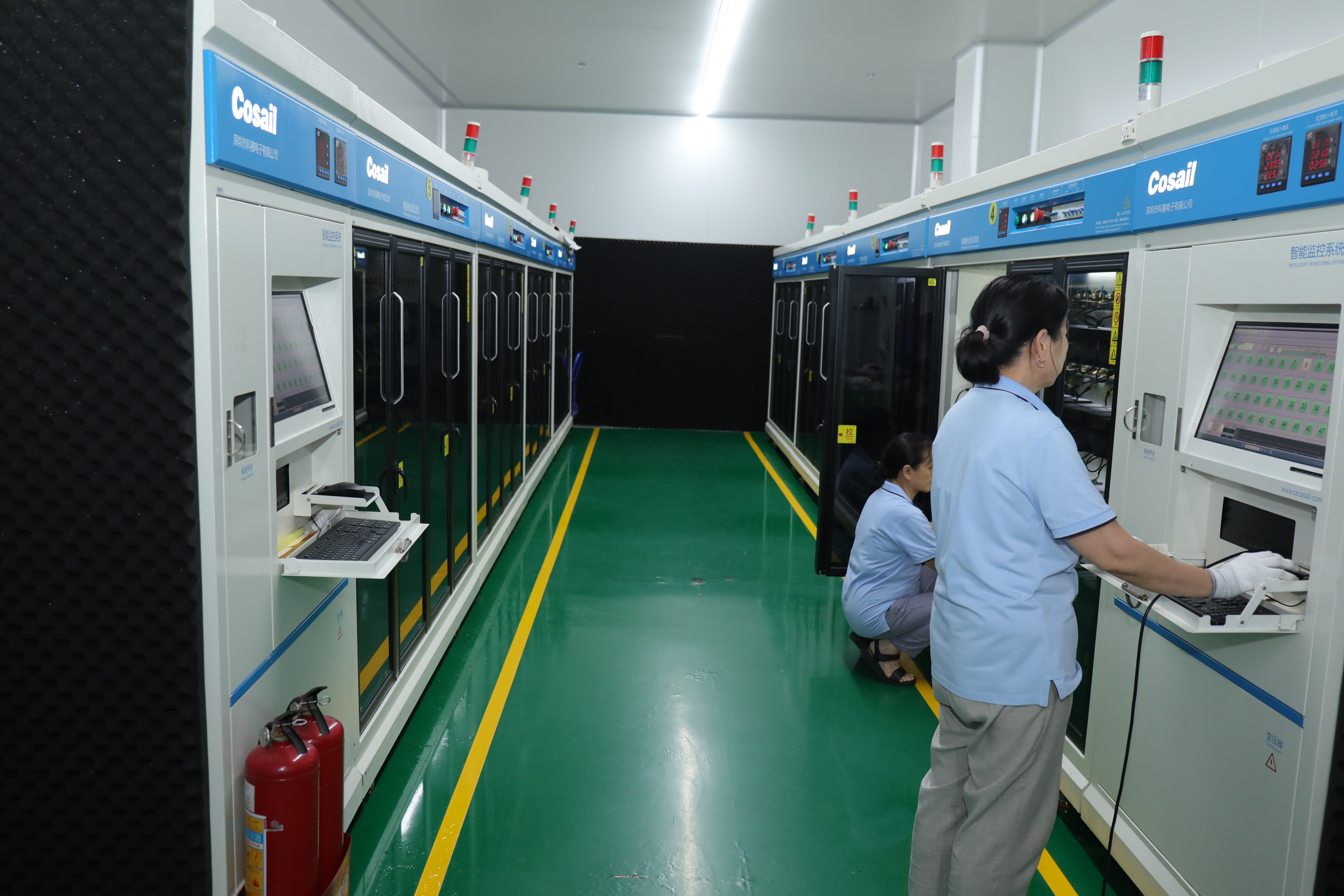

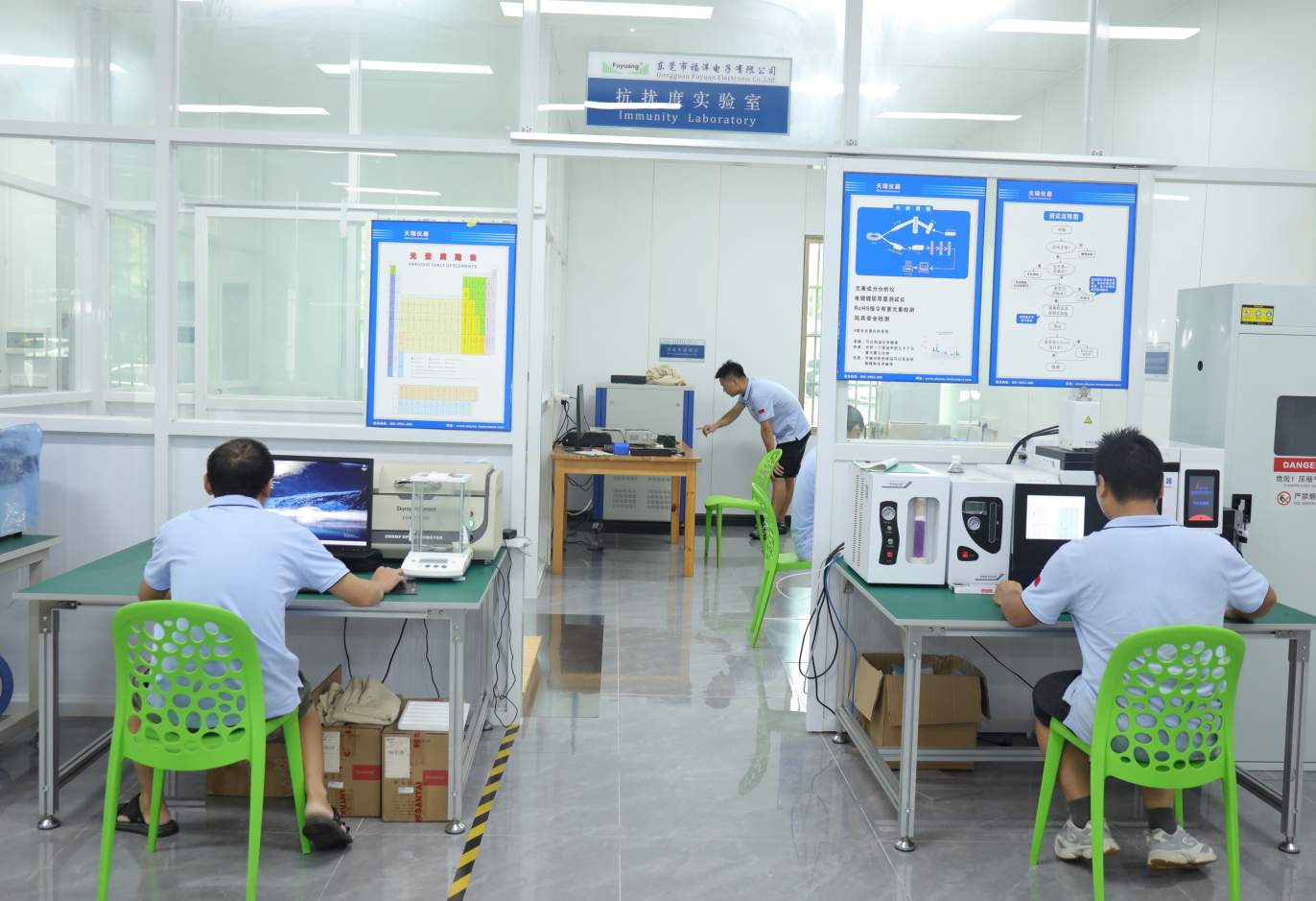

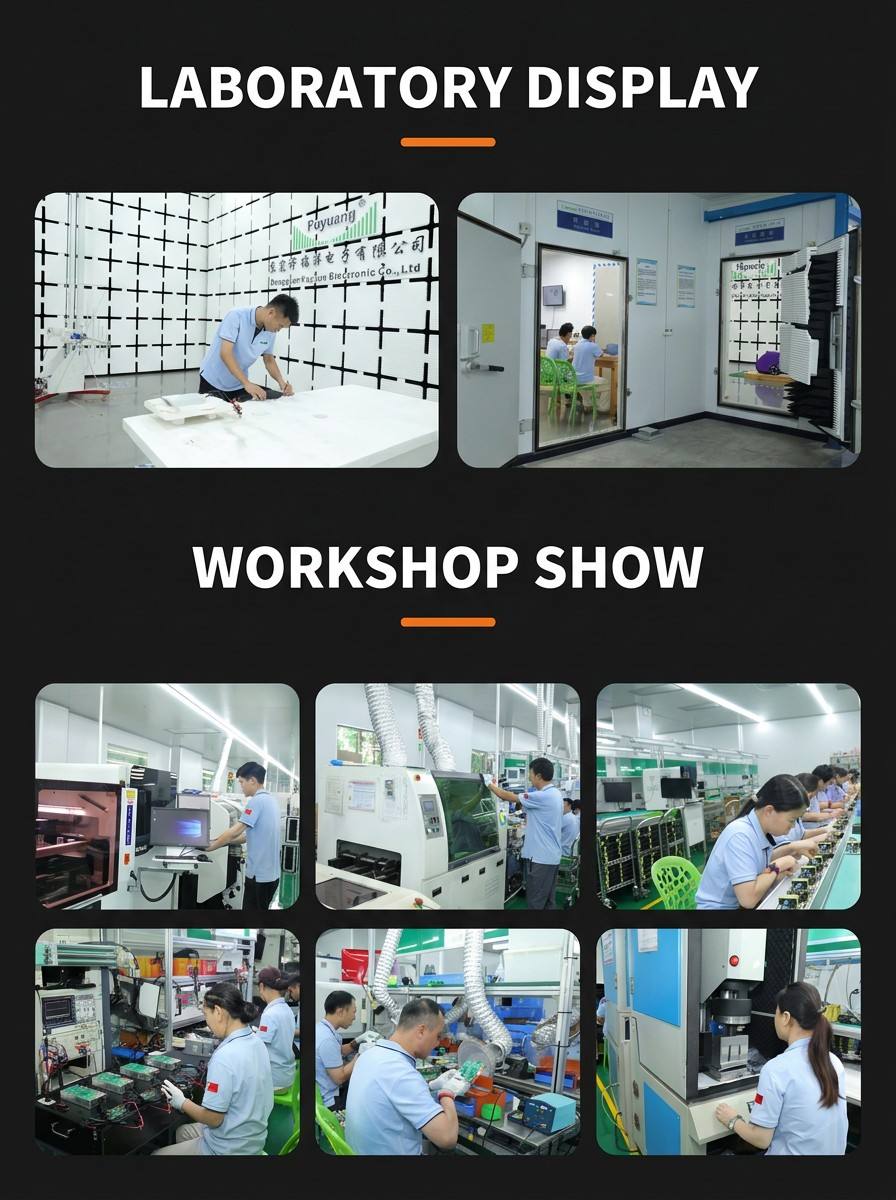

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY2922000 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH.
