Fuyuang FY2922000 29.2V 2A 8S LiFePO4 Battery Charger for Energy Storage, AGV Robots and Wheelchairs

Fuyuang FY2922000 29.2V 2A 8S LiFePO4 Battery Charger for Energy Storage, AGV Robots and Wheelchairs

Name: Fuyuang FY2922000 29.2V 2A 8S LiFePO4 Battery Charger for Energy Storage, AGV Robots and Wheelchairs
Brand: Fuyuang
Rating: 5.0 (92 reviews)

The Fuyuang FY2922000 is a smart LiFePO4 8S battery charger rated 29.2V 2A, designed for 24V LiFePO4 battery packs. It runs from a 100-240VAC 50/60Hz universal input and terminates charge automatically, so packs can be left connected without risk of over-charging. The universal 100-240VAC input, >89% efficiency and low standby power suit export programmes in North America, Europe and Asia. Factory-direct OEM/ODM covers custom connectors, housing, logo and cable length. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees. More than 3,000 models have been developed across a 60W to 10KW range, and every unit ships with a 3-year warranty.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

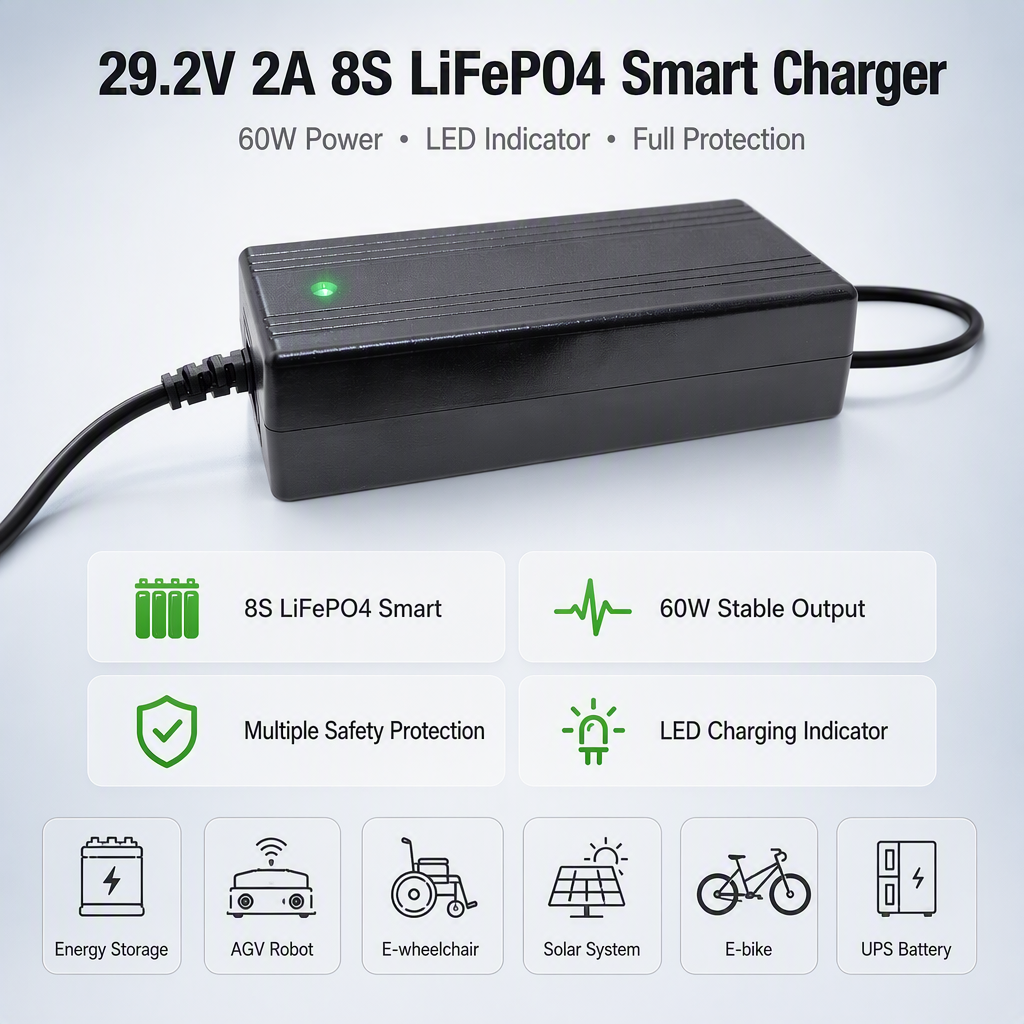

The FY2922000 is a desktop LiFePO4 8S battery charger for 24V LiFePO4 battery packs. It takes a universal 100-240VAC 50/60Hz input and delivers 29.2V 2A of stable output through a precision constant-current / constant-voltage algorithm with automatic cut-off when the pack reaches full charge. This 60W desktop charger is designed for 24V LiFePO4 battery packs in energy storage systems, AGV robots, electric scooters and portable power stations, with a precision CC/CV algorithm and automatic cut-off, plus OVP / OCP / SCP / OTP / reverse polarity protection.

Key Features

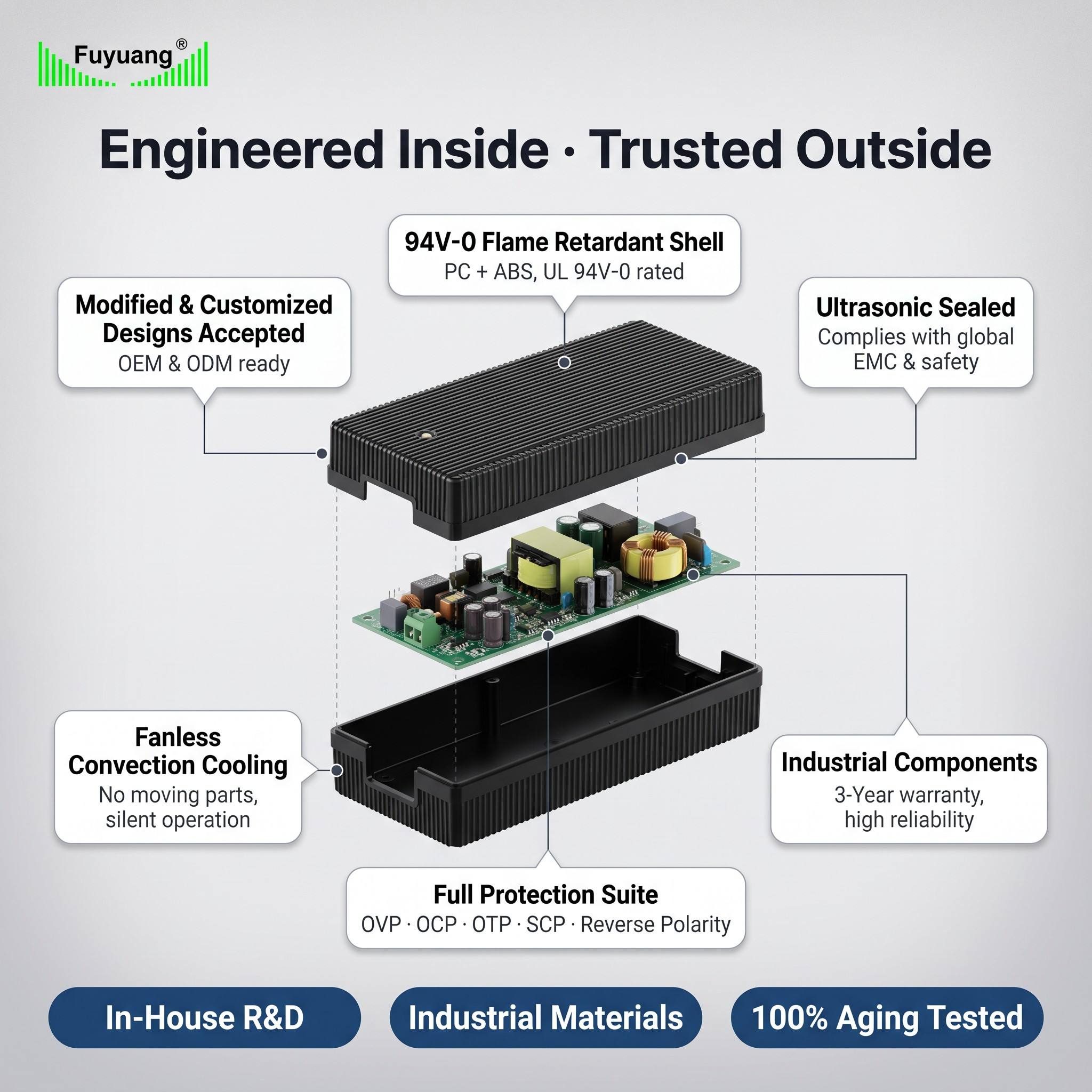

• 60W rated output delivering 29.2V 2A to 8S 24V LiFePO4 packs • Efficiency above 89% with low standby power consumption • Precision CC/CV charging with automatic cut-off protects the LiFePO4 pack • Red / green LED indicator shows charging and full-charge status • PC fireproof material housing, colour black or white • Protection set includes OVP, OCP, SCP, OTP, OLP, low-tension and reverse polarity protection • Desktop form factor with customizable AC and DC connectors and cable length

Technical Specifications

• Model: FY2922000 • Input: 100-240VAC, 50/60Hz • Output: 29.2V 2A • Output power: 60W • Battery chemistry: LiFePO4 • Battery configuration: 8S • Charging mode: CC / CV charging with automatic cut-off • Protection: short circuit, over-current (OCP), over-voltage (OVP), over-temperature (OTP), over-load (OLP) and low-tension protection • Efficiency: >89% (low standby power) • Housing material: PC fireproof material, colour black or white • Certification: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • MOQ: 100 PCS

Applications

• Energy storage systems • AGV robots • Electric scooters • Portable power stations • Electric wheelchairs • 24V LiFePO4 battery packs

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY2922000 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: UL, CUL, GS, CE, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH.
