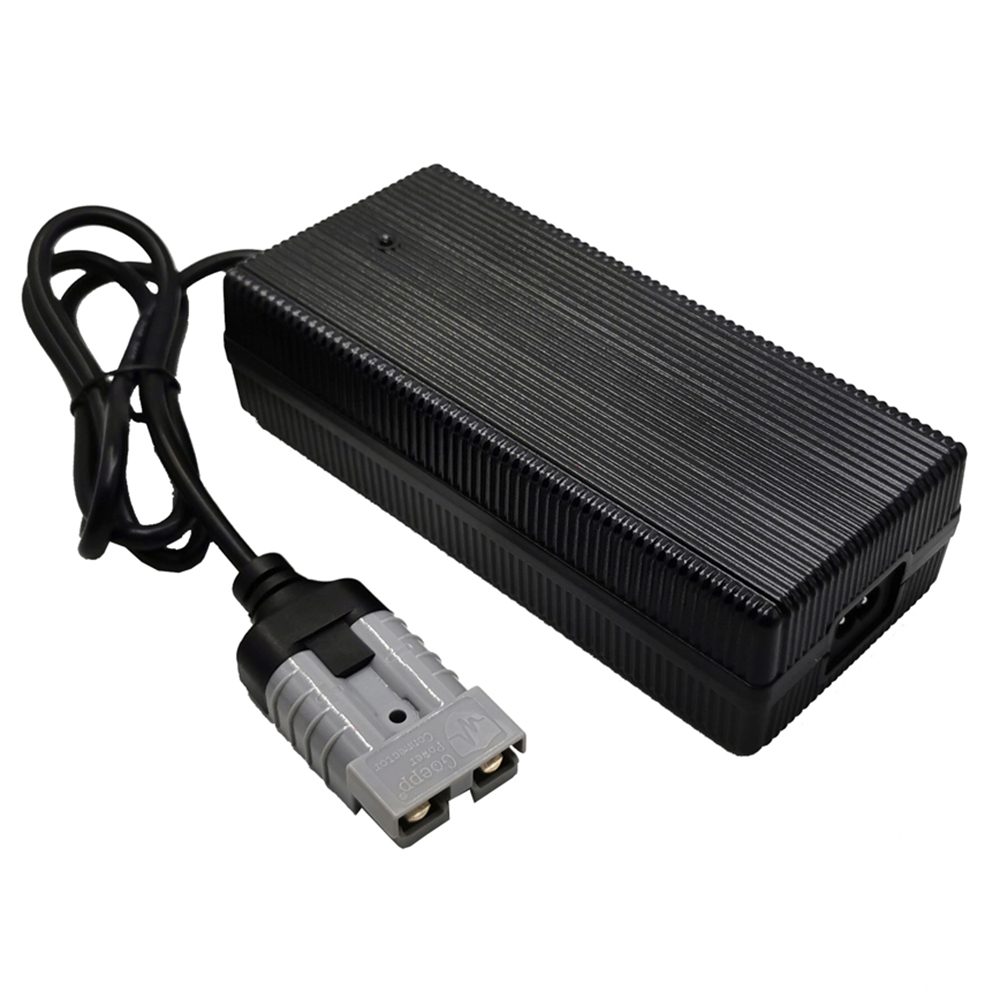

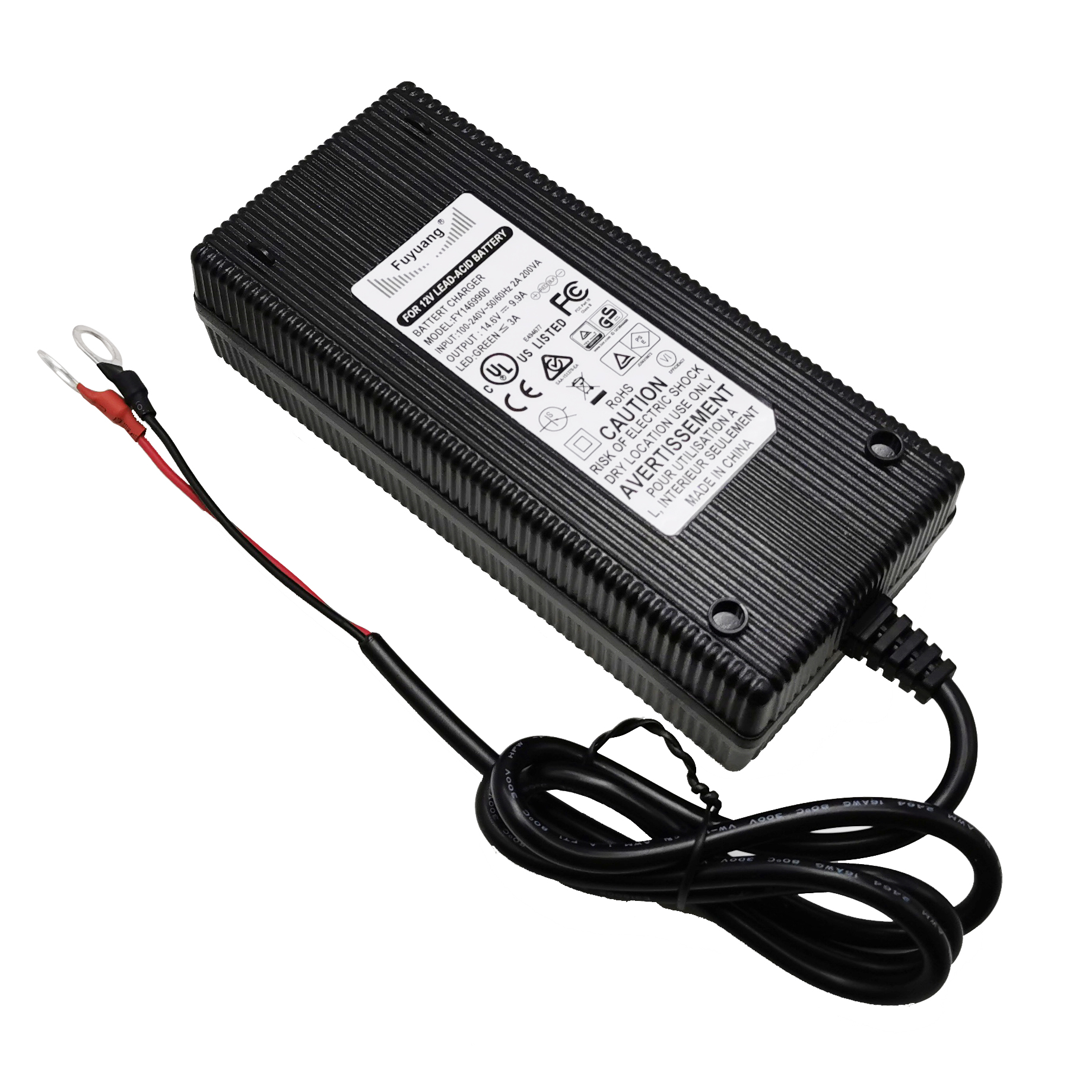

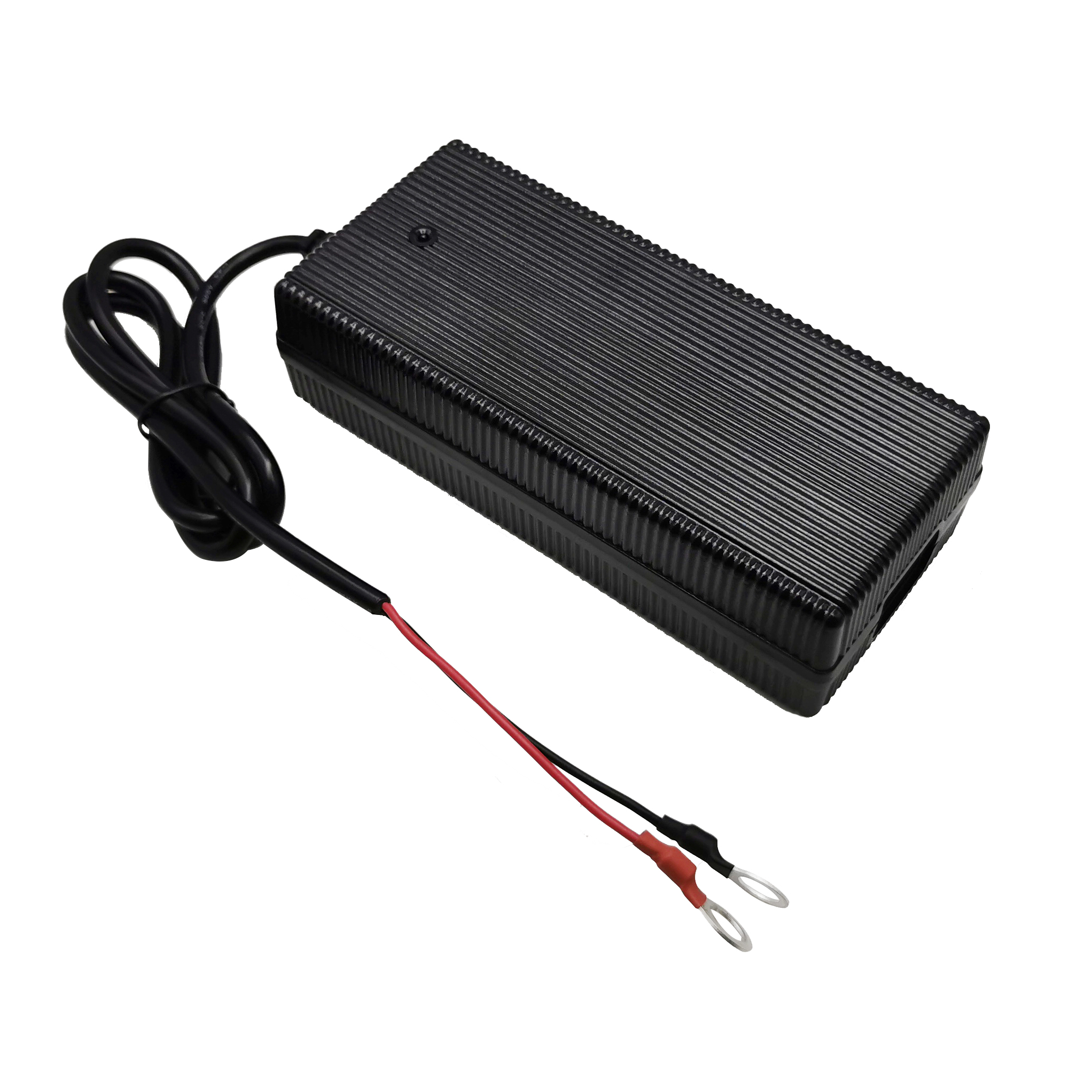

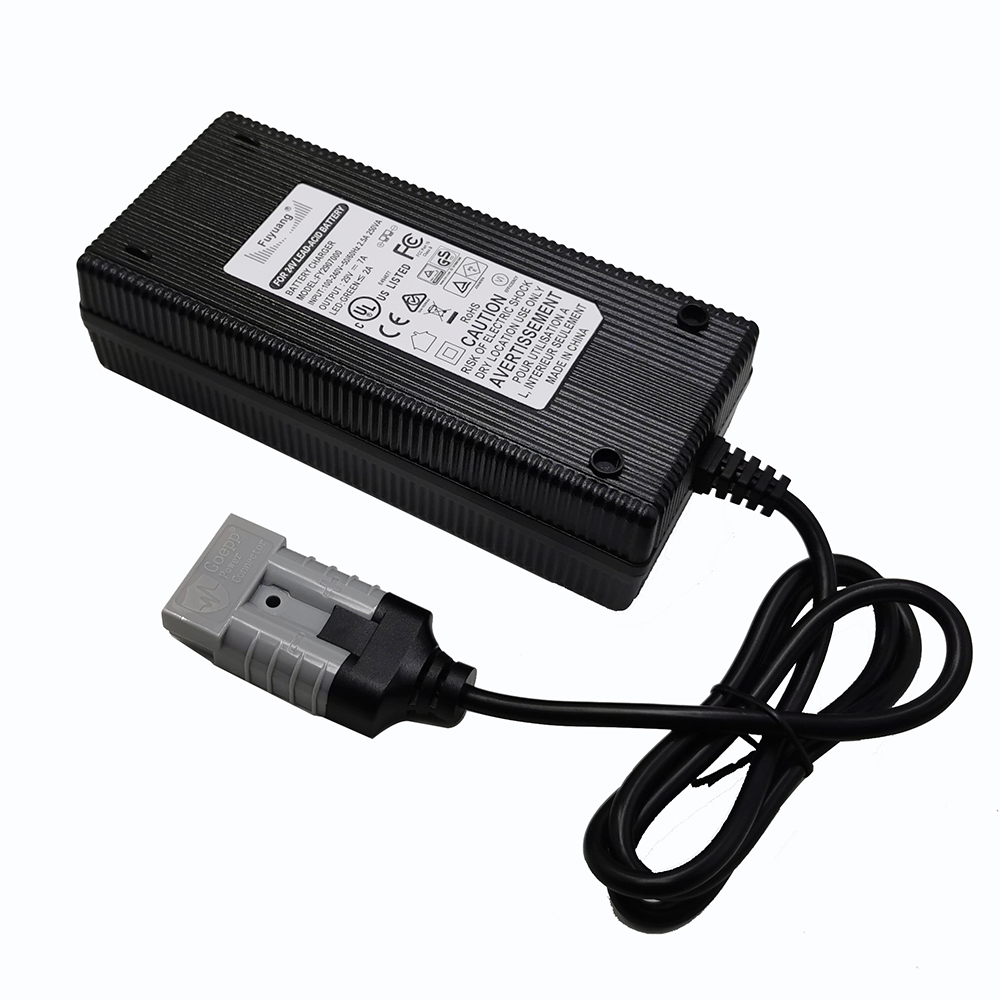

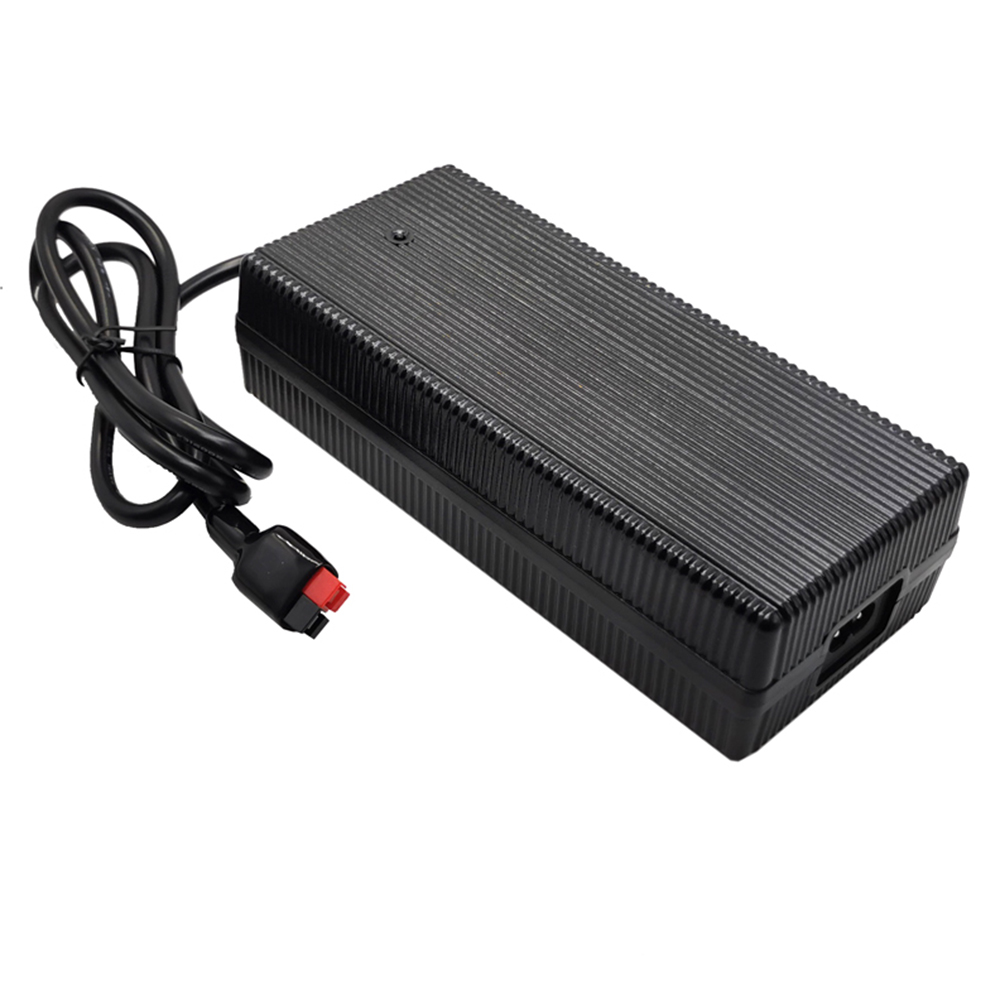

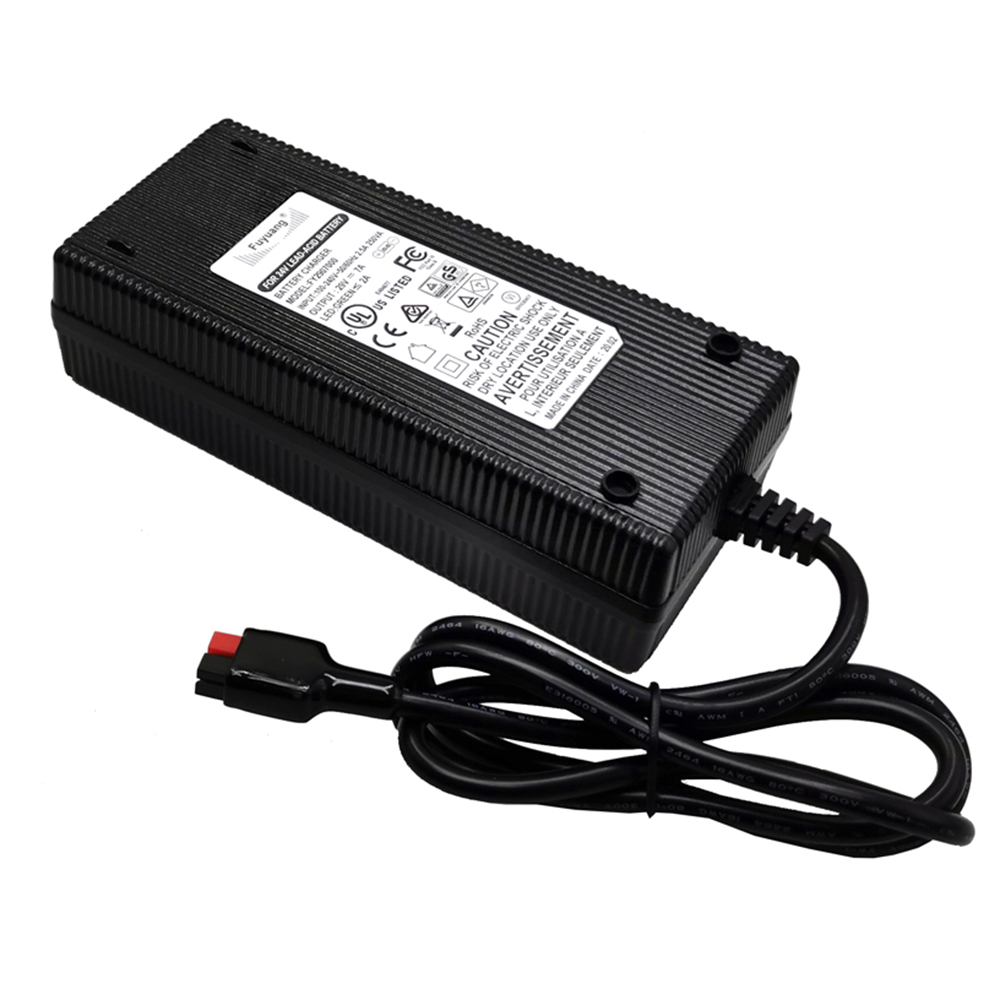

Fuyuang FY1469900 14.6V 10A 146W LiFePO4 Battery Charger for 12V 4S Packs, E-bikes and Power Stations

Fuyuang FY1469900 14.6V 10A 146W LiFePO4 Battery Charger for 12V 4S Packs, E-bikes and Power Stations

Name: Fuyuang FY1469900 14.6V 10A 146W LiFePO4 Battery Charger for 12V 4S Packs, E-bikes and Power Stations
Brand: Fuyuang
Rating: 5.0 (79 reviews)

The Fuyuang FY1469900 is a 146W LiFePO4 battery charger delivering 14.6V 10A, matched to 12V 4S LiFePO4 battery packs. Input is 100-240V at 2.5A, making it suitable for use in different mains regions. Charging follows a CC-CV-floating charge profile with efficiency above 89%. Short circuit, over-current and over-voltage protection guard the battery and charger. The unit measures 178 x 80 x 46 mm, weighs 0.78 kg and is supplied in black with a DC output. Fuyuan Electronic Co., Ltd has manufactured battery chargers since 2005 with 108,000 m2 of production space and a CNAS-standard EMC laboratory. A 3-year warranty applies to every unit.

Model:
FY1469900
Brand:
Fuyuang
Code:
FY1469900


Availability:

Product Overview

The FY1469900 is a 14.6V 10A LiFePO4 battery charger rated 146W, designed for 12V 4S LiFePO4 battery packs. Typical applications include electric bikes, portable power stations and electric scooters. Input is 100-240V at 2.5A. Charging uses a CC-CV-floating charge profile, efficiency is above 89%, and short circuit, over-current and over-voltage protection secure the charging process. The housing measures 178 x 80 x 46 mm and weighs 0.78 kg.

Key Features

• 14.6V 10A output for 12V 4S LiFePO4 battery packs • 146W output power • 100-240V 2.5A universal AC input • CC-CV-floating charge charging mode • Efficiency above 89% • Short circuit, over-current and over-voltage protection • Compact 178 x 80 x 46 mm body weighing 0.78 kg • UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS and REACH certified

Technical Specifications

• Model: FY1469900 • Product type: LiFePO4 battery charger • Input: 100-240V, 2.5A • Output: 14.6V 10A • Output power: 146W • Battery: 12V 4S LiFePO4 battery pack • Charge mode: CC-CV-floating charge • Efficiency: >89% • Protection: short circuit, over-current, over-voltage • Dimension: 178 x 80 x 46 mm • Weight: 0.78 kg • Color: black • Certification: UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS, REACH • Warranty: 3 years

Applications

• Electric bikes • Portable power stations • Electric scooters • 12V 4S LiFePO4 battery packs • Energy storage battery packs

Customization & Service

Fuyuan Electronic Co., Ltd offers OEM and ODM services on this charger, including custom output voltage and current, custom DC connectors, private labeling and LOGO printing. The CNAS-standard EMC laboratory lets EMC performance be verified ahead of formal certification. Each charger is 100% factory inspected, full-load burn-in tested for 4-8 hours and covered by a 3-year warranty. MOQ is 100 PCS.
