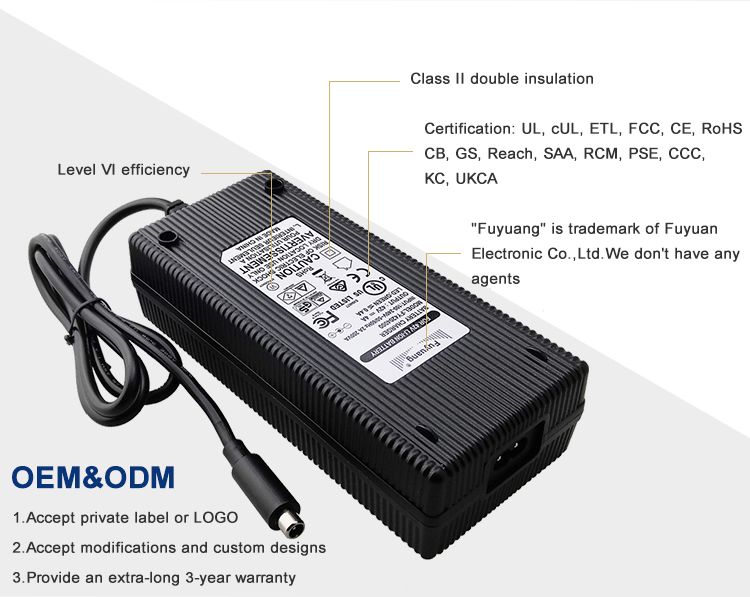

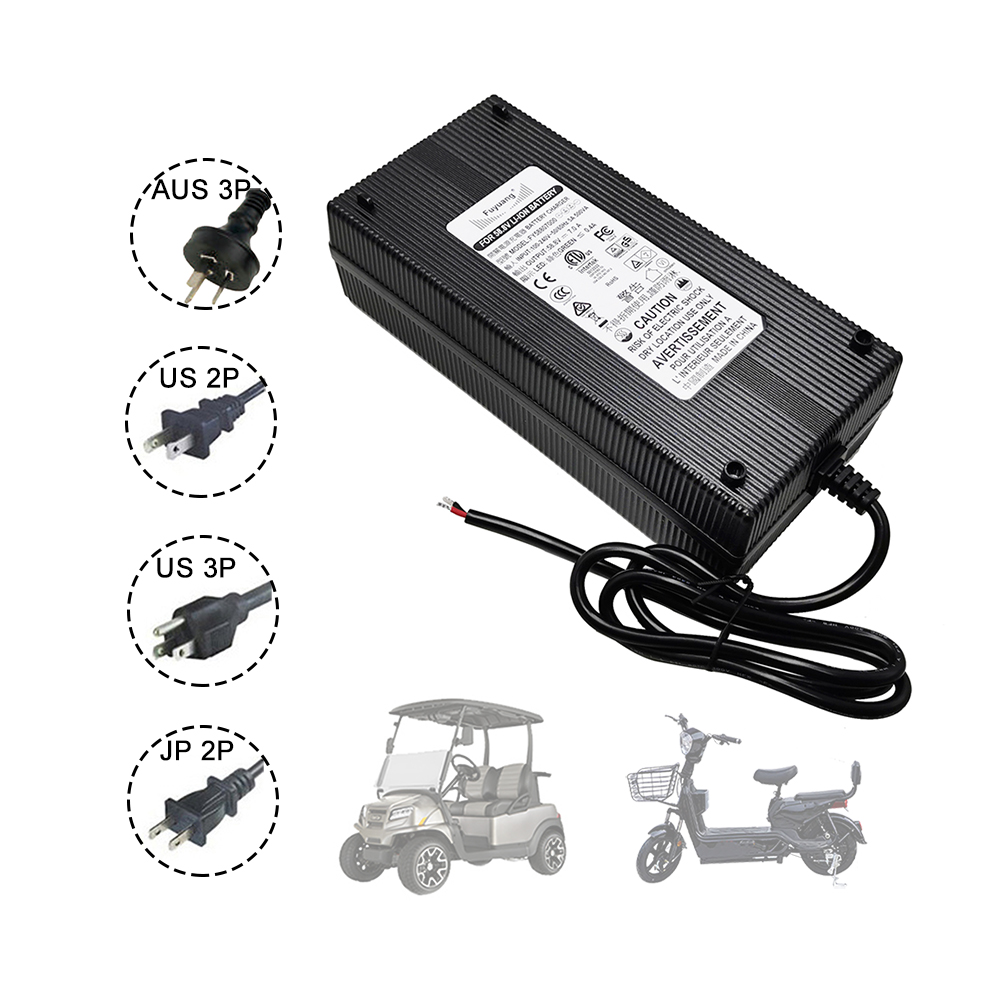

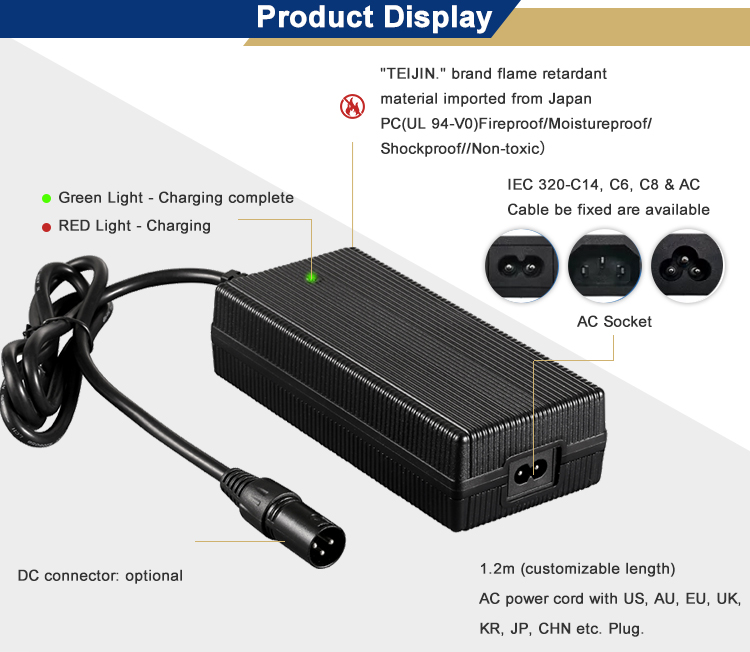

Fuyuang FY5883500 205W 54.6V 2A Lithium Battery Charger for 48V E-bikes, Hoverboards and E-rickshaws

Fuyuang FY5883500 205W 54.6V 2A Lithium Battery Charger for 48V E-bikes, Hoverboards and E-rickshaws

Name: Fuyuang FY5883500 205W 54.6V 2A Lithium Battery Charger for 48V E-bikes, Hoverboards and E-rickshaws
Brand: Fuyuang
Rating: 5.0 (27 reviews)

The Fuyuang FY5883500 is a 205W lithium battery charger with a 54.6V 2A output, designed for 48V packs on electric bikes, hoverboards and electric scooter motors. It draws from a 100-240V/2.5A mains input and is built into a 233*110*70mm PC fireproof housing weighing 1.60KG. Efficiency is above 88%, and short circuit, over-current and over-voltage protection are built in alongside OVP, OTP and OCP functions. The charger is supplied in black or white, and the output rating can be customized for programmes that need a different voltage or current. The charger is manufactured by Fuyuan Electronic Co., Ltd (Fuyuang), a power supply manufacturer founded in 2005 with two production bases in Dongguan and Yongzhou, 108,000 m2 of factory space and 450 employees. More than 3,000 models have been developed across a 60W to 10KW range, and every unit ships with a 3-year warranty.

Model:
FY5883500
Brand:
Fuyuang
Code:
FY5883500


Availability:

Product Overview

The FY5883500 is a 205W charger delivering 54.6V 2A to 48V lithium packs used on e-bikes, hoverboards and electric scooter motors, with a 100-240V/2.5A input and a 233*110*70mm PC fireproof housing. Short circuit, over-current and over-voltage protection plus OVP, OTP and OCP functions protect both charger and pack, and efficiency is above 88%.

Key Features

• 205W power stage with 54.6V 2A output for 48V lithium battery packs • Efficiency above 88% for lower running losses • Short circuit, over-current and over-voltage protection with OVP, OTP and OCP • PC fireproof material housing, 233*110*70mm, 1.60KG • Black or white enclosure • 100-240V/2.5A universal input • Custom output rating available for different pack voltages • Certified for North America, Europe, Korea, Japan and Australia

Technical Specifications

• Model: FY5883500 • Input: 100-240V/2.5A • Output: 54.6V 2A • Output power: 205W (custom available) • Efficiency: >88% • Protection: short circuit, over-current, over-voltage, OVP, OTP, OCP • Dimensions: 233*110*70mm • Weight: 1.60KG • Housing material: PC fireproof material, black or white • Port: DC output • Certification: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric bikes • Hoverboards • Electric scooter motors • 48V lithium battery packs • E-rickshaws • Electric tools

Customization & Service

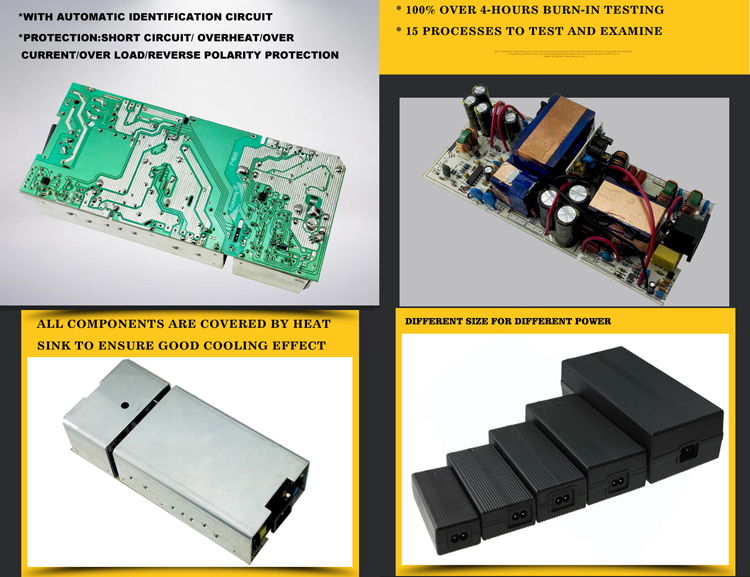

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on the FY5883500 platform. Output voltage and current, AC and DC connectors, cable length, housing, labelling and LOGO printing can all be customized. Engineering work is supported by a CNAS-standard EMC laboratory and an in-house RoHS testing room, so compliance can be screened before formal certification and custom development can be completed in as little as 10 days. This is a private-mould design. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Certifications available for this platform: UL, CUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH.
