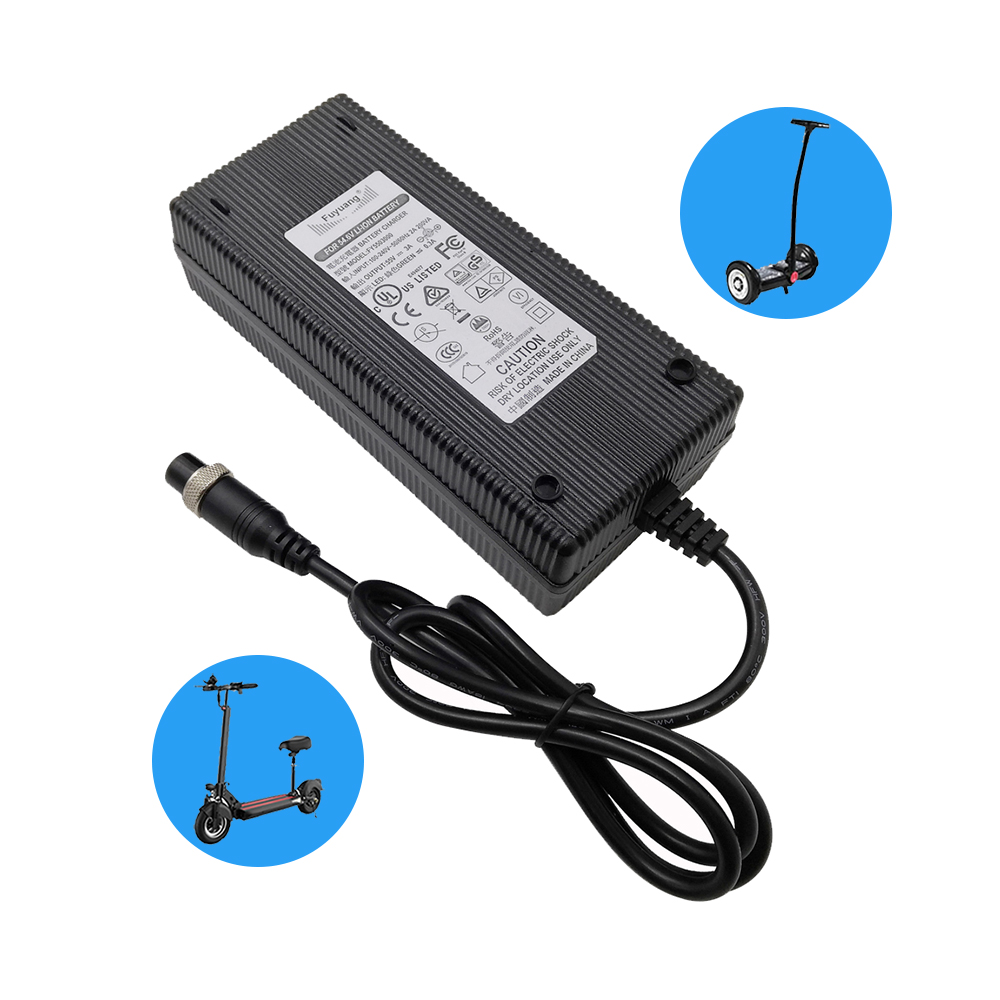

Fuyuang FY4384000 14.6V 10A 120W LiFePO4 Battery Charger for 12V LFP Packs, Electric Vehicles and Industrial Batteries

Fuyuang FY4384000 14.6V 10A 120W LiFePO4 Battery Charger for 12V LFP Packs, Electric Vehicles and Industrial Batteries

Name: Fuyuang FY4384000 14.6V 10A 120W LiFePO4 Battery Charger for 12V LFP Packs, Electric Vehicles and Industrial Batteries
Brand: Fuyuang
Rating: 5.0 (94 reviews)

The Fuyuang FY4384000 is a 14.6V 10A LiFePO4 battery charger rated 120W, built for 4S 12V lithium iron phosphate packs used on electric vehicles, scooters, industrial equipment and household appliances. Input is AC 100-240V 50/60Hz and charging efficiency is 92%, so a 12V LFP pack can be recharged quickly without excessive heat. Protection covers short circuit, overload, over-voltage, over-temperature and over-voltage events, with the charger housing made from PC fireproof material and measuring 178*80*46mm at 0.83kg. The design is produced in a private mold, which makes branding and connector changes straightforward for OEM buyers. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger is certified to UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS and REACH and carries a 3-year warranty.

Model:
FY4384000
Brand:
Fuyuang
Code:
FY4384000


Availability:

Product Overview

The FY4384000 charges 4S 12V LiFePO4 battery packs at 14.6V and 10A, delivering 120W of charging power. It is intended for electric vehicles, scooters, electric tools and industrial battery banks that use lithium iron phosphate chemistry for its cycle life and thermal stability. Charging runs from AC 100-240V 50/60Hz, so a single charger specification works on both 110V and 230V supplies.

Key Features

• 14.6V 10A output for 4S 12V LiFePO4 battery packs • 120W output power with 92% charging efficiency • AC 100-240V 50/60Hz universal input • Short circuit, overload, over-voltage and over-temperature protection • PC fireproof housing, private mold design • Compact 178*80*46mm enclosure weighing 0.83kg • Eco-friendly design with QC2.0 function, DC and AC ports • Certified to UL, cUL, GS, CE, SAA, KC, PSE, CB, FCC, RoHS and REACH

Technical Specifications

• Model: FY4384000 • Part name: 12V 10A battery charger • Input: AC 100-240V 50/60Hz (100-240VAC) • Output: 14.6V 10A • Output voltage: 14.6V • Output power: 120W • Efficiency: 92% • Battery type: standard battery, LiFePO4 12V pack • Dimension: 178*80*46mm, weight 0.83kg • Port: DC output and AC input • Protection: short circuit, overload, over-voltage, over-temperature • Certification: UL, cUL, GS, CE, BS, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric vehicles and light electric vehicles • Scooters and motorcycle battery packs • 12V LiFePO4 battery packs and 4S configurations • Industrial equipment and automation • Electric tools and garden equipment • Household appliances and home security systems

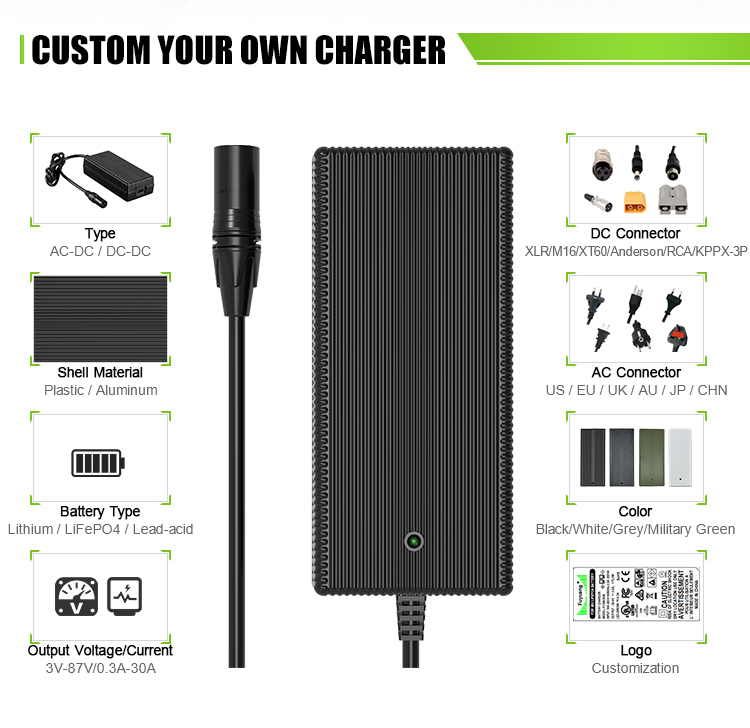

Customization & Service

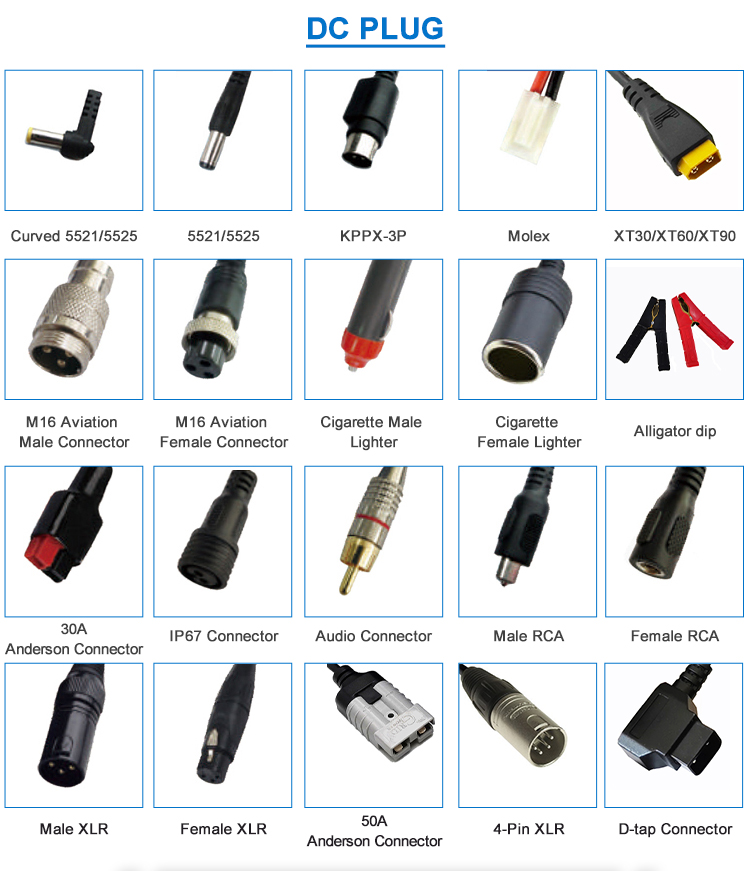

This charger is produced in a private mold and OEM / ODM projects are supported, including custom output voltage and current, DC connector and cable length, housing, private labeling, LOGO printing and packaging. Optional features include reverse-polarity protection, timing protection, pre-charging and automatic shut-off. Every unit is 100% factory inspected with full-load burn-in and carries a 3-year warranty, supported by an in-house CNAS-standard EMC laboratory. Standard MOQ is 100 PCS.
