Fuyuang IP67 Waterproof Battery Charger 12V 24V 36V 48V 72V 2A-8A for Solar System and Marine Use

Fuyuang IP67 Waterproof Battery Charger 12V 24V 36V 48V 72V 2A-8A for Solar System and Marine Use

Name: Fuyuang IP67 Waterproof Battery Charger 12V 24V 36V 48V 72V 2A-8A for Solar System and Marine Use
Brand: Fuyuang
Rating: 5.0 (97 reviews)

The FY2922000 in this configuration is an IP67 waterproof charger rated for 2A, 3A, 5A and 8A charging across 12V, 24V, 36V, 48V and 72V battery systems, making it suitable for solar installations and marine equipment that must survive rain, spray and dust. The core output is 29.2V 2A from a 100-240Vac 50/60Hz input. A fully potted enclosure keeps moisture and dust out, and the charger operates from -20C to +60C. CC-CV-trickle charging with automatic stop is combined with over-voltage, over-current, overload, over-temperature, low-tension and short-circuit protection, and free-air convection cooling means there is no fan to fail or draw in debris. This product is manufactured by Fuyuan Electronic Co., Ltd, established in 2005, with two production bases covering 108,000 m2, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

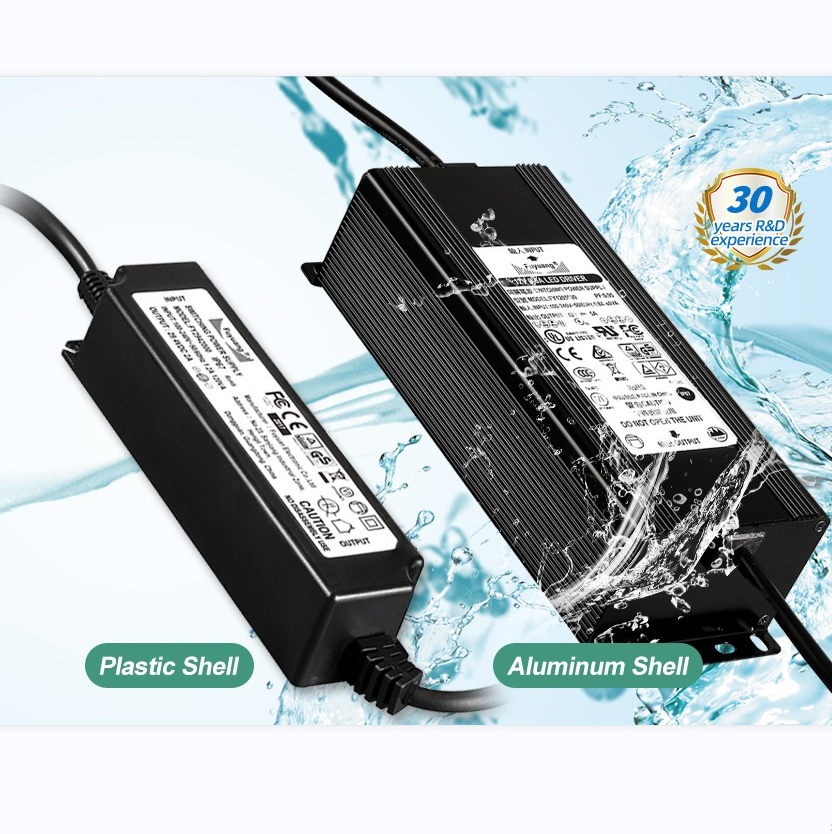

This FY2922000 configuration is an IP67 waterproof charger with 2A, 3A, 5A and 8A output options covering 12V, 24V, 36V, 48V and 72V battery systems. It is designed for solar installations, marine equipment and other outdoor loads that are charged in wet conditions. The core rating is 29.2V 2A from a 100-240Vac 50/60Hz input. The fully potted housing is dustproof and corrosion resistant and the charger operates between -20C and +60C.

Key Features

• IP67 waterproof sealing for outdoor and marine installations • 2A, 3A, 5A and 8A charging options • Covers 12V, 24V, 36V, 48V and 72V battery systems • Fully potted, dustproof and corrosion-resistant construction • Operating temperature range of -20C to +60C • Fanless cooling by free air convection with red/green LED indicator • Protection: over-voltage, over-current, overload, over-temperature, low tension and short circuit • Universal 100-240Vac 50/60Hz input

Technical Specifications

• Model: FY2922000 • Input: 100-240Vac, 50/60Hz • Output: 29.2V 2A • Current options: 2A / 3A / 5A / 8A • Voltage coverage: 12V / 24V / 36V / 48V / 72V • Platform power: 90W / 120W / 150W / 200W / 450W / 600W • Battery compatibility: LiFePO4, lithium-ion, lead-acid • Charge mode: CC-CV-Trickle Charge, stop charge • Ingress protection: IP67 waterproof • Operating temperature: -20C to +60C • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Solar and off-grid battery systems • Marine and boat installations • Outdoor and remote power equipment • Electric fences • Security and camera systems • Industrial outdoor equipment

Customization & Service

Fuyuan Electronic Co., Ltd supports OEM and ODM development on this waterproof platform, including custom output voltage and current, custom DC connectors, private labeling, LOGO printing and custom packaging. A CNAS-standard EMC laboratory is available for pre-compliance testing to help shorten certification timelines. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
