Fuyuang IP67 Waterproof 29.4V 2A Battery Charger for 24V LiFePO4, Marine and Robotics

Fuyuang IP67 Waterproof 29.4V 2A Battery Charger for 24V LiFePO4, Marine and Robotics

Name: Fuyuang IP67 Waterproof 29.4V 2A Battery Charger for 24V LiFePO4, Marine and Robotics
Brand: Fuyuang
Rating: 5.0 (16 reviews)

The Fuyuang FY2942000 is an IP67 waterproof battery charger delivering 29.4V 2A / 58.8W from a 100-240Vac 50/60Hz input. The sealed enclosure is built for marine, outdoor and industrial duty, and output variants include 14.6V 3A, 12.6V 4A, 29.2V 5A, 54.6V 3.5A and 58.4V 2A and 5A. Protection covers over-voltage, over-current, over-temperature, short circuit, timer, auto cutoff and reverse polarity, and a fuse is fitted on both the input and the output side for double-layer safety. The unit is EMI and EMS compliant, fanless with free-air convection cooling, and runs with zero noise. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2942000
Brand:
Fuyuang
Code:
FY2942000


Availability:

Product Overview

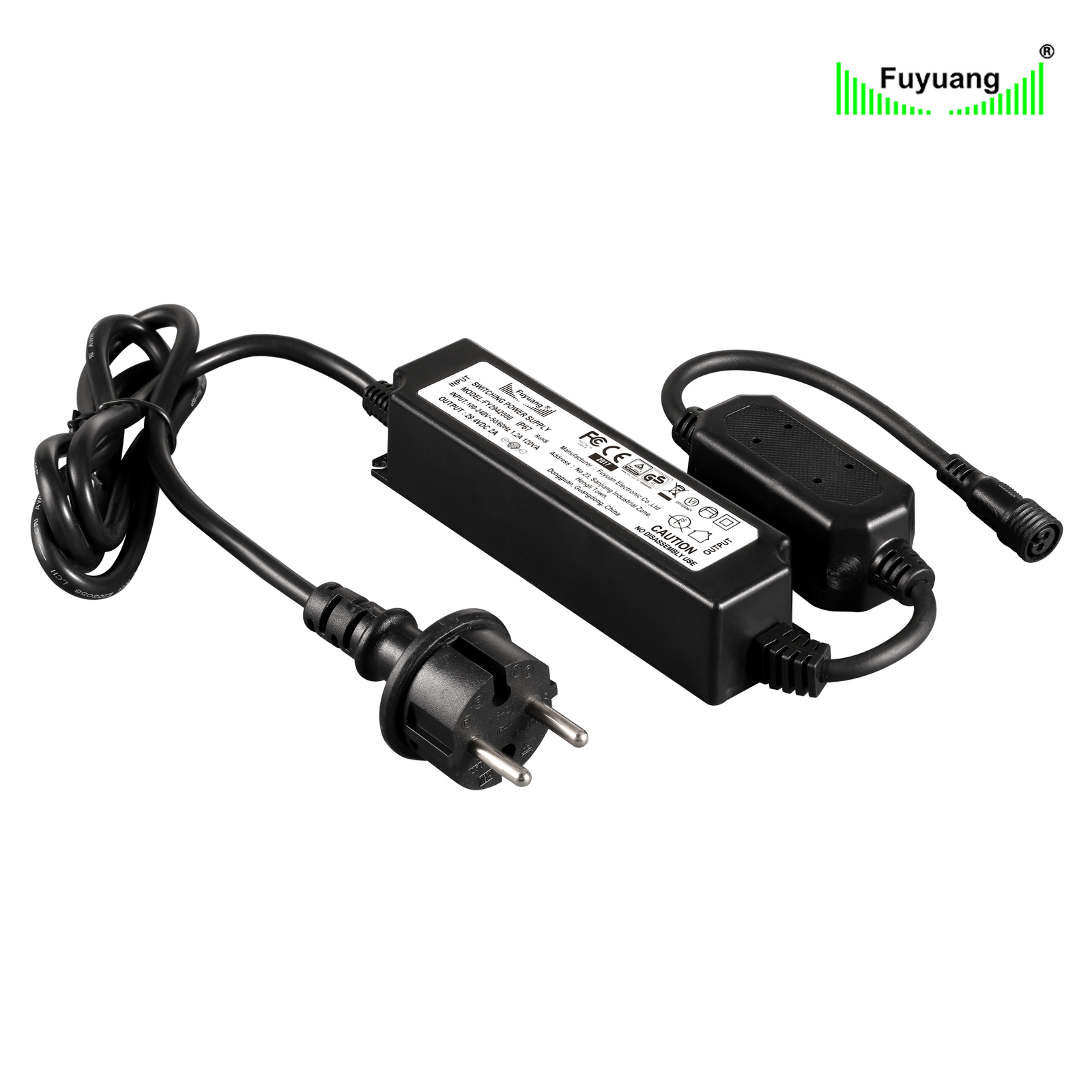

The FY2942000 is a fully sealed IP67 waterproof charger for equipment that works in rain, spray, dust and salt air. It provides 29.4V 2A from a universal 100-240Vac input and charges 24V class LiFePO4, lithium and lead-acid packs. Applications include marine systems, golf carts, robotics, AGV and AMR fleets, medical devices and outdoor power equipment. Power options reach up to 3000W on the platform, and the sealed fanless housing means no fan, no noise and no path for dust or water to enter.

Key Features

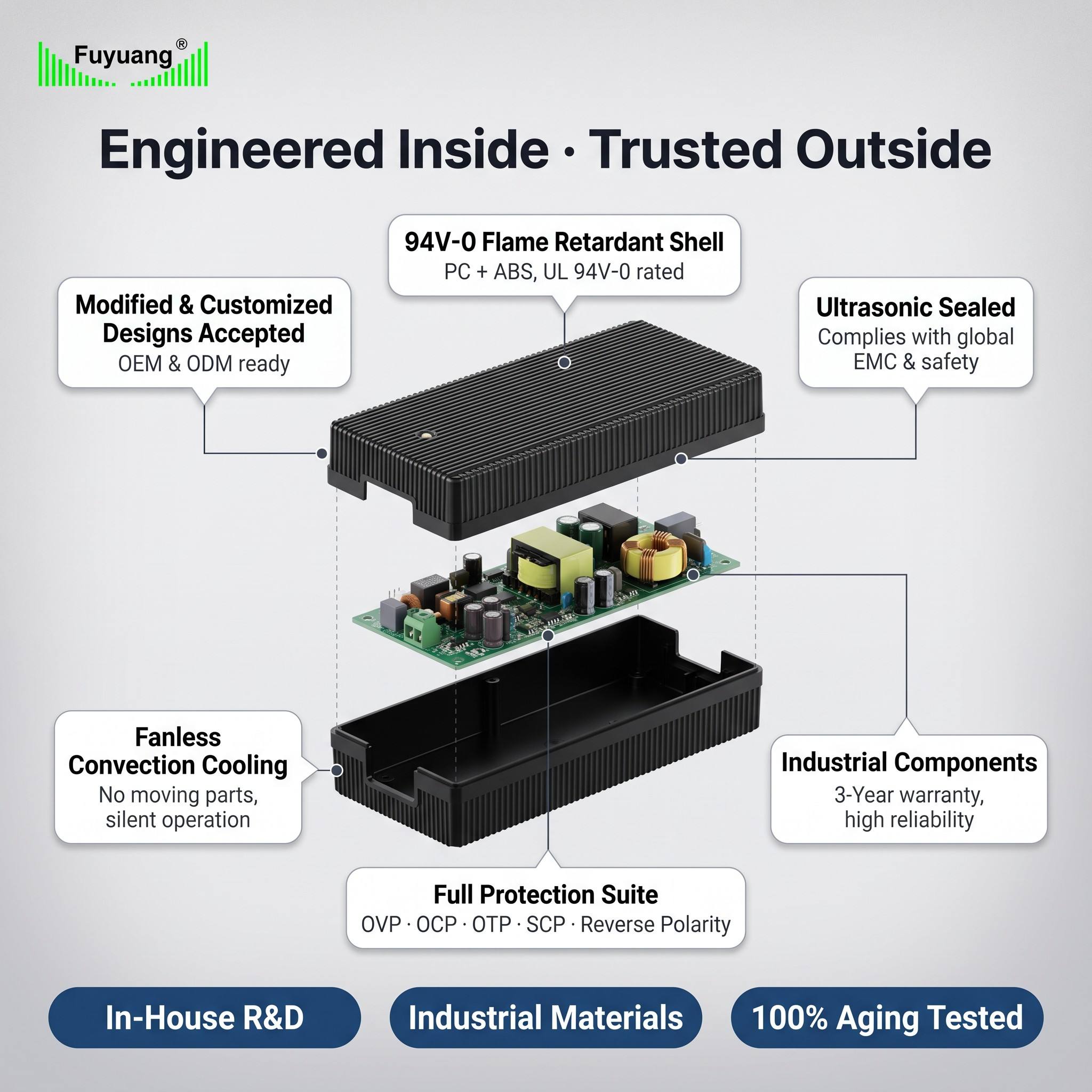

• IP67 waterproof and dustproof sealed enclosure • Fuse on both input and output for double-layer safety • EMI and EMS compliant design • Fanless free-air convection cooling with zero noise • 29.4V 2A / 58.8W output from a 100-240Vac input • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse polarity • Output variants from 12.6V to 58.4V on the same platform • DC connectors: 5525, 5521, XLR, XT60, Anderson, crocodile clip, ring terminal

Technical Specifications

• Model: FY2942000 • Input: AC 100-240Vac, 50/60Hz • Output: 29.4V 2A (58.8W) • Output options: 14.6V 3A / 12.6V 4A / 29.2V 5A / 54.6V 3.5A / 58.4V 2A / 58.4V 5A • Power range: 60W / 120W / 150W / 200W / 300W / 400W / 1200W / 1500W / 3000W • Ingress protection: IP67 waterproof • Battery compatibility: 12V / 24V / 36V / 48V / 60V / 72V / 84V / 96V LiFePO4, lithium and lead-acid • Housing material: ABS, aluminium alloy, PC fireproof material • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse polarity • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

• Marine and boat battery charging • Outdoor and mobile equipment power • Golf carts • Robotics, AGV and AMR • Electric tools • Medical devices • Home security systems • Motorcycles and scooters

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
