Fuyuang IP67 Waterproof 12V 24V 48V LiFePO4 Battery Charger 10A-30A for Motorcycle, Marine, RV and Solar

Fuyuang IP67 Waterproof 12V 24V 48V LiFePO4 Battery Charger 10A-30A for Motorcycle, Marine, RV and Solar

Name: Fuyuang IP67 Waterproof 12V 24V 48V LiFePO4 Battery Charger 10A-30A for Motorcycle, Marine, RV and Solar
Brand: Fuyuang
Rating: 5.0 (20 reviews)

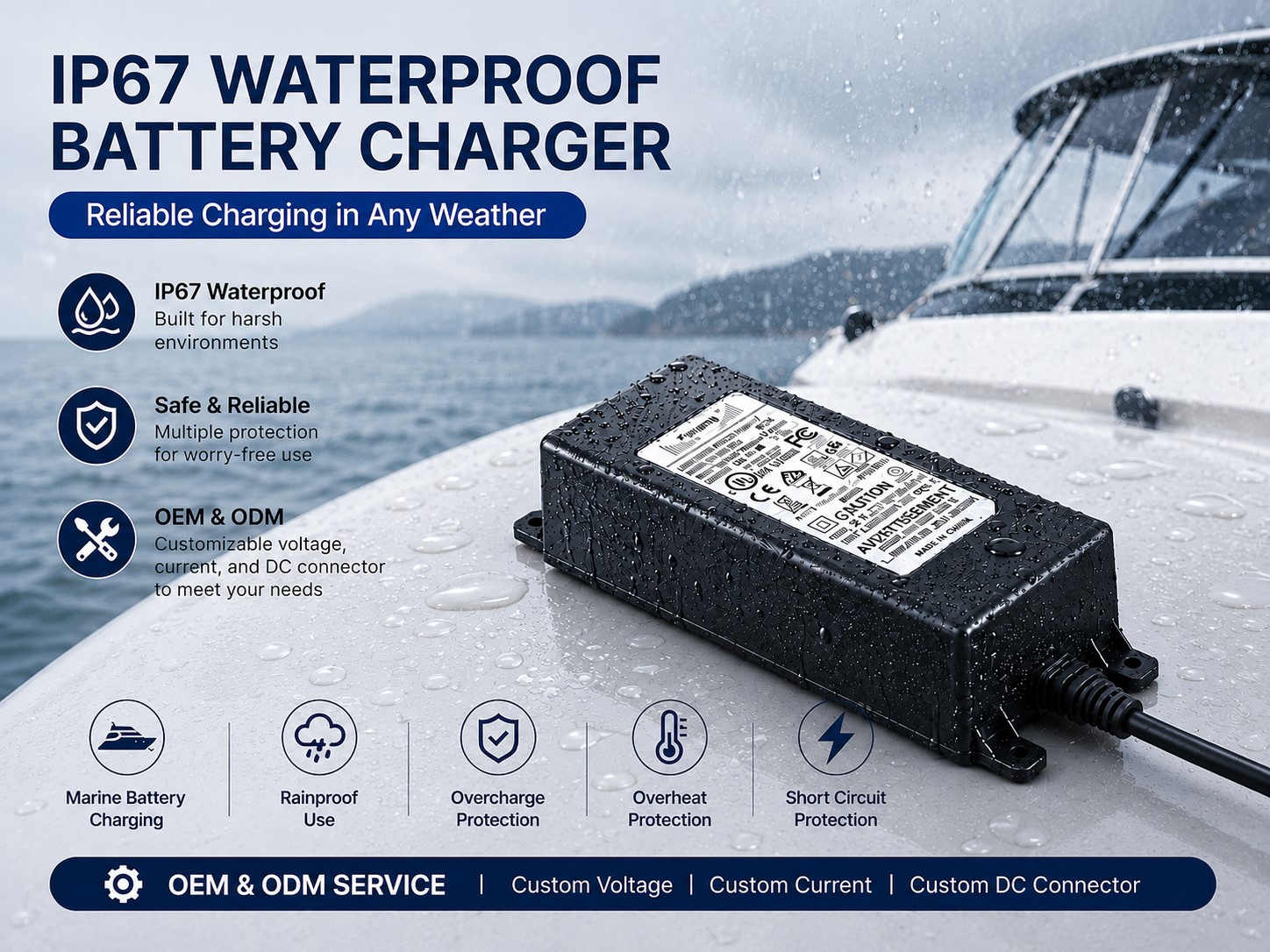

This FY2922000 configuration is a smart IP67 waterproof charger with 10A, 20A and 30A output options for 12V, 24V and 48V LiFePO4 battery packs. It is aimed at motorcycles, marine equipment, RVs and solar systems where the charger is installed in damp or exposed locations. The core rating is 29.2V 2A from a 100-240Vac 50/60Hz input, and the platform covers 12V to 72V systems. A fully potted housing protects the electronics from moisture and dust, and the charger operates across -20C to +60C. Charging uses a CC-CV-trickle profile with automatic stop, backed by over-voltage, over-current, overload, over-temperature, low-tension and short-circuit protection. Fuyuan Electronic Co., Ltd has manufactured power products since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this charger.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

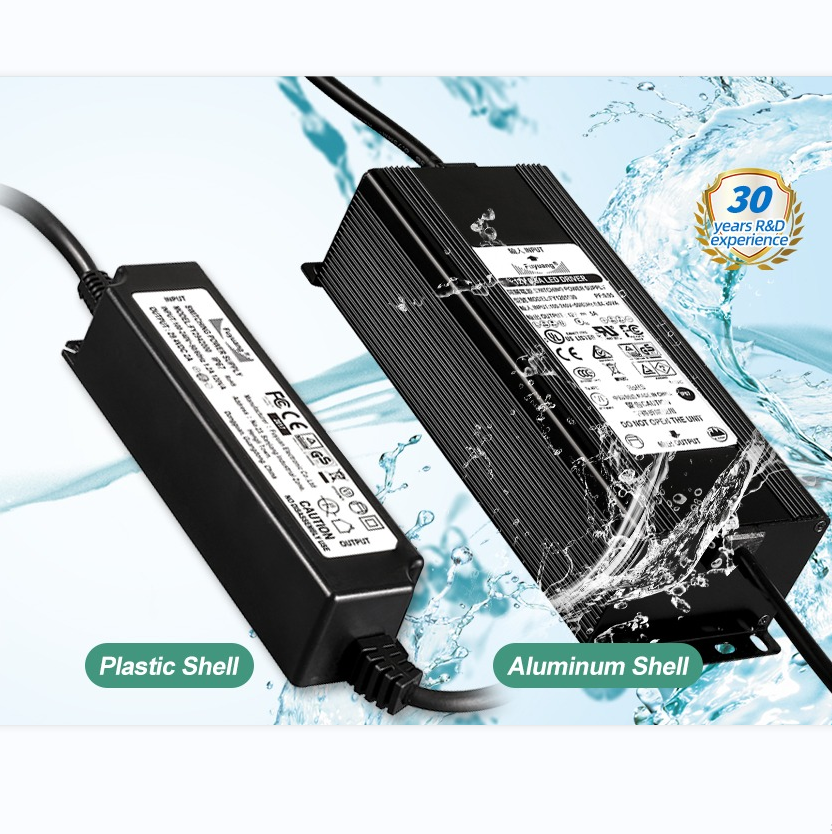

This FY2922000 variant is an IP67 waterproof smart charger offering 10A, 20A and 30A outputs for 12V, 24V and 48V LiFePO4 battery packs. Applications include motorcycles, marine equipment, RVs and solar storage where charging takes place in wet or dusty conditions. The charger provides a 29.2V 2A core rating from 100-240Vac 50/60Hz input and supports 12V to 72V systems. Its potted housing is dustproof and corrosion resistant, with an operating range of -20C to +60C.

Key Features

• IP67 waterproof sealed housing for exposed installations • 10A, 20A and 30A outputs for fast charging of larger packs • Covers 12V, 24V and 48V LiFePO4 battery systems • Fully potted, dustproof and corrosion-resistant construction • Intelligent charging with CC-CV-trickle profile and automatic stop • Operating temperature range of -20C to +60C • Protection: over-voltage, over-current, overload, over-temperature, low tension and short circuit • Universal 100-240Vac 50/60Hz input with red/green LED indicator

Technical Specifications

• Model: FY2922000 • Input: 100-240Vac, 50/60Hz • Output: 29.2V 2A • Current options: 10A / 20A / 30A • Voltage coverage: 12V / 24V / 36V / 48V / 72V • Platform power: 90W / 120W / 150W / 200W / 450W / 600W • Battery compatibility: LiFePO4, lithium-ion, lead-acid • Charge mode: CC-CV-Trickle Charge, stop charge • Ingress protection: IP67 waterproof • Operating temperature: -20C to +60C • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Motorcycle and scooter battery charging • Marine and boat installations • RV and camper battery banks • Solar and off-grid systems • Outdoor industrial equipment • Cameras and security systems

Customization & Service

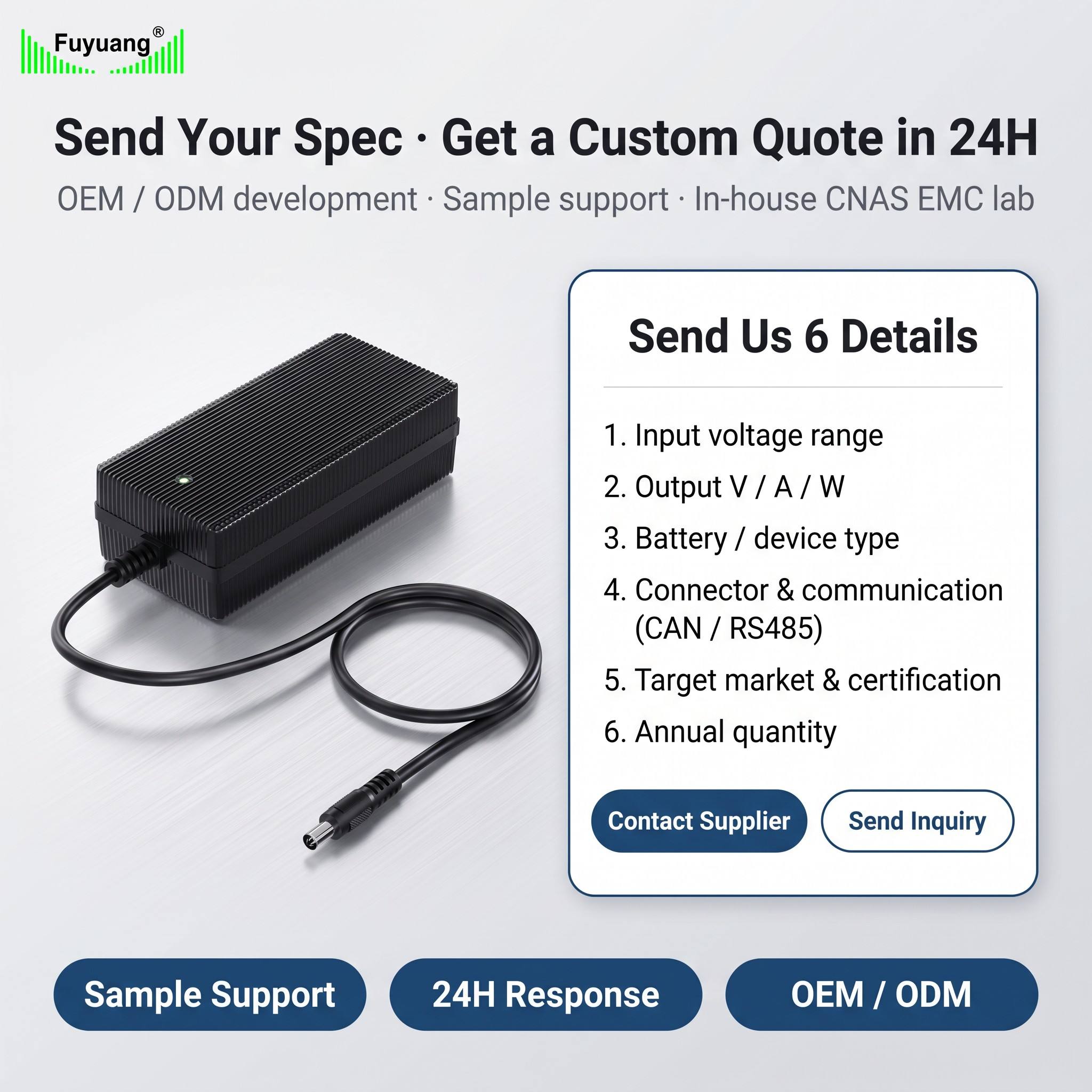

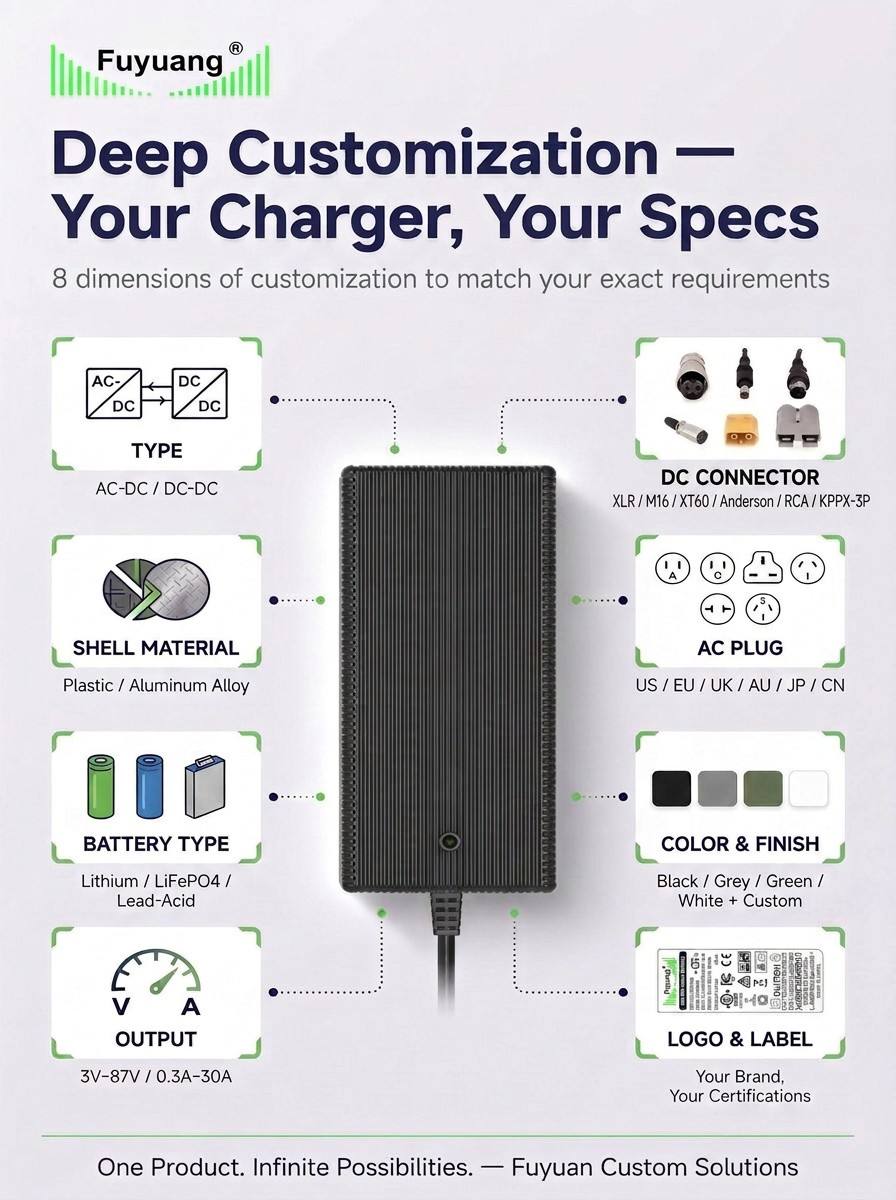

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance testing so certification work can be prepared before formal submission. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
