Name: Fuyuang IP67 48V 25A Smart Battery Charger 1200W for AGV, Marine, Golf Cart and Service Robots
Brand: Fuyuang
Rating: 5.0 (1 reviews)

The Fuyuang FY58400000 is a 1200W IP67 waterproof smart charger for 48V battery systems. It delivers 48V 25A (58.4V 20A) from a 100-240Vac 50/60Hz input with 95% efficiency, and supports LiFePO4 16S packs as well as lithium-ion and lead-acid batteries used in golf carts, AGVs, patrol cars, yachts and floor-care machines. Fast recharge in 2-3 hours extends battery cycle life, while over-current, over-voltage, over-temperature and short-circuit protection with thermal management keep operation safe. Anderson, crocodile, XT60 and XT90 connectors are available, and the sealed aluminium housing measures 273 x 156 x 135 mm. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY58400000
Brand:
Fuyuang
Code:
FY58400000


Availability:

Product Overview

The FY58400000 is a weatherproof 1200W charger designed for 48V battery packs in AGVs, AMRs, automated forklifts, electric patrol cars, sightseeing buggies, marine trolling motors and floor scrubbers. It provides 48V 25A output at 95% efficiency with full protection and thermal management. A sealed IP67 enclosure allows outdoor and wet-area charging, and the charger can be configured with Anderson, XT60, XT90, crocodile or custom connectors.

Key Features

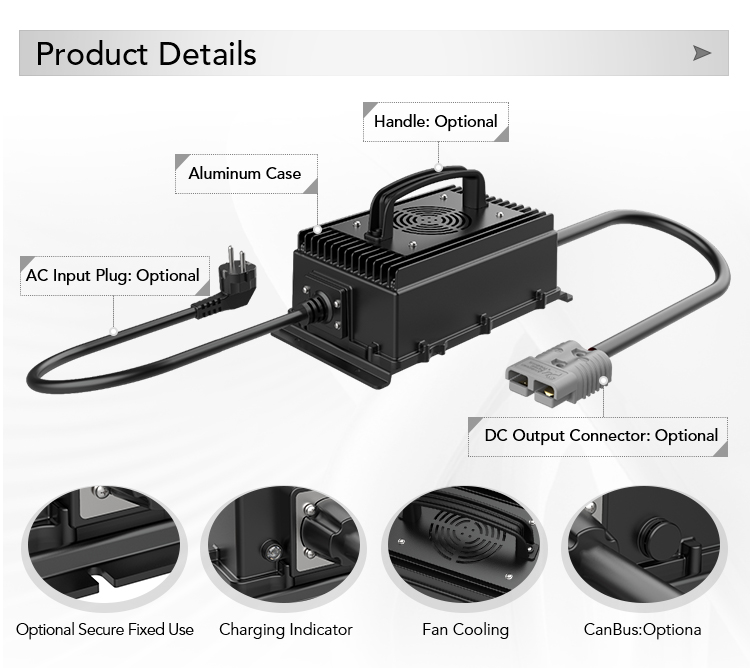

• IP67 waterproof and dustproof construction for outdoor charging • 1200W high power output with thermal protection • 48V 25A output, equivalent to 58.4V 20A charging for 16S LiFePO4 packs • 95% charging efficiency • Fast recharge in 2-3 hours, extending battery cycle life • Suitable for LiFePO4, lithium-ion and lead-acid batteries • Protection: OCP, OVP, OTP, SCP • DC connectors: Anderson, crocodile, XT60, XT90, customizable

Technical Specifications

• Model: FY58400000 • Product: IP67 1200W high efficiency battery charger • Input: 100-240Vac 50/60Hz • Output: 48V 25A / 58.4V 20A (1168W) • Output power: 1200W (platform covers 60W to 1200W) • Efficiency: 95%; charging characteristic CC/CV • Protection: OCP, OVP, OTP, SCP • Size: 273*156*135 mm; colour black • Housing: sealed IP67 enclosure • Certification: CE, FCC, RoHS, UKCA, UL, SAA, KC, PSE • MOQ: 10 PCS

Applications

• AGVs, AMRs and automated forklifts • Golf carts and club carts • Marine, yacht and trolling motor batteries • Robots and drones • Electric patrol cars and sightseeing buggies • Floor scrubbers, sweepers and carpet cleaners • Solar storage and UPS backup systems

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 10 PCS. Certifications held on this platform include CE, FCC, RoHS, UKCA, UL, SAA, KC and PSE.
