Fuyuang Fanless 29.2V 20A LiFePO4 Battery Charger 584W for 8S 24V Robot, Drone and Scooter Packs

Fuyuang Fanless 29.2V 20A LiFePO4 Battery Charger 584W for 8S 24V Robot, Drone and Scooter Packs

Name: Fuyuang Fanless 29.2V 20A LiFePO4 Battery Charger 584W for 8S 24V Robot, Drone and Scooter Packs
Brand: Fuyuang
Rating: 5.0 (78 reviews)

The Fuyuang FY29220000 is a fanless 584W LiFePO4 battery charger rated 29.2V 19A/20A for 8S 24V battery packs. It runs from a 100-240V 50-60Hz input at 95% efficiency and uses a CC-CV-float charge / cut-off profile to protect battery cycle life. The unit measures 268 x 135 x 68.5 mm and weighs 2.5 kg, with a flame-retardant PC case and automatic identification circuitry. Protection covers over-load, over-voltage, over-temperature, short circuit, reverse polarity, timing, automatic shut-off and pre-charge, and typical users include search and rescue robots, firefighting robots, AGVs, AMRs, drones, delivery robots and service robots. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY29220000
Brand:
Fuyuang
Code:
FY29220000


Availability:

Product Overview

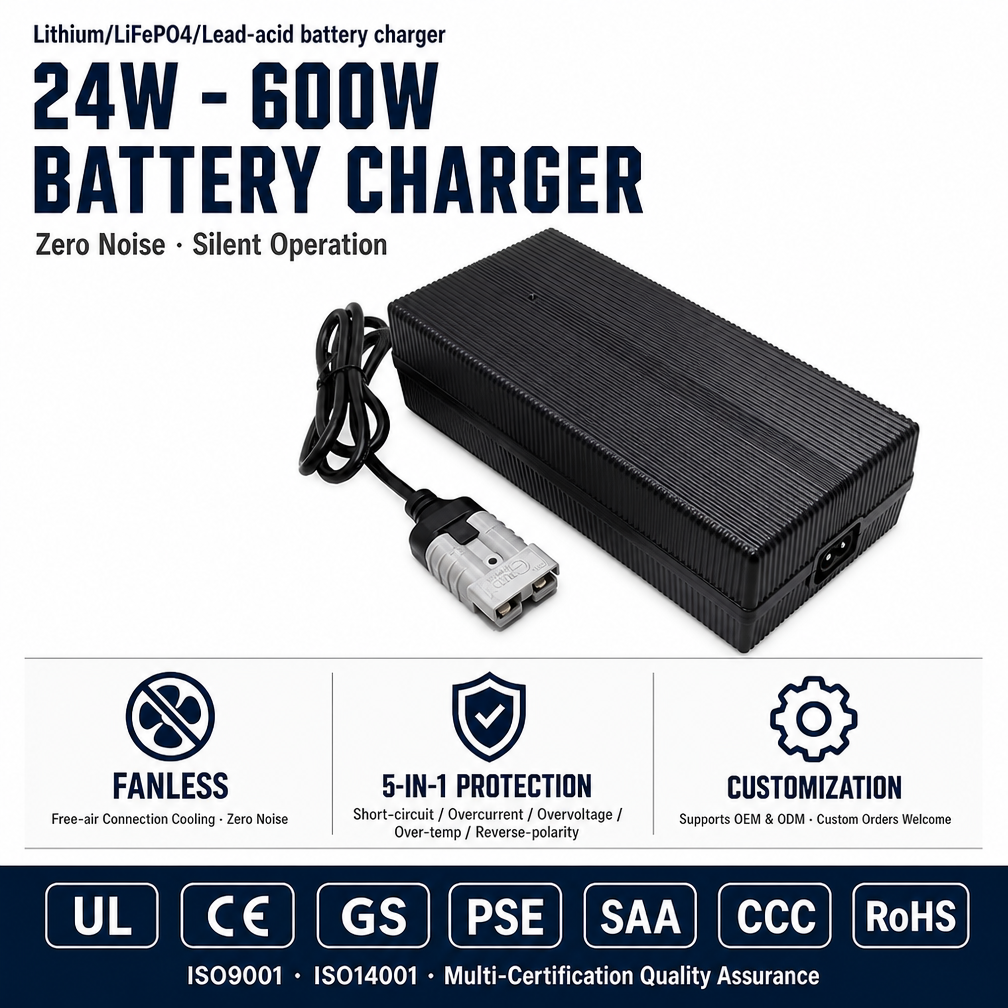

The FY29220000 is a 584W charger for 8S 24V LiFePO4 packs, delivering 29.2V 19A/20A. It is used by robot, drone and scooter manufacturers as well as in medical and industrial equipment. Fanless convection cooling removes the fan from the design, so there is no noise and no dust drawn into the electronics. The plastic flame-retardant case measures 268 x 135 x 68.5 mm and weighs 2.5 kg.

Key Features

• 29.2V 19A/20A output, 584W, for 8S 24V LiFePO4 packs • Charge mode: CC-CV-float charge / cut-off • 95% efficiency with fanless free-air convection cooling • Automatic identification circuit for safe connection • Protection: over-load, over-voltage, over-temperature, short circuit, reverse polarity, timing, automatic shut-off and pre-charge • Flame-retardant 94-V0 PC case; colour black or customized • Compact size 268 x 135 x 68.5 mm, 2.50 kg per piece • 3-year warranty with 4-8 hours full-load burn-in

Technical Specifications

• Model: FY29220000 • Product: 24V LiFePO4 battery charger 20A 29.2V for robot and drone • Input: 100-240V 50-60Hz • Output: 29.2V 19A / 29.2V 20A (584W) • Charge mode: CC-CV-float charge / cut-off • Efficiency: 95%; cooling: fanless free-air convection • Size: 268*135*68.5 mm; weight 2.50 kg per piece • Protection: short circuit, overload, over-voltage, over-temperature • Certification: UL, FCC, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, KC, CCC • MOQ: 100 PCS

Applications

• Search and rescue and firefighting robots • AGVs, AMRs and delivery robots • Drones and unmanned aerial vehicles • Electric scooters and e-bikes • Medical devices • Household appliances, smart watches and security systems

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include UL, FCC, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, KC and CCC.
