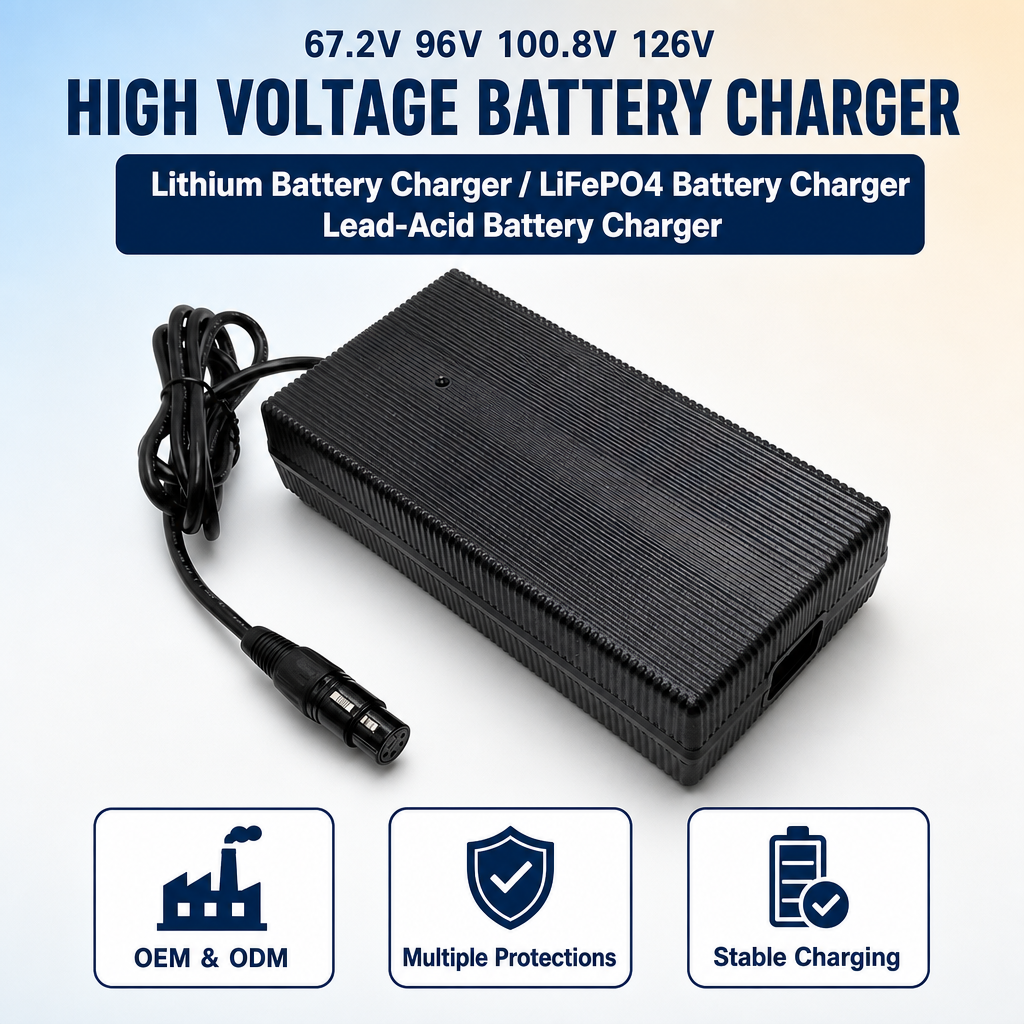

Fuyuang FY6727000 Custom 84V-126V High Voltage Lithium LiFePO4 Battery Charger 2A-10A for Robot, Drone and Industrial Packs

Fuyuang FY6727000 Custom 84V-126V High Voltage Lithium LiFePO4 Battery Charger 2A-10A for Robot, Drone and Industrial Packs

Name: Fuyuang FY6727000 Custom 84V-126V High Voltage Lithium LiFePO4 Battery Charger 2A-10A for Robot, Drone and Industrial Packs
Brand: Fuyuang
Rating: 5.0 (41 reviews)

This Fuyuang FY6727000 configuration covers high voltage lithium and LiFePO4 battery systems at 84V, 88.2V, 96V, 100.8V and 126V, with output current from 2A to 10A. It is intended for equipment where pack voltage is high but installation space and noise limits are tight, such as robots, drones, industrial machines and large traction batteries. A CC-CV-trickle charging profile brings the pack to full charge and then holds it without overcharging, and the charger protects itself and the battery against short circuit, overload, over-voltage and over-temperature conditions. A red / green indicator reports charging status, and the fanless cabinet cools by free air convection so no dust is pulled through the electronics. Fuyuan Electronic Co., Ltd has manufactured chargers and power supplies since 2005, operating two production bases with 108,000 m2 of floor space and 450 employees. The product is covered by a 3-year warranty.

Model:
FY6727000
Brand:
Fuyuang
Code:
FY6727000


Availability:

Product Overview

The FY6727000 high voltage variant is built for lithium and LiFePO4 packs at 84V, 88.2V, 96V, 100.8V and 126V. Output current is configurable between 2A and 10A, so the same charger family can serve a small robot pack and a large industrial battery bank. The charger accepts 100-240Vac 50/60Hz worldwide, and its cabinet design scales from 90W to 3000W outputs depending on the configuration ordered.

Key Features

• Designed for 84V, 88.2V, 96V, 100.8V and 126V battery systems • Output current adjustable from 2A to 10A to suit pack capacity • Power configurations from 90W to 3000W • 100-240Vac 50-60Hz wide range AC input • CC-CV-trickle charge mode with stop-charge endpoint • Charging efficiency higher than 89% • Fanless free-air convection cooling, no fan noise or dust intake • Short circuit, overload, over-voltage and over-temperature protection

Technical Specifications

• Model: FY6727000 • Input: 100-240Vac, 50-60Hz • Output: 67.2V 7A standard setting, custom voltages available • High voltage configurations: 84V / 88.2V / 96V / 100.8V / 126V • Current configurations: 2A / 3A / 5A / 8A / 10A • Power range: 90W / 120W / 150W / 200W / 450W / 600W / 3000W • Battery type: lithium-ion, LiFePO4 • Charging mode: CC-CV-trickle charge / stop charge • Housing: PC fireproof material, 94-V0 rated • Protection: OVP, OTP, OLP, overcurrent, overvoltage, short circuit • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Industrial and service robots • Drones and UAV battery systems • High voltage e-bike and e-scooter packs • AGV and AMR traction batteries • Energy storage and portable power stations • Battery pack production and test equipment

Customization & Service

OEM and ODM customisation covers output voltage, output current, DC connector, cable length, housing, indicator behaviour, private labeling, LOGO printing and packaging. Optional functions include reverse-polarity protection, timer charging, anti-spark, pre-charging and automatic shut-off, with CAN 2.0 / RS485 available for fleet integration. All units pass 100% factory inspection and full-load burn-in, and this charger carries a 3-year warranty. Standard MOQ is 100 PCS.
