Fuyuang FY6727000 Custom 72V-126V Lithium LiFePO4 Battery Charger, 2A to 10A High Power Charger for E-bike, AGV and Drone Packs

Fuyuang FY6727000 Custom 72V-126V Lithium LiFePO4 Battery Charger, 2A to 10A High Power Charger for E-bike, AGV and Drone Packs

Name: Fuyuang FY6727000 Custom 72V-126V Lithium LiFePO4 Battery Charger, 2A to 10A High Power Charger for E-bike, AGV and Drone Packs
Brand: Fuyuang
Rating: 5.0 (7 reviews)

The Fuyuang FY6727000 custom charger is configured for higher voltage lithium and LiFePO4 packs in the 72V to 126V range, with output current selectable from 2A up to 10A. Typical factory settings include 67.2V 7A, and the same platform is built against 68V, 72V, 73V, 84V, 88.2V, 96V, 100.8V and 126V requirements. Because the charger is a configurable design, buyers specify output voltage and current, DC connector, cable and housing to match an existing battery pack or charging port. A CC-CV-trickle charge profile with stop-charge endpoint, red / green status indicator and full protection set keep high voltage packs charged safely, while the fanless enclosure avoids fan wear in dusty or mobile installations. Fuyuan Electronic Co., Ltd has been manufacturing chargers since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger is covered by a 3-year warranty.

Model:
FY6727000
Brand:
Fuyuang
Code:
FY6727000


Availability:

Product Overview

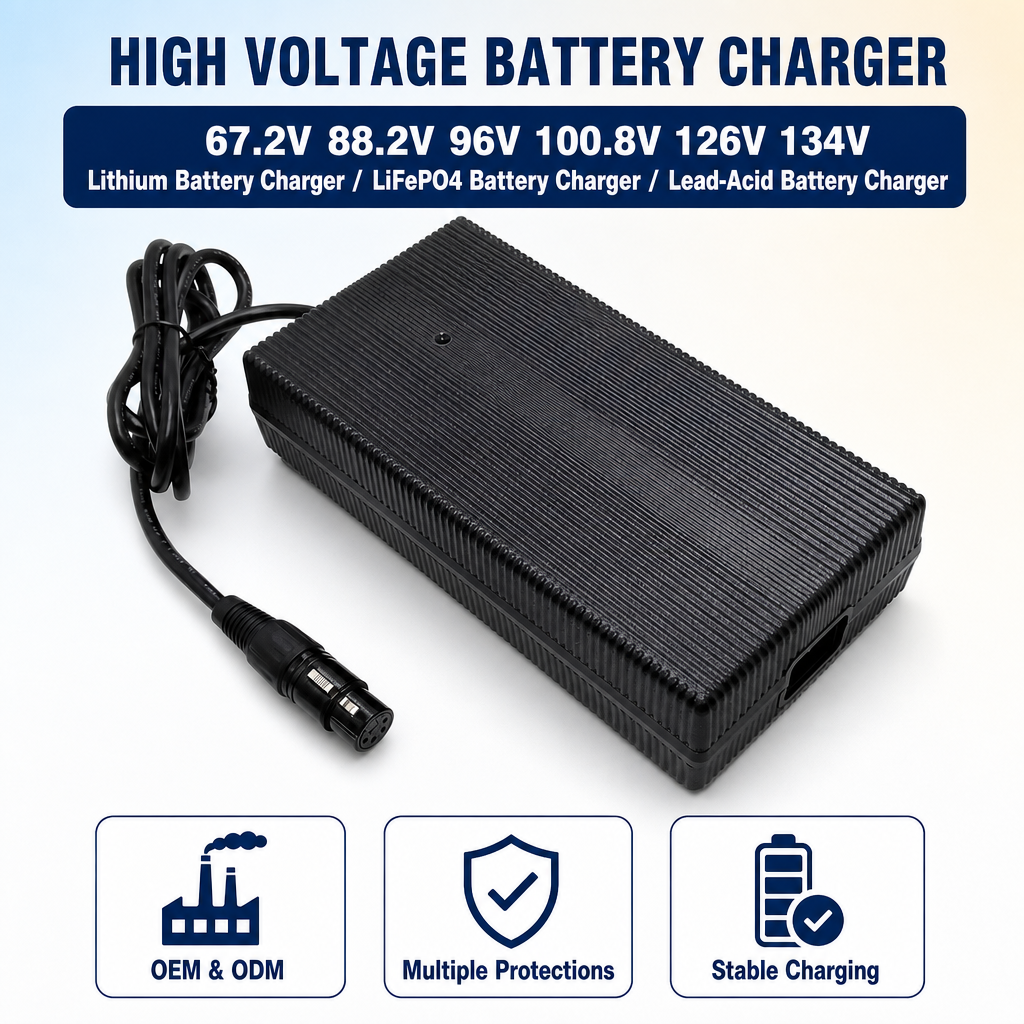

This FY6727000 configuration targets high voltage lithium and LiFePO4 packs from 72V to 126V, with 2A to 10A output current. Higher voltage packs are common on performance e-bikes, e-scooters, drones and industrial AGV platforms, and the charger is built to match those pack voltages rather than forcing a compromise. The 100-240Vac 50/60Hz input and a cabinet that scales from 90W to 3000W let one design family serve both small packs and large traction batteries.

Key Features

• Configurable outputs for 72V to 126V battery systems • Output current selectable from 2A to 10A • Power configurations from 90W up to 3000W • 100-240Vac 50-60Hz universal input • CC-CV-trickle charge mode with stop-charge endpoint • Charging efficiency higher than 89% • Fanless free-air convection cooling in a 94-V0 flame-retardant PC housing • Full protection set with red / green LED status indicator

Technical Specifications

• Model: FY6727000 • Input: 100-240Vac, 50-60Hz • Output: 67.2V 7A standard configuration • Voltage configurations: 67.2V / 68V / 72V / 73V / 84V / 88.2V / 96V / 100.8V / 126V (custom) • Current configurations: 2A / 3A / 5A / 8A / 10A (custom) • Power range: 90W / 120W / 150W / 200W / 450W / 600W / 3000W • Battery type: lithium-ion, LiFePO4 • Charging mode: CC-CV-trickle charge / stop charge • Charging efficiency: higher than 89% • Protection: short circuit, overload, over-voltage, over-temperature, overcurrent • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• High voltage e-bike and e-moped battery packs • Electric scooters and light electric vehicles • Drone and UAV battery systems • AGV and AMR traction batteries • Robotics and electric tool packs • Industrial battery pack assembly

Customization & Service

Fuyuan Electronic Co., Ltd builds this model to order: output voltage, output current, DC connector type, cable length, housing colour, indicator logic, branding and packaging are all specified by the buyer. Optional functions include reverse-polarity protection, timing protection, anti-spark, pre-charging, automatic shut-off and CAN 2.0 / RS485 communication. Engineering support comes from an in-house CNAS-standard EMC laboratory, allowing EMC and RoHS screening ahead of certification. Every unit is 100% factory inspected with full-load burn-in and the product carries a 3-year warranty. Standard MOQ is 100 PCS.
