Fuyuang FY6727000 Custom 67.2V 7A Lithium / LiFePO4 Battery Charger, 90W-3000W High Power Charger for E-bike, Scooter and Robot

Fuyuang FY6727000 Custom 67.2V 7A Lithium / LiFePO4 Battery Charger, 90W-3000W High Power Charger for E-bike, Scooter and Robot

Name: Fuyuang FY6727000 Custom 67.2V 7A Lithium / LiFePO4 Battery Charger, 90W-3000W High Power Charger for E-bike, Scooter and Robot
Brand: Fuyuang
Rating: 5.0 (91 reviews)

The Fuyuang FY6727000 is a custom lithium / LiFePO4 battery charger built around a 67.2V 7A output, with a power range that scales from 90W up to 3000W depending on the configuration requested. Input is 100-240Vac 50-60Hz, and the platform covers 16S 60V class packs through to higher voltage battery systems for e-bikes, e-scooters, drones, electric tools and robots. Charging runs a CC-CV-trickle profile with a stop-charge endpoint, and the charger carries short circuit, overload, over-voltage and over-temperature protection with a red / green status indicator. The fanless PC fireproof housing cools by free air convection, keeping noise and dust out of the enclosure. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models spanning 60W to 10KW. This charger carries a 3-year warranty.

Model:
FY6727000
Brand:
Fuyuang
Code:
FY6727000


Availability:

Product Overview

The FY6727000 is a custom lithium and LiFePO4 battery charger based on a 67.2V 7A output, which suits 16S 60V class lithium packs. Because the platform is configurable, the same mechanical design can be set to different voltages and currents and scaled across a 90W to 3000W power band. It is aimed at e-bikes, e-scooters, drones, electric tools and robots, where one supplier covering several pack voltages simplifies sourcing and spares.

Key Features

• 67.2V 7A output for 16S 60V class lithium and LiFePO4 packs • Configurable power range from 90W to 3000W • 100-240Vac 50-60Hz universal AC input • CC-CV-trickle charge mode with stop-charge endpoint • Charging efficiency higher than 89% • Fanless design, cooling by free air convection • Short circuit, overload, over-voltage and over-temperature protection • Red / green LED indicator, 94-V0 flame-retardant PC housing

Technical Specifications

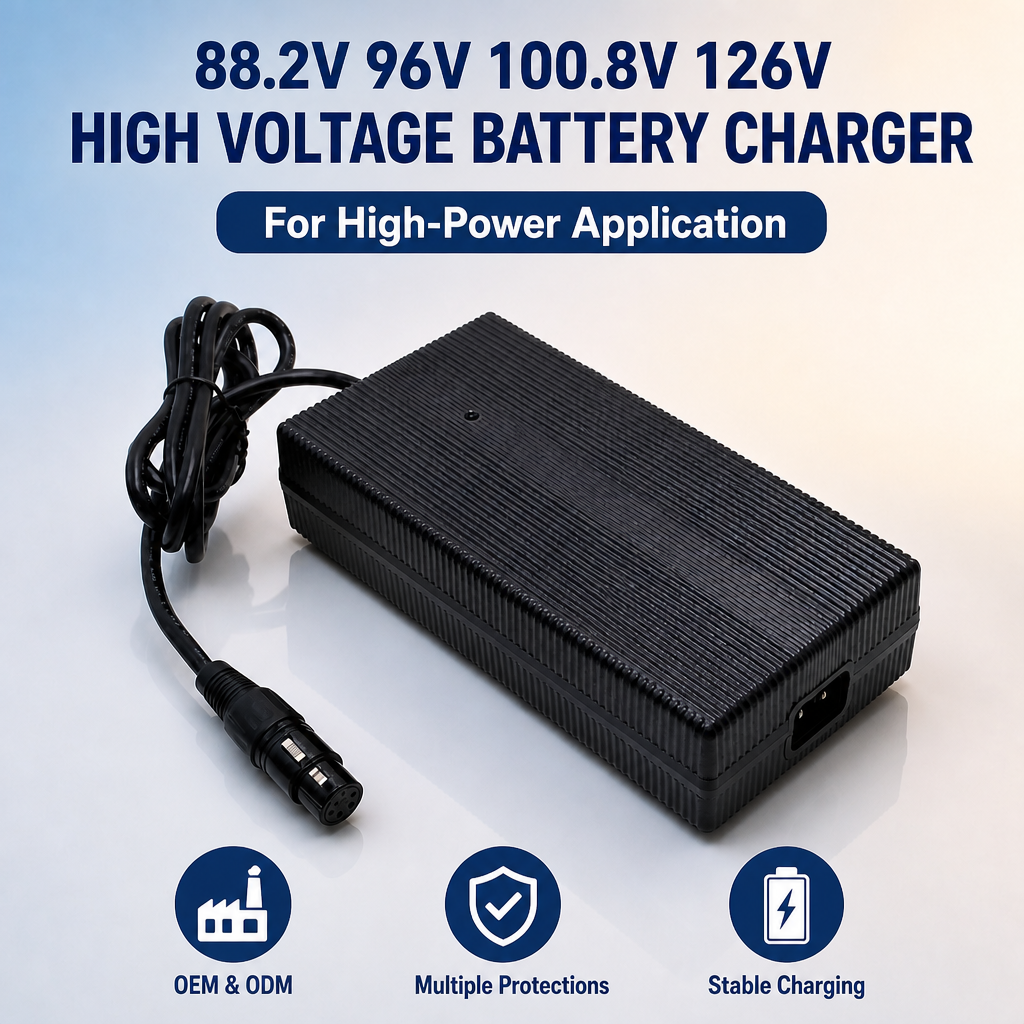

• Model: FY6727000 • Input: 100-240Vac, 50-60Hz • Output: 67.2V 7A • Power range: 90W / 120W / 150W / 200W / 450W / 600W / 3000W (custom) • Voltage configurations: 67.2V / 68V / 72V / 73V / 84V / 88.2V / 96V / 100.8V / 126V (custom) • Battery type: lithium-ion, LiFePO4 • Charging mode: CC-CV-trickle charge / stop charge • Charging efficiency: higher than 89% • DC port: DC output connector, customisable • Protection: short circuit, overload, over-voltage, over-temperature, OVP, OTP, OLP, overcurrent • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric bicycles and high-voltage e-bike packs • Electric scooters and light electric vehicles • Drones and UAV battery packs • Service and logistics robots • Electric power tools • Industrial battery packs and test benches

Customization & Service

This model is a customisation platform: output voltage, output current, DC connector, cable length, housing, indicator behaviour, branding and packaging can all be specified. OEM and ODM projects are supported, with input and output fuses, reverse-polarity protection, timer charging and auto cutoff available as options. Designs are screened in a CNAS-standard EMC laboratory before certification, units are 100% factory inspected with full-load burn-in, and the product carries a 3-year warranty. Standard MOQ is 100 PCS.
