Fuyuang FY5845000 29.2V 58.4V LiFePO4 / Lithium Battery Charger 90W-600W for AGV, Cleaning Robot, Forklift, Mobility Scooter

Fuyuang FY5845000 29.2V 58.4V LiFePO4 / Lithium Battery Charger 90W-600W for AGV, Cleaning Robot, Forklift, Mobility Scooter

Name: Fuyuang FY5845000 29.2V 58.4V LiFePO4 / Lithium Battery Charger 90W-600W for AGV, Cleaning Robot, Forklift, Mobility Scooter
Brand: Fuyuang
Rating: 5.0 (52 reviews)

The Fuyuang FY5845000 is a desktop charger family for lithium, LiFePO4 and lead-acid (AGM / gel) battery packs, with 100-240Vac 50/60Hz input and outputs covering 29.2V 10A through 58.4V 5A and 50.4V 5A, in a 90W to 600W power band. It is designed for machines that are charged every day: cleaning robots, AGVs, electric forklifts, mobility scooters and wheelchairs. Charging uses a CC-CV-trickle profile with a stop-charge endpoint, so the pack reaches full capacity and then stops instead of being held at voltage. Short circuit, overload, over-voltage and over-temperature protection are built in, and a red / green indicator shows charging and complete status at a glance. Cooling is fanless by free air convection, keeping noise and dust out of the enclosure. Fuyuan Electronic Co., Ltd has manufactured battery chargers since 2005, operating 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger carries a 3-year warranty.

Model:
FY5845000
Brand:
Fuyuang
Code:
FY5845000


Availability:

Product Overview

The FY5845000 is a smart charger platform for lithium, LiFePO4 and lead-acid (AGM / gel) batteries used in cleaning robots, AGVs, electric forklifts, mobility scooters and electric wheelchairs. It accepts a 100-240Vac 50/60Hz input and covers a 90W to 600W output band, with common settings such as 29.2V 10A, 29.4V 10A, 50.4V 5A, 54.6V 5A, 58.4V 5A and 58.8V 5A. Because the same platform spans 24V, 48V and higher pack voltages, fleet operators can standardise on one charger family instead of mixing models from several suppliers.

Key Features

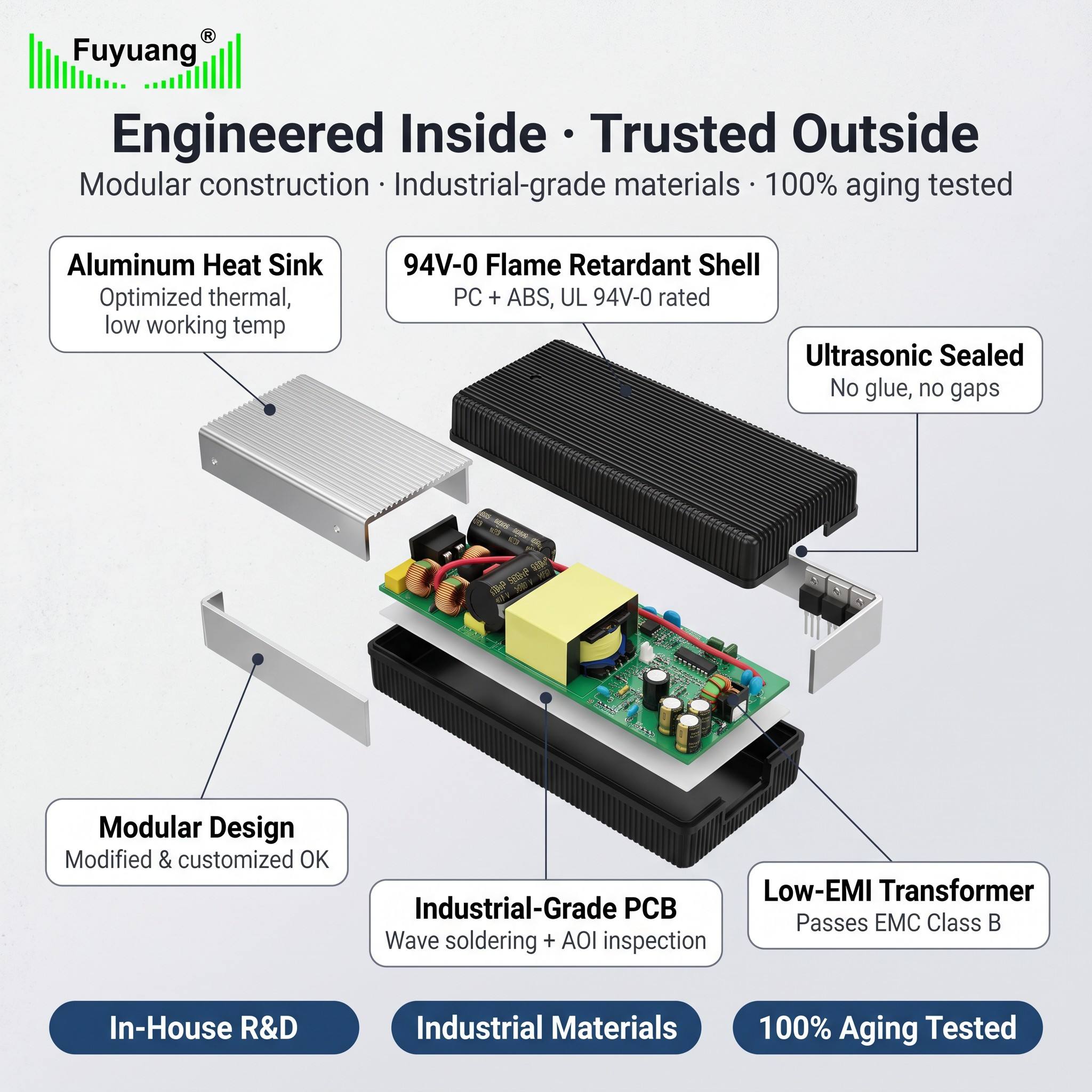

• Input: 100-240Vac 50-60Hz universal AC input • Multi-chemistry support: lithium, LiFePO4, lead-acid, AGM and gel packs • CC-CV-trickle charge mode with stop-charge endpoint • Outputs from 29.0V 10A to 58.8V 5A across a 90W-600W power range • Charging efficiency better than 89% • Fanless design, cooling by free air convection • Short circuit, overload, over-voltage and over-temperature protection • Red / green LED charging indicator and 94-V0 flame-retardant housing

Technical Specifications

• Model: FY5845000 • Input: 100-240Vac, 50-60Hz • Output options: 29.0V 10A / 29.2V 10A / 29.4V 10A / 50.4V 4A / 50.4V 4.5A / 50.4V 5A • Output options (continued): 54.6V 5A / 58.4V 4A / 58.4V 5A / 58.8V 4A / 58.8V 4.5A / 58.8V 5A • Power range: 90W / 120W / 150W / 200W / 450W / 600W • Battery type: lithium, LiFePO4, lead-acid (AGM / gel) • Charging mode: CC-CV-trickle charge / stop charge • Charging efficiency: better than 89% • DC port: DC output connector, customisable • Protection: OVP, OTP, OLP, overcurrent, overvoltage, short circuit • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Cleaning robots, floor scrubbers and industrial AGVs • Electric forklifts and warehouse equipment • Mobility scooters and electric wheelchairs • E-bikes, e-scooters and light electric vehicles • Service and logistics robots • Drones and battery packs • Electric power tools • Battery pack assembly and test lines

Customization & Service

OEM and ODM projects are supported on this platform: custom output voltage and current, DC connector and cable length, housing and colour, protection logic, indicator behaviour, private labeling, LOGO printing and packaging. Engineering work is supported by an in-house CNAS-standard EMC laboratory, so EMC and RoHS screening happens before a design goes to the certification body. Units are 100% factory inspected with full-load burn-in, and the product carries a 3-year warranty. Standard MOQ is 100 PCS.
