Name: Fuyuang FY2944000 Custom 12V-84V LiFePO4 / Lithium / Lead-Acid Battery Charger for Wheelchair, Scooter, E-bike, Drone and Robot
Brand: Fuyuang
Rating: 5.0 (98 reviews)

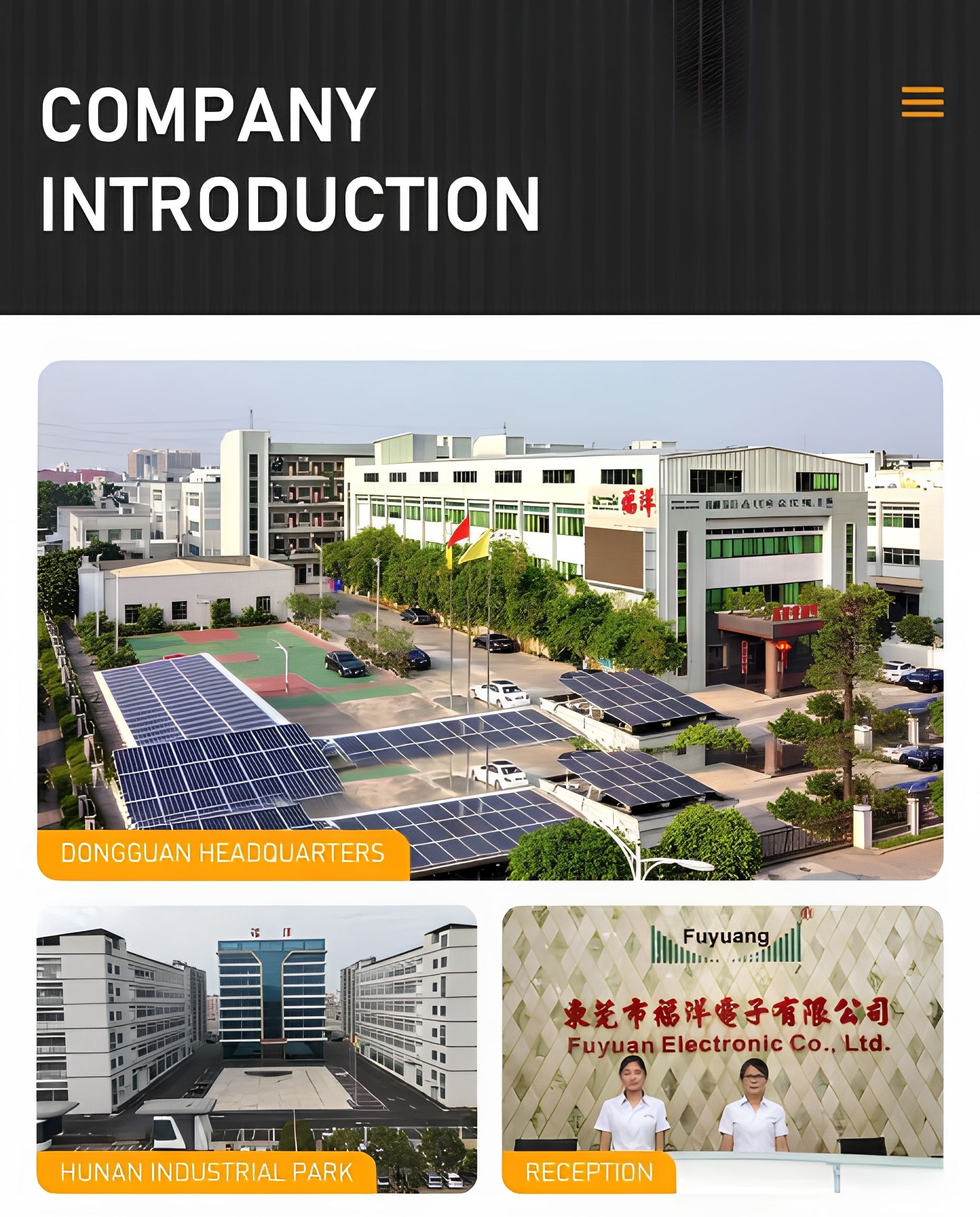

The Fuyuang FY2944000 is a configurable battery charger for LiFePO4, lithium and lead-acid packs across 12V, 24V, 36V, 48V, 60V, 72V and 84V systems, with output current from 2A to 5A and a 90W to 600W power band. It is used on wheelchairs, mobility scooters, e-bikes, drones and robots, where a single sealing and housing standard helps keep spares simple. Charging uses a CC-CV-trickle profile with a stop-charge endpoint, backed by short circuit, overload, over-voltage and over-temperature protection and a red / green indicator for charge status. The fanless PC fireproof enclosure cools by free air convection, avoiding the noise and dust intake of fan-cooled designs. Fuyuan Electronic Co., Ltd has manufactured battery chargers and power supplies since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger carries a 3-year warranty.

Model:
FY2944000
Brand:
Fuyuang
Code:
FY2944000


Availability:

Product Overview

The FY2944000 is a multi-voltage charger platform for lithium, LiFePO4 and lead-acid batteries. Standard configurations cover 12V, 24V, 36V, 48V, 60V, 72V and 84V packs with 2A to 5A charge current, so a mobility or robotics programme can buy one charger family rather than several. The 100-240Vac 50/60Hz input and 90W to 600W power range suit both small wheelchair packs and larger scooter batteries.

Key Features

• Supports 12V, 24V, 36V, 48V, 60V, 72V and 84V battery packs • Compatible with LiFePO4, lithium-ion and lead-acid batteries • 100-240Vac 50-60Hz universal AC input • Power range from 90W to 600W with 2A to 5A output • CC-CV-trickle charge mode with stop-charge endpoint • Charging efficiency higher than 89% • Fanless free-air convection cooling in a fireproof PC housing • Short circuit, overload, over-voltage and over-temperature protection

Technical Specifications

• Model: FY2944000 • Input: 100-240Vac, 50-60Hz • Output voltage variants: 12V / 24V / 36V / 48V / 60V / 72V / 84V • Output current variants: 2A / 3A / 5A • Power range: 90W / 120W / 150W / 200W / 450W / 600W • Battery type: LiFePO4, lithium-ion, lead-acid • Charging mode: CC-CV-trickle charge / stop charge • Charging efficiency: higher than 89% • DC port: DC output, customisable • Protection: OVP, OTP, OLP, overcurrent, overvoltage, short circuit • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric wheelchairs and mobility scooters • Electric scooters and e-bikes • Drones and UAV battery packs • Service, cleaning and logistics robots • Electric power tools • Golf cars and light electric vehicles

Customization & Service

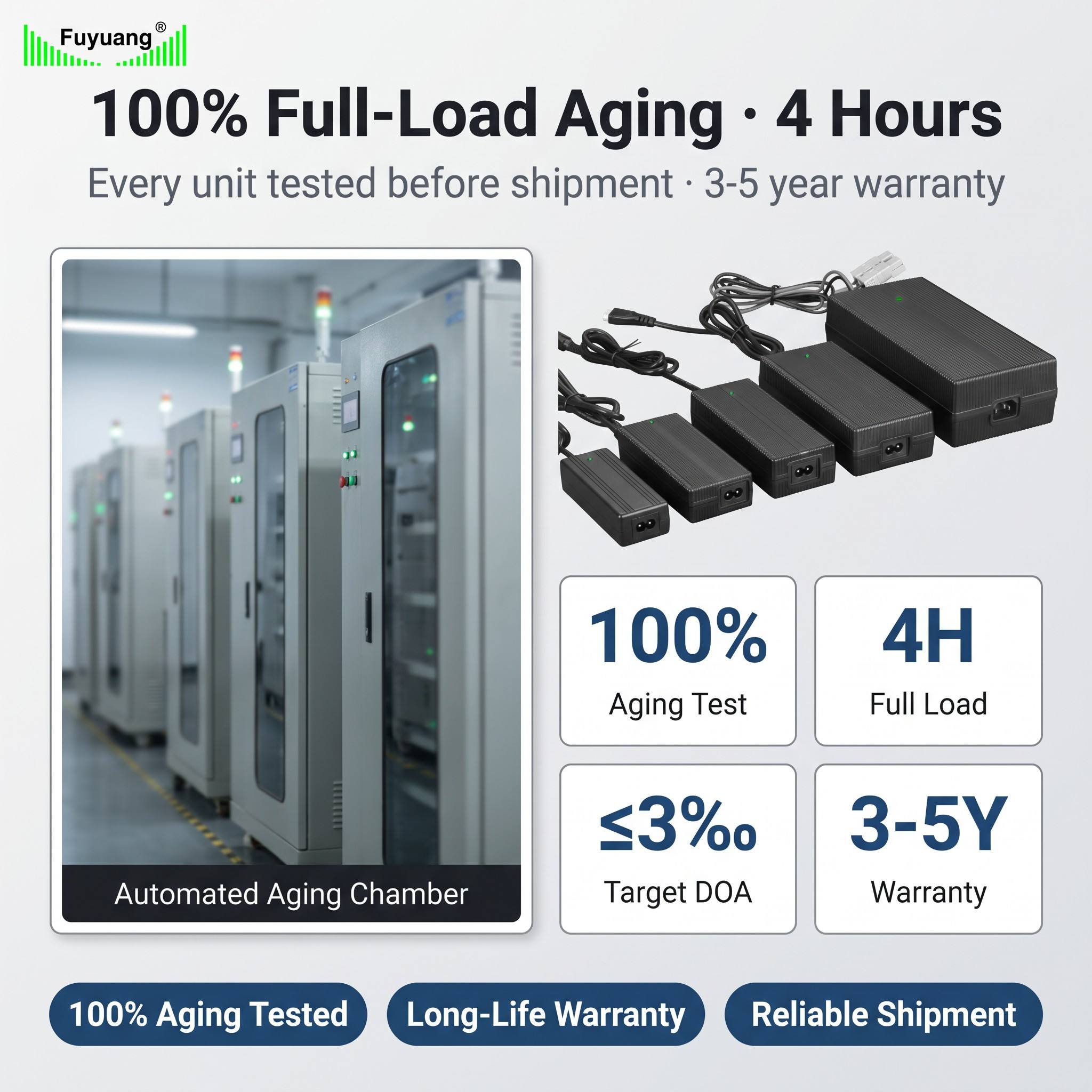

OEM and ODM support on this platform covers custom output voltage and current, DC connector and cable, housing, indicator behaviour, protection logic, private labeling, LOGO printing and packaging. Optional features include reverse-polarity protection, timer charging, anti-spark, pre-charging, automatic shut-off and CAN 2.0 / RS485 communication. Every charger is 100% factory inspected with 4-8 hours of full-load burn-in and is covered by a 3-year warranty, backed by an MTBF of 30,000 hours or more. Standard MOQ is 100 PCS.
