Fuyuang FY2400000 Dual Output 24V 5A 12V 5A Smart Battery Charger for Lead-Acid AGM GEL MF and LiFePO4 Lithium Packs, Marine RV Industrial

Fuyuang FY2400000 Dual Output 24V 5A 12V 5A Smart Battery Charger for Lead-Acid AGM GEL MF and LiFePO4 Lithium Packs, Marine RV Industrial

Name: Fuyuang FY2400000 Dual Output 24V 5A 12V 5A Smart Battery Charger for Lead-Acid AGM GEL MF and LiFePO4 Lithium Packs, Marine RV Industrial
Brand: Fuyuang
Rating: 5.0 (38 reviews)

The Fuyuang FY2400000 is a dual output smart battery charger that charges two battery banks at once - 12V 5A and 24V 5A - so marine, RV, fleet and industrial users can maintain multiple batteries without manually switching between them. It is compatible with both lead-acid batteries (AGM, GEL, Wet/MF) and LiFePO4 lithium packs, and covers an 80W / 120W / 200W / 300W power range with 95% efficiency. Six layers of protection - fireproof, low tension, over-charging, overcurrent, overvoltage and short circuit - protect both the charger and the batteries, while the 94-V0 flame-retardant enclosure and quiet cooling below 35dB suit installation close to living or working areas. Input is 100-240Vac 50/60Hz with AU / EU / UK / US / JP plug options, and DC connectors can be specified as 5521, 5525, XLR, RCA or XT60. Produced by Fuyuan Electronic Co., Ltd since 2005, with a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty.

Model:
FY2400000
Brand:
Fuyuang
Code:
FY2400000


Availability:

Product Overview

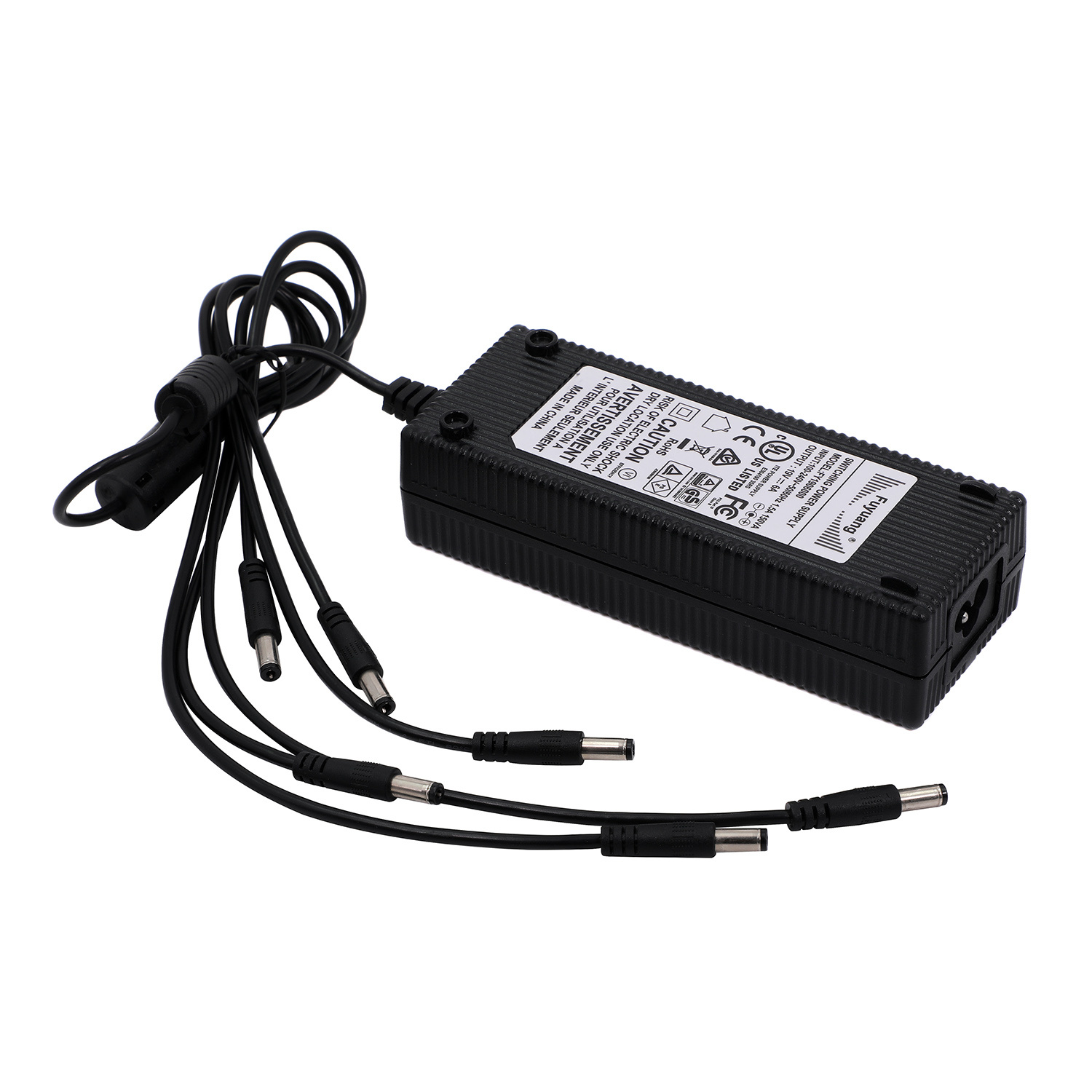

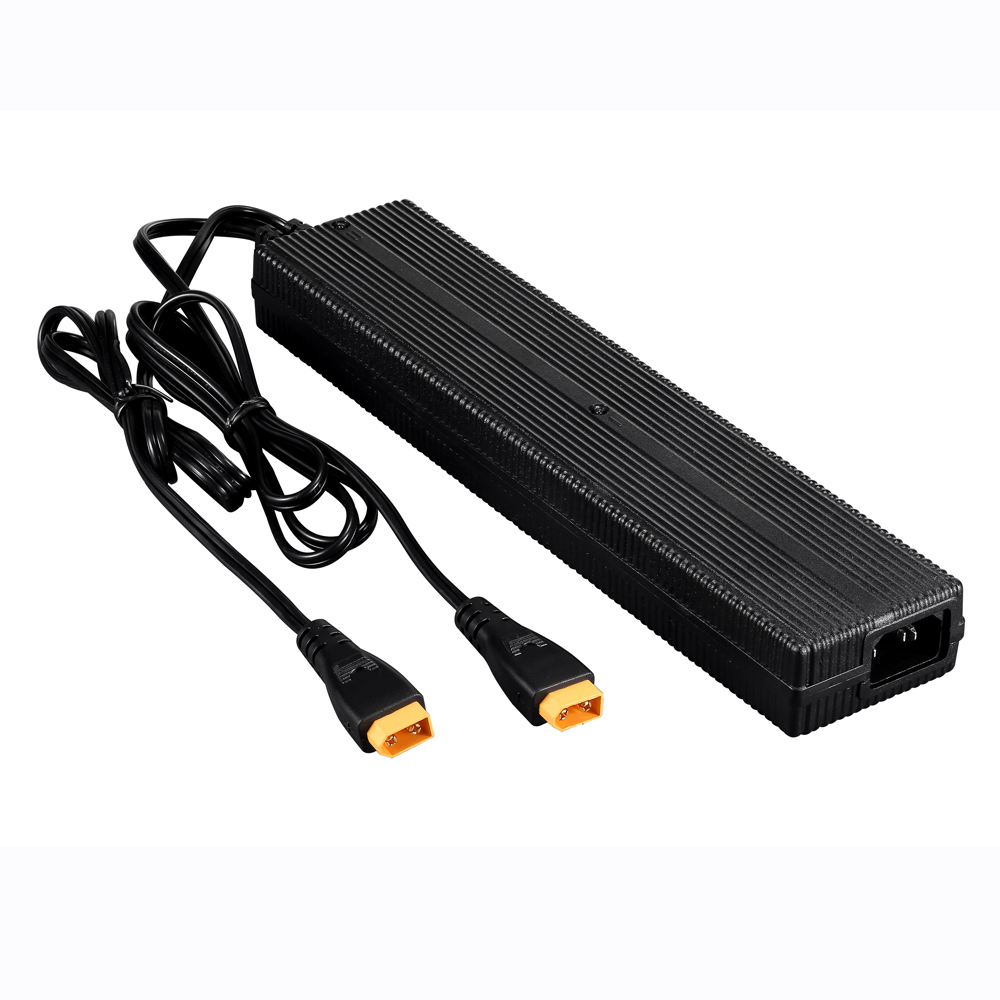

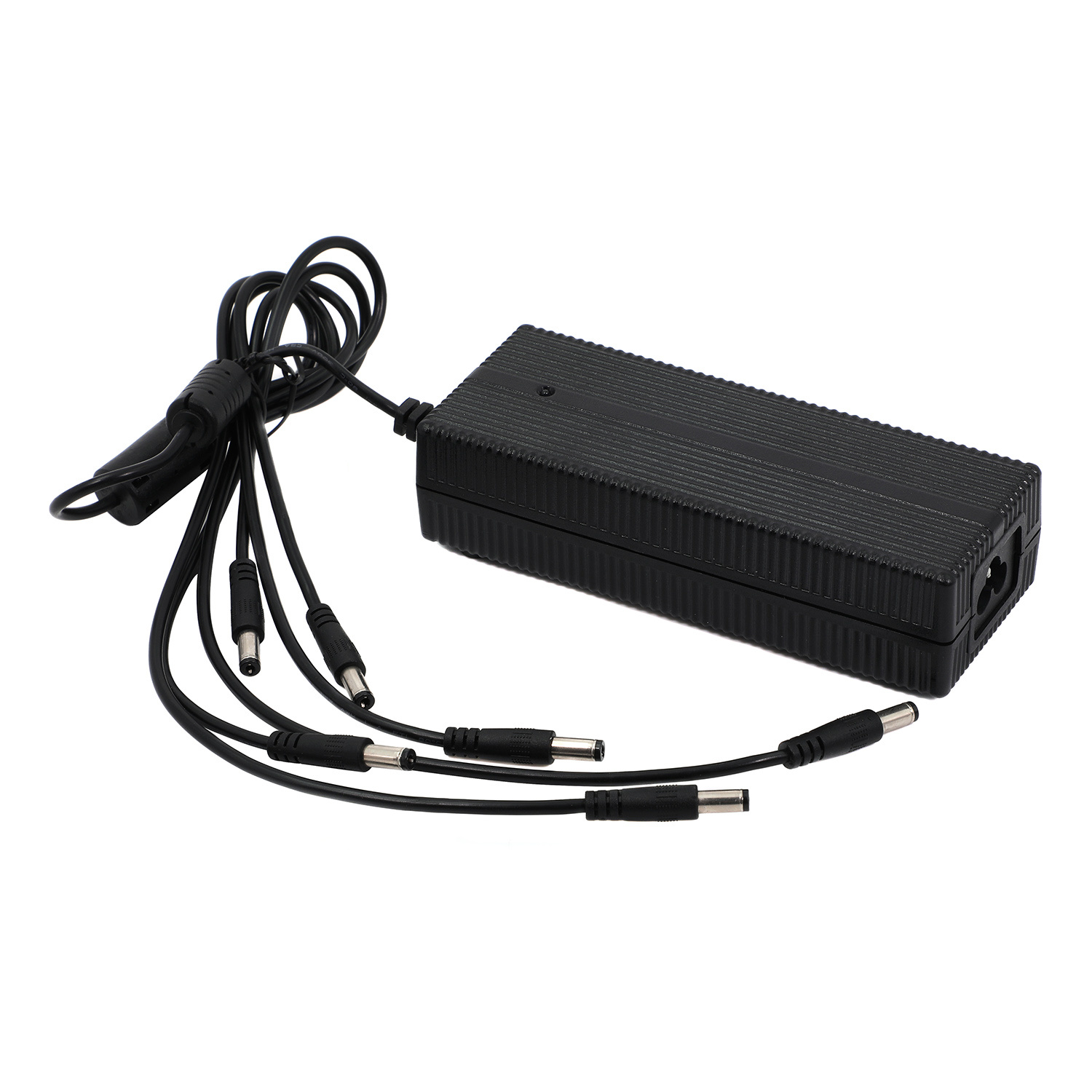

The FY2400000 is a dual output smart battery charger designed for users who maintain more than one battery bank. It provides 12V 5A and 24V 5A outputs at the same time, which makes it well suited to marine, RV, fleet and industrial installations where batteries would otherwise need to be switched and charged one at a time. The charger is compatible with lead-acid batteries (AGM, GEL, Wet/MF) and LiFePO4 lithium packs, accepts a universal 100-240Vac input, and delivers 95% efficiency across an 80W to 300W power range.

Key Features

• Dual output design charges a 12V and a 24V battery bank simultaneously • Compatible with lead-acid (AGM, GEL, Wet/MF) and LiFePO4 lithium batteries • Universal 100-240Vac 50/60Hz input for worldwide use • 95% charging efficiency across 80W / 120W / 200W / 300W power options • Six-layer protection: fireproof, low tension, over-charging, overcurrent, overvoltage, short circuit • 94-V0 flame-retardant enclosure with quiet cooling below 35dB • Selectable DC connectors (5521/5525/XLR/RCA/XT60) and AU / EU / UK / US / JP plugs • Private mould tooling available for dedicated housing design

Technical Specifications

• Model: FY2400000 • Input: 100~240Vac, 50/60Hz • Output: 12V 5A and 24V 5A (dual output) • Power range: 80W / 120W / 200W / 300W • Efficiency: 95% • Battery compatibility: lead-acid (AGM, GEL, Wet/MF) and LiFePO4 lithium • Protection: fireproof, low tension, over-charging, overcurrent, overvoltage, short circuit • DC connector: 5521 / 5525 / XLR / RCA / XT60, customizable • Plug type: AU / EU / UK / US / JP • Housing material: ABS, PC fireproof material (94-V0 flame retardant) • Cooling: fanless, noise below 35dB • Certification: UL, CE, FCC, RoHS, UKCA, SAA • MOQ: 100 PCS

Applications

• Marine and boat battery maintenance • RV and campervan dual battery systems • Fleet and commercial vehicle battery care • Home security systems • Household electrical appliances • Industrial equipment • Medical devices • Motorcycles and scooters • Electric tools

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this dual output platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared ahead of formal certification. Each unit carries a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ is 100 PCS, and small trial orders can be discussed.
