Fuyuang 84V 4.5A Battery Charger 378W for Electric Motorcycle Golf Cart RV AGV, 3-Stage LiFePO4 Lithium Smart Charger

Fuyuang 84V 4.5A Battery Charger 378W for Electric Motorcycle Golf Cart RV AGV, 3-Stage LiFePO4 Lithium Smart Charger

Name: Fuyuang 84V 4.5A Battery Charger 378W for Electric Motorcycle Golf Cart RV AGV, 3-Stage LiFePO4 Lithium Smart Charger
Brand: Fuyuang
Rating: 5.0 (41 reviews)

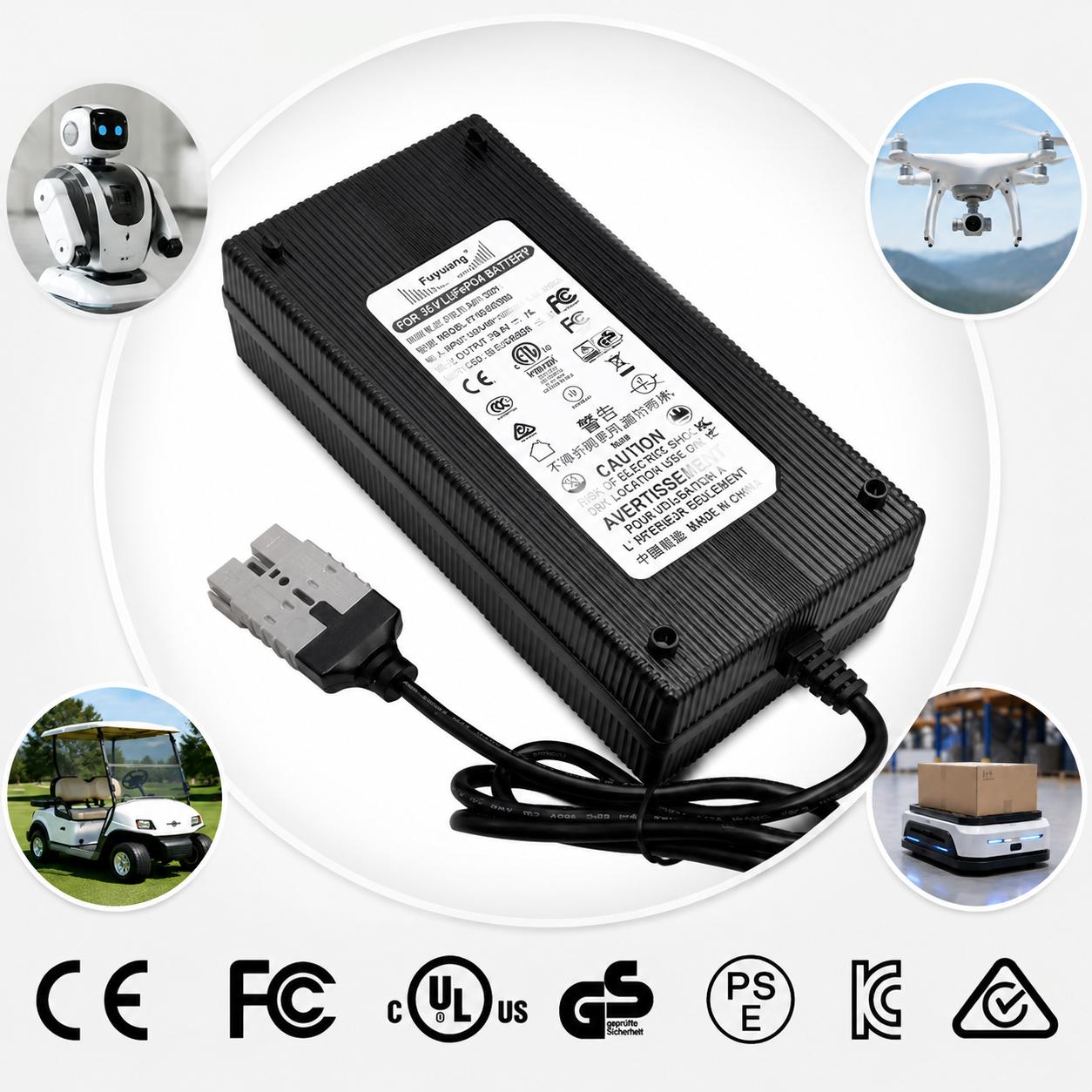

The Fuyuang FY8404500 is an 84V 4.5A battery charger rated 378W, operating from a 100-240Vac 50/60Hz input with charging efficiency up to 95%. It uses three-stage smart charging technology to move a battery safely from bulk charge to full charge. The charger cools by fanless natural air convection and protects against over-voltage, over-current, short circuit, over-temperature and reverse polarity. Operating temperature range is -29C to +45.5C. It is designed for electric motorcycles, robots, drones, golf carts, RVs and AGVs, and full OEM/ODM support covers output voltage and current, charging profiles, DC connectors such as XLR, GX16, XT60 and Anderson, cable length, housing colour, private labeling and packaging. Fuyuan Electronic Co., Ltd has been manufacturing since 2005 with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. A 3-year warranty applies to this product.

Model:
FY8404500
Brand:
Fuyuang
Code:
FY8404500


Availability:

Product Overview

The FY8404500 is an 84V 4.5A battery charger delivering 378W from a 100-240Vac 50/60Hz input, with charging efficiency up to 95%. Three-stage smart charging technology manages the charge cycle for safe, complete charging. Fanless natural air convection cooling keeps the charger silent and maintenance-free, while operating temperature spans -29C to +45.5C. Typical deployments include electric motorcycles, robots, drones, golf carts, RVs and AGVs.

Key Features

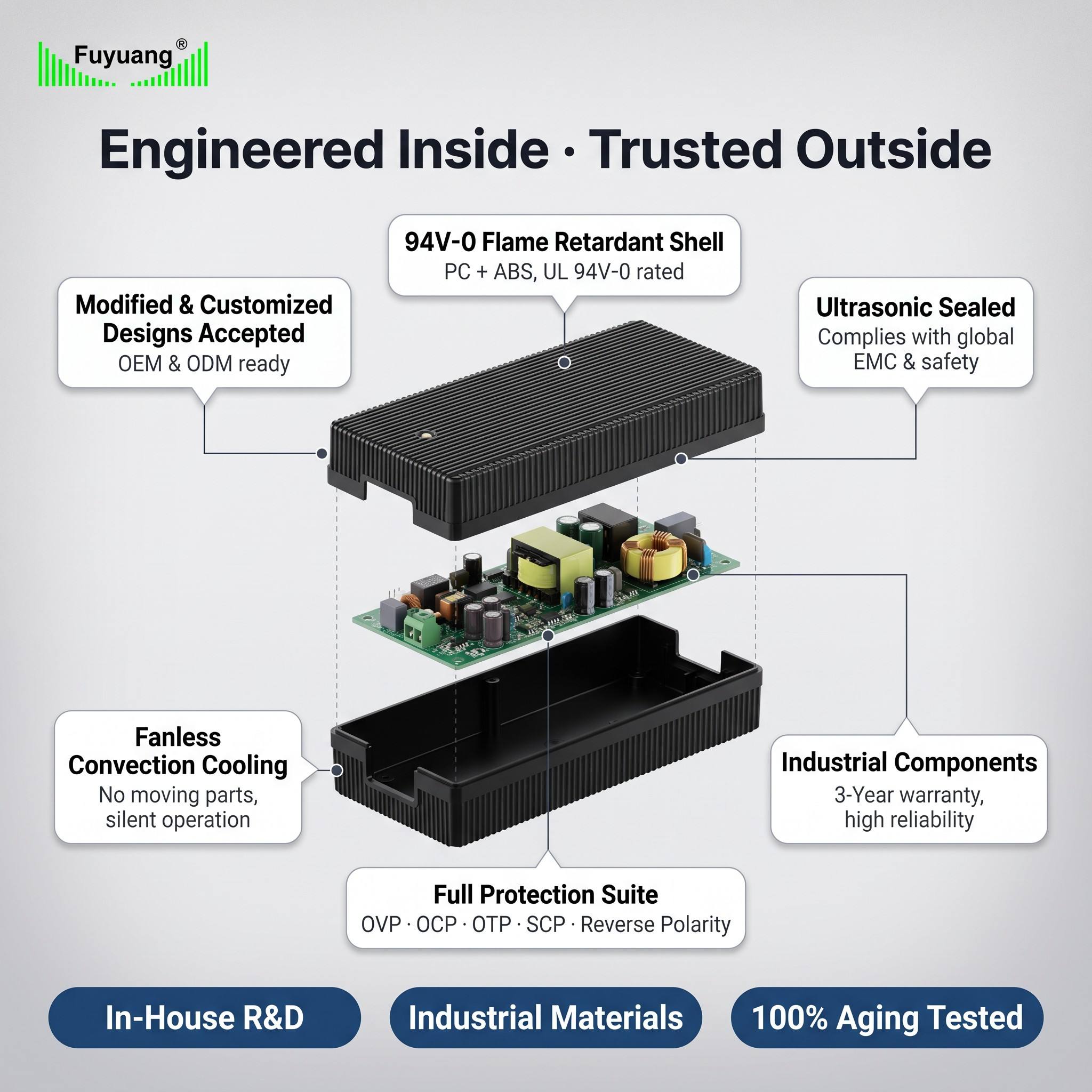

• 84V 4.5A output rated 378W • Universal 100-240Vac 50/60Hz input • Charging efficiency up to 95% • Smart three-stage charging technology • Fanless natural air convection cooling • Protection: OVP, OCP, SCP, OTP and reverse polarity • Wide operating temperature from -29C to +45.5C • Full OEM/ODM customisation including charging profiles and DC connectors

Technical Specifications

• Model Number: FY8404500 • Brand: Fuyuang • Product name: 84V 4.5A electric motorcycle charger • Input: 100-240Vac 50/60Hz • Output: 84V 4.5A (378W) • Output power: 378W • Charging mode: three-stage charging mode • Efficiency: 95% • Cooling: fanless natural air convection • Protection: OVP, OCP, SCP, OTP and reverse polarity • DC connectors: crocodile clip, Anderson, XLR, XT60, customisable • Color: black; AC plug types: AU, EU, UK, US, JP • Certification: UL, ETL, cUL, GS, CE, UKCA, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • Warranty: 3 years; MOQ: 10 PCS

Applications

• Electric motorcycles and scooters • Robots and drones • Golf carts • RVs and camper vehicles • AGV equipment • Industrial and marine battery systems

Customization & Service

Fuyuan Electronic Co., Ltd provides complete OEM and ODM services on this charger, including customised output voltage and current, charging profiles, DC connectors such as XLR, GX16, XT60 and Anderson, cable length, housing colour, private labeling, LOGO printing, packaging and country-specific AC power cords. Each unit is 100% factory inspected and covered by a 3-year warranty. Minimum order quantity is 10 PCS.
