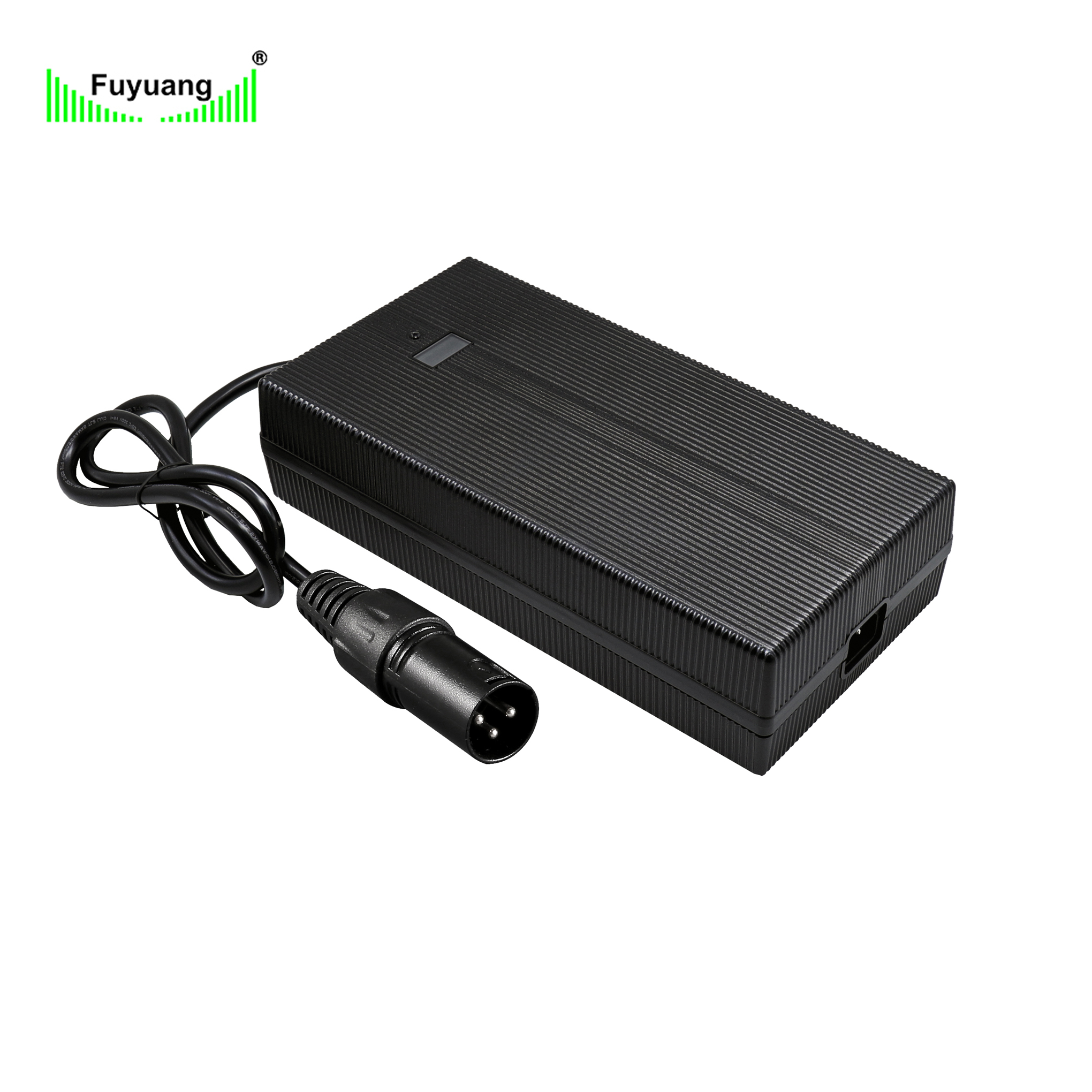

Fuyuang 84V 2.5A-7A LiFePO4 Battery Charger 120W-1500W for Scooter, E-Bike, Robot and Drone

Fuyuang 84V 2.5A-7A LiFePO4 Battery Charger 120W-1500W for Scooter, E-Bike, Robot and Drone

Name: Fuyuang 84V 2.5A-7A LiFePO4 Battery Charger 120W-1500W for Scooter, E-Bike, Robot and Drone
Brand: Fuyuang
Rating: 5.0 (60 reviews)

The Fuyuang FY8402500 is an 84V class battery charger for 72V lithium and LiFePO4 packs used on electric scooters, e-bikes, robots and drones. Output options include 82V 2A, 84V 2.5A, 84V 3A, 84V 5A and 84V 7A, and the platform scales from 120W to 1500W with a 100-240Vac 50/60Hz input. The charger works at 95% efficiency with OCP, OVP, OTP and SCP protection, and the operating temperature range of -29C to +45.5C covers demanding outdoor duty. DC connectors include 5.5*2.1 mm, 5.5*2.5 mm, XLR, XT30/XT60 and Anderson, and housing colours can be black, silver or grey. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY8402500
Brand:
Fuyuang
Code:
FY8402500


Availability:

Product Overview

The FY8402500 charges 72V lithium and LiFePO4 battery packs at up to 84V 7A. It is used on high-voltage electric scooters, e-bikes, service robots and drones, and covers a 120W-1500W power range. Full OCP, OVP, OTP and SCP protection plus a -29C to +45.5C operating window make the charger suitable for year-round outdoor use. Multiple connector types and housing colours support OEM product lines.

Key Features

• 84V class output with 82V 2A to 84V 7A options • Platform power range 120W / 200W / 300W / 400W / 600W / 800W / 1200W / 1500W • 95% charging efficiency • Protection: OCP, OVP, OTP, SCP • Wide operating temperature: -29C to +45.5C • Built-in LED charging indicator • DC connectors: 5.5*2.1 mm / 5.5*2.5 mm / XLR / XT30 / XT60 / Anderson, customizable • Housing colours: black, silver or grey; plug types AU, EU, UK, US, JP

Technical Specifications

• Model: FY8402500 • Input: 100-240Vac 50/60Hz • Output variants: 82V 2A / 84V 2.5A / 84V 3A / 84V 5A / 84V 7A • Power range: 120W / 200W / 300W / 400W / 600W / 800W / 1200W / 1500W • Efficiency: 95% • Protection: OCP, OVP, OTP, SCP • Operating temperature: -29C to +45.5C • Housing colours: black, silver, grey • Certification: CE, FCC, RoHS, PSE, UL, GS, SAA • MOQ: 10 PCS

Applications

• Electric scooters and motorcycles • E-bikes • Service and industrial robots • Drones • Electric tools • Battery pack manufacturers and assembly lines

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 10 PCS. Certifications held on this platform include CE, FCC, RoHS, PSE, UL, GS and SAA.
