Fuyuang 67.2V 84V 2A LiFePO4 Lithium Lead Acid Battery Charger for E-bike, Scooter and Motorcycle

Fuyuang 67.2V 84V 2A LiFePO4 Lithium Lead Acid Battery Charger for E-bike, Scooter and Motorcycle

Name: Fuyuang 67.2V 84V 2A LiFePO4 Lithium Lead Acid Battery Charger for E-bike, Scooter and Motorcycle
Brand: Fuyuang
Rating: 5.0 (62 reviews)

The FY6722000 is a desktop battery charger delivering 67.2V 2A and 84V 2A for 16S and 20S lithium packs, with 48V platform variants from 2A to 25A available for e-bikes, scooters and motorcycles. It accepts 100-240Vac 50/60Hz input for worldwide use. LiFePO4, lithium-ion and lead-acid batteries are all supported. The charger works on a CC-CV-trickle profile with stop charge, includes over-voltage, over-current, overload, over-temperature and short-circuit protection, and uses free-air convection cooling instead of a fan for quiet, dust-free operation. A red/green LED indicator shows charging status. Manufactured by Fuyuan Electronic Co., Ltd, founded in 2005, with two production bases covering 108,000 m2, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this charger.

Model:
FY6722000
Brand:
Fuyuang
Code:
FY6722000


Availability:

Product Overview

The FY6722000 is a high-voltage desktop charger offering 67.2V 2A and 84V 2A outputs for 16S and 20S battery packs, with 48V platform versions from 2A to 25A. It runs from a universal 100-240Vac 50/60Hz input. The charger supports LiFePO4, lithium-ion and lead-acid batteries and is typically used for e-bikes, scooters, motorcycles and small electric vehicles. Charging uses a CC-CV-trickle profile with automatic stop.

Key Features

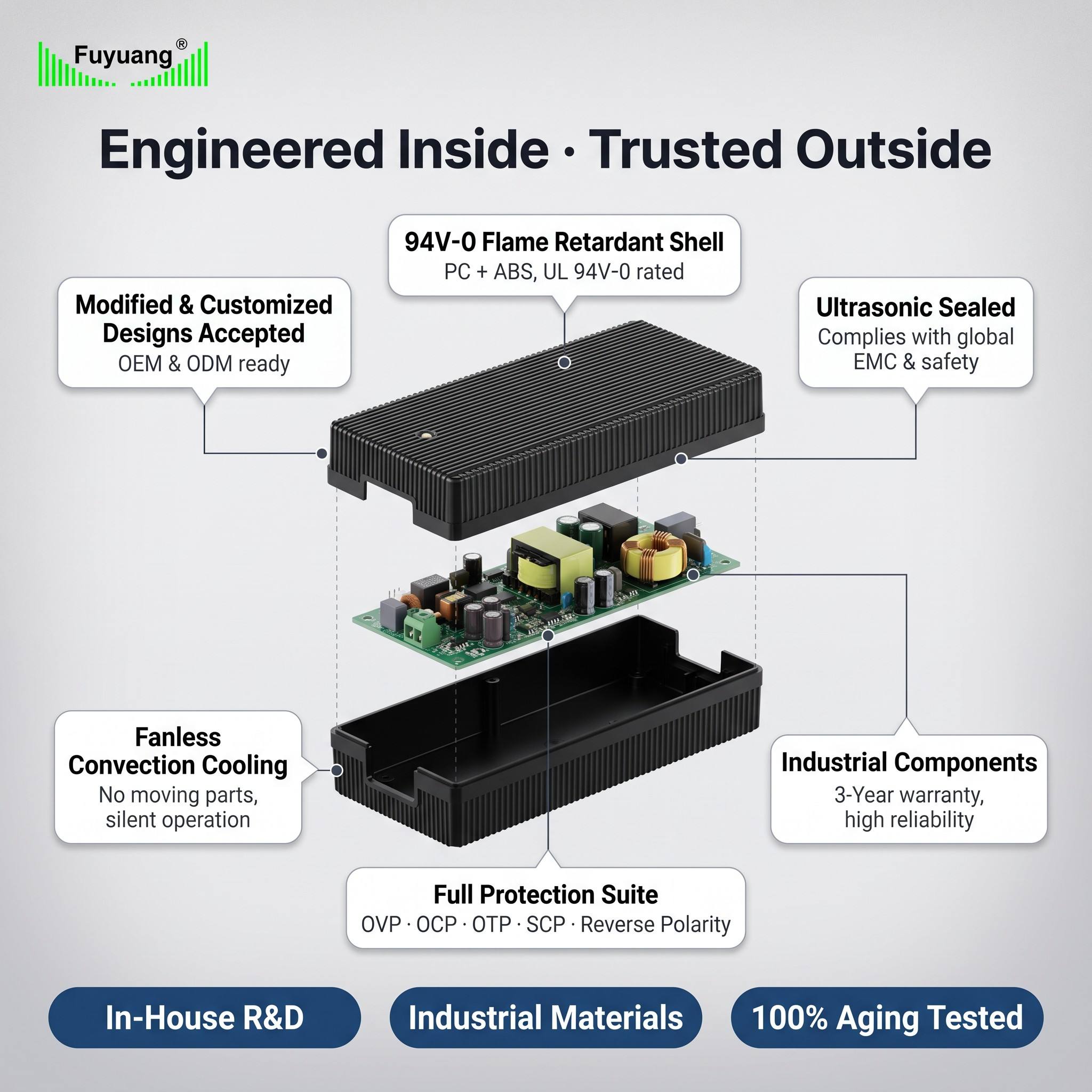

• 67.2V 2A and 84V 2A outputs for 16S and 20S lithium packs • 48V platform variants from 2A to 25A • Supports LiFePO4, lithium-ion and lead-acid batteries • Universal 100-240Vac 50/60Hz input • CC-CV-trickle charge mode with stop charge • Fanless cooling by free air convection, no noise • Over-voltage, over-current, overload, over-temperature and short-circuit protection • Red/green LED indicator with eco-friendly, high-efficiency design

Technical Specifications

• Model: FY6722000 • Input: 100-240Vac, 50/60Hz • Output: 67.2V 2A / 84V 2A • Platform current range: 2A to 25A • Platform power: 90W / 120W / 150W / 200W / 450W / 600W / 3000W • Battery compatibility: LiFePO4, lithium-ion, lead-acid • Charge mode: CC-CV-Trickle Charge, stop charge • Charging efficiency: above 89% • Housing: PC fireproof material, black • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• E-bikes and scooters • Electric motorcycles • Robots and AGV equipment • Drones • Electric tools • Small electric vehicles

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports compliance preparation so customers can shorten their certification timeline. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
