Name: Fuyuang 67.2V 2A-5A High Voltage Li-ion Battery Charger for Electric Motorcycle and E-bike
Brand: Fuyuang
Rating: 5.0 (4 reviews)

The Fuyuang FY6722000 is a high voltage lithium battery charger for electric motorcycles and e-bikes. The 67.2V 2A rating is the base of a family that also covers 84V 2A, 54.6V 5A and 58.8V 5A, with power options from 90W up to 3000W from a 100-240Vac 50-60Hz input. The charger works with lithium and LiFePO4 packs, uses CC-CV-trickle charging with a stop-charge point, and reports status with a red/green LED. A fanless PC fireproof enclosure cools by free air convection, and protection covers short circuit, overload, over-voltage and over-temperature. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY6722000
Brand:
Fuyuang
Code:
FY6722000


Availability:

Product Overview

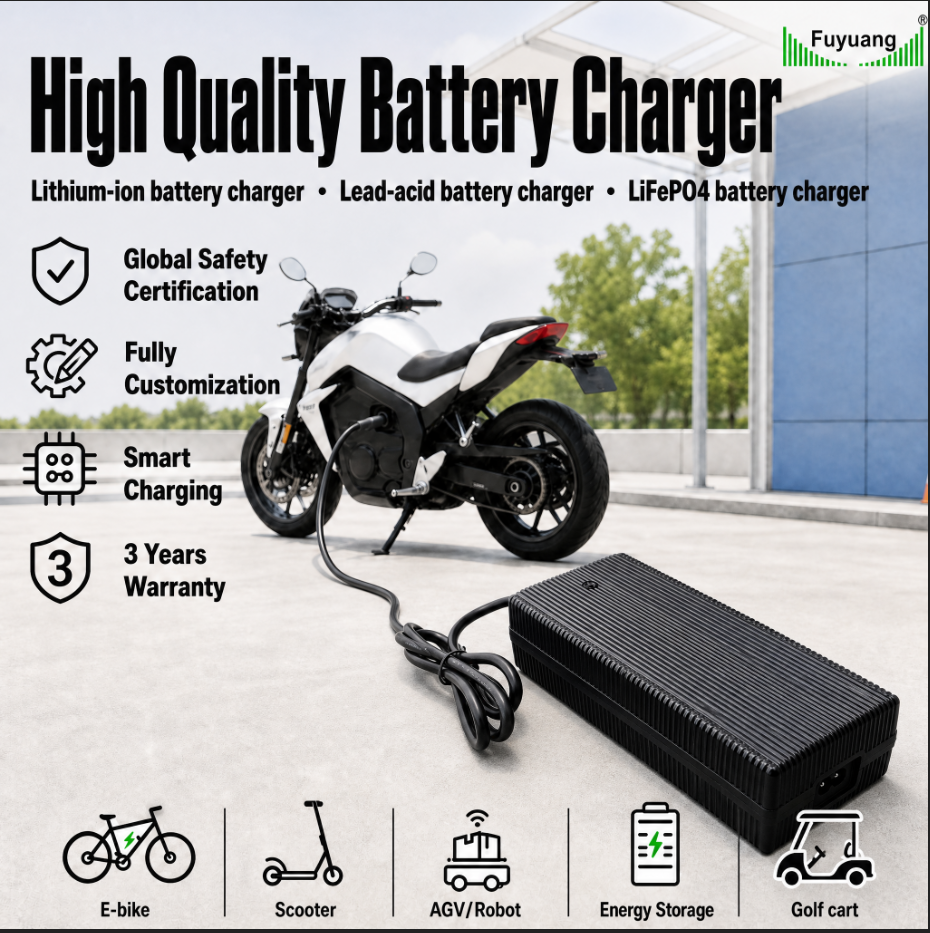

The FY6722000 is a high voltage charger for electric motorcycles, scooters, e-bikes, drones, electric tools and robots. It delivers 67.2V 2A with 84V 2A, 54.6V 5A and 58.8V 5A variants available, at up to 3000W on the widest platform option. Operation is from a universal 100-240Vac 50-60Hz input, and the charging profile is CC-CV-trickle with an automatic stop. The unit is fanless and cooled by free air convection, intended for continuous duty in vehicle and industrial applications.

Key Features

• High voltage output for 60V to 84V lithium packs • Output options: 67.2V 2A / 84V 2A / 54.6V 5A / 58.8V 5A • Power range 90W to 3000W across the platform • Charge mode: CC-CV-trickle charge with stop charge • Fanless cooling by free air convection, no noise • Red / green LED charge indicator • Protection: short circuit, overload, over-voltage, over-temperature • PC fireproof material housing, eco-friendly design

Technical Specifications

• Model: FY6722000 • Product name: lithium / LiFePO4 battery charger • Input: 100-240Vac, 50-60Hz • Output options: 67.2V 2A / 84V 2A / 54.6V 5A / 58.8V 5A • Power range: 90W / 120W / 150W / 200W / 450W / 600W / 3000W • Charge mode: CC-CV-trickle charge / stop charge • Efficiency: above 89% • LED / LCD indicator: red / green • Housing material: PC fireproof material • Protection: short circuit, overload, over-voltage, over-temperature • Colour: black • Originated: China, Guangdong • MOQ: 100 PCS

Applications

• Electric motorcycles • Electric scooters • E-bikes • Drones • Electric tools • Service and industrial robots

Customization & Service

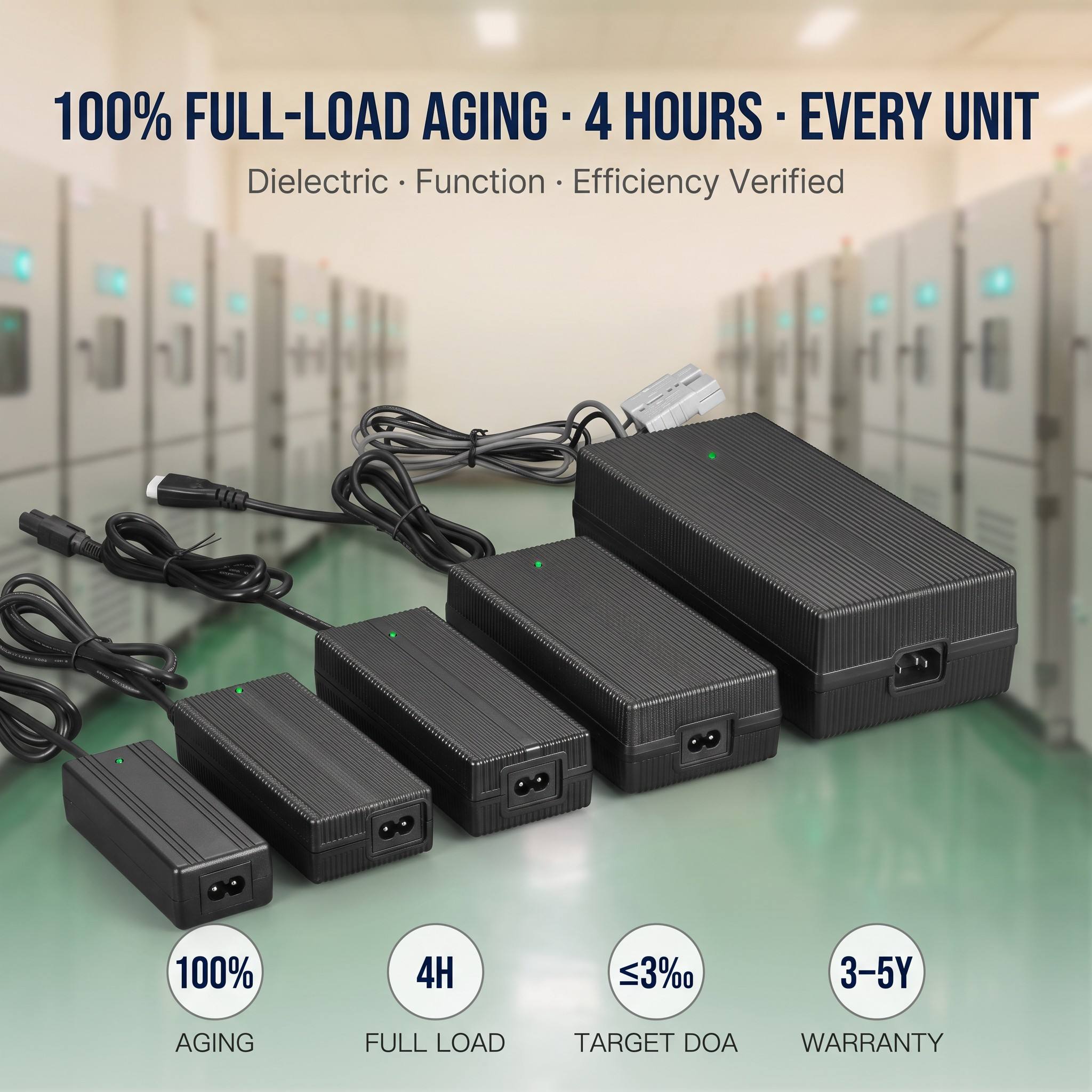

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
