Fuyuang 67.2V 2A 134.4W Li-ion Battery Charger for 60V E-bike, Scooter and Electric Unicycle

Fuyuang 67.2V 2A 134.4W Li-ion Battery Charger for 60V E-bike, Scooter and Electric Unicycle

Name: Fuyuang 67.2V 2A 134.4W Li-ion Battery Charger for 60V E-bike, Scooter and Electric Unicycle
Brand: Fuyuang
Rating: 5.0 (24 reviews)

The Fuyuang FY6722000 is a desktop Li-ion battery charger rated 67.2V 2A / 134.4W with a 100-240Vac 50/60Hz input, both of which can be customised. It charges 60V class packs on e-bikes, scooters, electric unicycles and golf carts, with power options from 120W to 600W. Efficiency is 95%, and the enclosure is fanless and built from PC fireproof material and ABS with fireproof, over-charging, over-current, over-voltage, short circuit and low tension protection. Connector choices include 5.5x2.5, 5.5x2.1, XLR, RCA and Anderson. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY6722000
Brand:
Fuyuang
Code:
FY6722000


Availability:

Product Overview

The FY6722000 is a customisable desktop charger for 60V lithium packs. It delivers 67.2V 2A / 134.4W from a 100-240Vac 50/60Hz input, and both input and output can be tailored to the application. Typical applications are e-bikes, electric scooters, electric unicycles, golf carts and industrial battery systems. The design is fanless and eco-friendly, with a 95% charging efficiency and a full protection circuit for unattended charging.

Key Features

• Customisable input and output for specific battery systems • 67.2V 2A / 134.4W output with 95% charging efficiency • Power range 120W / 150W / 200W / 210W / 250W / 300W / 400W / 600W • Fanless desktop design, eco-friendly construction • Protection: fireproof, over-charging, over-current, over-voltage, short circuit, low tension • Connector options: 5.5x2.5, 5.5x2.1, XLR, RCA, Anderson, customisable • Housing material: PC fireproof material and ABS • 3-year warranty with 4-8 hours full load burn-in

Technical Specifications

• Model: FY6722000 • Product name: 67.2V 2A Li-ion battery charger • Input: AC 100-240Vac, 50/60Hz (customisable) • Output: 67.2V 2A (134.4W) (customisable) • Power range: 120W / 150W / 200W / 210W / 250W / 300W / 400W / 600W • Charging efficiency: 95% • Battery compatibility: LiFePO4 and Li-ion packs • Housing material: PC fireproof material, ABS • Protection: fireproof, over-charging, over-current, over-voltage, short circuit, low tension • Connector: 5.5x2.5 / 5.5x2.1 / XLR / RCA / Anderson / customisable • Certification: UL, ETL, cUL, GS, CE, UKCA, SAA, KC, PSE, CB, FCC, EMC, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric scooters • E-bikes • Electric unicycles • Golf carts • Electric motorcycles • Industrial battery systems

Customization & Service

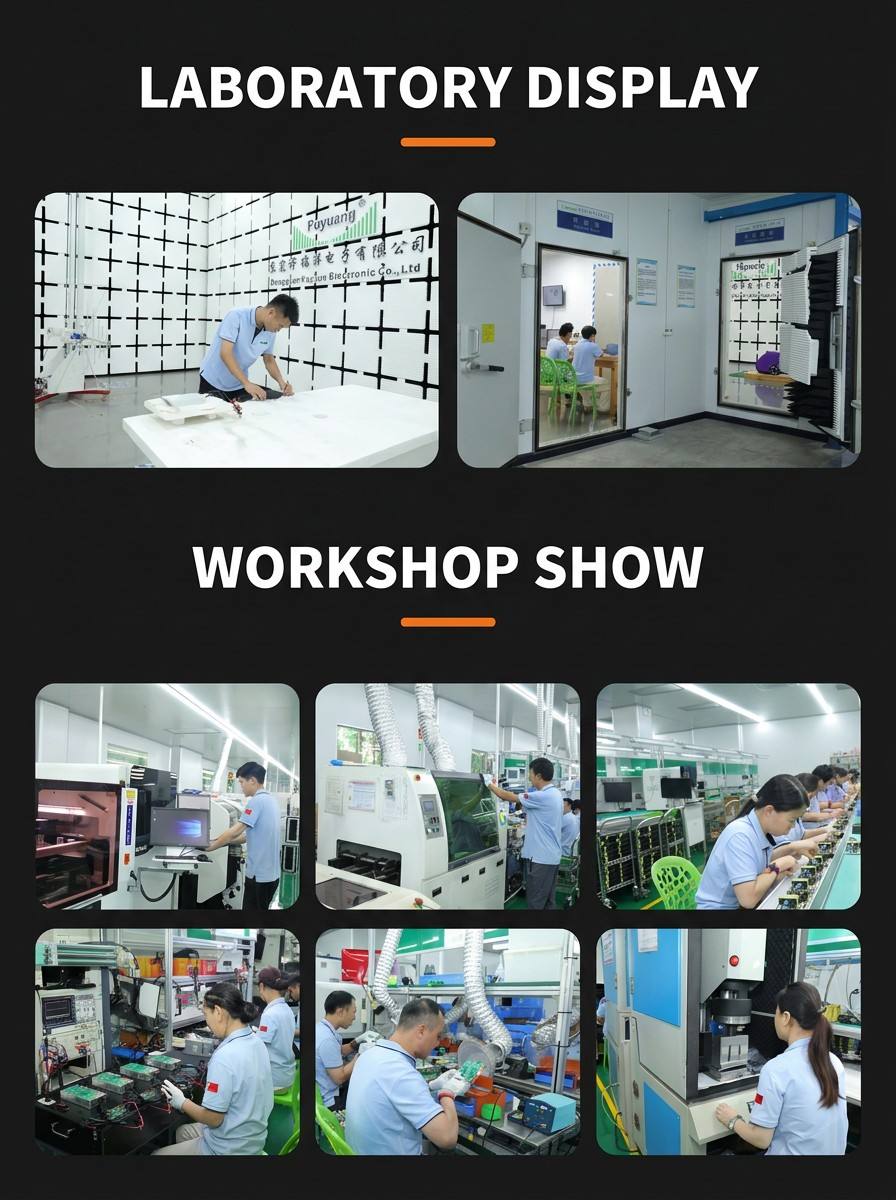

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
