Fuyuang 58.4V 3A-5A 16S LiFePO4 Battery Charger 292W for 48V E-bike and Scooter with Global Certifications

Fuyuang 58.4V 3A-5A 16S LiFePO4 Battery Charger 292W for 48V E-bike and Scooter with Global Certifications

Name: Fuyuang 58.4V 3A-5A 16S LiFePO4 Battery Charger 292W for 48V E-bike and Scooter with Global Certifications
Brand: Fuyuang
Rating: 5.0 (18 reviews)

The FY58405000 is a fanless 292W battery charger for 16S LiFePO4 packs, available with 58.4V outputs at 3A, 4A and 5A. It is designed for 48V e-bikes and scooters as well as robotic battery packs, and it accepts a 100-240V 50-60Hz input. Charging uses a CC-CV-float profile with cut off, supported by automatic identification circuitry, pre-charge and protection against overload, over-voltage, over-temperature, short circuit, reverse polarity and timing. Efficiency is 92% for this model and the platform reaches 95%, with cooling by free air convection in a fanless plastic case. The unit measures 210 x 108 x 55 mm and weighs 1.30 kg per piece. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005, operates 108,000 m2 of production space, runs a CNAS-standard EMC laboratory, has developed 3,000+ models from 60W to 10KW, and provides a 3-year warranty.

Model:
FY58405000
Brand:
Fuyuang
Code:
FY58405000


Availability:

Product Overview

The FY58405000 is a fanless 292W LiFePO4 battery charger for 16S packs, offered with 58.4V outputs at 3A, 4A and 5A. It is intended for 48V e-bikes and scooters as well as robotic battery packs and general battery assemblies. The charger runs on a 100-240V 50-60Hz input and charges with a CC-CV-float profile and cut off. Automatic identification circuitry and a pre-charge stage support safe charging of deeply discharged packs.

Key Features

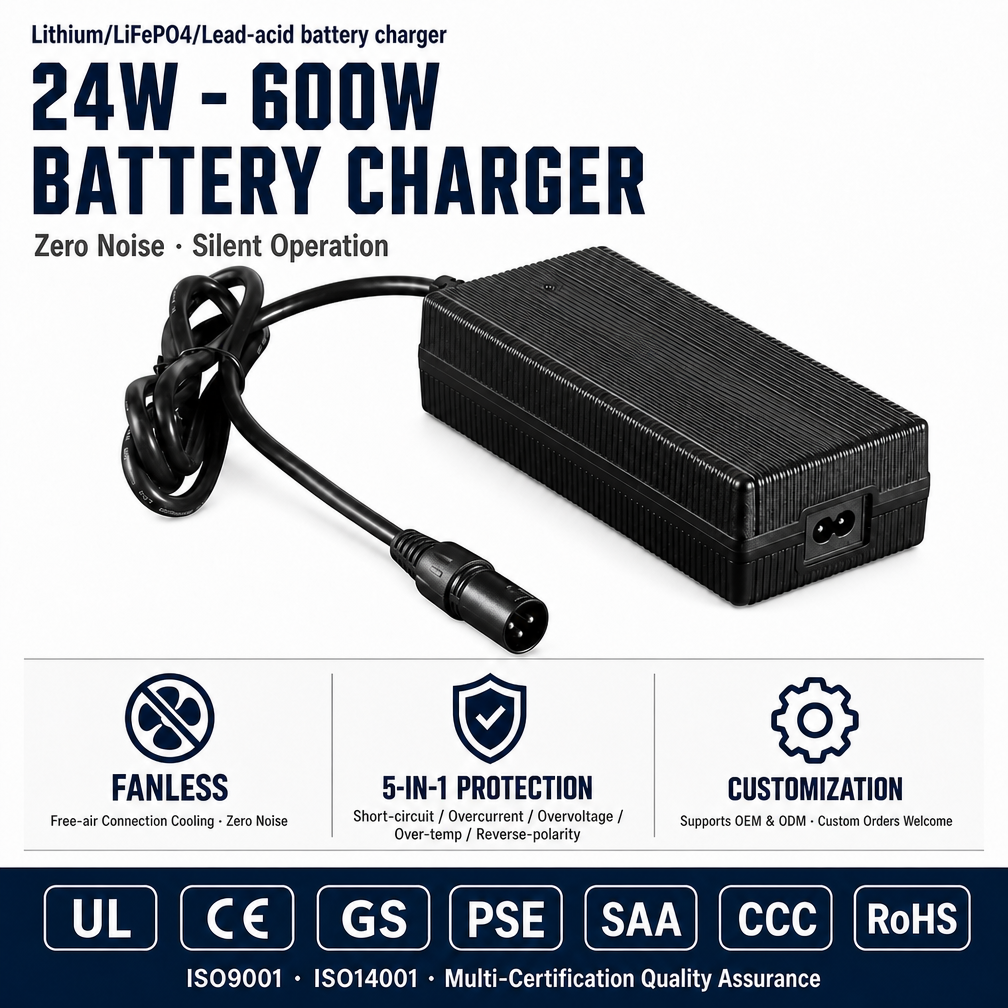

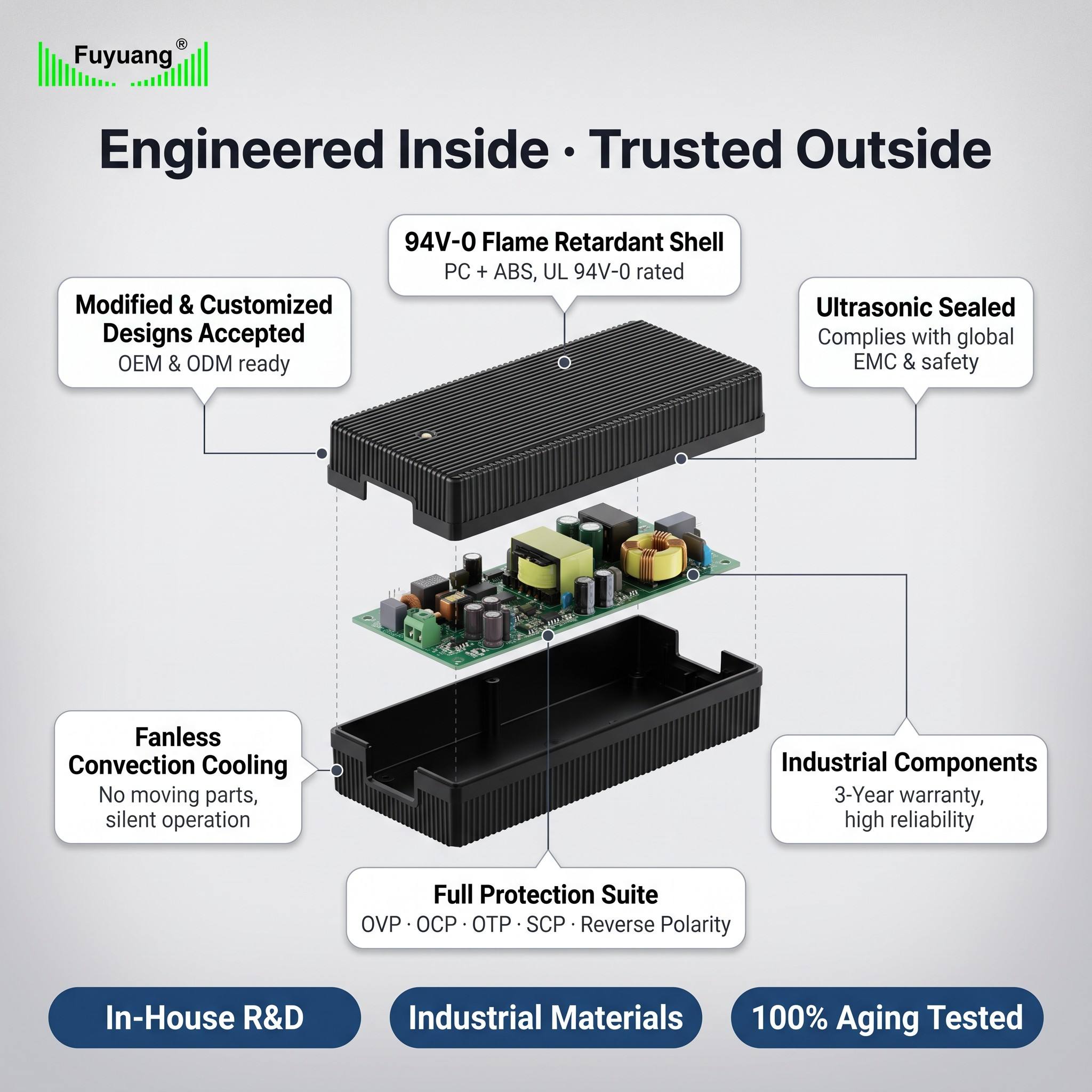

• 292W output with 58.4V 3A, 4A and 5A versions for 16S packs • Fanless design with no noise, cooling by free air convection • CC-CV-float charge mode with cut off • Automatic identification circuit and pre-charge stage • Protection: overload, over-voltage, over-temperature, short circuit, reverse polarity, timing, automatic shut-off • Efficiency of 92% for this model, with the platform reaching 95% • Compact 210 x 108 x 55 mm housing weighing 1.30 kg per piece • 94-V0 flame-retardant plastic case with global certification coverage

Technical Specifications

• Model: FY58405000 • Product: 58.4V 5A 16S LiFePO4 battery charger for 48V packs • Input: 100-240V, 50-60Hz • Outputs: 58.4V 5A / 58.4V 4A / 58.4V 3A, customizable • Output power: 292W • Size: 210 x 108 x 55 mm • Weight: 1.30 kg per piece • Color: black or customized • Charge mode: CC-CV-Float Charge, cut off • Efficiency: 92% • Certification: UL, FCC, CE, RoHS, CB, GS, UKCA, SAA, RCM, PSE, KC, CCC • MOQ: 100 PCS

Applications

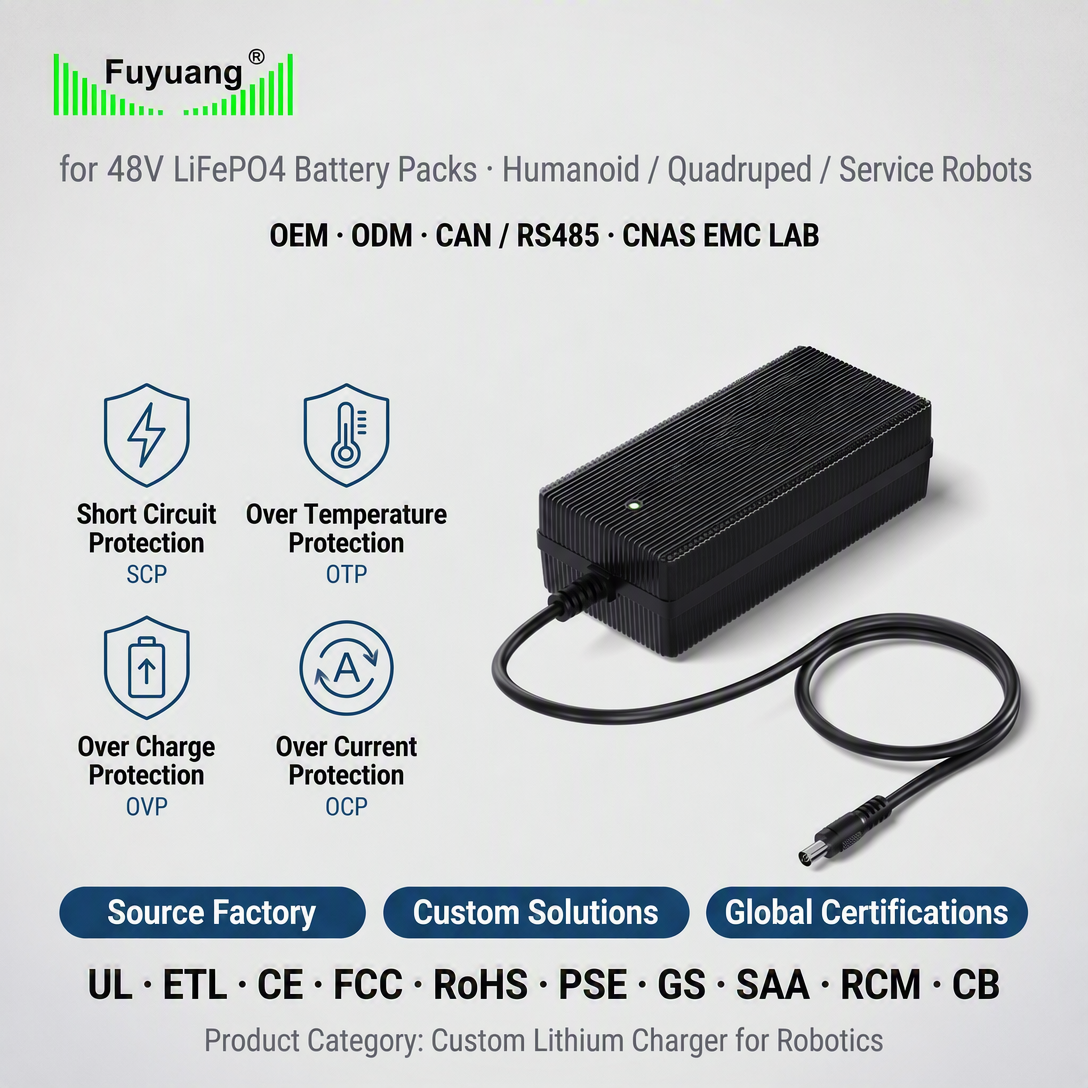

• 48V e-bikes • Electric scooters • Robotic equipment • Battery pack assembly • Electric tools • Household and medical battery devices

Customization & Service

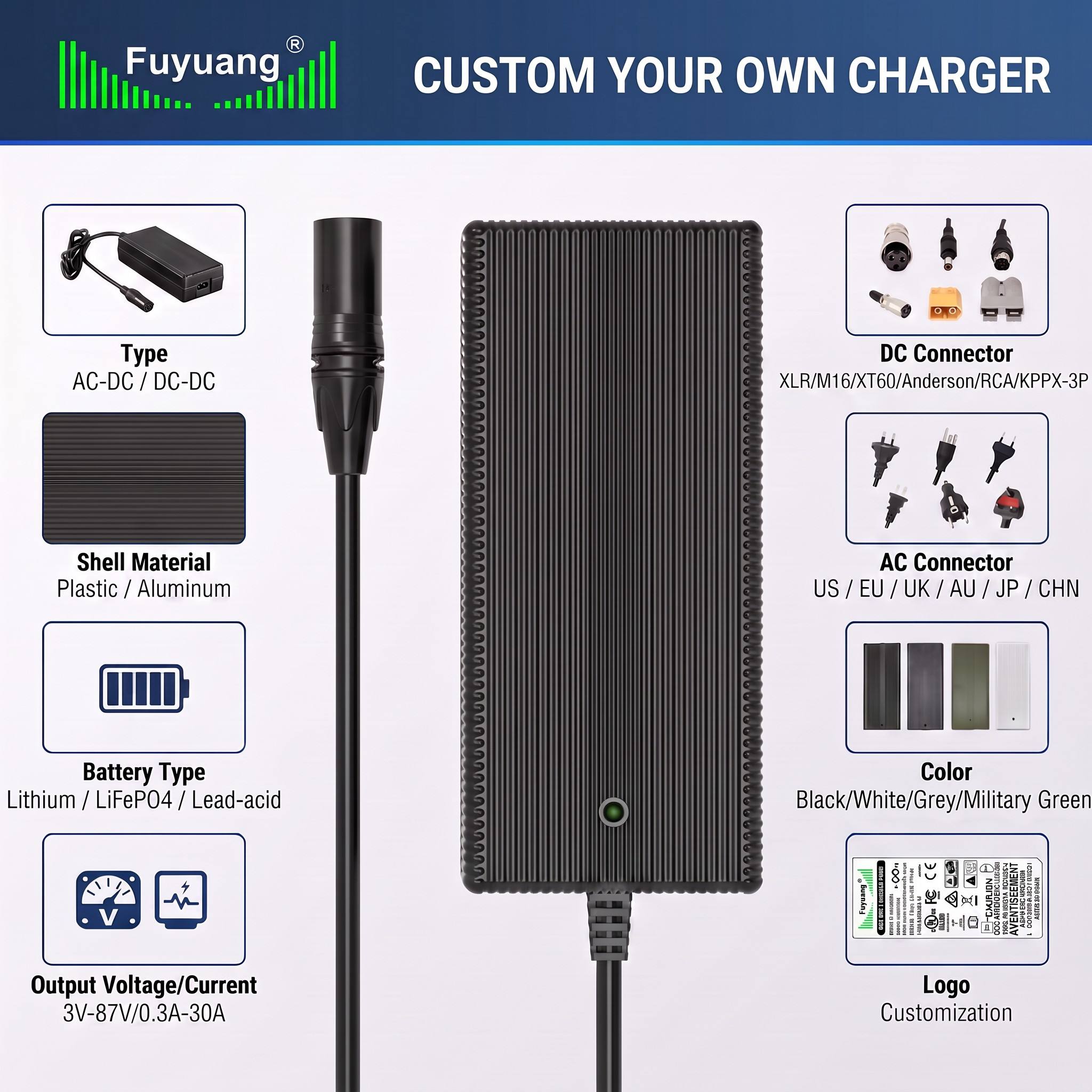

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this charger, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. Pre-compliance testing is available through the CNAS-standard EMC laboratory to support faster certification. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
