Fuyuang 58.4V 3A 175.2W LiFePO4 Battery Charger with XLR 3-Pin Plug for 48V E-bike and Scooter

Fuyuang 58.4V 3A 175.2W LiFePO4 Battery Charger with XLR 3-Pin Plug for 48V E-bike and Scooter

Name: Fuyuang 58.4V 3A 175.2W LiFePO4 Battery Charger with XLR 3-Pin Plug for 48V E-bike and Scooter
Brand: Fuyuang
Rating: 5.0 (31 reviews)

The FY5843000 is a compact 175.2W battery charger delivering 58.4V 3A for 48V LiFePO4 and lithium battery packs. It is supplied with an XLR 3-pin plug, a common interface on e-bikes, scooters and electric motorcycles, and it works with a 100-240V 50-60Hz input. Charging efficiency ranges from 88% to 95%, and the charger includes short-circuit, over-current, over-voltage, over-charging and over-temperature protection. The housing measures 154 x 60 x 36 mm and weighs 0.45 kg per piece, which makes it easy to mount on the vehicle or keep as a portable spare. A red/green LED indicator shows charging status. Fuyuan Electronic Co., Ltd has built chargers since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models developed from 60W to 10KW, and a 3-year warranty on this charger.

Model:
FY5843000
Brand:
Fuyuang
Code:
FY5843000


Availability:

Product Overview

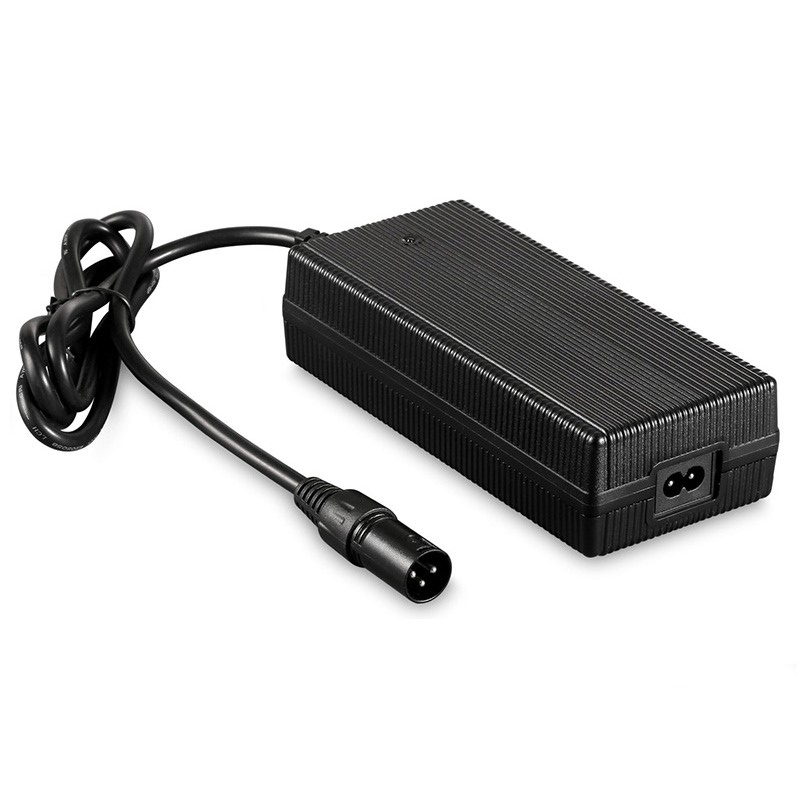

The FY5843000 is a compact 175.2W charger rated 58.4V 3A for 48V LiFePO4 and lithium battery packs. It is fitted with an XLR 3-pin DC plug, which matches many e-bike, scooter and electric motorcycle charge ports. The charger accepts 100-240V 50-60Hz input and works with universal, electric tool, motorcycle and scooter, industrial and electric wheelchair lead-acid battery applications.

Key Features

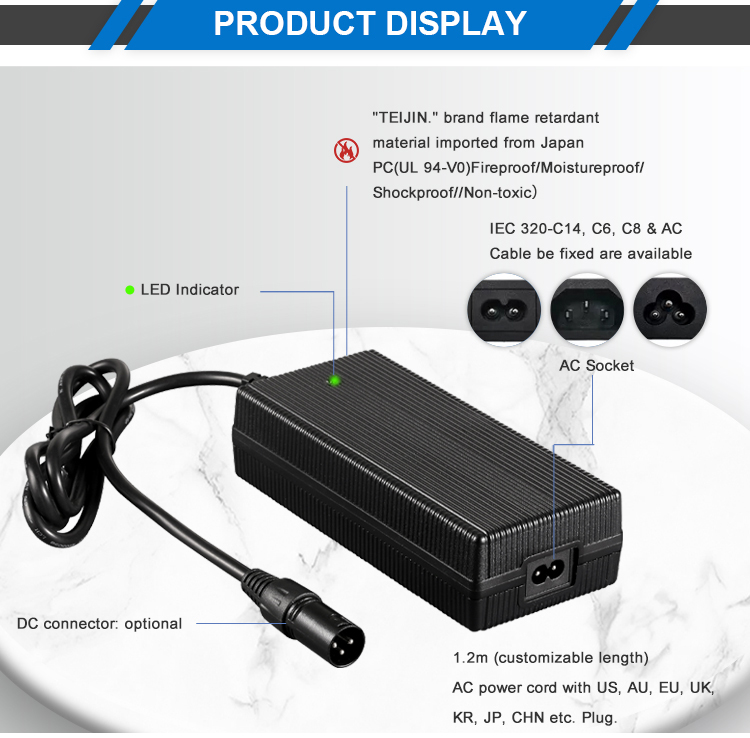

• 58.4V 3A, 175.2W output for 48V battery packs • XLR 3-pin DC plug for e-bikes, scooters and motorcycles • Universal 100-240V 50-60Hz input • Charging efficiency between 88% and 95% • Protection: short circuit, overload, over-voltage, over-charging and over-temperature • Compact housing measuring 154 x 60 x 36 mm • Lightweight at 0.45 kg per piece for portable use • Red/green LED indicator with PC fireproof material housing

Technical Specifications

• Model: FY5843000 • Product: 58.4V 3A LiFePO4 battery charger • Input: 100-240V, 50-60Hz • Output: 58.4V, 3A • Output power: 175.2W • Charging efficiency: 88% to 95% • Size: 154 x 60 x 36 mm • Weight: 0.45 kg per piece • Color: black • Housing: PC fireproof material • Protection: short circuit, overload, over-voltage, over-charging, over-temperature • OEM/ODM: acceptable

Applications

• 48V e-bikes • Electric scooters • Electric motorcycles • Electric wheelchairs and lead-acid battery packs • Electric tools • Industrial battery equipment

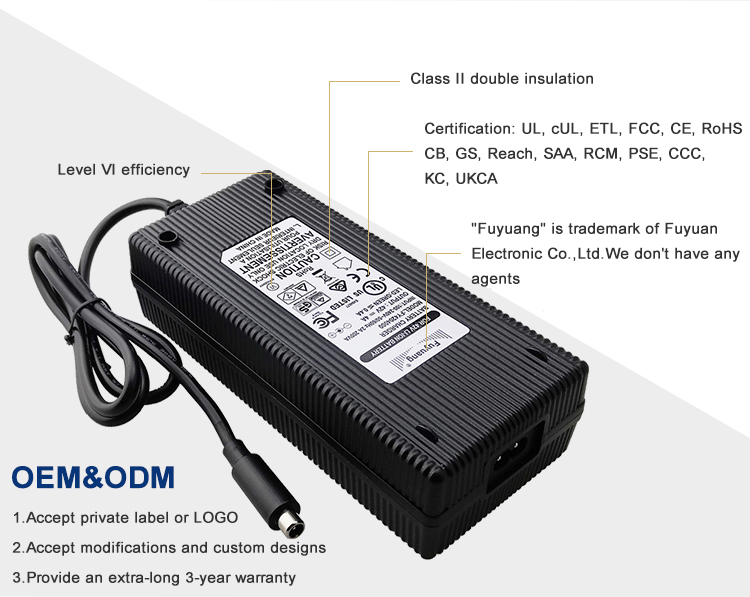

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this charger, including custom output voltage and current, custom DC connectors, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance testing during development. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. MOQ is confirmed per model.
