Fuyuang 58.4V 2A LiFePO4 Battery Charger for 16S 51.2V E-bike, Scooter and Motorcycle Packs

Fuyuang 58.4V 2A LiFePO4 Battery Charger for 16S 51.2V E-bike, Scooter and Motorcycle Packs

Name: Fuyuang 58.4V 2A LiFePO4 Battery Charger for 16S 51.2V E-bike, Scooter and Motorcycle Packs
Brand: Fuyuang
Rating: 5.0 (52 reviews)

The Fuyuang FY5802000 is a 58.4V 2A desktop charger for 16S 51.2V lithium iron phosphate and lithium-ion packs used on e-bikes, scooters, motorcycles and drones. Output current can be selected across 2A to 7A on the same platform, so a single design covers slow overnight charging and faster service charging. The charger uses an automatic profile with auto-stop, over-voltage, over-current, short circuit and reverse protection, and is fitted with fuses on both the input and the output for double-layer safety. Charging is fanless with free air convection cooling, and an LED indicator shows charging state. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5802000
Brand:
Fuyuang
Code:
FY5802000


Availability:

Product Overview

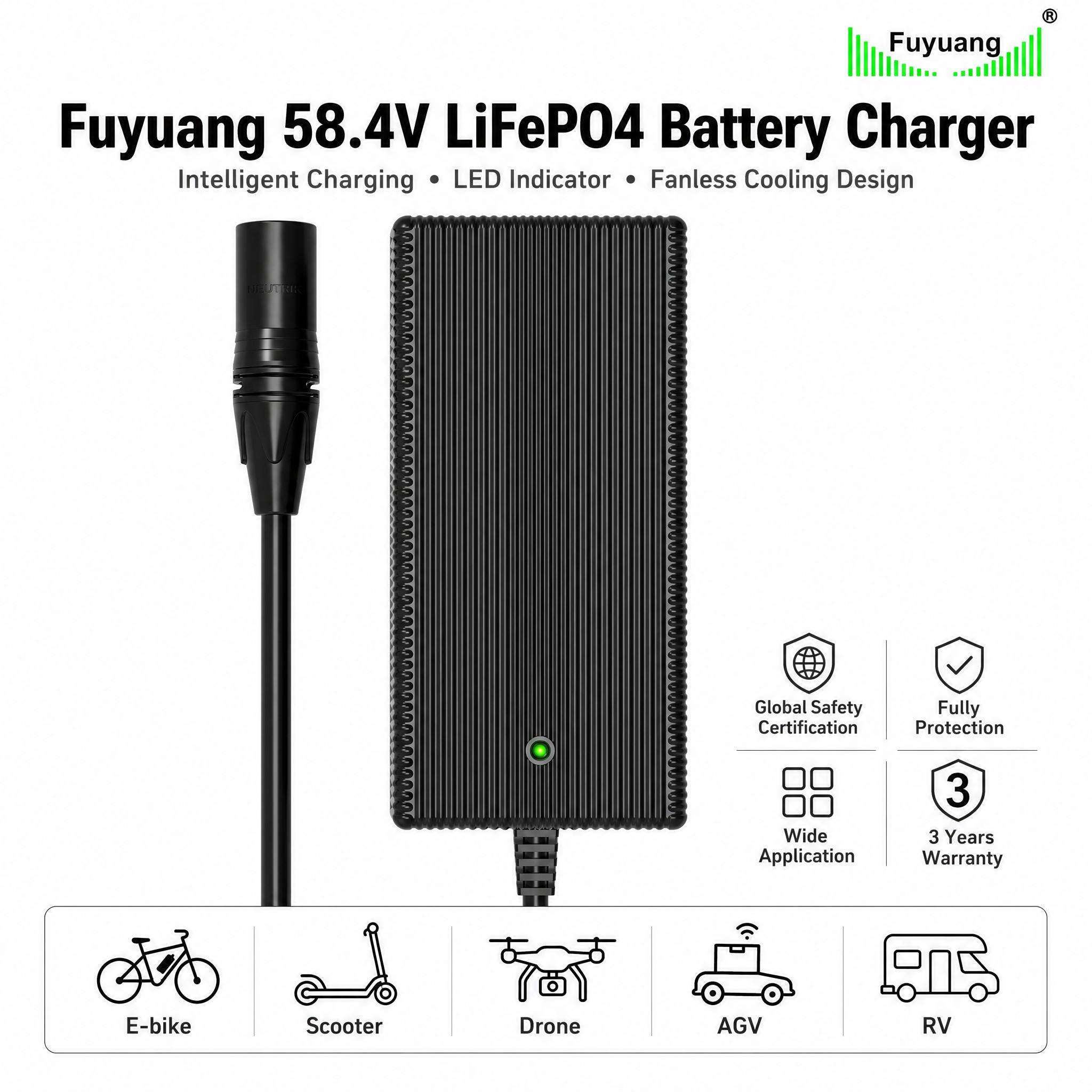

The FY5802000 is a desktop smart charger for 16S / 51.2V LiFePO4, lithium-ion and lead-acid battery packs. It delivers 58.4V at 2A from a 100-240Vac input, with 58.4V 3A, 4A, 5A, 6A and 7A variants on the same platform. It is aimed at e-bike, scooter, motorcycle and drone packs that need a compact, quiet charger with dependable protection. Output voltage and current can be tailored to match a specific battery system.

Key Features

• Desktop smart charger for 16S 51.2V LiFePO4 and lithium-ion packs • Output steps on one platform: 58.4V 2A / 3A / 4A / 5A / 6A / 7A • Auto-stop plus over-voltage, over-current, short circuit and reverse protection • Fuse on both input and output for double-layer safety • Fanless design, cooling by free air convection • LED charging indicator • Output voltage and current can be tailored to the application • Supports full OEM and ODM customisation

Technical Specifications

• Model: FY5802000 • Product name: 58.4V 2A electric bike battery charger • Input: 100-240Vac, 50/60Hz • Output: 58.4V 2A (116.8W) • Output options: 58.4V 2A / 3A / 4A / 5A / 6A / 7A • Charging type: desktop, fanless, free air convection cooling • Protection: auto-stop, over-voltage, over-current, short circuit, reverse polarity • DC connectors: M16 / M12 / 5521 / 5525 / XLR / Anderson / customisable • Colour: black, silver, grey • Certification: UL, cUL, GS, CE, RoHS, REACH, SAA, PSE, FCC • MOQ: 50 PCS

Applications

• E-bike battery packs • Electric scooters • Electric motorcycles • Drones and photography gear • Mobility and light electric vehicles

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
