Fuyuang 58.4V 2A Fast Battery Charger 60W-3000W for E-bike Scooter AGV Golf Cart Marine, LiFePO4 Lithium Lead-acid Dual Fuse

Fuyuang 58.4V 2A Fast Battery Charger 60W-3000W for E-bike Scooter AGV Golf Cart Marine, LiFePO4 Lithium Lead-acid Dual Fuse

Name: Fuyuang 58.4V 2A Fast Battery Charger 60W-3000W for E-bike Scooter AGV Golf Cart Marine, LiFePO4 Lithium Lead-acid Dual Fuse
Brand: Fuyuang
Rating: 5.0 (56 reviews)

The Fuyuang FY5842000 is a fanless fast battery charger rated 58.4V 2A (116.8W), with a 100-240Vac 50/60Hz input that can be customised. Output power across the platform ranges from 60W to 3000W, and additional output variants include 14.6V 3A, 29.2V 2A, 84V 5A, 126V 3A and 58.4V 20A. It charges LiFePO4, lithium-ion and lead-acid batteries and is aimed at e-bikes, scooters, wheelchairs, golf carts, marine equipment, robots, drones and industrial machinery. Free-air convection cooling delivers zero noise, while independent fuses on the input and output side, EMI/EMS compliance and an OVP, OCP, OTP, SCP, timer, auto cutoff and reverse-polarity protection set guard both charger and battery. The product is manufactured by Fuyuan Electronic Co., Ltd, founded in 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. Each unit is 100% factory inspected with 4-8 hours full-load burn-in and a 3-year warranty.

Model:
FY5842000
Brand:
Fuyuang
Code:
FY5842000


Availability:

Product Overview

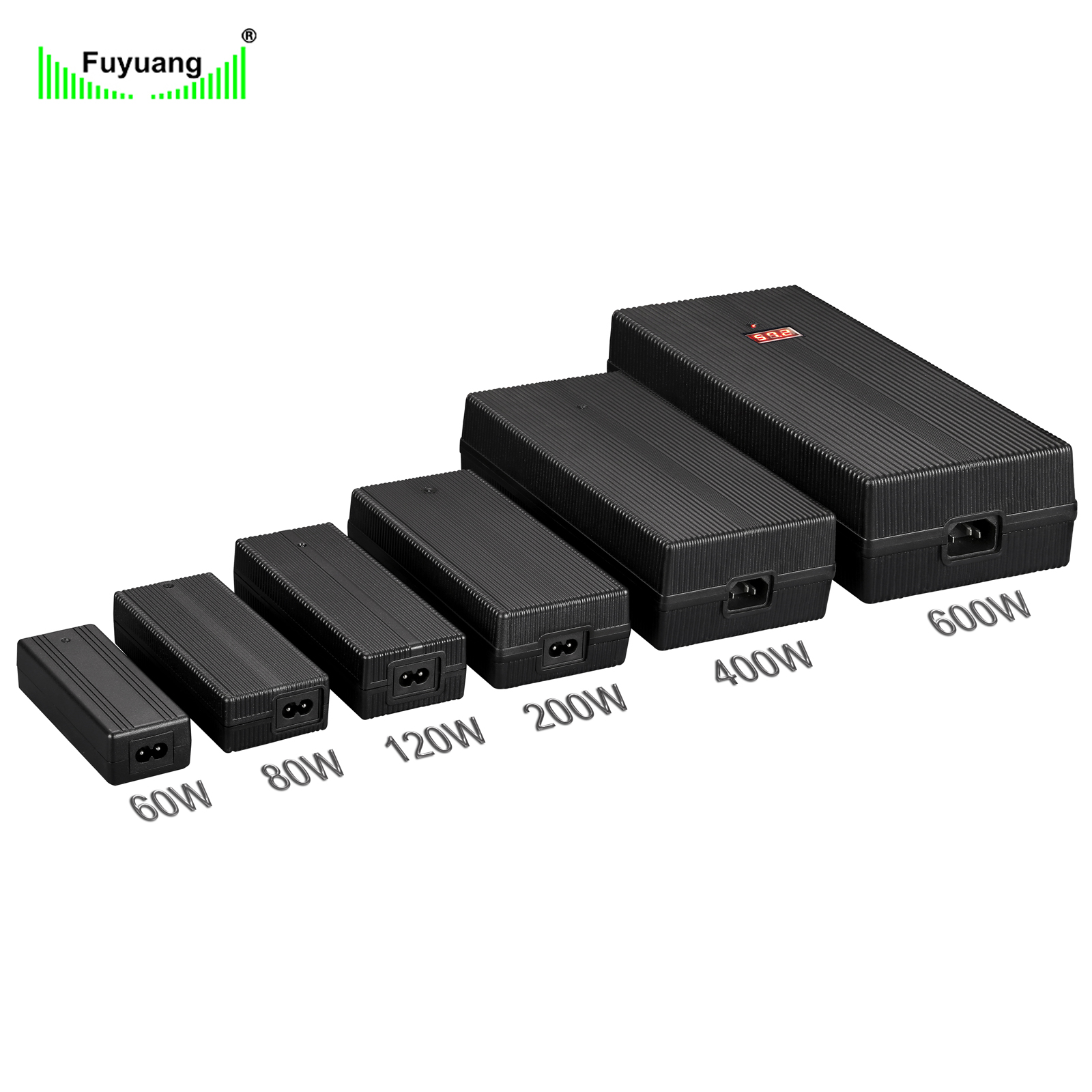

The FY5842000 is a desktop fast charger with a 58.4V 2A (116.8W) output, fed by an AC 100-240Vac 50/60Hz input that is customisable for specific projects. Platform power options cover 60W, 120W, 200W, 300W, 400W, 600W, 800W, 1200W, 1500W and 3000W. The charger supports LiFePO4, lithium-ion and lead-acid battery packs and is designed for e-bikes, scooters, wheelchairs, golf carts, marine systems, robots, drones and industrial equipment.

Key Features

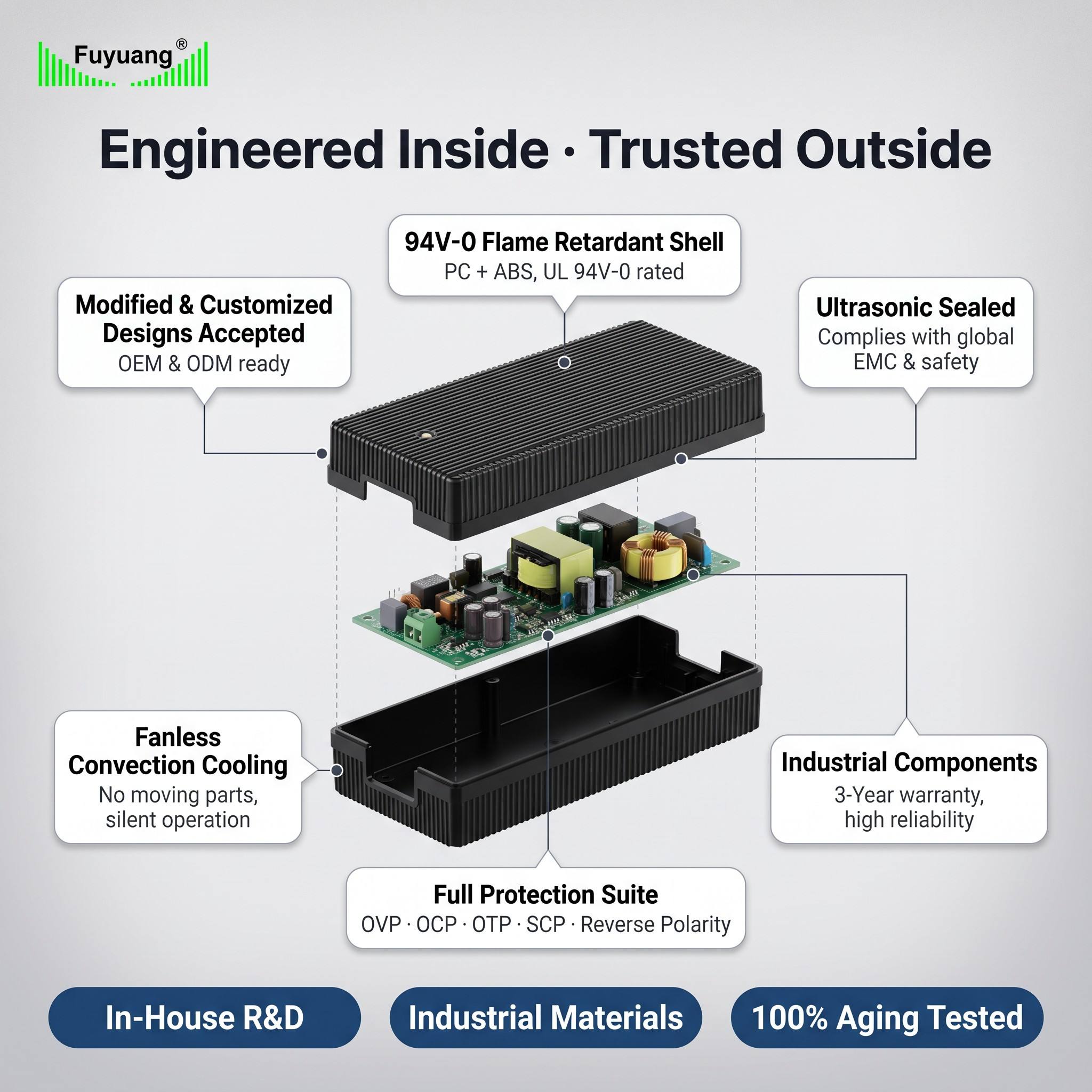

• 58.4V 2A (116.8W) fast charging with a customisable AC 100-240Vac 50/60Hz input • Platform output power from 60W up to 3000W • Battery compatibility: LiFePO4, lithium-ion and lead-acid • Fanless design cooled by free air convection with zero noise • Dual protection: fuse on both the input and output side, EMI/EMS compliant • Protection set: OVP, OCP, OTP, SCP, timer, auto cutoff and reverse polarity • Private mould tooling with ABS, aluminium alloy and PC fireproof material • DC connector options: 5525, 5521, XLR, XT60, Anderson, crocodile clip, ring terminal

Technical Specifications

• Model Number: FY5842000 • Brand: Fuyuang • Feature: fast charger, desktop type • Input: AC 100-240Vac 50/60Hz (customisable) • Output: 58.4V 2A (116.8W, customisable) • Output voltage options: 14.6V 3A, 29.2V 2A, 58.4V 2A, 84V 5A, 126V 3A, 58.4V 20A • Output power: 60W, 120W, 200W, 300W, 400W, 600W, 800W, 1200W, 1500W, 3000W • Reliability: 3-year warranty, 4-8 hours full-load burn-in • DC connector: 5525, 5521, XLR, XT60, Anderson, crocodile clip, ring terminal, customisable • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse polarity • Color: black; AC plug types: AU, EU, UK, US, JP • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

• Electric bikes, scooters and wheelchairs • Golf carts and marine battery systems • Robots and drones • Industrial equipment • Medical devices • Home security systems and household appliances

Customization & Service

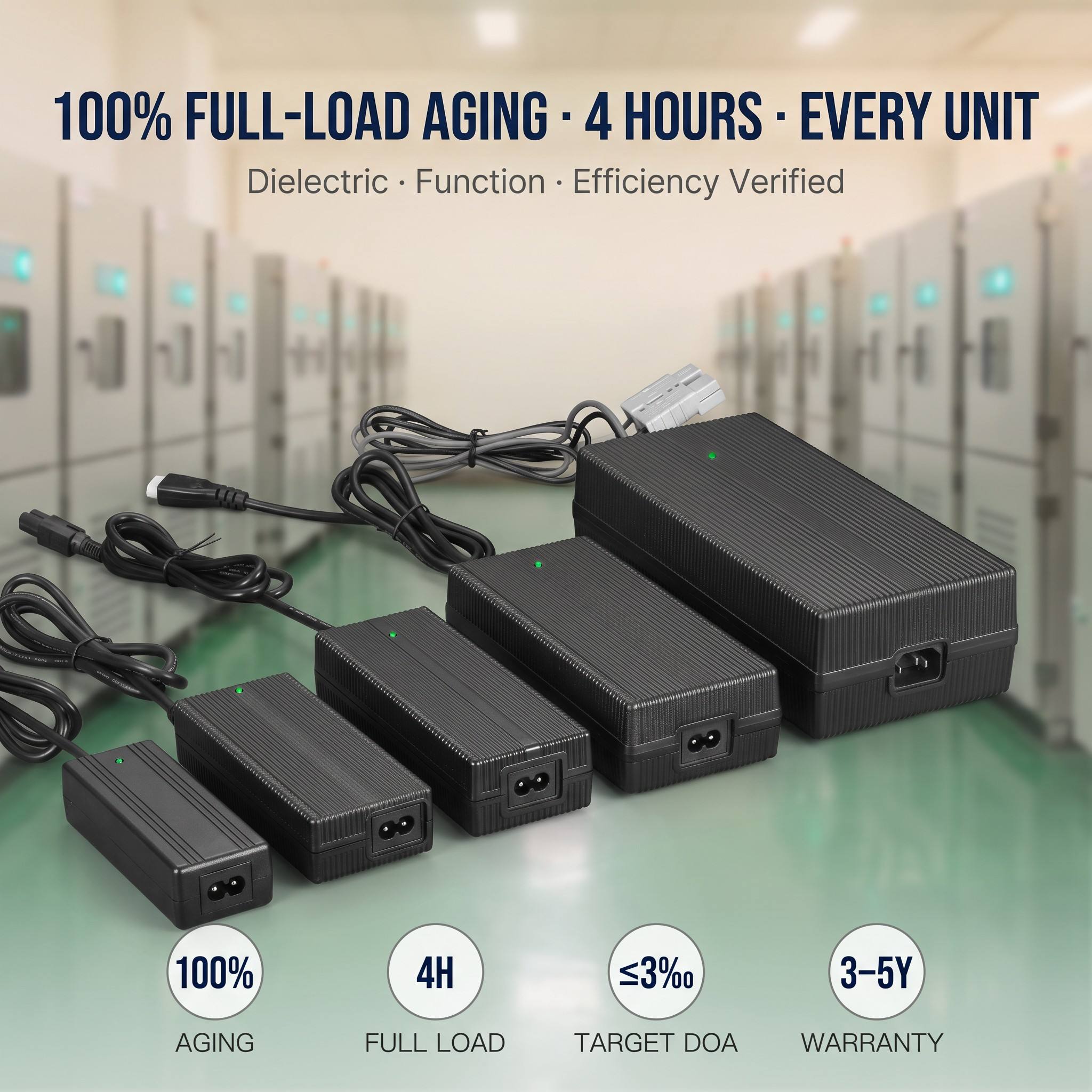

Fuyuan Electronic Co., Ltd accepts OEM and ODM work on this charger, covering custom output voltage, current, charging profile, DC connectors, cable length, housing colour, AC plugs and packaging. A CNAS-standard EMC laboratory supports pre-compliance testing so certification can be planned earlier. Units are 100% factory inspected with 4-8 hours of full-load burn-in and are covered by a 3-year warranty. Minimum order quantity is 100 PCS.
