Fuyuang 58.4V 2A-20A Smart Battery Charger for 48V LiFePO4, Robotics, AGV, Golf Cart and Pool Cleaner

Fuyuang 58.4V 2A-20A Smart Battery Charger for 48V LiFePO4, Robotics, AGV, Golf Cart and Pool Cleaner

Name: Fuyuang 58.4V 2A-20A Smart Battery Charger for 48V LiFePO4, Robotics, AGV, Golf Cart and Pool Cleaner
Brand: Fuyuang
Rating: 5.0 (16 reviews)

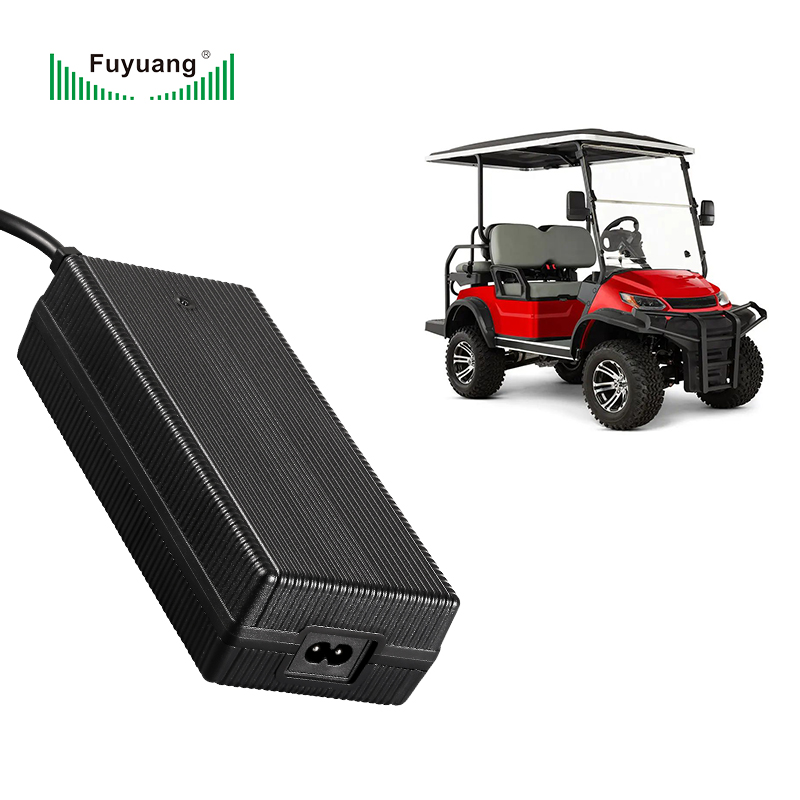

The Fuyuang FY5840000 is a smart battery charger built around a 58.4V DC output with 100-240Vac universal input. It charges 48V class lithium packs and is used on robotics platforms, automated guided vehicles, golf carts, RVs and pool robotic cleaners. Six current steps from 2A to 20A let one platform cover light service robots through to heavy cart packs. Charging is fully automatic: the charger detects the pack, holds a constant current then constant voltage profile with an auto-stop, and protects against over-charging, over-current, over-voltage, short circuit and fire risk. Fanless construction cools by natural air convection, so there is no fan noise and no dust to draw in. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5840000
Brand:
Fuyuang
Code:
FY5840000


Availability:

Product Overview

The FY5840000 is a desktop smart battery charger for 48V class lithium packs, delivering 58.4V at 2A, 3A, 5A, 7A, 10A or 20A from a 100-240Vac 50/60Hz input. It is designed for equipment that is charged unattended - robotics platforms, AGVs, golf carts, RVs and pool robotic cleaners - where a wrong charge profile is expensive. It works with LiFePO4, lithium-ion and lead-acid chemistries across a wide voltage family, and every unit is built with fireproof materials for continuous operation in industrial and outdoor environments.

Key Features

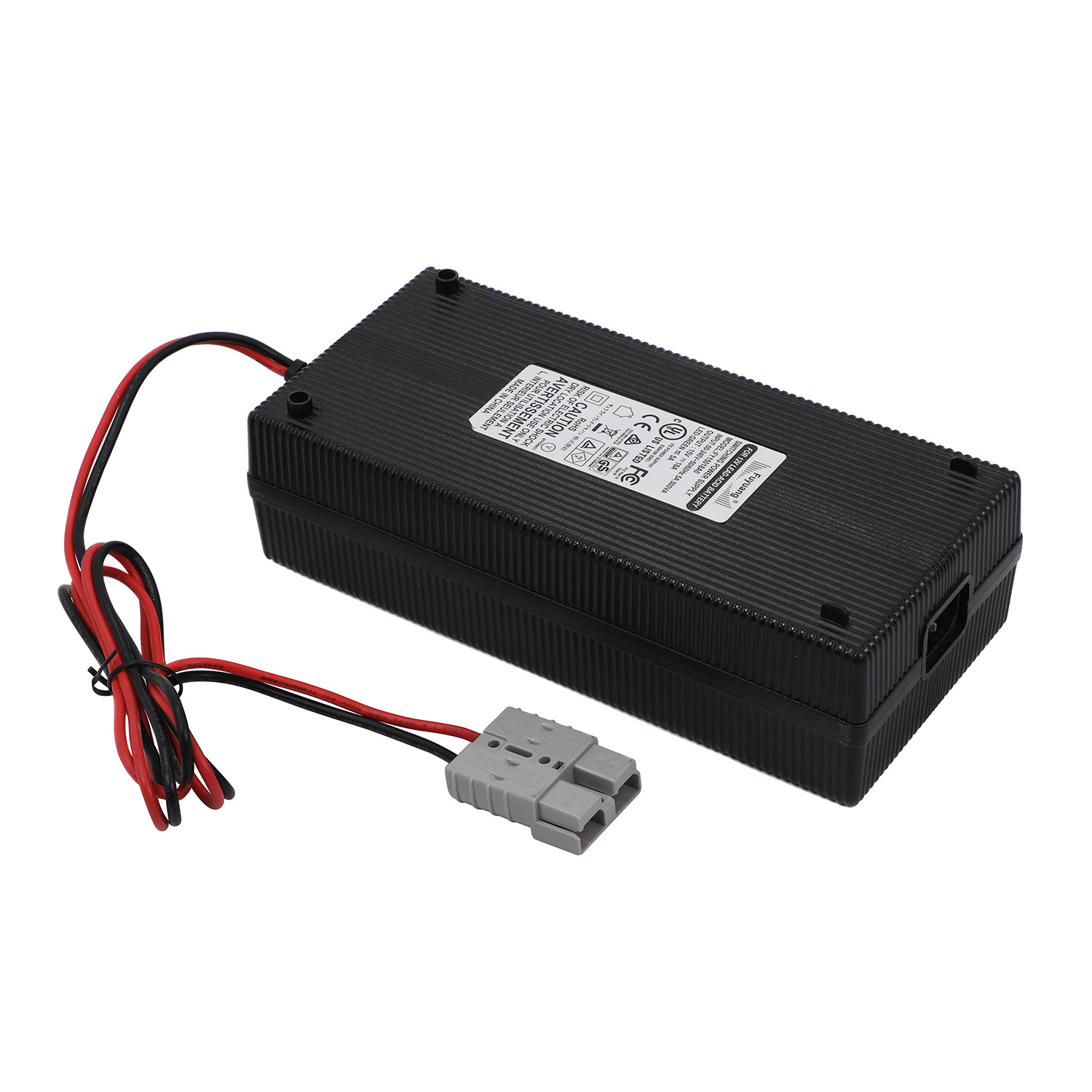

• Smart charging with automatic detection of pack voltage and polarity • Six output steps on one platform: 58.4V 2A / 3A / 5A / 7A / 10A / 20A • Universal 100-240Vac 50/60Hz input for worldwide use • 95% charging efficiency with low standby loss • Fanless design, cooled by natural air convection - quiet in service • Fireproof housing in ABS, aluminium alloy and PC fireproof material • Protection: over-charging, over-current, over-voltage, short circuit and low tension • Connector options: XLR, Anderson, crocodile clip, XT60, XT90 or customer design

Technical Specifications

• Model: FY5840000 • Input: AC 100-240Vac, 50/60Hz • Output: 58.4V 2A (116.8W) • Output options: 58.4V 2A / 3A / 5A / 7A / 10A / 20A • Power range: 75W / 120W / 150W / 200W / 300W / 400W / 500W / 600W / 800W / 1000W / 1200W • Charging efficiency: 95% • Battery type: LiFePO4, lithium and lead-acid • Housing material: ABS, aluminium alloy, PC fireproof material • Protection: fireproof, over-charging, over-current, over-voltage, short circuit • Connector: XLR / Anderson / crocodile / XT60 / XT90 / OEM • Colour: black, grey, silver • Certification: UL, GS, CE, RoHS, REACH, SAA, PSE, FCC, KC • MOQ: 100 PCS

Applications

• Robotics and autonomous mobile robots • AGV and AMR fleet charging • Drones and UAV battery packs • Golf carts and club cars • RV and recreational vehicle battery banks • Pool robotic cleaners • Industrial and medical devices • Electric tools and household appliances

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
