Fuyuang 54.6V 58.4V 58.8V Fast Battery Charger 120W-1200W for 48V LiFePO4 Lithium Lead-acid AGM GEL Batteries, Smart Charging

Fuyuang 54.6V 58.4V 58.8V Fast Battery Charger 120W-1200W for 48V LiFePO4 Lithium Lead-acid AGM GEL Batteries, Smart Charging

Name: Fuyuang 54.6V 58.4V 58.8V Fast Battery Charger 120W-1200W for 48V LiFePO4 Lithium Lead-acid AGM GEL Batteries, Smart Charging
Brand: Fuyuang
Rating: 5.0 (81 reviews)

The Fuyuang FY5462000 is a desktop fast charger supplying 54.6V 2A (109.2W), with additional output options at 58.4V 2A and 58.8V 2A for 48V battery systems. Input is AC 100-240Vac 50/60Hz and the platform covers 120W, 150W, 200W, 250W, 300W, 350W, 400W, 600W, 800W, 1000W and 1200W. Charging efficiency is 95% and the unit works with LiFePO4, lithium-ion and lead-acid (AGM/GEL) batteries, making it suitable for e-bikes, scooters, motorcycles and industrial equipment. It is fanless, uses ABS, aluminium alloy and PC fireproof material, and is protected against fire risk, low tension, over-charging, over-current, over-voltage and short circuit. Fuyuan Electronic Co., Ltd has manufactured power products since 2005 with 108,000 m2 of production space, 450 employees and a CNAS-standard EMC laboratory, and has developed 3,000+ models from 60W to 10KW. This charger is covered by a 3-year warranty.

Model:
FY5462000
Brand:
Fuyuang
Code:
FY5462000


Availability:

Product Overview

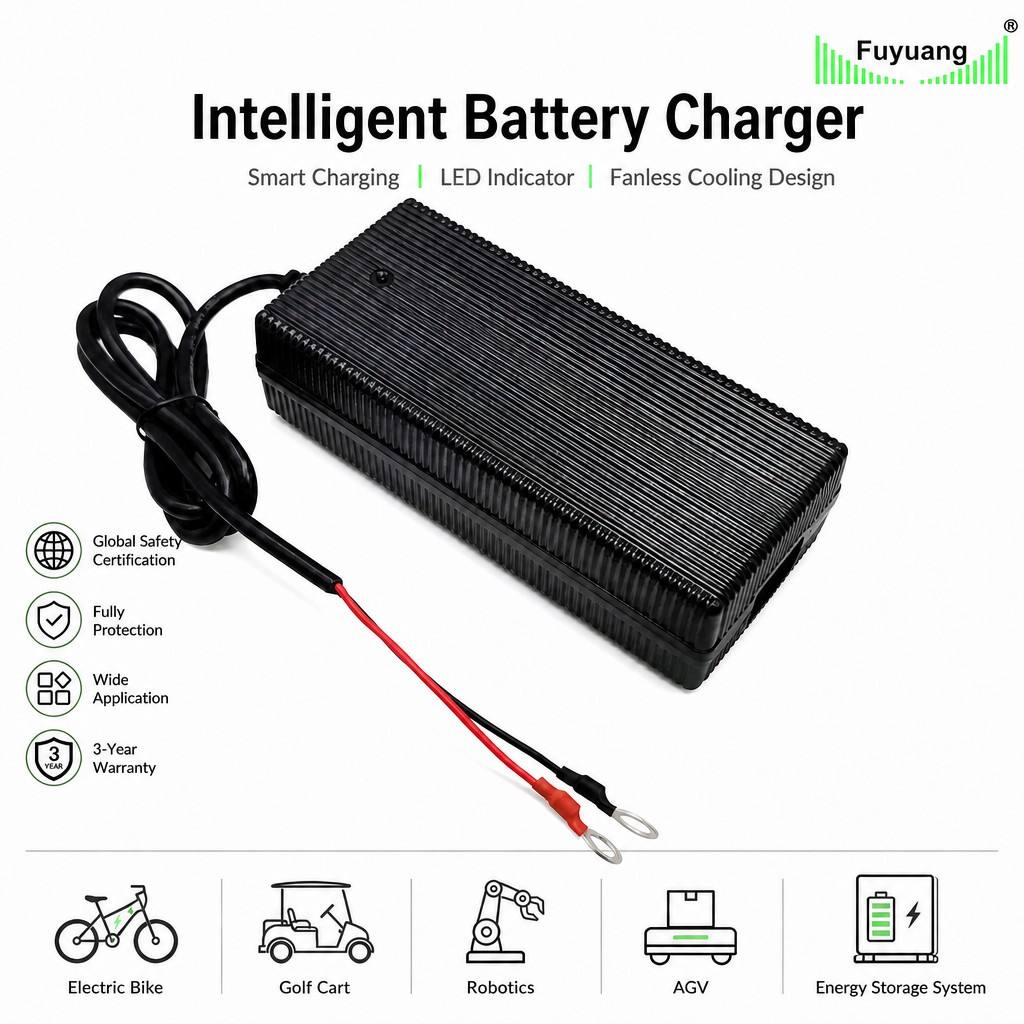

The FY5462000 is an intelligent fast charger with a 54.6V 2A (109.2W) output from an AC 100-240Vac 50/60Hz input. Sibling output options at 58.4V 2A and 58.8V 2A serve 48V battery systems, and platform power runs from 120W to 1200W. It charges LiFePO4, lithium-ion and lead-acid batteries including AGM and GEL types, and suits e-bikes, scooters, motorcycles and industrial equipment.

Key Features

• 54.6V 2A (109.2W) output with AC 100-240V input • Output options at 54.6V 2A, 58.4V 2A and 58.8V 2A for 48V packs • Platform output power from 120W to 1200W • Battery support: LiFePO4, lithium-ion and lead-acid AGM/GEL • 95% charging efficiency with intelligent fast charging • Fanless design with no moving parts • Protection against fire risk, low tension, over-charging, over-current, over-voltage and short circuit • DC connector options: 5521, 5525, XLR, Anderson, customisable

Technical Specifications

• Model Number: FY5462000 • Brand: Fuyuang • Type: fast charger, desktop charger • Input: AC 100-240Vac 50/60Hz • Output: 54.6V 2A (109.2W) • Output voltage options: 54.6V 2A, 58.4V 2A, 58.8V 2A • Output power: 120W, 150W, 200W, 250W, 300W, 350W, 400W, 600W, 800W, 1000W, 1200W • Charging efficiency: 95% • Material: ABS, aluminium alloy, PC fireproof material • DC connector: 5521, 5525, XLR, Anderson, customisable • Ports: AC and DC; color: black • Certification: CE, FCC, RoHS, UKCA, UL, SAA, PSE • Warranty: 3 years; MOQ: 100 PCS

Applications

• 48V e-bike and e-scooter battery packs • Electric motorcycles and scooters • Electric power tools • Industrial equipment • Medical devices • Home security systems and household appliances

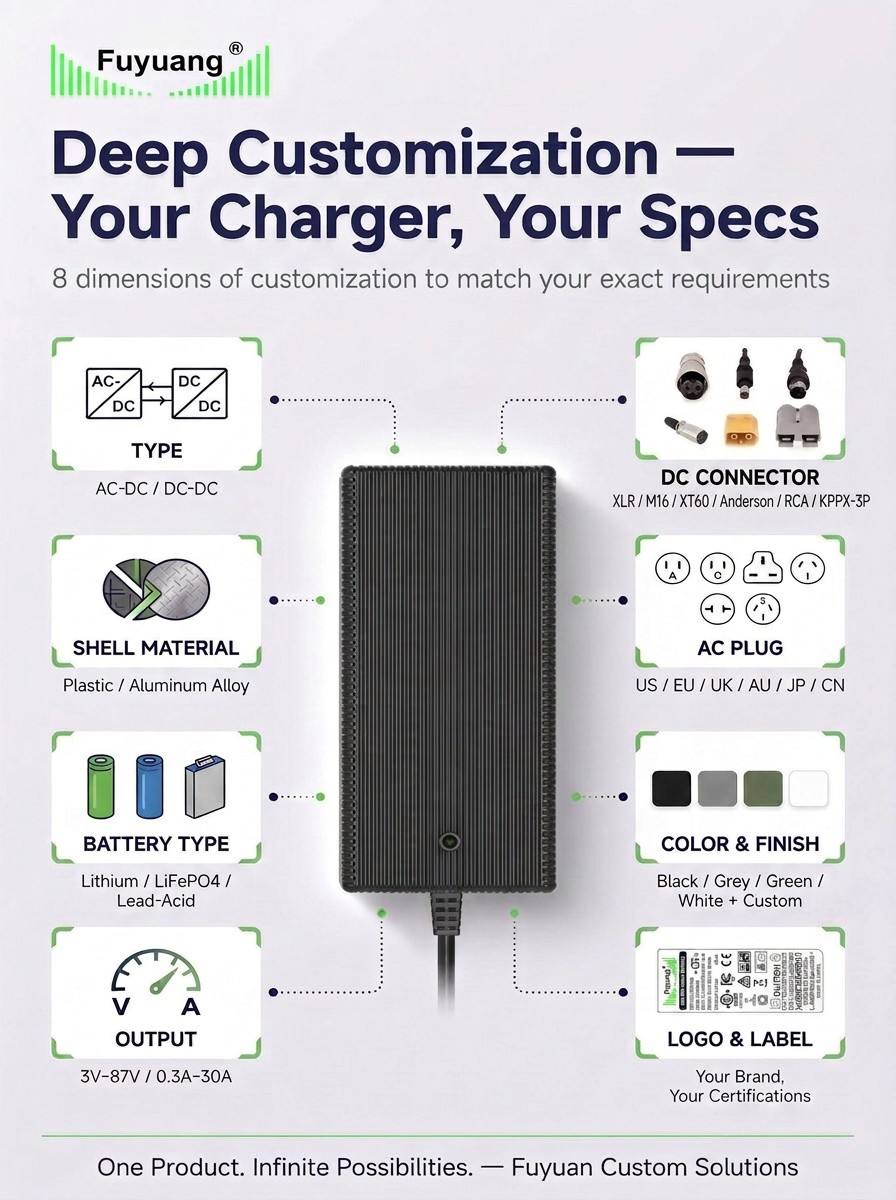

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this charger, covering custom voltage and current, charging profile, DC connectors, AC plugs, cable length, private labeling and packaging. A CNAS-standard EMC laboratory allows pre-compliance testing before formal certification. Units are 100% factory inspected with 4-8 hours of full-load burn-in and carry a 3-year warranty. Minimum order quantity is 100 PCS.
