Fuyuang 54.6V 58.4V 58.8V 48V Lithium LiFePO4 Lead Acid Battery Charger 2A with CE UKCA PSE SAA Approval

Fuyuang 54.6V 58.4V 58.8V 48V Lithium LiFePO4 Lead Acid Battery Charger 2A with CE UKCA PSE SAA Approval

Name: Fuyuang 54.6V 58.4V 58.8V 48V Lithium LiFePO4 Lead Acid Battery Charger 2A with CE UKCA PSE SAA Approval
Brand: Fuyuang
Rating: 5.0 (72 reviews)

The FY5462000 is a desktop battery charger for 48V-class packs, offering 54.6V 2A, 58.4V 2A and 58.8V 2A outputs that suit 13S and 16S lithium batteries as well as equivalent lead-acid banks. The wider platform extends from 2A to 25A so higher-current versions can be specified for the same application. It accepts 100-240Vac 50/60Hz input and charges with a CC-CV-trickle profile and automatic stop, protecting packs from over-charging. Over-voltage, over-current, overload, over-temperature and short-circuit protection are built in, and the fanless PC fireproof housing cools by free air convection with a red/green LED status indicator. Fuyuan Electronic Co., Ltd has manufactured chargers and power supplies since 2005, with 108,000 m2 of production space across Dongguan and Yongzhou, a CNAS-standard EMC laboratory, 3,000+ developed models spanning 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5462000
Brand:
Fuyuang
Code:
FY5462000


Availability:

Product Overview

The FY5462000 is a desktop battery charger with 54.6V 2A, 58.4V 2A and 58.8V 2A outputs for 48V-class LiFePO4, lithium-ion and lead-acid battery packs. Higher current versions from the same platform reach 25A. A 100-240Vac 50/60Hz input makes the charger usable worldwide, and CC-CV-trickle charging with stop charge keeps batteries safe. Typical uses are e-bikes, scooters, motorcycles and small electric vehicles.

Key Features

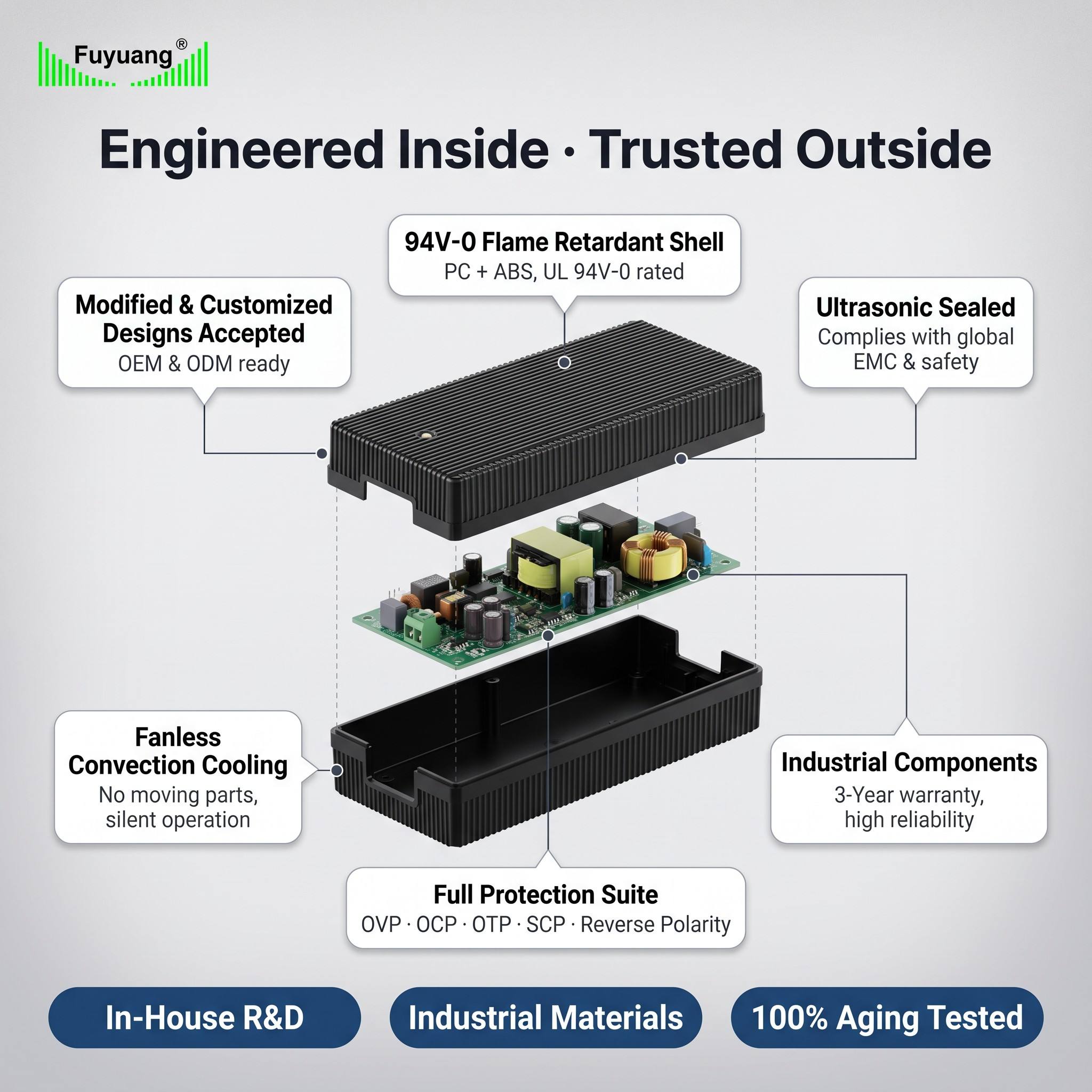

• 54.6V 2A, 58.4V 2A and 58.8V 2A outputs for 48V-class packs • Platform current range from 2A to 25A • Supports LiFePO4, lithium-ion and lead-acid batteries • Universal 100-240Vac 50/60Hz input • CC-CV-trickle charge mode with stop charge • Fanless cooling by free air convection, no noise • Over-voltage, over-current, overload, over-temperature and short-circuit protection • Compact PC fireproof housing with red/green LED indicator

Technical Specifications

• Model: FY5462000 • Input: 100-240Vac, 50/60Hz • Outputs: 54.6V 2A / 58.8V 2A / 58.4V 2A • Platform current range: 2A to 25A • Platform power: 90W / 120W / 150W / 200W / 450W / 600W / 3000W • Battery compatibility: LiFePO4, lithium-ion, lead-acid • Charge mode: CC-CV-Trickle Charge, stop charge • Charging efficiency: above 89% • Housing: PC fireproof material, black • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• E-bikes and scooters • Electric motorcycles • Robots and AGV equipment • Drones • Electric tools • 48V battery packs

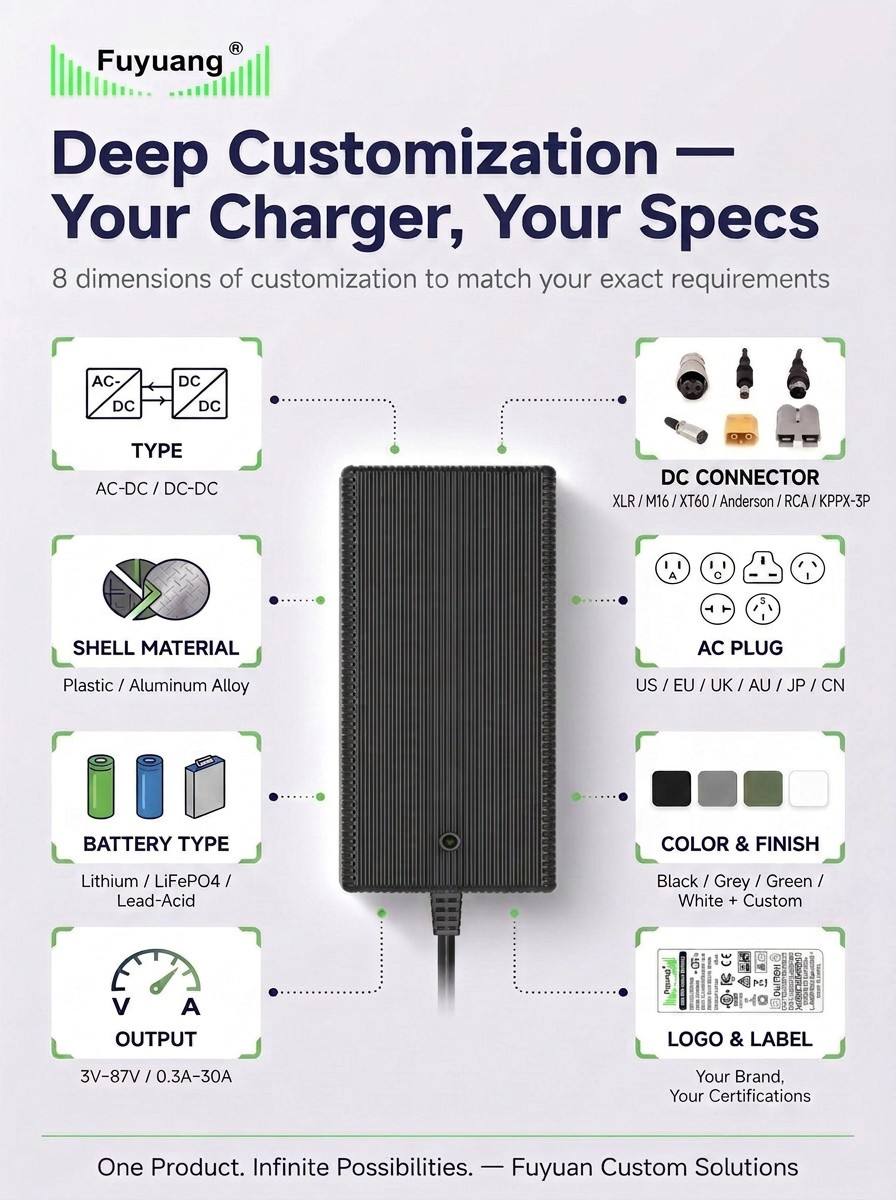

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this charger, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. A CNAS-standard EMC laboratory supports pre-compliance testing so certification preparation can start during development. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
