Fuyuang 54.6V 2A Industrial Battery Charger for Robot, AGV, Wheelchair, Scooter and Marine

Fuyuang 54.6V 2A Industrial Battery Charger for Robot, AGV, Wheelchair, Scooter and Marine

Name: Fuyuang 54.6V 2A Industrial Battery Charger for Robot, AGV, Wheelchair, Scooter and Marine
Brand: Fuyuang
Rating: 5.0 (78 reviews)

The Fuyuang FY5462000 is an industrial battery charger rated 54.6V 2A / 109.2W with a 100-240Vac 50/60Hz input. It is designed for 48V class packs on robots, AGVs, wheelchairs, scooters, motorcycles and marine equipment, and the family covers 12.6V to 84V outputs at 5A, 7A and 10A. It handles LiFePO4, lithium, lithium-ion and lead-acid batteries from 12V to 108V on one platform, with 95% efficiency and a fanless, naturally cooled enclosure. Protection covers over-charging, over-current, over-voltage, short circuit, low tension and fire risk, and multiple connector styles are available. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5462000
Brand:
Fuyuang
Code:
FY5462000


Availability:

Product Overview

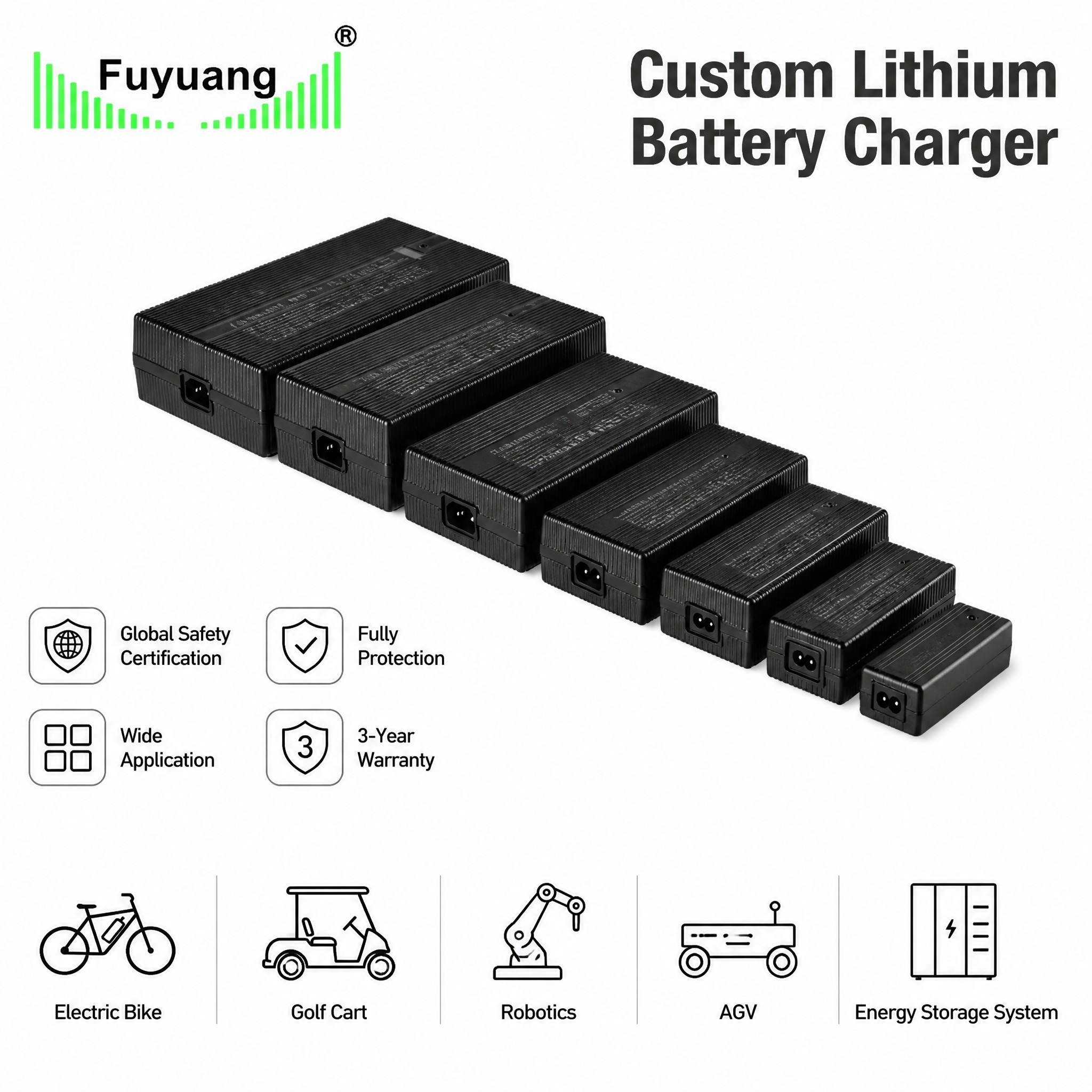

The FY5462000 is an industrial-grade desktop battery charger delivering 54.6V 2A / 109.2W from a universal 100-240Vac input. It charges 48V class lithium and lead-acid packs and is built for equipment that is charged in the field - service robots, AGVs, wheelchairs, scooters, motorcycles and marine systems. The same platform spans 12.6V 7A, 14.6V 5A, 16.8V 3A, 29.2V 10A, 29.4V 10A, 42V 5A, 43.8V 10A, 54.6V 10A, 67.2V 5A, 69.3V 5A and 84V 10A, with power options from 24W to 3000W, so several charger SKUs can be handled by one design.

Key Features

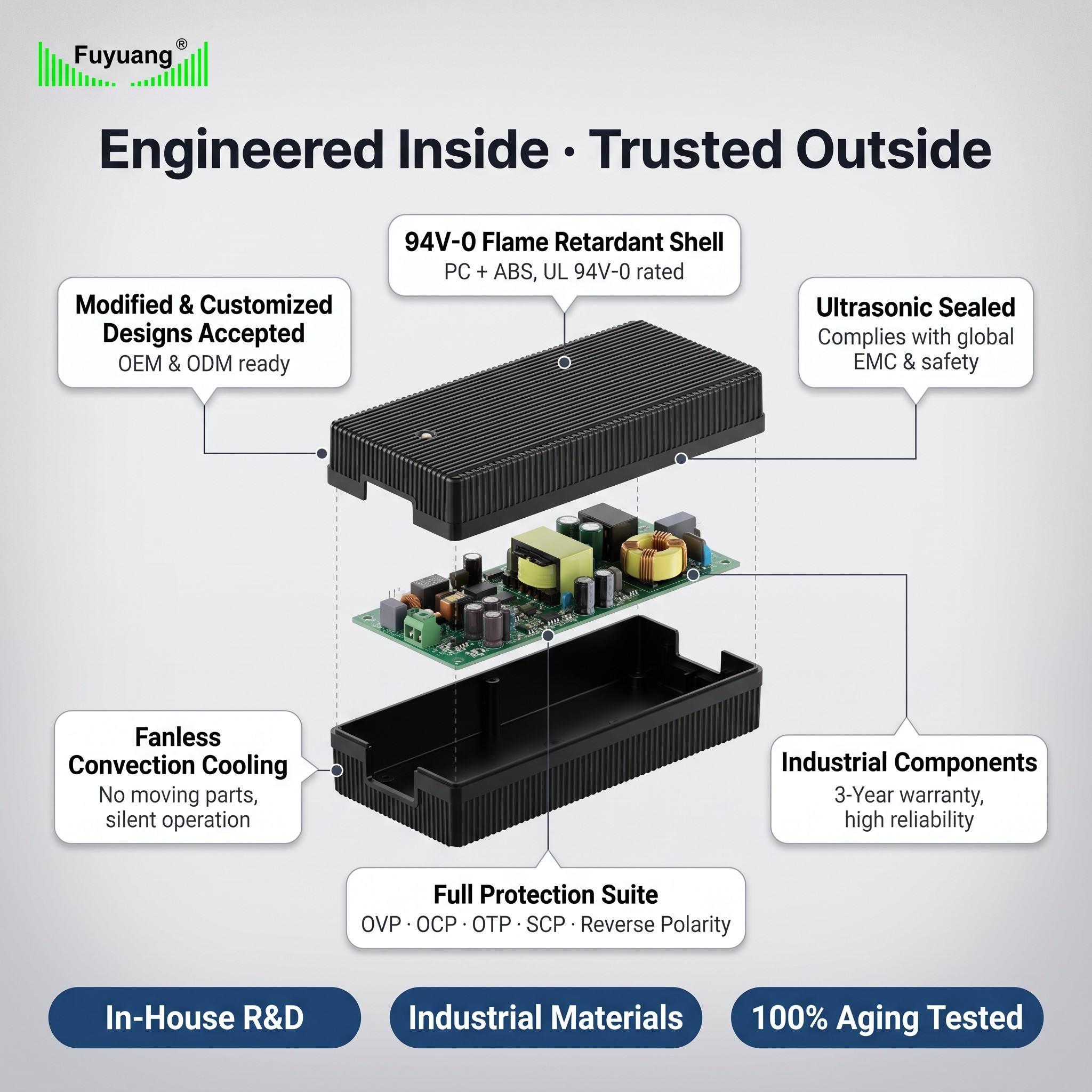

• Industrial battery charger with 54.6V 2A / 109.2W output • Broad output family from 12.6V to 84V at 3A, 5A, 7A and 10A • Power range 24W to 3000W across the platform • 95% efficiency with high speed charging • Fanless design, cooling by natural air convection • Fireproof, low tension, over-charging, over-current, over-voltage, short circuit protection • Connector options: 5.5x2.5, 5.5x2.1, XLR, Anderson, crocodile clip, ring terminal • Colour options: black, grey, silver

Technical Specifications

• Model: FY5462000 • Input: AC 100-240Vac, 50/60Hz • Output: 54.6V 2A (109.2W) • Output family: 12.6V 7A / 14.6V 5A / 16.8V 3A / 29.2V 10A / 29.4V 10A / 42V 5A / 43.8V 10A / 54.6V 10A / 67.2V 5A / 69.3V 5A / 84V 10A • Power range: 24W / 60W / 75W / 120W / 150W / 200W / 300W / 400W / 500W / 600W / 1000W / 1500W / 3000W • Efficiency: 95% • Battery compatibility: 12V / 24V / 36V / 48V / 60V / 72V / 84V / 96V / 108V LiFePO4, lithium and lead-acid • Housing material: ABS, aluminium, aluminium alloy, PC fireproof material • Protection: fireproof, low tension, over-charging, over-current, over-voltage, short circuit • Certification: CE, FCC, RoHS, UKCA, UL, KC, SAA, PSE • MOQ: 100 PCS

Applications

• Service and industrial robots • AGV and AMR fleets • Electric wheelchairs and mobility scooters • E-bikes and scooters • Electric motorcycles • Marine and outdoor equipment • Industrial equipment • Medical devices

Customization & Service

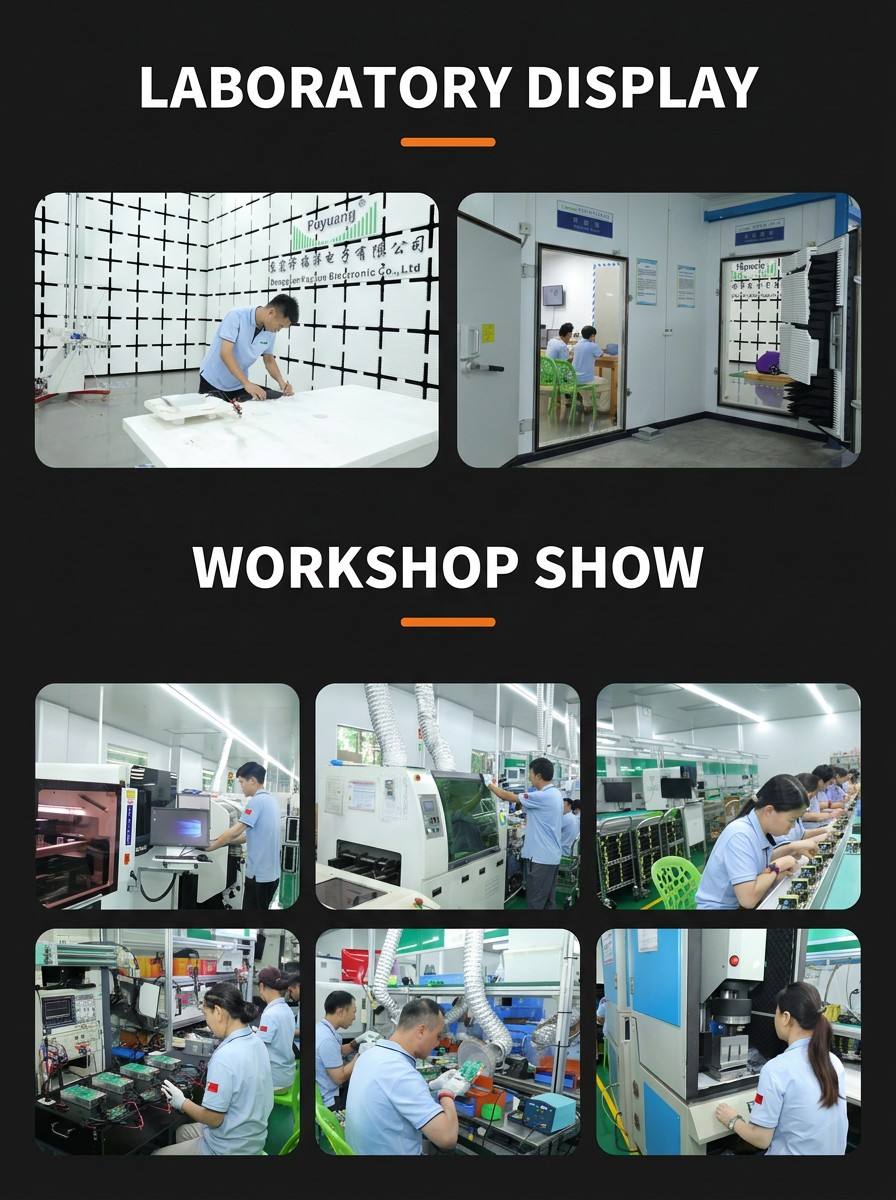

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
