Fuyuang 54.6V 2A Battery Charger 109.2W for E-bike Scooter Motorcycle Robotics Golf Cart AGV, 60W-600W LiFePO4 Charger

Fuyuang 54.6V 2A Battery Charger 109.2W for E-bike Scooter Motorcycle Robotics Golf Cart AGV, 60W-600W LiFePO4 Charger

Name: Fuyuang 54.6V 2A Battery Charger 109.2W for E-bike Scooter Motorcycle Robotics Golf Cart AGV, 60W-600W LiFePO4 Charger
Brand: Fuyuang
Rating: 5.0 (87 reviews)

The Fuyuang FY5460000 is a desktop battery charger delivering 54.6V 2A (109.2W) from a 100-240Vac 50/60Hz input, aimed at 48V lithium battery systems. Output options across the platform cover 54.6V 2A, 3A, 4A, 5A, 6A and 7A, with power ratings from 60W to 600W. The charger works with LiFePO4, lithium-ion and lead-acid batteries and is used on e-bikes, scooters, motorcycles, robotics, golf carts and AGVs. It cools by natural air convection with no fan, uses a fireproof PC housing, and provides over-charging, over-current, over-voltage, short-circuit, low-tension and fireproof protection. Connector options include 5.5x2.5, 5.5x2.1, XLR and Anderson. Fuyuan Electronic Co., Ltd has been manufacturing since 2005 with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory and 3,000+ models developed from 60W to 10KW. A 3-year warranty applies, with 100 PCS minimum order quantity.

Model:
FY5460000
Brand:
Fuyuang
Code:
FY5460000


Availability:

Product Overview

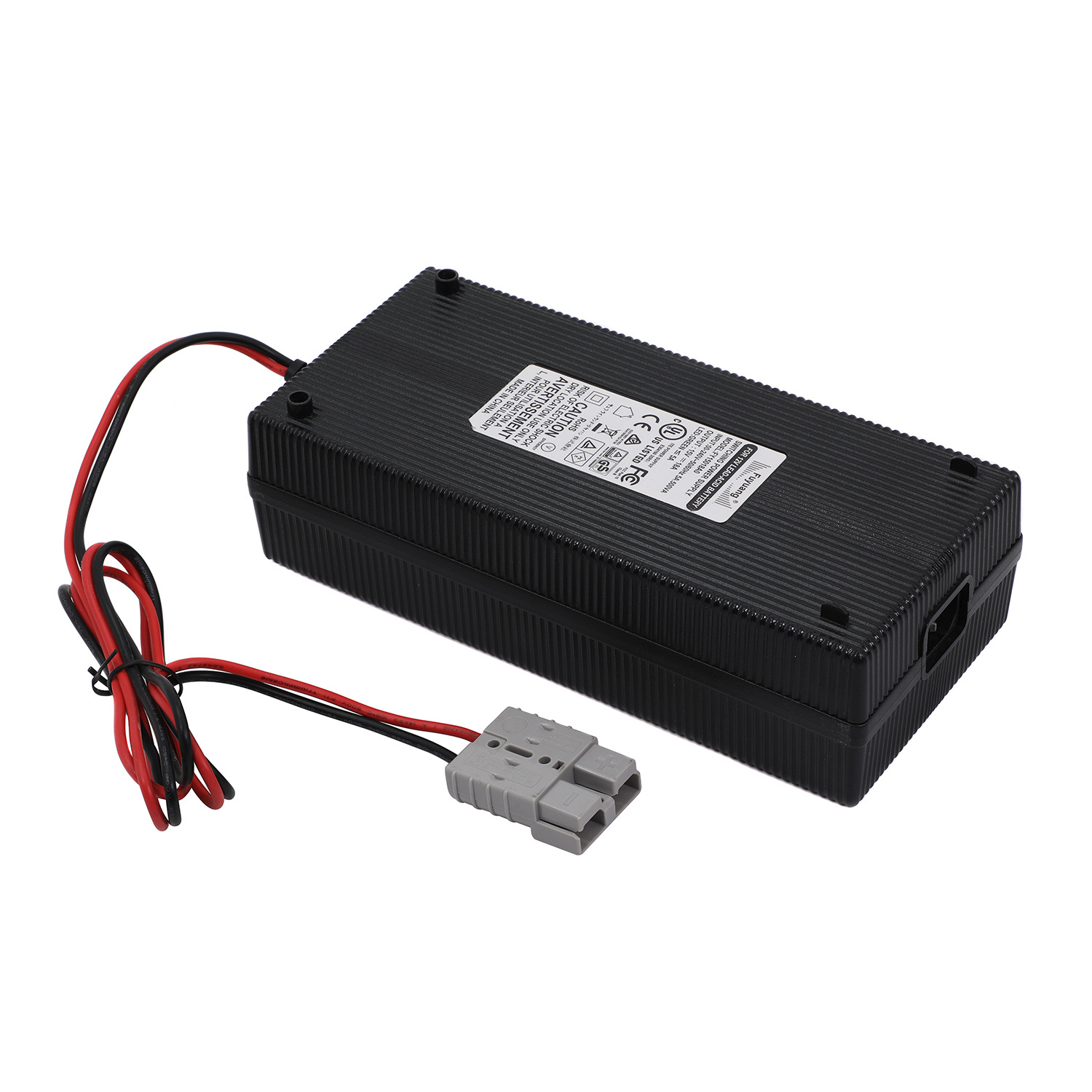

The FY5460000 is a desktop charger with a 54.6V 2A (109.2W) output from a 100-240Vac 50/60Hz input. It suits 48V lithium battery systems and the platform extends to 54.6V 7A with power ratings from 60W to 600W. Typical applications include e-bikes, scooters, motorcycles, robotics, golf carts and AGVs, with support for LiFePO4, lithium-ion and lead-acid battery packs.

Key Features

• 54.6V 2A (109.2W) output with a universal 100-240Vac 50/60Hz input • Platform outputs: 54.6V 2A, 54.6V 3A, 54.6V 4A, 54.6V 5A, 54.6V 6A, 54.6V 7A • Output power range from 60W to 600W • Compatible with LiFePO4, lithium-ion and lead-acid batteries • Fanless design cooled by natural air convection • Fireproof PC materials with a private mould housing • Protection: over-charging, over-current, over-voltage, short circuit, low tension, fireproof • DC connector options: 5.5x2.5, 5.5x2.1, XLR, Anderson, OEM

Technical Specifications

• Model Number: FY5460000 • Brand: Fuyuang • Type: desktop charger • Input: 100-240Vac 50/60Hz • Output: 54.6V 2A (109.2W) • Output options: 54.6V 2A, 54.6V 3A, 54.6V 4A, 54.6V 5A, 54.6V 6A, 54.6V 7A • Output power: 60W, 80W, 120W, 150W, 200W, 300W, 400W, 600W • Ports: DC and AC • Material: PC fireproof material • Connector: 5.5x2.5, 5.5x2.1, XLR, Anderson, OEM • Color: black, silver, grey • Certification: CE, GS, PSE, SAA, FCC, CB, RoHS, UL, KC, UKCA • Warranty: 3 years; MOQ: 100 PCS

Applications

• Electric bikes • Electric scooters • Electric motorcycles • Robotics platforms • Golf carts • AGV equipment • Industrial and medical devices

Customization & Service

OEM and ODM projects are supported on the FY5460000 platform, including custom output voltage and current, connector and cable selection, housing colour, private labeling, LOGO printing and packaging. The CNAS-standard EMC laboratory allows pre-compliance testing ahead of formal certification. Units are 100% factory inspected and covered by a 3-year warranty. Minimum order quantity is 100 PCS.
