Fuyuang 54.6V 18A 4-Bank Marine Battery Charger for Yacht, Golf Cart and AGV

Fuyuang 54.6V 18A 4-Bank Marine Battery Charger for Yacht, Golf Cart and AGV

Name: Fuyuang 54.6V 18A 4-Bank Marine Battery Charger for Yacht, Golf Cart and AGV
Brand: Fuyuang
Rating: 5.0 (20 reviews)

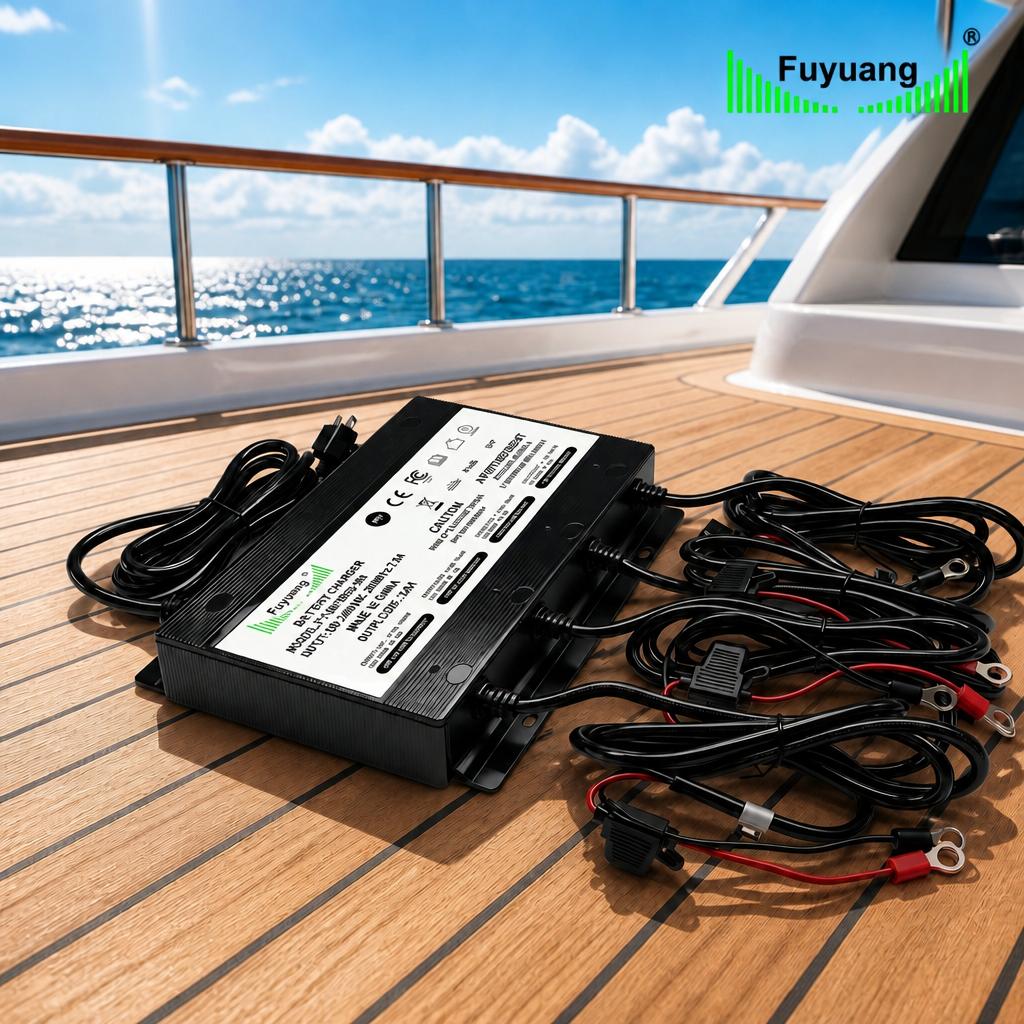

The Fuyuang FY5460000 is an intelligent multi-bank battery charger for marine and industrial applications. It delivers 54.6V at up to 18A and can charge several battery banks independently on one desktop unit, which suits yachts, golf carts, industrial robots and AGVs where more than one pack has to be maintained. The platform covers 14.6V, 29.2V, 43.8V, 58.4V, 69.3V and 84V outputs at 10A, with power levels from 24W to 1200W. Charging is safe and automatic, the unit is fanless and cooled by natural air convection, and the DC port and connector set can be configured to the vehicle wiring. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5460000
Brand:
Fuyuang
Code:
FY5460000


Availability:

Product Overview

The FY5460000 is a desktop intelligent multi-bank charger rated 54.6V 18A with a 100-240Vac 50/60Hz input, both customisable. Multi-bank charging means each connected battery bank is managed independently, so a partly discharged bank does not hold back a full one. It suits LiFePO4, lithium and lead-acid batteries and is used on yachts, marine systems, golf carts, AGVs, AMRs and industrial robots. Outputs across 14.6V to 84V at 10A let the same design serve 12V, 24V, 36V, 48V, 60V, 72V and 84V battery systems.

Key Features

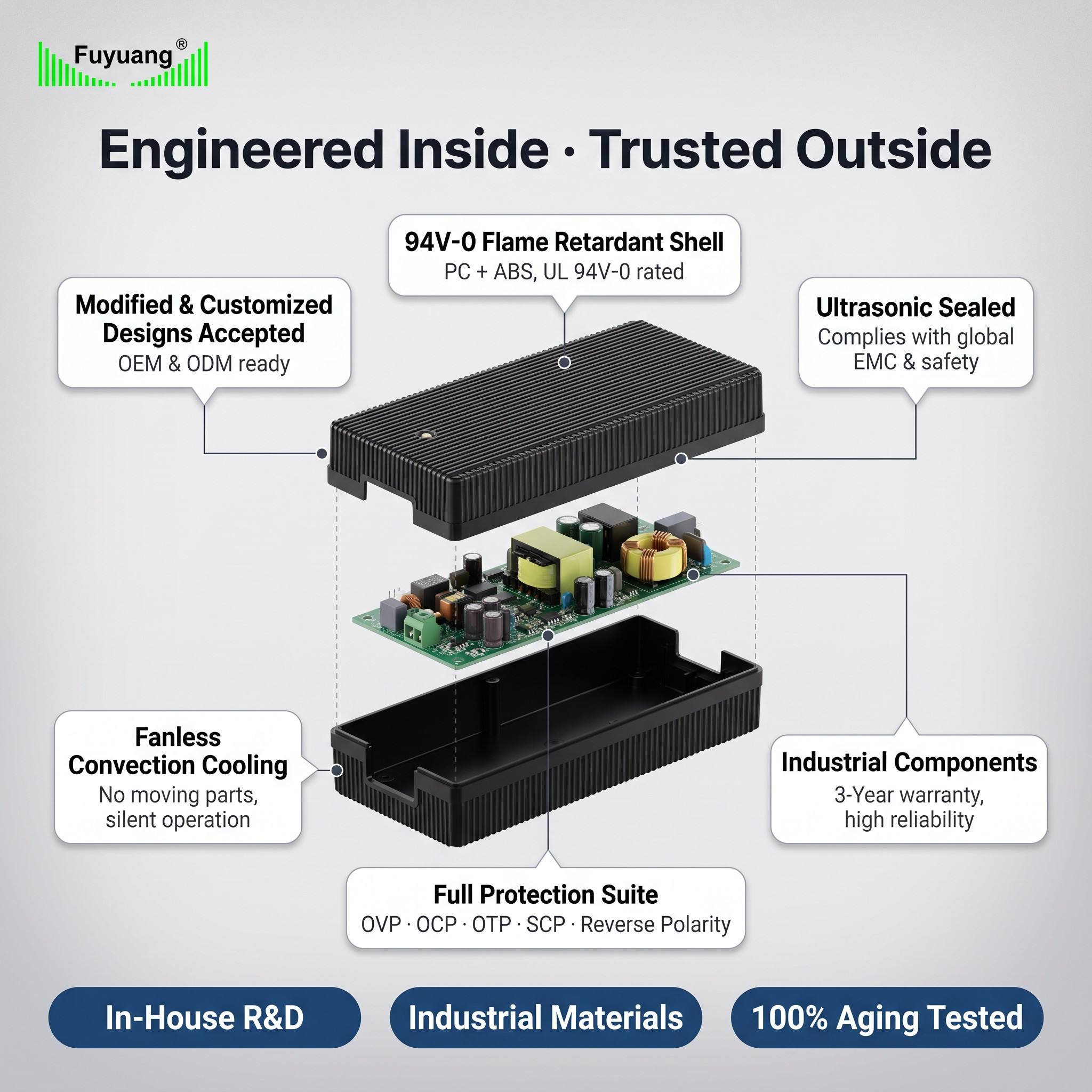

• Intelligent multi-bank charging - each bank managed independently • 54.6V 18A output, customisable input and output • Output family: 14.6V / 29.2V / 43.8V / 58.4V / 69.3V / 84V at 10A • Power range 24W to 1200W on one platform • 95% efficiency with safe automatic charging • Fanless design, cooling by natural air convection • Fireproof, low tension, over-charging, over-current, over-voltage and short circuit protection • Connector options: 5.5x2.5, 5.5x2.1, XLR, Anderson, crocodile clip, ring terminal

Technical Specifications

• Model: FY5460000 • Type: intelligent multi-bank desktop charger • Input: AC 100-240Vac, 50/60Hz (customisable) • Output: 54.6V 18A (customisable) • Output family: 14.6V 10A / 29.2V 10A / 43.8V 10A / 58.4V 10A / 69.3V 10A / 84V 10A • Power range: 24W / 60W / 75W / 120W / 150W / 200W / 300W / 400W / 600W / 800W / 1000W / 1200W • Efficiency: 95% • Battery compatibility: 12V / 24V / 36V / 48V / 60V / 72V / 84V / 96V LiFePO4, lithium and lead-acid • Housing material: ABS, aluminium, aluminium alloy, PC fireproof material • Protection: fireproof, low tension, over-charging, over-current, over-voltage, short circuit • Certification: CE, FCC, RoHS, UKCA, UL, SAA, KC, GS, ETL • MOQ: 100 PCS

Applications

• Marine, yacht and boat battery banks • Golf carts and light electric vehicles • AGV and AMR charging stations • Industrial robots • Electric vehicles, e-bikes and scooters • Industrial equipment • Medical devices • Electric tools and household appliances

Customization & Service

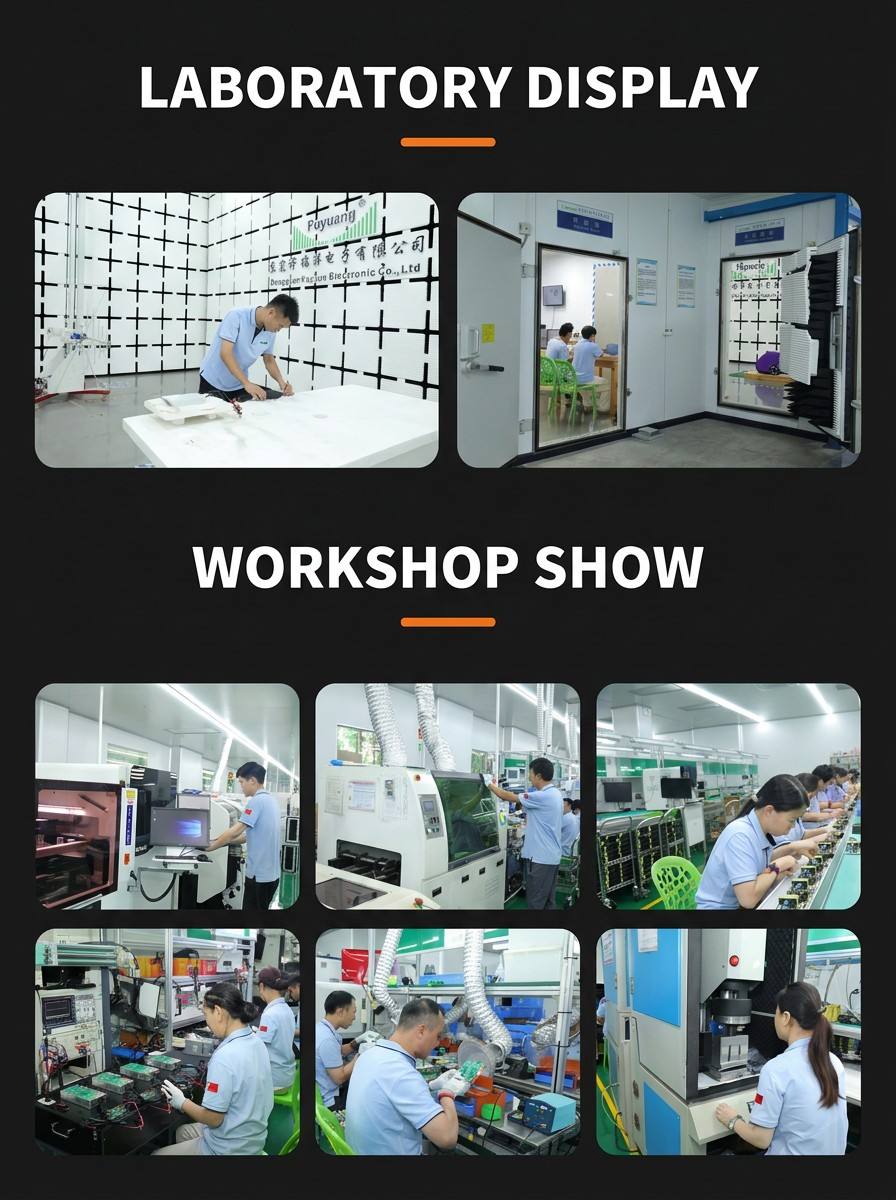

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
