Fuyuang 54.6V 10A Battery Charger 546W for Golf Cart Robot AGV RV Marine, 150W-600W LiFePO4 Lithium Fast Charger

Fuyuang 54.6V 10A Battery Charger 546W for Golf Cart Robot AGV RV Marine, 150W-600W LiFePO4 Lithium Fast Charger

Name: Fuyuang 54.6V 10A Battery Charger 546W for Golf Cart Robot AGV RV Marine, 150W-600W LiFePO4 Lithium Fast Charger
Brand: Fuyuang
Rating: 5.0 (72 reviews)

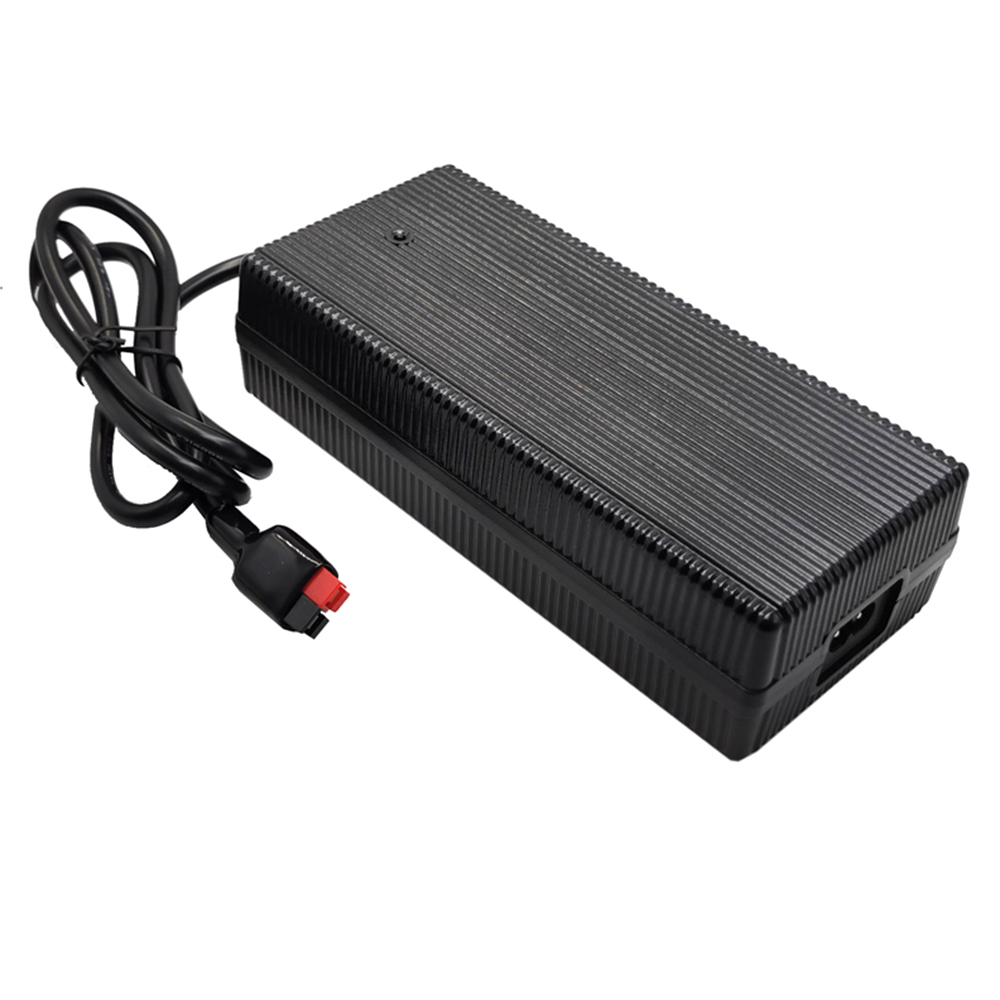

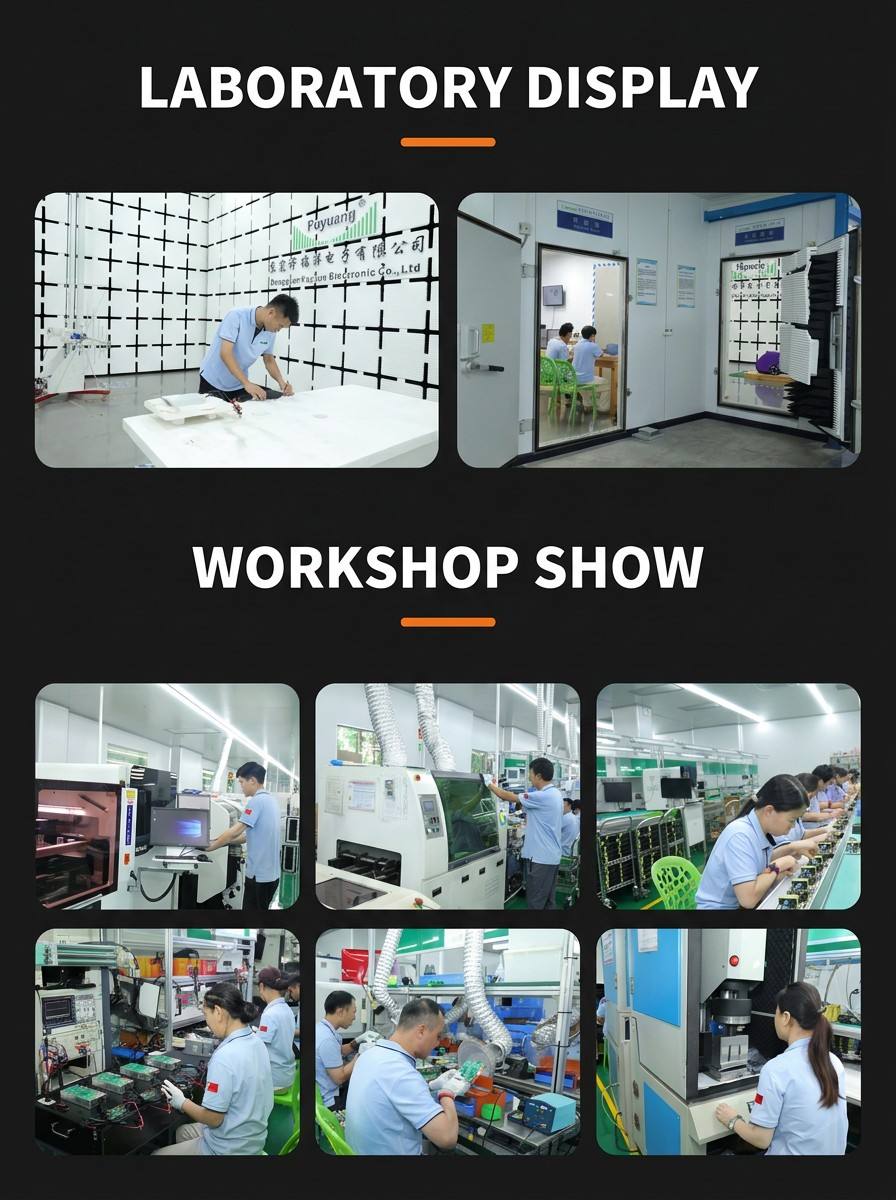

The Fuyuang FY54610000 is a desktop fast charger with a 54.6V 10A output rated 546W from an AC 100-240Vac 50/60Hz input. The platform covers 150W, 200W, 250W, 300W, 400W and 600W power levels and supports 12V to 84V battery systems. Charging efficiency reaches 95%. The unit is aimed at golf carts, robots, AGVs, RVs and marine installations, and charges LiFePO4, lithium-ion and lead-acid packs. Cooling is by natural air convection, the housing is PC fireproof material, and DC connector options include 5.5x2.5, 5.5x2.1, XLR, Anderson and alligator clip. Protection covers fire risk, over-charging, over-current, over-voltage and short circuit. Fuyuan Electronic Co., Ltd, founded in 2005, manufactures across 108,000 m2 of production space with 450 employees, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger is covered by a 3-year warranty with a 10 PCS minimum order quantity.

Model:
FY54610000
Brand:
Fuyuang
Code:
FY54610000


Availability:

Product Overview

The FY54610000 is a fast desktop charger supplying 54.6V 10A (546W) from an AC 100-240Vac 50/60Hz input. It is a private-mould design covering 150W to 600W platform power and is suitable for 12V to 84V battery systems. Typical deployments are golf carts, robots, AGVs, RVs and marine equipment that require a high-current charge cycle every day.

Key Features

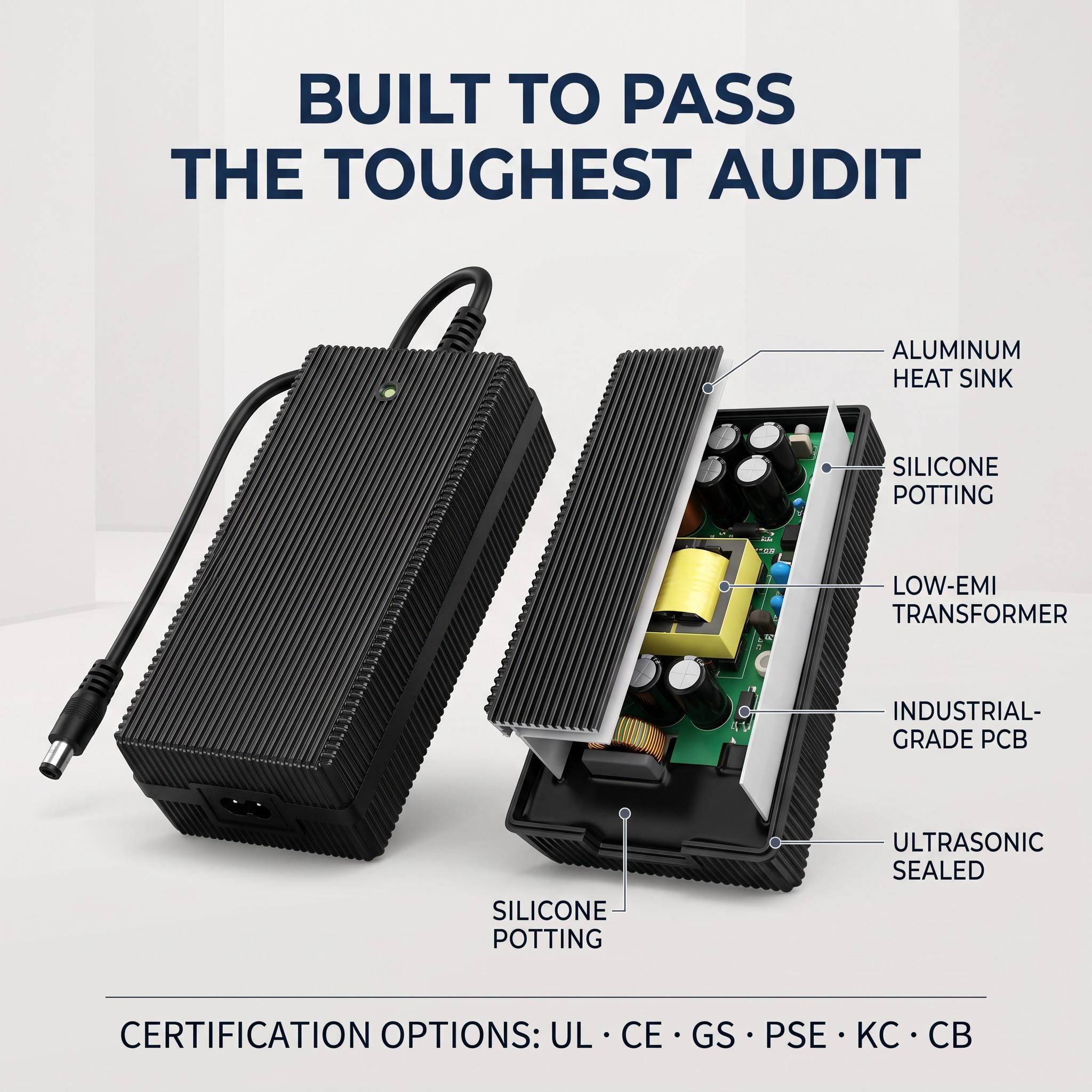

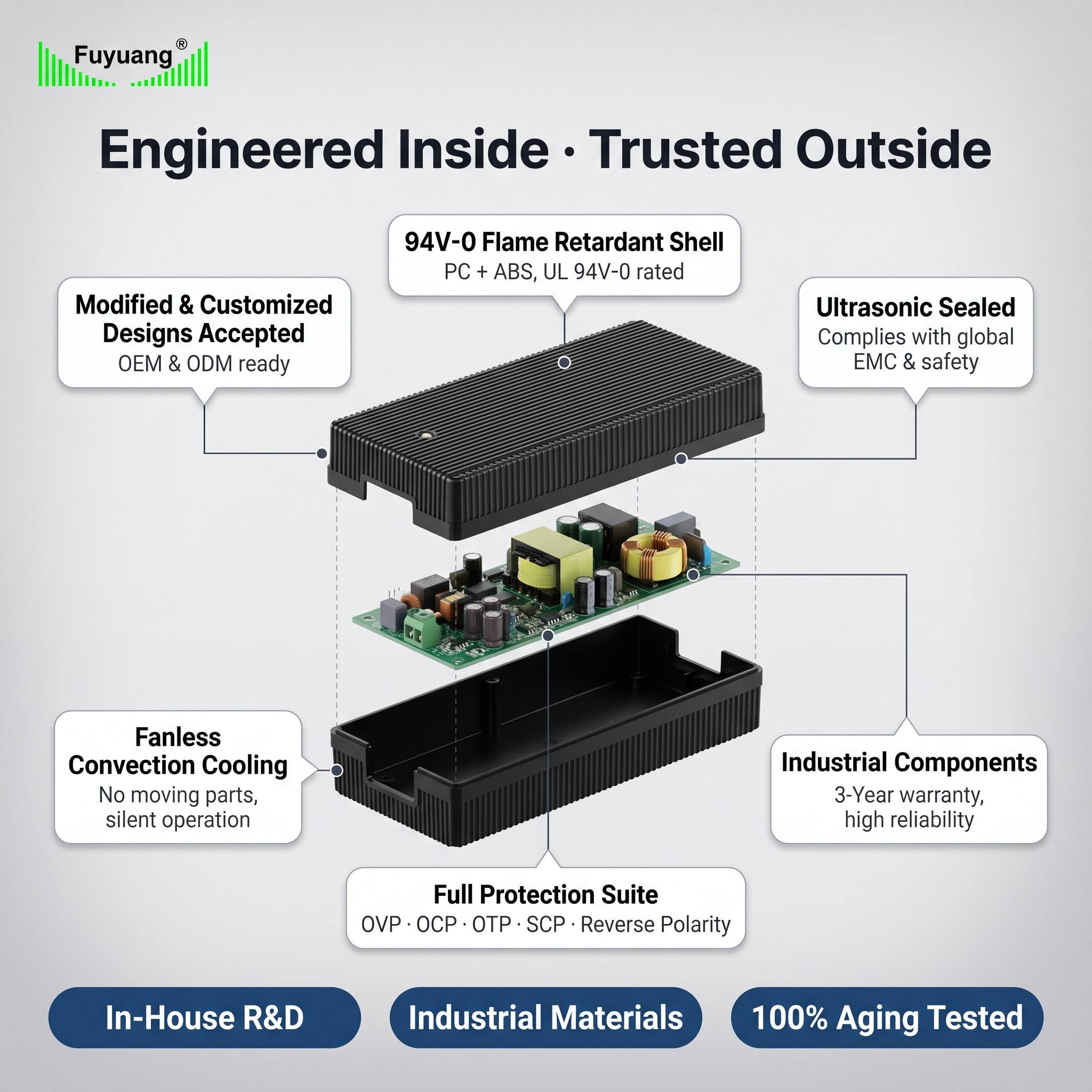

• 54.6V 10A (546W) fast charging output • AC 100-240Vac 50/60Hz universal input • Platform output power from 150W to 600W • 95% charging efficiency • Suitable for LiFePO4, lithium-ion and lead-acid battery packs • Cooling by natural air convection with no fan • DC connectors: 5.5x2.5, 5.5x2.1, XLR, Anderson, alligator clip, OEM • Protection against fire risk, over-charging, over-current, over-voltage and short circuit

Technical Specifications

• Model Number: FY54610000 • Brand: Fuyuang • Product name: 12V 24V 36V 48V 60V 72V 84V LiFePO4 lithium battery charger • Type: fast charger • Input: AC 100-240Vac 50/60Hz • Output: 54.6V 10A (546.0W) • Output power: 150W, 200W, 250W, 300W, 400W, 600W • Efficiency: 95% • Material: PC fireproof material • Connector: 5.5x2.5, 5.5x2.1, XLR, Anderson, alligator clip, OEM • Ports: AC and DC • Certification: UL, FCC, GS, CE, RoHS, REACH, SAA, PSE, KC • Warranty: 3 years; MOQ: 10 PCS

Applications

• Golf carts • Robots and mobile machinery • AGV equipment • RVs and camper vehicles • Marine battery systems • Industrial and medical devices

Customization & Service

Fuyuan Electronic Co., Ltd offers OEM and ODM services on this platform, including custom output voltage and current, charging profile, connectors, cable length, housing colour, private labeling and packaging. Pre-compliance testing is available in the company CNAS-standard EMC laboratory to support market certification. Every charger is 100% factory inspected and covered by a 3-year warranty. Minimum order quantity is 10 PCS.
