Fuyuang 48V 15A Desktop Battery Charger 600W-1200W for Golf Cart RV AGV Marine, LiFePO4 Lithium Lead-acid Fast Charging

Fuyuang 48V 15A Desktop Battery Charger 600W-1200W for Golf Cart RV AGV Marine, LiFePO4 Lithium Lead-acid Fast Charging

Name: Fuyuang 48V 15A Desktop Battery Charger 600W-1200W for Golf Cart RV AGV Marine, LiFePO4 Lithium Lead-acid Fast Charging
Brand: Fuyuang
Rating: 5.0 (30 reviews)

The Fuyuang FY5460000 is a fanless desktop battery charger rated 48V 15A with a universal 100-240Vac 50/60Hz input that can be customised. The platform covers 600W, 800W, 1000W and 1200W output versions for LiFePO4, lithium-ion and lead-acid batteries. It runs at more than 94% efficiency across an operating temperature range of -29C to +45.5C, and cools entirely by free air convection, so there is zero fan noise and no dust ingress. Fuses on both the input and output sides add a second layer of safety, and the protection set covers OVP, OCP, OTP, SCP, timer, auto cutoff and reverse polarity. EMI and EMS compliance is built in. Fuyuan Electronic Co., Ltd has manufactured power supplies since 2005, with 108,000 m2 of factory space, 450 employees, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on every charger. Full-load burn-in of 4-8 hours is applied to each unit.

Model:
FY5460000
Brand:
Fuyuang
Code:
FY5460000


Availability:

Product Overview

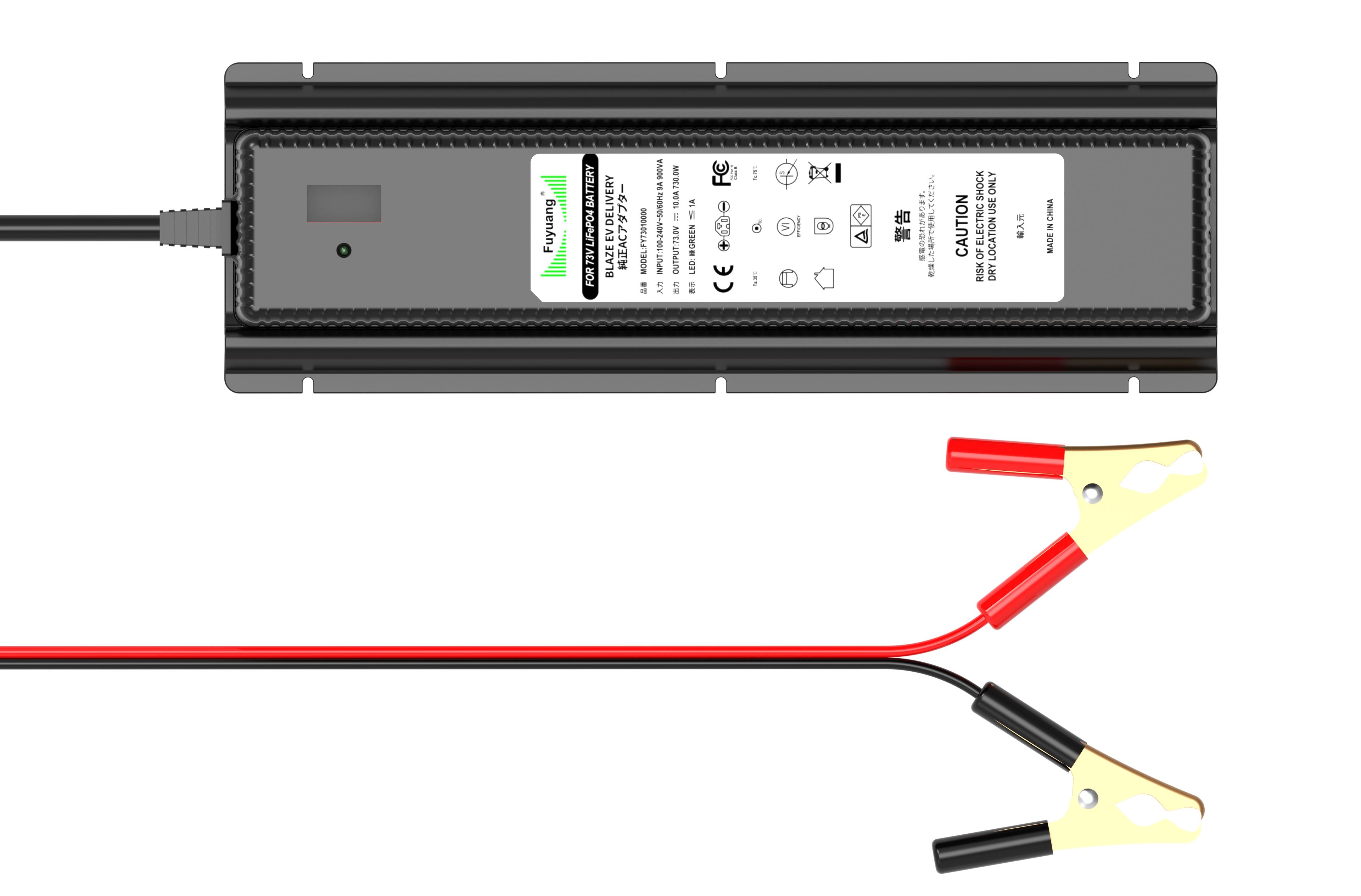

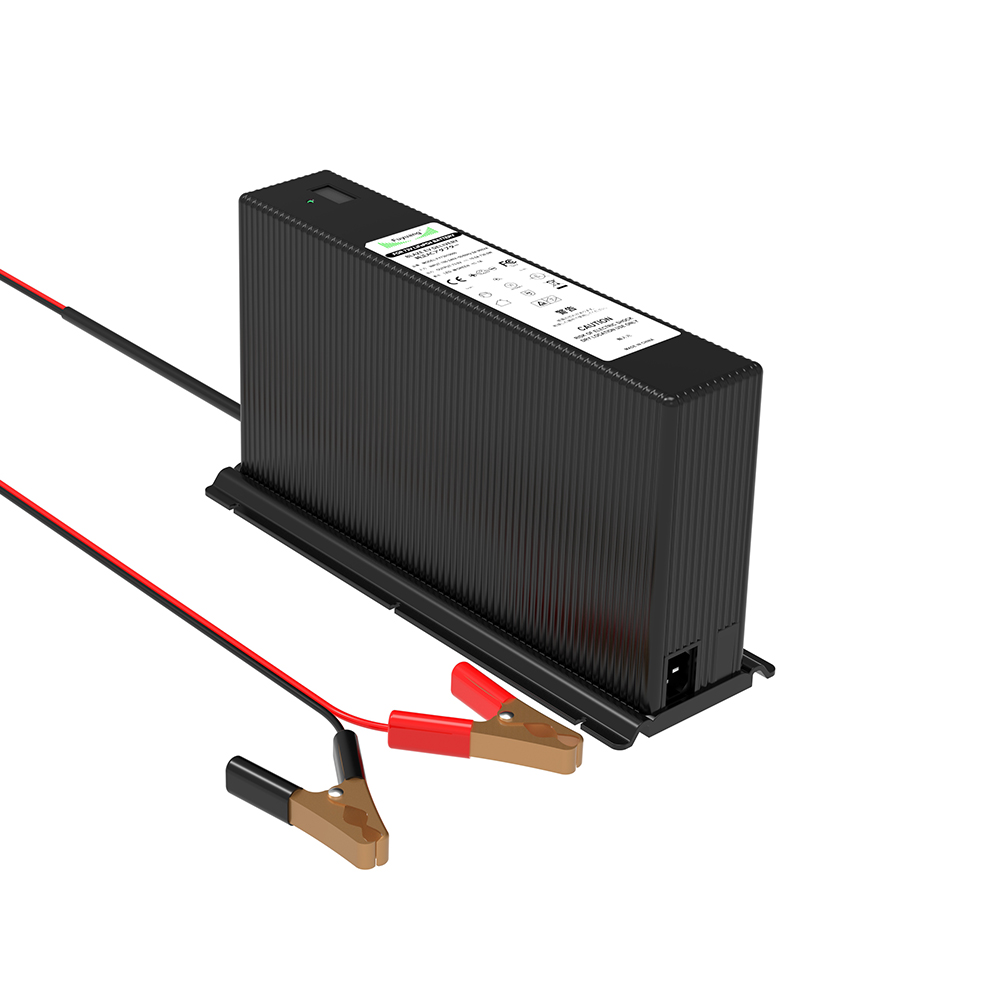

The FY5460000 is a desktop fast charger with a 48V 15A output and a universal AC 100-240Vac 50/60Hz input that can be customised for specific projects. Output power is available at 600W, 800W, 1000W and 1200W levels. It charges LiFePO4, lithium-ion and lead-acid batteries and is aimed at high-demand equipment such as golf carts, RVs, AGVs, ATVs, marine systems, medical devices and agricultural machinery.

Key Features

• 48V 15A desktop charging with a 100-240Vac 50/60Hz input • Output power options of 600W, 800W, 1000W and 1200W • Compatible with LiFePO4, lithium-ion and lead-acid battery chemistries • Charging efficiency higher than 94% • Fanless design cooled by free air convection with zero noise • Dual protection with a fuse on both the input and output side, EMI and EMS compliant • Protection set: OVP, OCP, OTP, SCP, timer, auto cutoff and reverse polarity • Wide operating range from -29C to +45.5C with 4-8 hours full-load burn-in

Technical Specifications

• Model Number: FY5460000 • Brand: Fuyuang • Type: Desktop charger • Input: AC 100-240Vac 50/60Hz (customisable) • Output: 48V 15A • Output power: 600W, 800W, 1000W, 1200W • Battery chemistry: LiFePO4, lithium, lead acid • Efficiency: greater than 94% • Operating temperature: -29C to +45.5C • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse polarity • Reliability: 3-year warranty, 4-8 hours full-load burn-in • Color: black; AC plug types: AU, EU, UK, US, JP • Certification: UL, FCC, CE, RoHS, UKCA, SAA, PSE, KC • MOQ: 25 PCS

Applications

• Golf carts and utility vehicles • RVs and camper vans • AGV and ATV equipment • Marine and boat battery banks • Medical devices • Agricultural machinery and industrial equipment

Customization & Service

OEM and ODM cooperation is available on this platform: output voltage and current, charging profile, DC connectors, AC plugs and packaging can all be tailored to the project. A CNAS-standard EMC laboratory supports pre-compliance testing so certification preparation can start earlier in the development cycle. The charger carries a 3-year warranty and is 100% factory inspected with 4-8 hours of full-load burn-in. Minimum order quantity for this model is 25 PCS.
