Fuyuang 42V 2A Lithium Battery Charger for E-scooter, E-bike and Electric Skateboard

Fuyuang 42V 2A Lithium Battery Charger for E-scooter, E-bike and Electric Skateboard

Name: Fuyuang 42V 2A Lithium Battery Charger for E-scooter, E-bike and Electric Skateboard
Brand: Fuyuang
Rating: 5.0 (1 reviews)

The Fuyuang FY4202000 is a lithium battery charger rated 42V 2A with a 100-240Vac 50-60Hz input. It is used on e-scooters, e-bikes, electric skateboards and similar 36V to 42V lithium systems, with power options from 90W to 3000W on the wider platform. Charging follows a CC-CV-trickle profile with stop charge, and the protection set covers short circuit, overload, over-voltage, over-temperature, OVP, OTP, OLP and over-current. The charger is fanless with a PC fireproof housing, and a red/green LED shows the charging state. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY4202000
Brand:
Fuyuang
Code:
FY4202000


Availability:

Product Overview

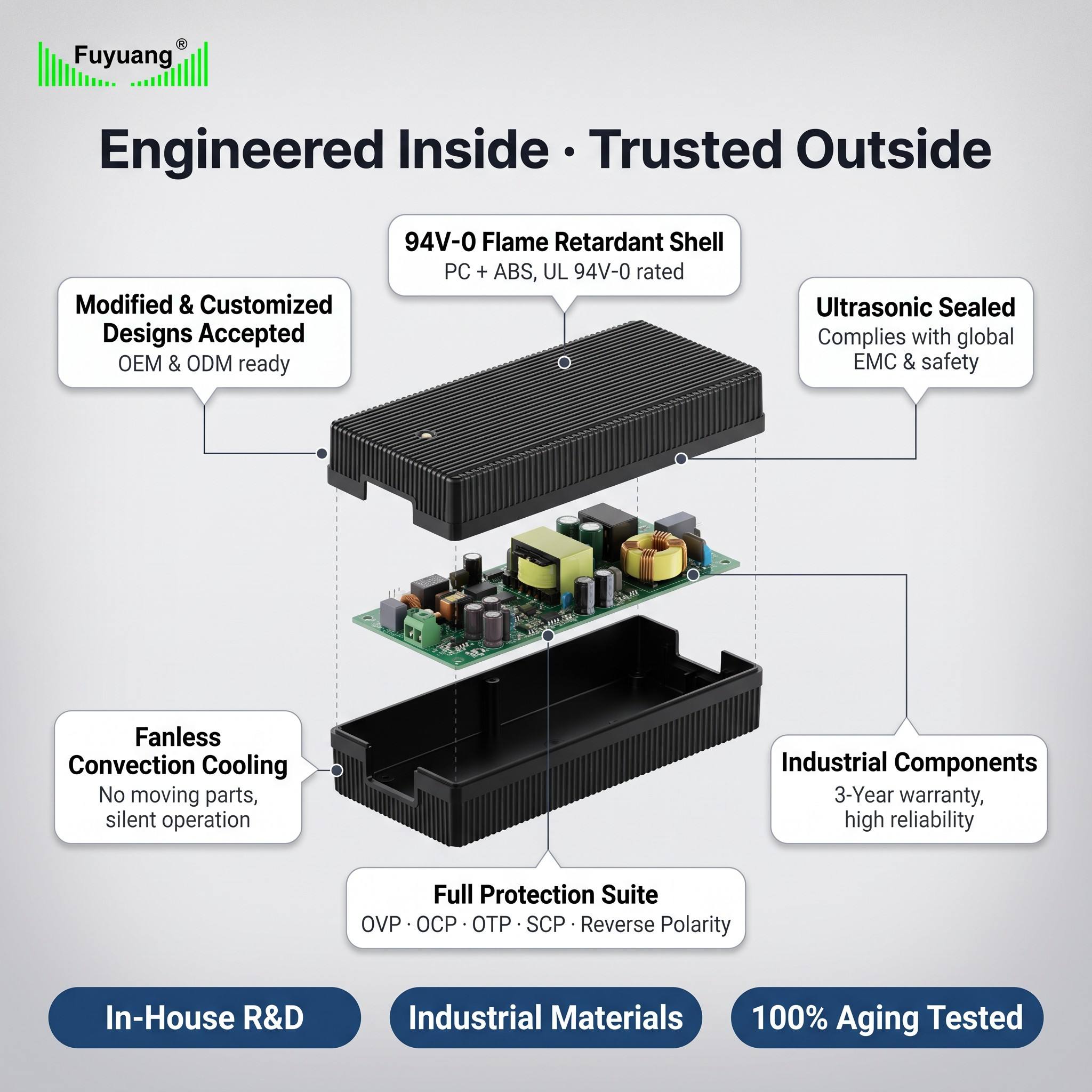

The FY4202000 is a lithium battery charger for light electric mobility. It delivers 42V 2A from a universal 100-240Vac 50-60Hz input, matching 36V class battery systems. It charges e-scooters, e-bikes, electric skateboards, drones and electric tools, and is also used on robots and industrial packs. The charger runs a CC-CV-trickle profile with automatic stop and is built in a fanless PC fireproof housing for quiet, safe charging.

Key Features

• 42V 2A output for 36V class lithium packs • Charge mode: CC-CV-trickle charge with stop charge • Fanless no-noise design with high-speed charging • Power options up to 3000W on the platform • Red / green LED charge indicator • Protection: short circuit, overload, over-voltage, over-temperature, OVP, OTP, OLP, over-current • PC fireproof material housing, eco-friendly design • CE certified for global distribution

Technical Specifications

• Model: FY4202000 • Product name: lithium / LiFePO4 battery charger • Input: 100-240Vac, 50-60Hz • Output: 42V 2A • Power range: 90W / 120W / 150W / 200W / 450W / 600W / 3000W • Charge mode: CC-CV-trickle charge / stop charge • Efficiency: above 89% • LED / LCD indicator: red / green • Housing material: PC fireproof material • Protection: short circuit, overload, over-voltage, over-temperature • Colour: black • MOQ: 100 PCS

Applications

• Electric scooters • E-bikes • Electric skateboards • Drones • Electric tools • Service and industrial robots

Customization & Service

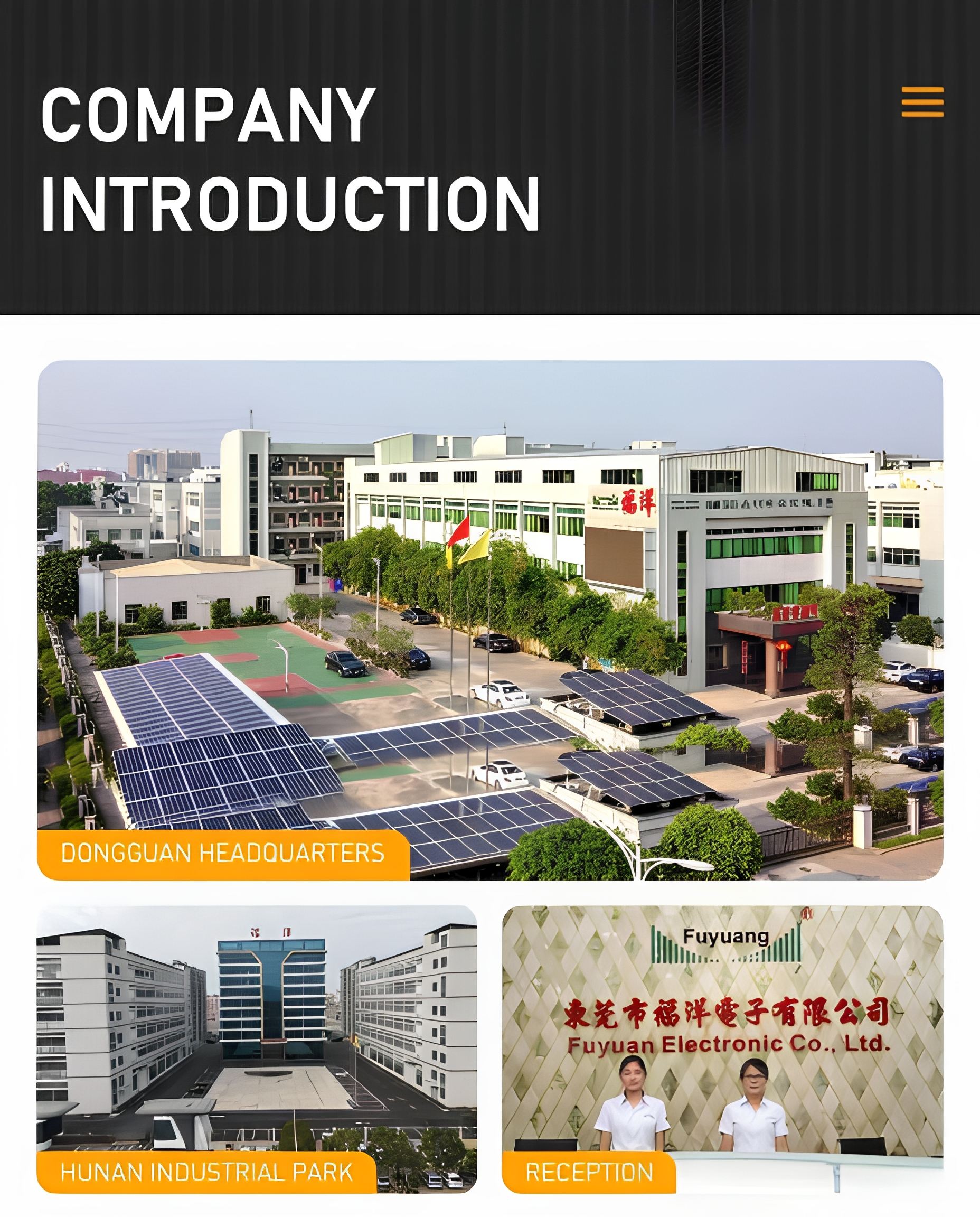

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
