Fuyuang 42V 2A LiFePO4 / Lithium Battery Charger 24W-3000W for Electric Scooter, Motorcycle and E-Bike Battery Packs

Fuyuang 42V 2A LiFePO4 / Lithium Battery Charger 24W-3000W for Electric Scooter, Motorcycle and E-Bike Battery Packs

Name: Fuyuang 42V 2A LiFePO4 / Lithium Battery Charger 24W-3000W for Electric Scooter, Motorcycle and E-Bike Battery Packs
Brand: Fuyuang
Rating: 5.0 (23 reviews)

The Fuyuang FY4202000 is a 42V 2A (84W) desktop battery charger for 10S lithium and LiFePO4 packs used on electric scooters, motorcycles, e-bikes and robotics equipment. It runs from a 100-240Vac 50/60Hz input and the platform is scalable from 24W to 3000W with output voltages from 14.6V to 84V. The charger is fanless and cools by free air convection, and it carries full protection against over-charging, over-current, over-voltage and short circuit. A private mould housing in flame-retardant material is available in black, with AU, EU, UK, US and JP plug options. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY4202000
Brand:
Fuyuang
Code:
FY4202000


Availability:

Product Overview

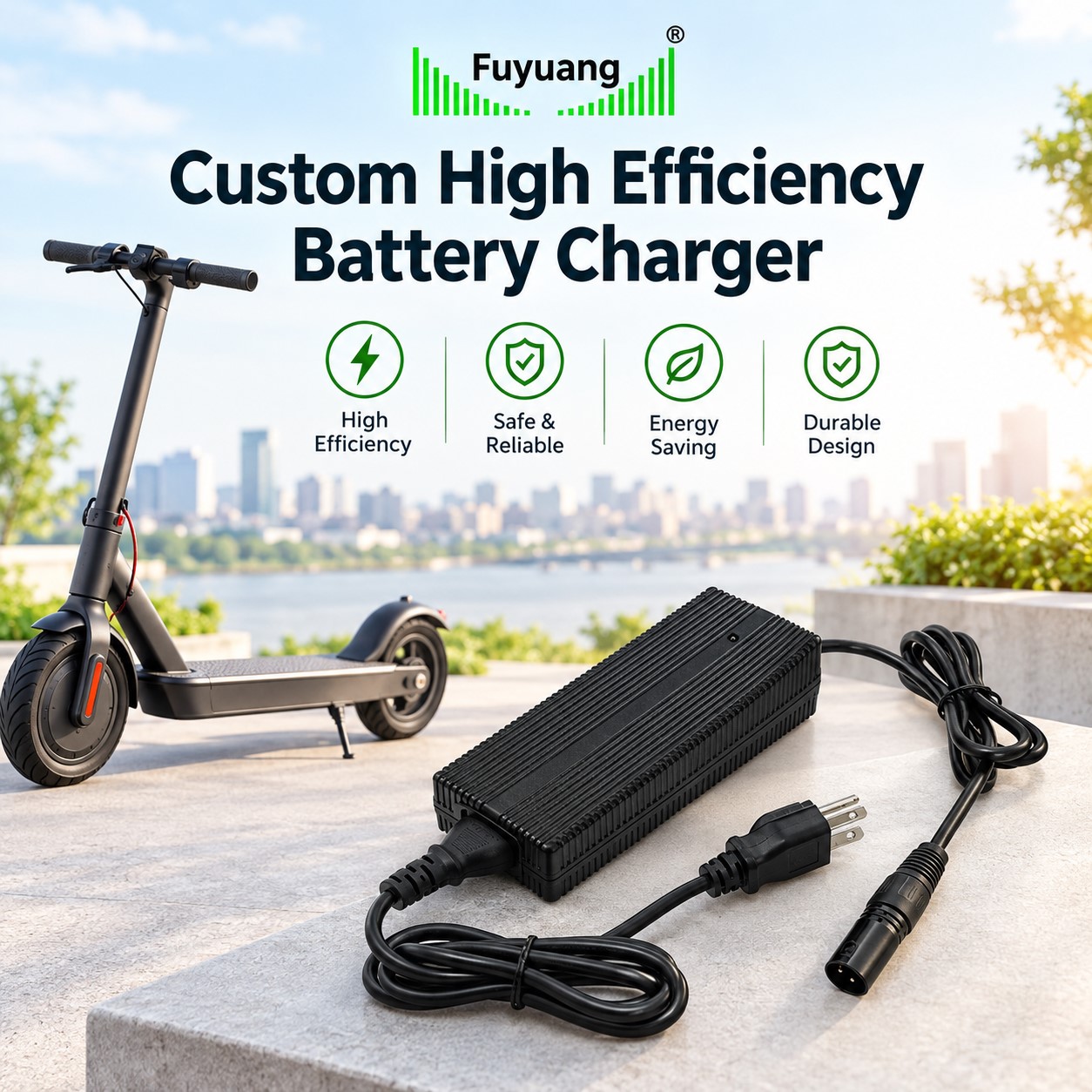

The FY4202000 is a compact desktop charger delivering 42V 2A (84W) for 10S lithium and LiFePO4 battery packs. It is widely used for electric scooters, motorcycles, e-bikes, robotics, drones and medical devices. The charger accepts 100-240Vac worldwide input and can be customised to other output voltages and currents within the 24W-3000W platform. Fanless convection cooling keeps it quiet, and the flame-retardant housing with private mould tooling gives a clean OEM appearance.

Key Features

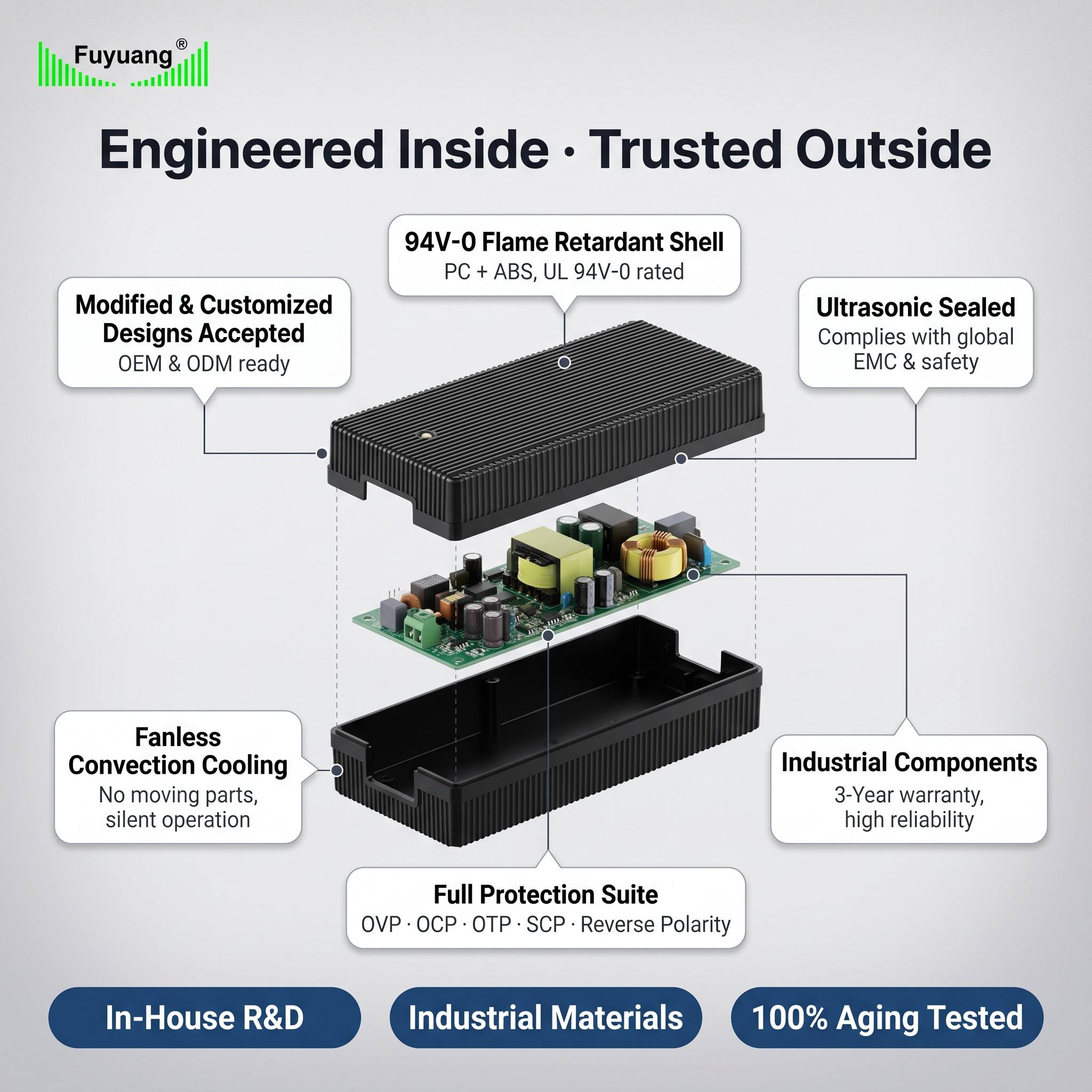

• 42V 2A (84W) output for 10S lithium and LiFePO4 battery packs • Universal 100-240Vac 50/60Hz input, customizable • Scalable platform: 24W / 60W / 75W / 80W / 120W / 150W / 200W / 300W / 400W / 600W / 800W / 1000W / 1200W / 1500W / 3000W • Output range from 14.6V 5A to 84V 2A • Fanless design, cooling by free air convection • Protection: fireproof, over-charging, over-current, over-voltage (OVP) and short circuit • DC connectors: 5525 / 5521 / XLR / XT60 / Anderson / crocodile clip / ring terminal, customizable • Private mould housing; plug types AU, EU, UK, US, JP

Technical Specifications

• Model: FY4202000 • Input: 100-240Vac 50/60Hz (customizable) • Output: 42V 2A (84.0W), customizable • Output variants: 29.4V 2A / 42V 2A / 54.6V 2A / 67.2V 2A / 14.6V 5A / 25.2V 2A / 29.2V 2A / 58.4V 2A / 73V 2A / 84V 2A • Power range: 24W to 3000W • Battery type: LiFePO4, lithium-ion, lead-acid • Housing material: ABS, aluminium alloy, fireproof PC • Colour: black; plug type AU / EU / UK / US / JP • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

• Electric scooters • Electric motorcycles • E-bikes • Robotics and drones • Electric tools • Medical devices and household appliances

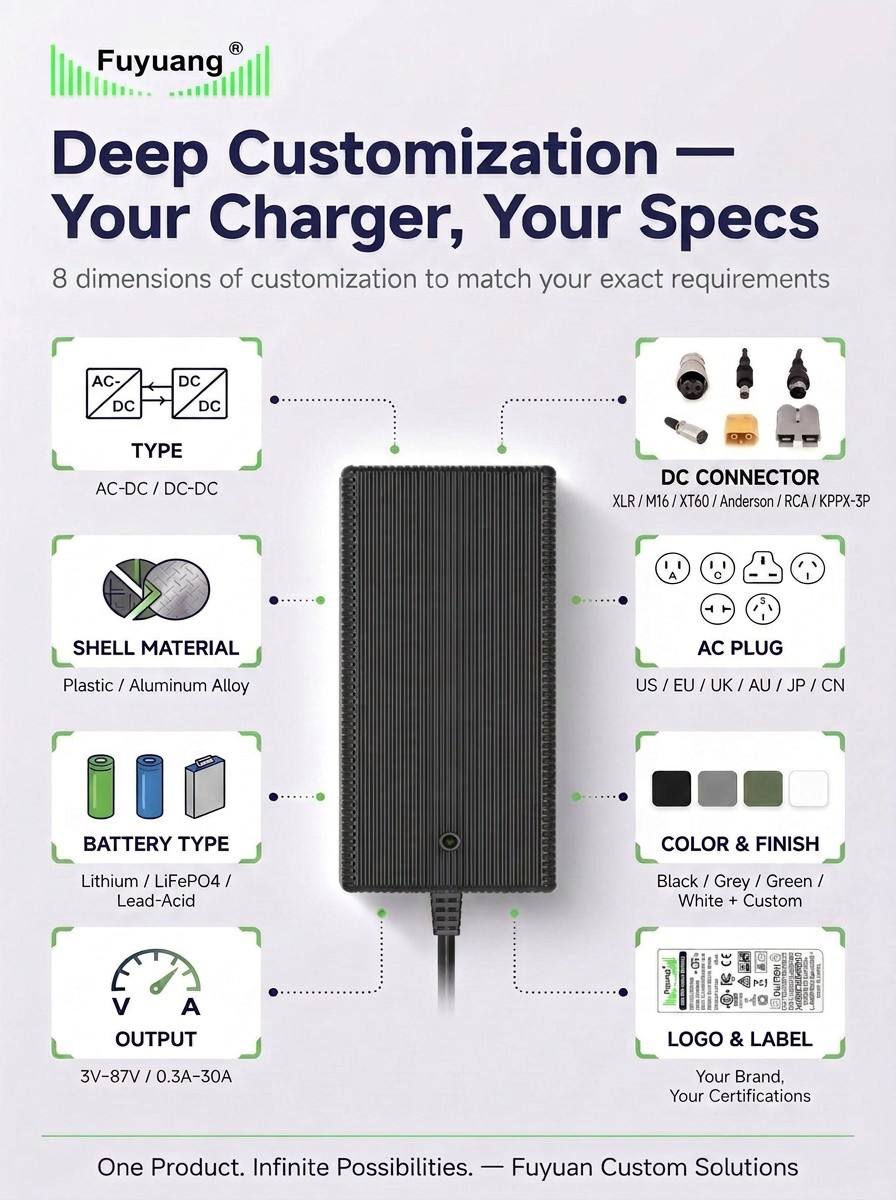

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA and KCC.
