Fuyuang 42V 2A High Efficiency Battery Charger for E-Scooter, Robot, Drone, Wheelchair and AGV

Fuyuang 42V 2A High Efficiency Battery Charger for E-Scooter, Robot, Drone, Wheelchair and AGV

Name: Fuyuang 42V 2A High Efficiency Battery Charger for E-Scooter, Robot, Drone, Wheelchair and AGV
Brand: Fuyuang
Rating: 5.0 (44 reviews)

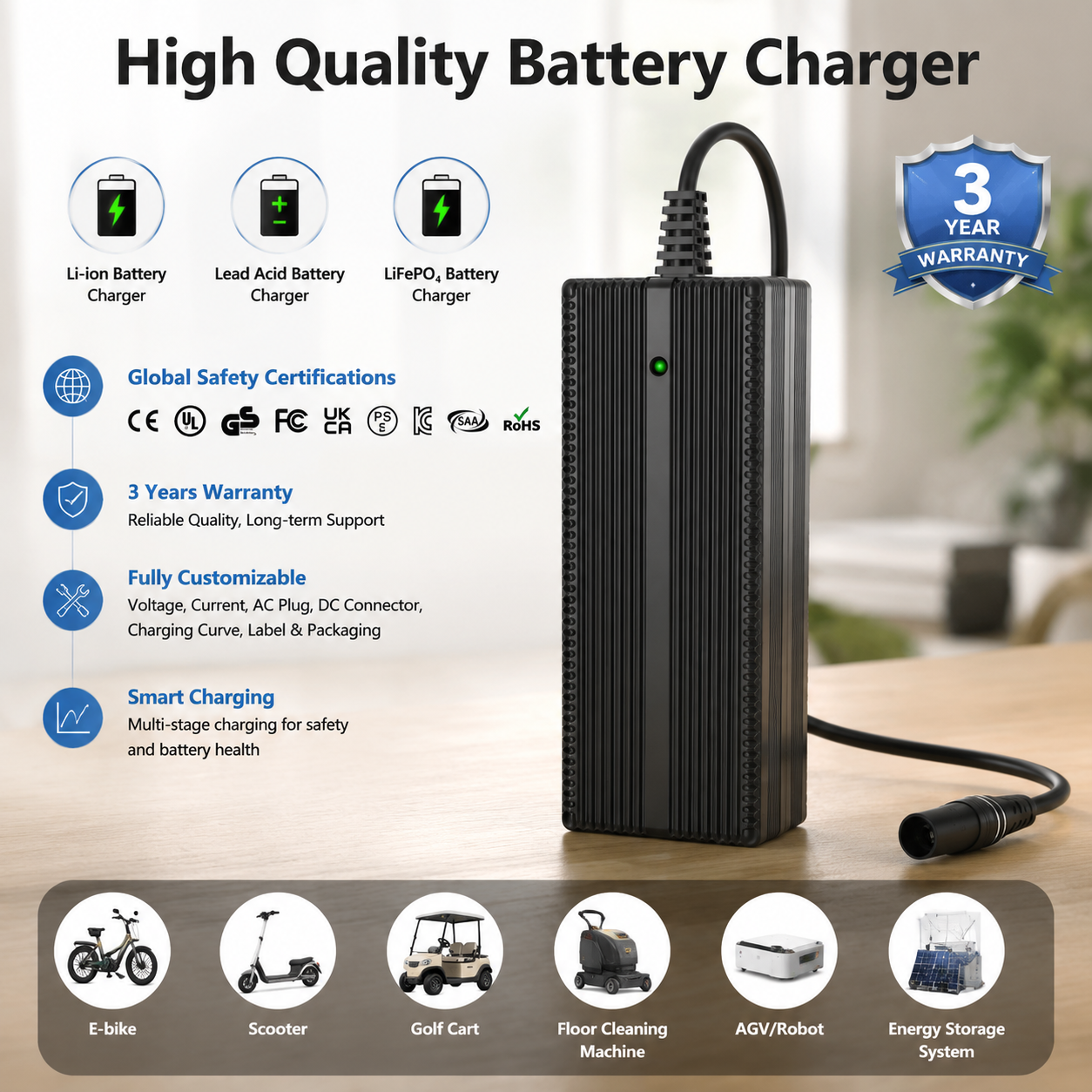

The Fuyuang FY420000 is a high efficiency battery charger rated 42V 2A / 84W with a 100-240Vac 50/60Hz input. It is designed for electric scooters, e-bikes, skateboards, robotics, wheelchairs and AGVs, and the same platform delivers 42V 3A for faster charging. The charger supports 12V to 108V LiFePO4 and lithium-ion battery packs, runs at 95% efficiency, and uses a fanless design with a fireproof housing. Protection covers over-charging, over-current, over-voltage, short circuit, low tension and fire risk, with connector choices from barrel plugs to XLR, RCA and Anderson. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY420000
Brand:
Fuyuang
Code:
FY420000


Availability:

Product Overview

The FY420000 is a high efficiency charger for small electric mobility and robotics platforms. It delivers 42V 2A / 84W (42V 3A also available) from a universal 100-240Vac input. Typical uses are electric scooters, e-bikes, skateboards, service robots, wheelchairs and AGVs. The charger supports LiFePO4 and lithium-ion packs up to 108V on the same platform, and every unit is built with flame-retardant materials and full electrical protection.

Key Features

• High efficiency design with 95% charging efficiency • 42V 2A / 84W output, 42V 3A version also available • Supports 12V to 108V LiFePO4 and lithium-ion battery packs • Fanless design with fireproof, low tension rated housing • Protection: over-charging, over-current, over-voltage, short circuit • Connector options: 5.5x2.5, 5.5x2.1, XLR, RCA, Anderson or OEM • Power range 60W to 3000W across the platform • Suitable for OEM and ODM projects

Technical Specifications

• Model: FY420000 • Type: high efficiency battery charger • Input: 100-240Vac, 50/60Hz • Output: 42V 2A (84.0W) • Output options: 42V 2A / 42V 3A • Power range: 60W / 100W / 120W / 150W / 200W / 210W / 300W / 400W / 600W / 800W / 1000W / 1200W / 1500W / 3000W • Efficiency: 95% • Battery compatibility: 12V / 24V / 25.2V / 29.4V / 54.6V / 58.4V / 60V / 72V / 84V / 96V / 108V LiFePO4 and lithium-ion • Housing material: ABS, aluminium alloy, PC fireproof material • Protection: fireproof, low tension, over-charging, over-current, over-voltage, short circuit • Certification: UL, ETL, GS, CE, UKCA, SAA, KC, PSE, CB, FCC, EMC, RoHS • MOQ: 100 PCS

Applications

• Electric scooters • E-bikes and electric skateboards • Service and industrial robots • AGV and AMR • Drones and UAV packs • Electric wheelchairs • Industrial equipment • Medical devices

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
