Fuyuang 3S-14S LiFePO4 Li-ion Battery Charger 12.6V-58.8V 1A-4A for Agriculture Drone and Balance Charging

Fuyuang 3S-14S LiFePO4 Li-ion Battery Charger 12.6V-58.8V 1A-4A for Agriculture Drone and Balance Charging

Name: Fuyuang 3S-14S LiFePO4 Li-ion Battery Charger 12.6V-58.8V 1A-4A for Agriculture Drone and Balance Charging
Brand: Fuyuang
Rating: 5.0 (17 reviews)

The FY1262000 is a compact charger developed for drone battery packs, covering 3S, 4S, 6S, 12S and 14S configurations. Outputs include 12.6V 2A, 12.6V 4A, 25.2V 2A, 50.4V 1A and 58.8V 1A, so both small inspection batteries and large agriculture drone packs can be charged from the same family. A balancing function is included to keep series-connected cells at matched voltage, and charging uses a CC-CV-trickle profile with stop charge. The charger runs from a 100-240Vac 50/60Hz input and uses free-air convection cooling, which keeps operation quiet and avoids drawing crop dust or field debris into the electronics. Fuyuan Electronic Co., Ltd has manufactured power products since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. This charger carries a 3-year warranty.

Model:
FY1262000
Brand:
Fuyuang
Code:
FY1262000


Availability:

Product Overview

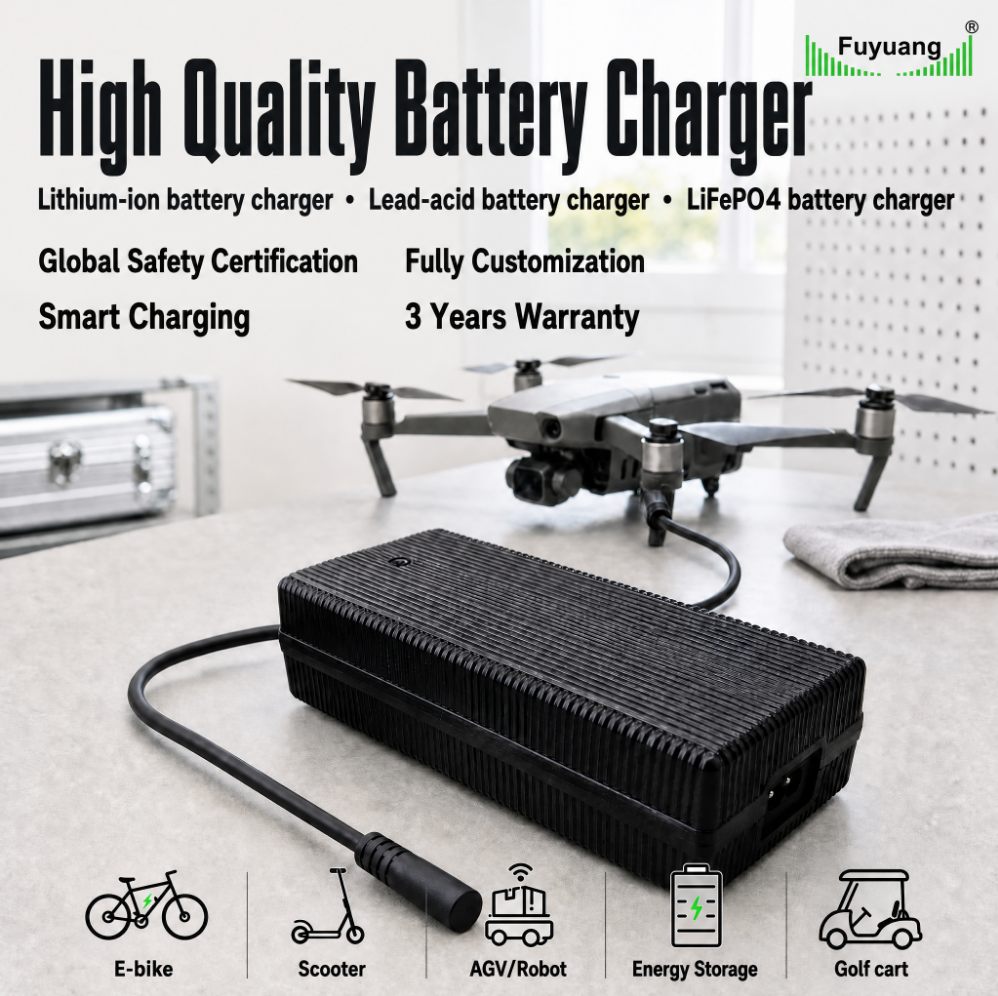

The FY1262000 is a drone battery charger for 3S to 14S lithium and LiFePO4 packs. Output options include 12.6V 2A, 12.6V 4A, 25.2V 2A, 50.4V 1A and 58.8V 1A, covering small inspection drones as well as large agriculture and survey platforms. The charger includes a balancing function for series-connected cells and charges with a CC-CV-trickle profile and stop charge. It operates from 100-240Vac 50/60Hz and cools by free air convection without a fan.

Key Features

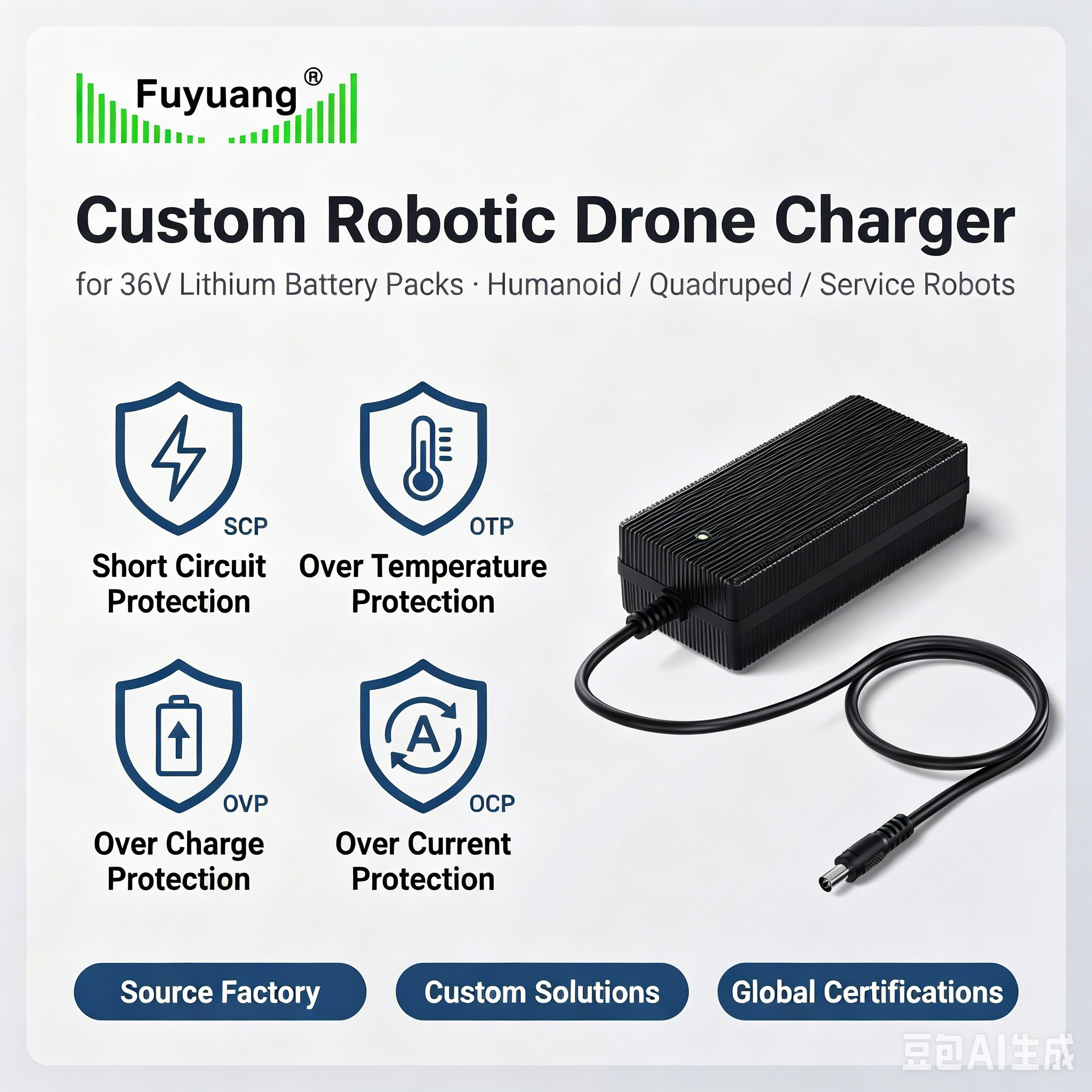

• Covers 3S, 4S, 6S, 12S and 14S drone battery packs • Balancing function for series-connected cells • Outputs from 12.6V to 58.8V at 1A to 4A • Universal 100-240Vac 50/60Hz input • CC-CV-trickle charge mode with stop charge • Fanless cooling by free air convection, no noise • Over-voltage, over-current, overload, over-temperature and short-circuit protection • Red/green LED indicator with OEM/ODM design service

Technical Specifications

• Model: FY1262000 • Input: 100-240Vac, 50/60Hz • Outputs: 12.6V 2A / 12.6V 4A / 25.2V 2A / 50.4V 1A / 58.8V 1A • Voltage range: 12.6V to 58.8V • Battery configurations: 3S / 4S / 6S / 12S / 14S • Battery compatibility: LiFePO4, lithium-ion • Charge mode: CC-CV-Trickle Charge, stop charge • Charging efficiency: above 89% • Housing: PC fireproof material, black • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Agriculture and crop spraying drones • Inspection and survey drones • Robots and AGV equipment • E-bikes and scooters • Electric tools • Battery pack assembly and testing

Customization & Service

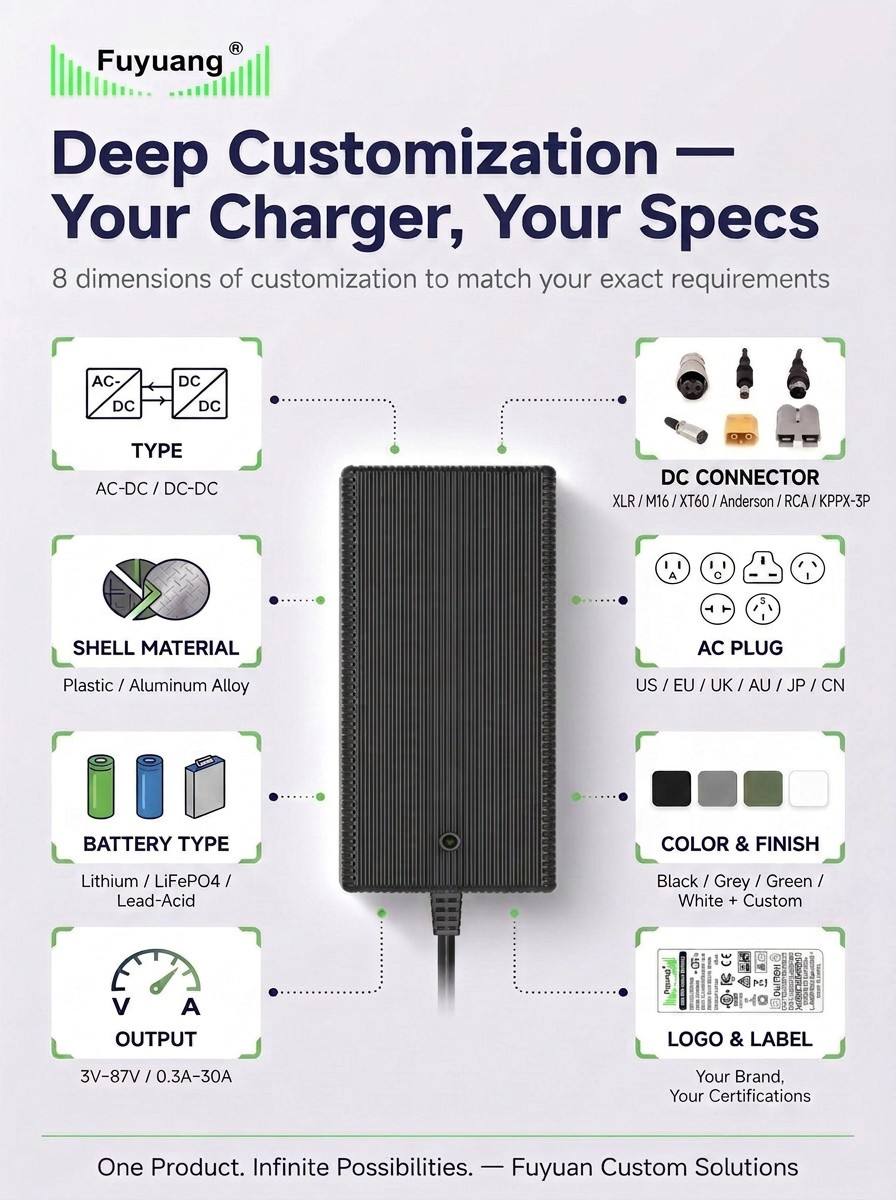

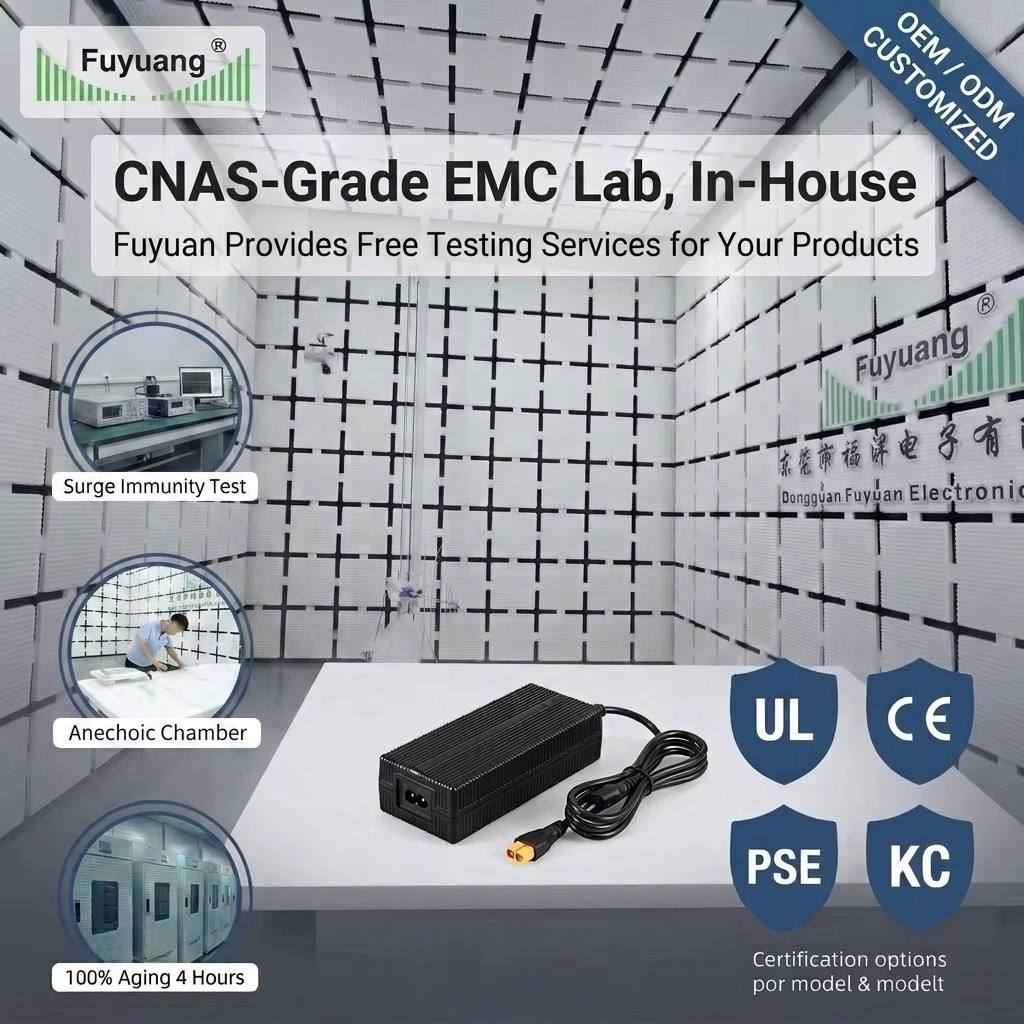

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance testing during development. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
