Fuyuang 3-Stage 29.2V 5A Smart Battery Charger 60W-1000W for AGV, Golf Cart and Forklift

Fuyuang 3-Stage 29.2V 5A Smart Battery Charger 60W-1000W for AGV, Golf Cart and Forklift

Name: Fuyuang 3-Stage 29.2V 5A Smart Battery Charger 60W-1000W for AGV, Golf Cart and Forklift
Brand: Fuyuang
Rating: 5.0 (20 reviews)

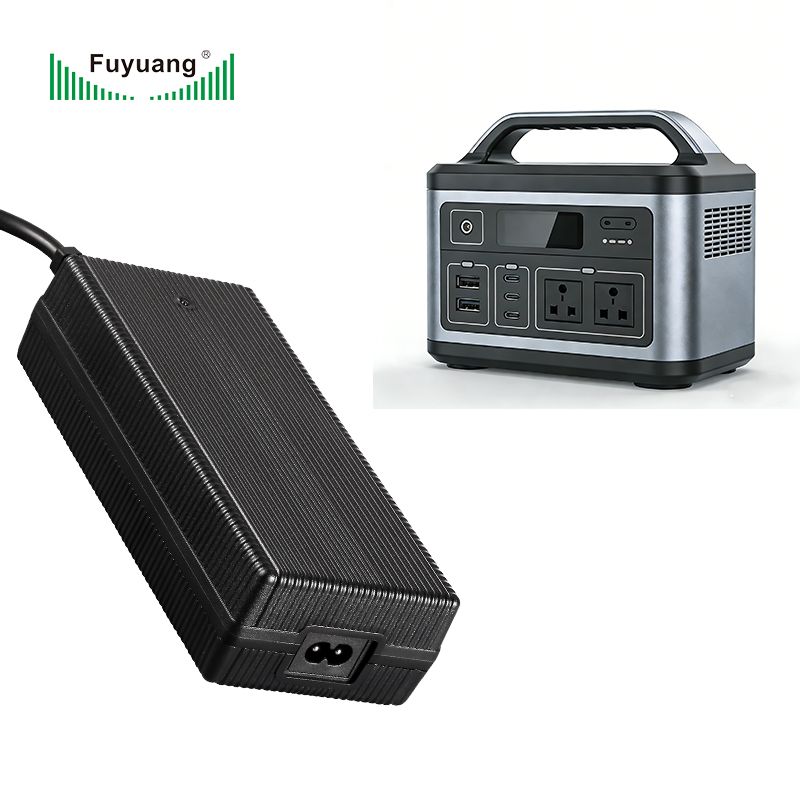

The Fuyuang FY2920000 is a smart three-stage desktop battery charger delivering 29.2V 5A for 24V battery packs. It accepts 100-240Vac 50/60Hz input and the platform covers 29.2V 2A, 3A, 5A, 6A, 7A, 10A and 20A outputs with power levels from 60W to 1000W, so 12V to 84V LiFePO4, lithium and lead-acid batteries can be served from one design. Three-stage charging maintains battery health, and the charger includes multi-protection circuitry and an LED indicator. Applications include AGVs, golf carts, forklifts, industrial vehicles, scooters, medical devices and household appliances. Connector choices include 5525, 5521, Anderson, crocodile, XLR and ring terminal. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2920000
Brand:
Fuyuang
Code:
FY2920000


Availability:

Product Overview

The FY2920000 is a three-stage smart charger for 24V systems, providing 29.2V 5A with the option of 2A to 20A outputs across the platform. It targets AGVs, golf carts, forklifts, industrial vehicles and scooters. Adaptive three-stage charging extends battery life and the charger works with LiFePO4, lithium-ion and lead-acid packs. Multi-protection circuitry and an LED indicator keep day-to-day operation simple.

Key Features

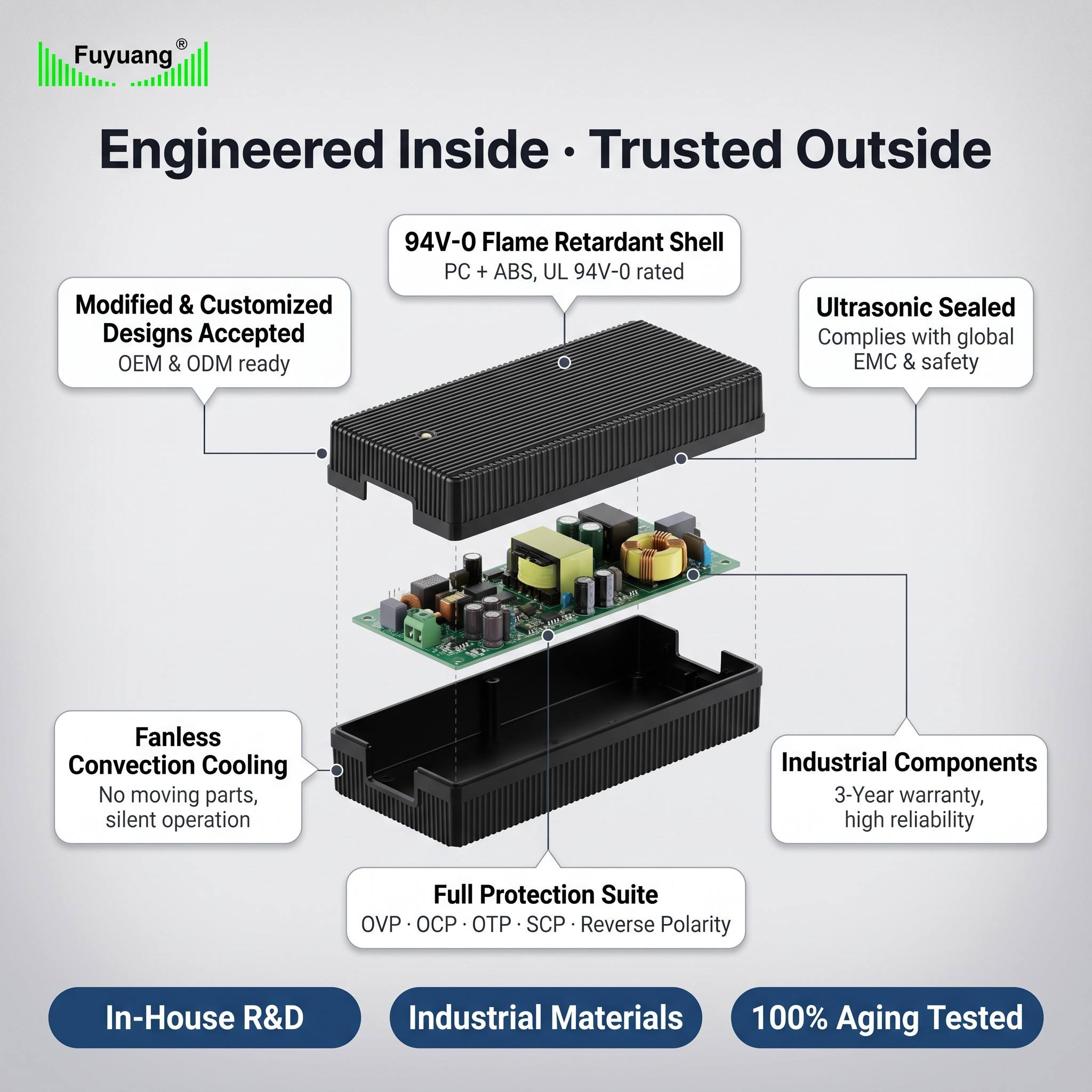

• Three-stage smart charging for longer battery life • 29.2V 5A output, with platform options from 29.2V 2A to 29.2V 20A • Platform power range 60W / 75W / 120W / 150W / 200W / 300W / 400W / 600W / 1000W • 95% charging efficiency • Protection: fireproof, low tension, over-charging, over-current, over-voltage and short circuit • Built-in LED indicator; smart charge function with multi-protection • Connectors: 5525 / 5521 / Anderson / crocodile / XLR / ring terminal / OEM • Plug types AU, EU, UK, US, JP; colour black

Technical Specifications

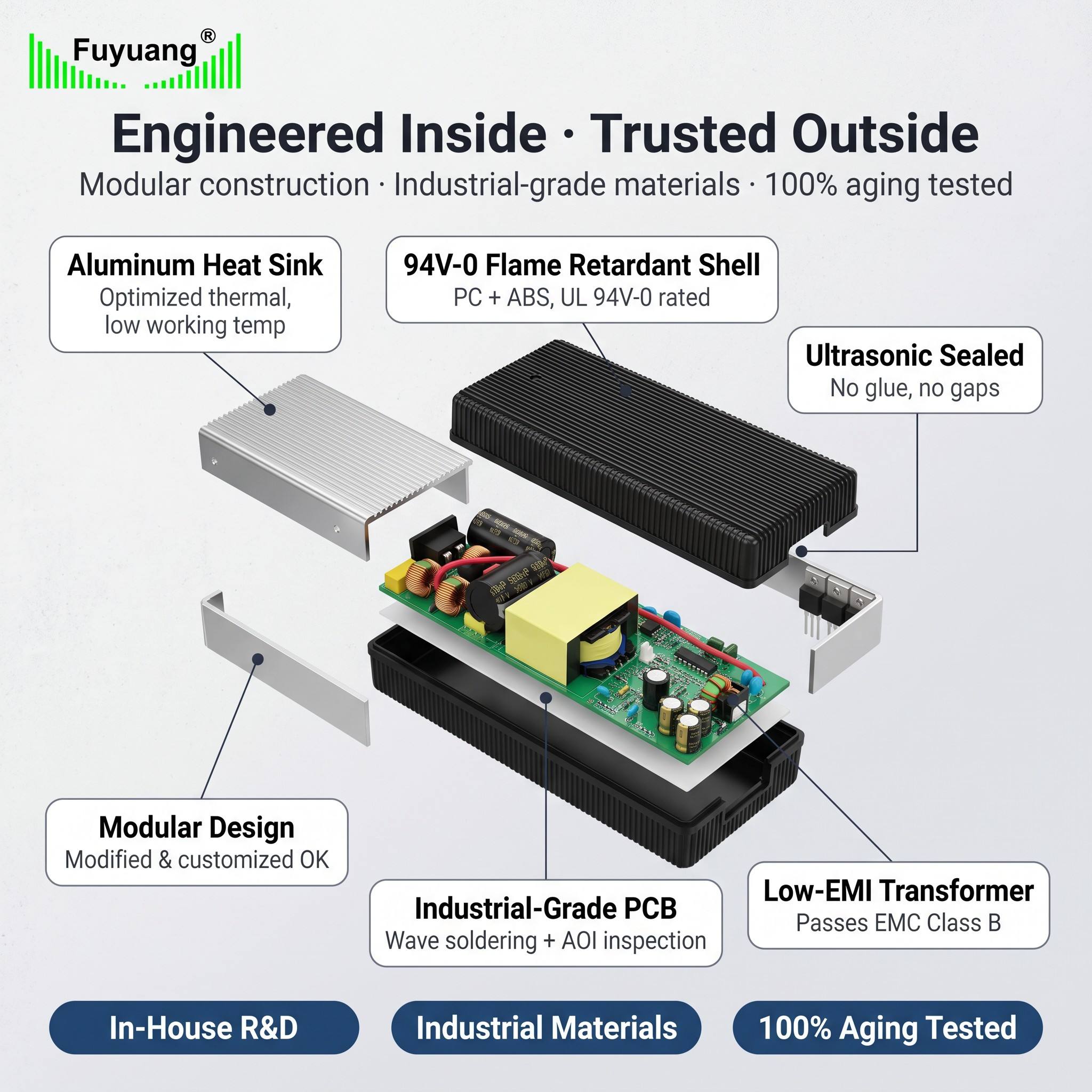

• Model: FY2920000 • Input: 100-240Vac 50/60Hz • Output: 29.2V 5A • Output variants: 29.2V 2A / 3A / 5A / 6A / 7A / 10A / 20A • Power range: 60W / 75W / 120W / 150W / 200W / 300W / 400W / 600W / 1000W • Charging efficiency: 95%; three-stage charging • Housing material: ABS, aluminium alloy, fireproof PC; colour black • Certification: UL, cUL, GS, CE, RoHS, REACH, SAA, PSE, FCC • MOQ: 25 PCS

Applications

• AGVs and automated vehicles • Golf carts • Forklifts and industrial trucks • Motorcycles and scooters • Medical devices • Industrial equipment and household appliances

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 25 PCS. Certifications held on this platform include UL, cUL, GS, CE, RoHS, REACH, SAA, PSE and FCC.
