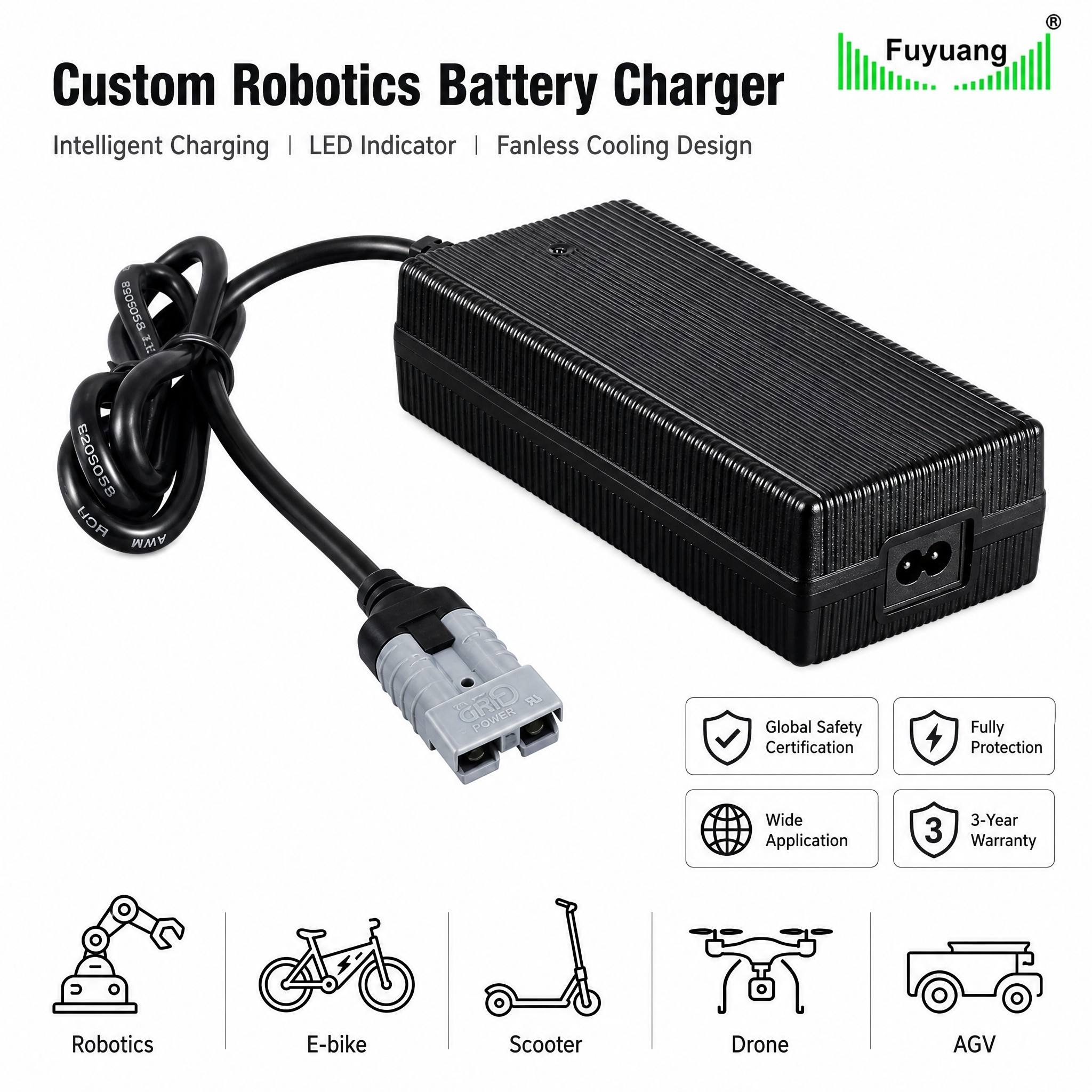

Fuyuang 29.4V 5A Smart Robot Battery Charger 150W-600W for AGV, AMR, Drone and Industrial Use

Fuyuang 29.4V 5A Smart Robot Battery Charger 150W-600W for AGV, AMR, Drone and Industrial Use

Name: Fuyuang 29.4V 5A Smart Robot Battery Charger 150W-600W for AGV, AMR, Drone and Industrial Use
Brand: Fuyuang
Rating: 5.0 (23 reviews)

The Fuyuang FY2945000 is a smart desktop battery charger for robots, AGVs, AMRs, drones and industrial equipment. It supplies 29.4V 5A (147W) from a 100-240Vac 50/60Hz input with 95% efficiency, and the platform scales from 150W to 600W with outputs such as 29.2V 10A, 54.6V 5A, 58.4V 10A and 58.4V 18A. A high charging speed together with over-current, over-voltage, over-temperature and short-circuit protection keeps robot fleets running, and an LED indicator shows charge state. DC connector options include GX16, GX12, 5521, 5525, XLR and RCA, with custom wiring available. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2945000
Brand:
Fuyuang
Code:
FY2945000


Availability:

Product Overview

The FY2945000 is a smart charger for robot and automation battery packs, providing 29.4V 5A (147W) output for 24V lithium and LiFePO4 systems and up to 58.4V 18A within the same platform. It is designed for AGVs, AMRs, service robots and drones that need a fast, repeatable charge cycle. A universal 100-240Vac input, 95% efficiency and ceramic-capped professional connectors make integration straightforward.

Key Features

• High charging speed for robot and automation battery fleets • 29.4V 5A (147W) output, platform scalable from 150W to 600W • 95% charging efficiency • Output variants: 29.4V 5A / 29.4V 10A / 29.2V 10A / 54.6V 5A / 58.4V 10A / 58.4V 18A • Protection: OCP, OVP, OTP, SCP • Built-in LED charging indicator • DC connectors: GX16 / GX12 / 5521 / 5525 / XLR / RCA / OEM • Plug types AU, EU, UK, US, JP; black housing

Technical Specifications

• Model: FY2945000 • Input: 100-240Vac 50/60Hz • Output: 29.4V 5A (147.0W) • Output variants: 29.4V 5A / 29.4V 10A / 29.2V 10A / 54.6V 5A / 58.4V 10A / 58.4V 18A • Power range: 150W / 200W / 250W / 300W / 400W / 600W • Efficiency: 95% • Protection: OCP, OVP, OTP, SCP • Certification: UL, cUL, GS, CE, RoHS, REACH, SAA, PSE • MOQ: 100 PCS

Applications

• AGVs and AMRs • Service and industrial robots • Drones and unmanned systems • Industrial equipment • Electric tools • Household appliances and security devices

Customization & Service

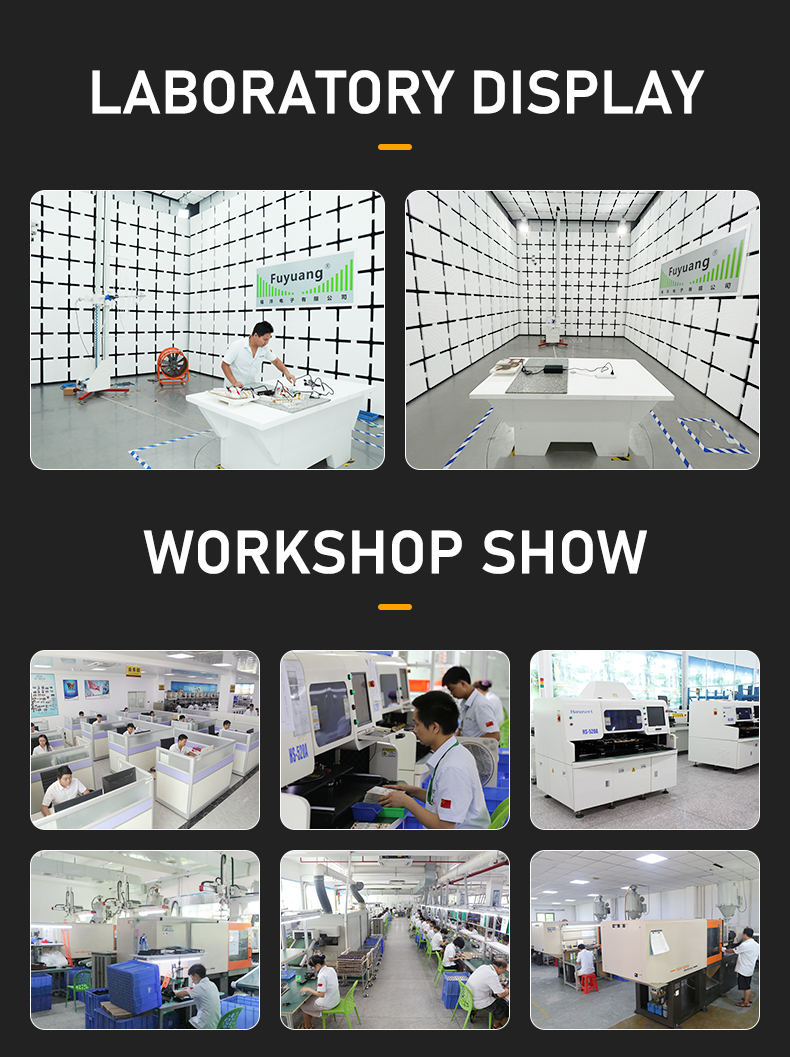

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include UL, cUL, GS, CE, RoHS, REACH, SAA and PSE.
