Fuyuang 29.2V 5A LiFePO4 / Lead-acid Battery Charger 120W-600W for E-Bike, Scooter and Energy Storage

Fuyuang 29.2V 5A LiFePO4 / Lead-acid Battery Charger 120W-600W for E-Bike, Scooter and Energy Storage

Name: Fuyuang 29.2V 5A LiFePO4 / Lead-acid Battery Charger 120W-600W for E-Bike, Scooter and Energy Storage
Brand: Fuyuang
Rating: 5.0 (73 reviews)

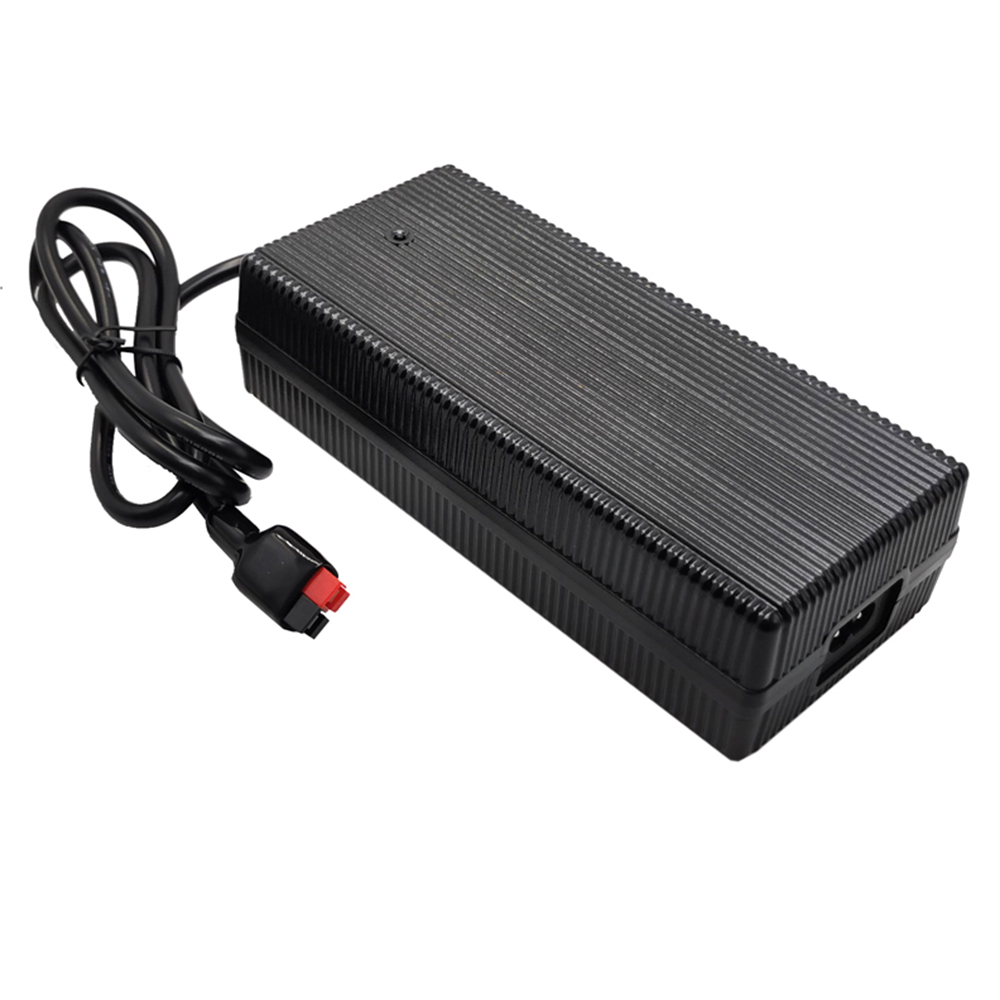

The Fuyuang FY2925000 is a 29.2V 5A battery charger for 24V LiFePO4, lithium and lead-acid (AGM) battery packs. It accepts 100-240Vac 50/60Hz input, meets Level VI efficiency requirements, and the platform covers 29.2V 2A to 29.2V 7A outputs with 120W to 600W power levels. The charger protects against short circuit, over-load, over-voltage and over-temperature, and is supplied with an aircraft plug DC connector as standard, with other connectors made to order. Typical uses are e-bikes, scooters, robotics and energy storage power supplies, and the housing uses Teijin brand PC material in black. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2925000
Brand:
Fuyuang
Code:
FY2925000


Availability:

Product Overview

The FY2925000 delivers 29.2V 5A for 24V LiFePO4, lithium-ion and lead-acid (AGM) packs, with outputs from 2A to 7A available within the same platform. Level VI efficiency and full protection (short circuit, over-load, over-voltage, over-temperature) make the charger suitable for e-bikes, scooters, robotics and energy storage systems. An aircraft plug is fitted as standard and other connectors can be supplied on request.

Key Features

• 29.2V 5A output for 24V LiFePO4, lithium-ion and lead-acid (AGM) packs • Output options: 29.2V 2A / 3A / 4A / 5A / 6A / 7A and 29.4V 2A / 3A / 5A • Power range 120W / 150W / 200W / 250W / 300W / 400W / 600W • Level VI energy efficiency • Protection: short circuit, over-load, over-voltage and over-temperature • Aircraft plug DC connector as standard, customizable • Housing in Teijin brand PC material; colour black • Built-in LED charging indicator

Technical Specifications

• Model: FY2925000 • Product: 29.2V 5A LiFePO4 / lithium / lead-acid battery charger • Input: 100-240Vac 50/60Hz • Output: 29.2V 5A • Output variants: 29.2V 2A / 3A / 4A / 5A / 6A / 7A; 29.4V 2A / 3A / 5A • Power range: 120W / 150W / 200W / 250W / 300W / 400W / 600W • Efficiency level: Level VI • Materials: Teijin brand PC; connector type aircraft plug • Certification: UL, FCC, GS, CE, UKCA, PSE, SAA, KC, RoHS • MOQ: 50 PCS

Applications

• E-bikes and electric bicycles • Electric scooters • Robotics and automation • Energy storage power supplies • Electric vehicles and standard battery packs • Industrial equipment

Customization & Service

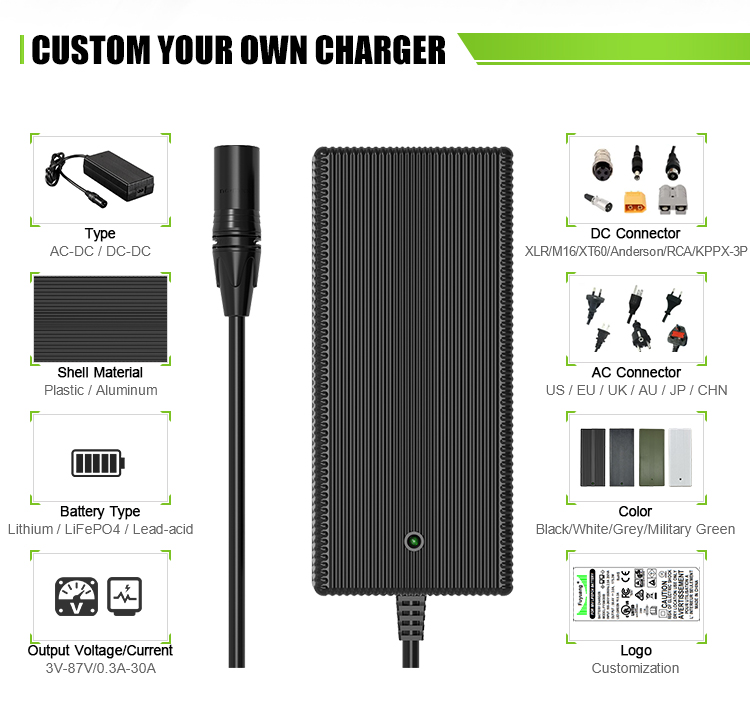

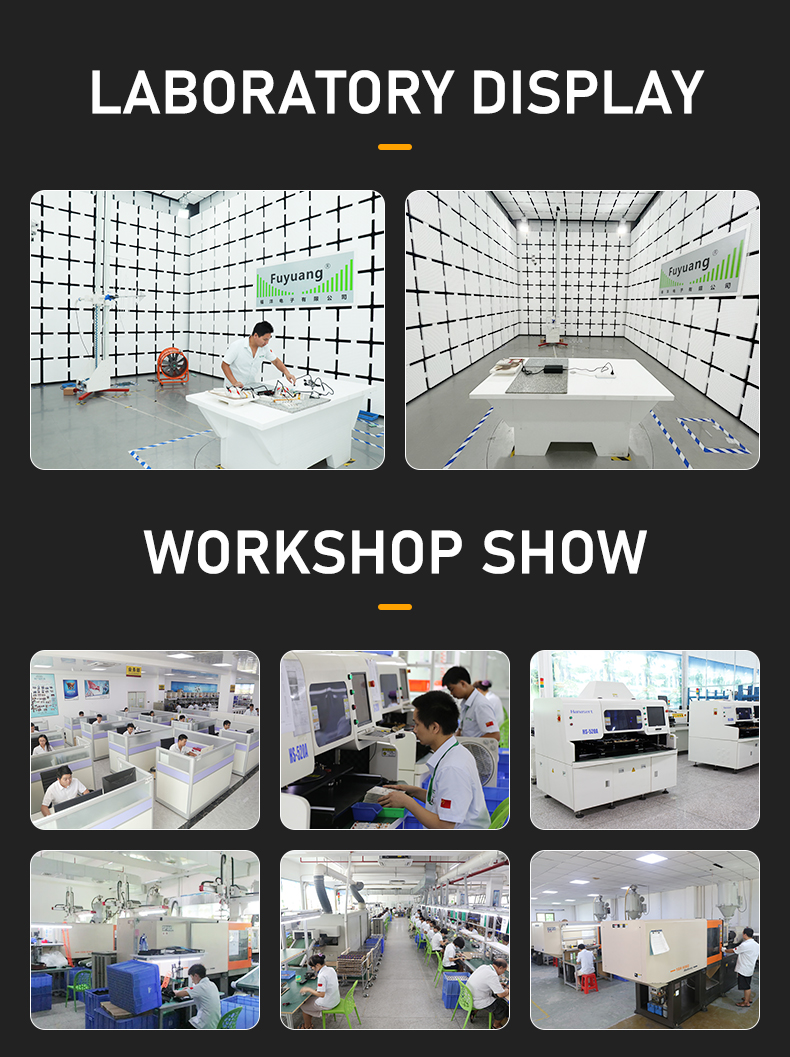

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 50 PCS. Certifications held on this platform include UL, FCC, GS, CE, UKCA, PSE, SAA, KC and RoHS.
