Fuyuang 29.2V 5A Battery Charger 146W for E-bike Scooter Robotics AGV Drone Forklift, 24W-3000W LiFePO4 Lithium Charger

Fuyuang 29.2V 5A Battery Charger 146W for E-bike Scooter Robotics AGV Drone Forklift, 24W-3000W LiFePO4 Lithium Charger

Name: Fuyuang 29.2V 5A Battery Charger 146W for E-bike Scooter Robotics AGV Drone Forklift, 24W-3000W LiFePO4 Lithium Charger
Brand: Fuyuang
Rating: 5.0 (4 reviews)

The Fuyuang FY2925000 is a fast desktop battery charger rated 29.2V 5A (146.0W) with an AC 100-240Vac 50/60Hz input. Output options across the platform include 14.6V 5A, 16.8V 5A, 29.2V 5A, 29.4V 5A, 43.8V 5A, 54.6V 5A, 58.4V 5A, 69.3V 5A and 84V 5A, with power ratings from 24W to 3000W. It charges lithium-ion, LiFePO4 and lead-acid batteries and is designed for e-bikes, scooters, robotics, AGVs, drones and forklifts. Multi-protection and smart charge logic are combined with fast charging, EMI and EMS compliance, free-air convection cooling with zero noise, and a housing in ABS, aluminium, aluminium alloy and PC fireproof material. Connector options include 5.5x2.5, 5.5x2.1, XLR, RCA, Anderson and XT60. Fuyuan Electronic Co., Ltd has manufactured chargers and power supplies since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory and 3,000+ developed models from 60W to 10KW. A 3-year warranty applies with 100 PCS minimum order quantity.

Model:
FY2925000
Brand:
Fuyuang
Code:
FY2925000


Availability:

Product Overview

The FY2925000 is a desktop fast charger with a 29.2V 5A (146.0W) output from an AC 100-240Vac 50/60Hz input. Platform outputs range from 14.6V 5A to 84V 5A, and power ratings extend from 24W to 3000W. It is used for e-bikes, scooters, robotics, AGVs, drones and forklifts, and charges lithium-ion, LiFePO4 and lead-acid battery packs with smart charge control and multi-layer protection.

Key Features

• 29.2V 5A (146.0W) output from a universal 100-240Vac 50/60Hz input • Platform outputs: 14.6V 5A, 16.8V 5A, 29.2V 5A, 29.4V 5A, 43.8V 5A, 54.6V 5A, 58.4V 5A, 69.3V 5A, 84V 5A • Output power range from 24W to 3000W • Battery type: lithium-ion, LiFePO4, lead acid • Multi-protection with smart charge and fast charging • EMI and EMS compliant design • Free-air convection cooling with zero noise • Connector options: 5.5x2.5, 5.5x2.1, XLR, RCA, Anderson, XT60, OEM

Technical Specifications

• Model Number: FY2925000 • Brand: Fuyuang • Type: fast charger, desktop charger • Input: AC 100-240Vac 50/60Hz • Output: 29.2V 5A (146.0W) • Output options: 14.6V 5A, 16.8V 5A, 29.2V 5A, 29.4V 5A, 43.8V 5A, 54.6V 5A, 58.4V 5A, 69.3V 5A, 84V 5A • Output power: 24W, 75W, 150W, 200W, 300W, 400W, 600W, 800W, 1000W, 1500W, 2000W, 3000W • Battery type: lithium ion, LiFePO4, lead acid battery • Material: ABS, aluminium, aluminium alloy, PC fireproof material • Protection: fireproof, low tension, over-charging, over-current, over-voltage, short circuit • Certification: CE, FCC, RoHS, UKCA, UL, SAA, KC, PSE • Warranty: 3 years; MOQ: 100 PCS

Applications

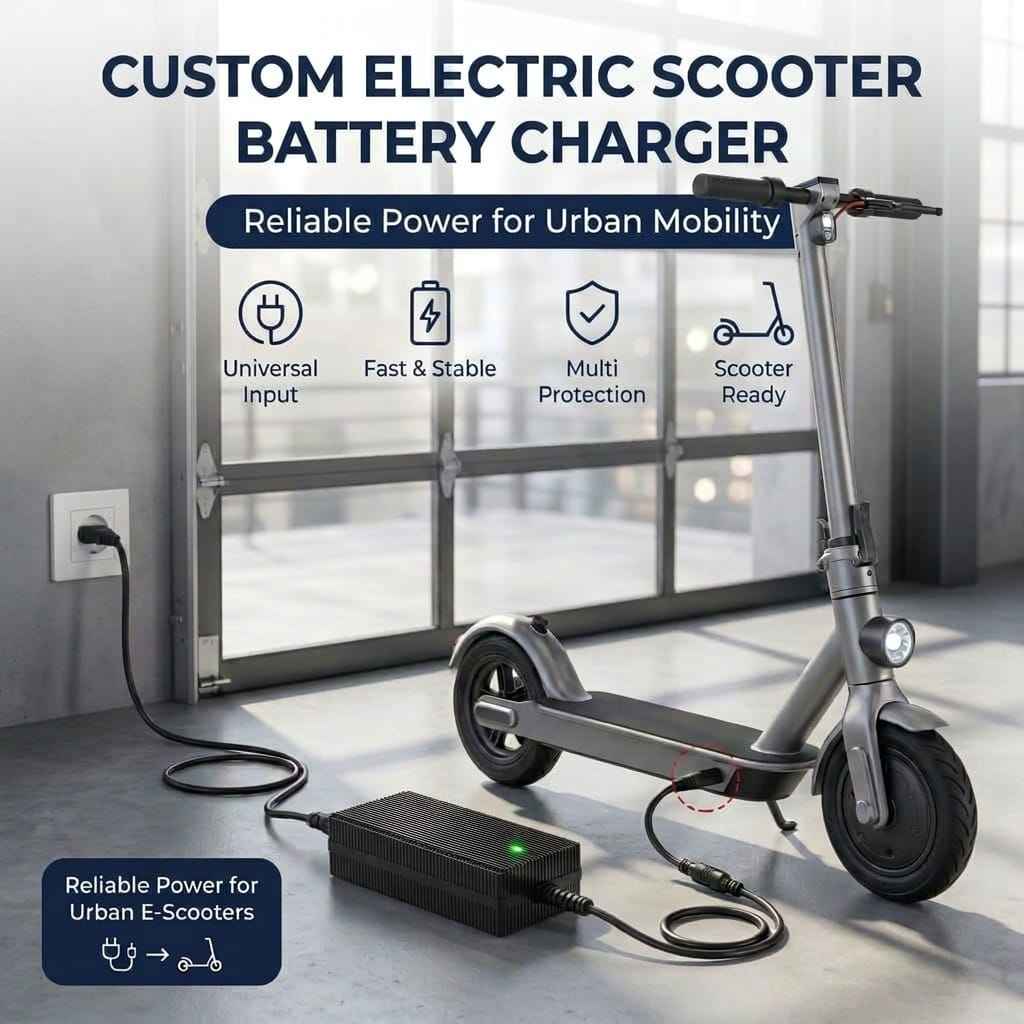

• Electric bikes and scooters • Robotics platforms • AGV equipment • Drones and UAVs • Forklifts and material handling vehicles • Electric power tools • Medical and household appliances

Customization & Service

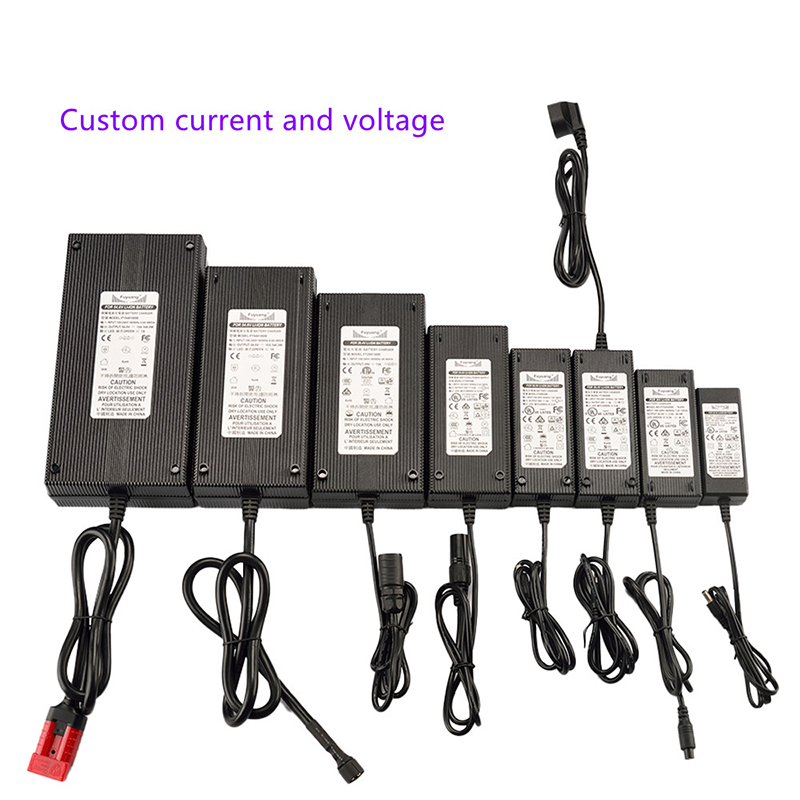

Fuyuan Electronic Co., Ltd supports OEM and ODM projects on this platform, including custom output voltage and current, connector type, cable assembly, housing, private labeling and packaging. A CNAS-standard EMC laboratory is available for pre-compliance testing before formal certification. All units are 100% factory inspected and covered by a 3-year warranty. Minimum order quantity is 100 PCS.
