Fuyuang 29.2V 2A-5A LiFePO4 and Li-ion Battery Charger for E-bike, Scooter, Drone and Power Tools

Fuyuang 29.2V 2A-5A LiFePO4 and Li-ion Battery Charger for E-bike, Scooter, Drone and Power Tools

Name: Fuyuang 29.2V 2A-5A LiFePO4 and Li-ion Battery Charger for E-bike, Scooter, Drone and Power Tools
Brand: Fuyuang
Rating: 5.0 (53 reviews)

The Fuyuang FY2922000 is a lithium and LiFePO4 battery charger with a 29.2V output at 2A, 4A and 5A, plus 14.6V 5A and 10A options. Operating from a 100-240Vac 50-60Hz input, it covers 12V to 72V systems with power levels from 90W to 600W. Charging follows a CC-CV-trickle profile with a defined stop-charge point, so packs are brought to full safely and then held. Protection covers short circuit, overload, over-voltage and over-temperature, and the fanless PC fireproof housing cools by free air convection. A red/green LED shows charge state at a glance. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

The FY2922000 is a compact desktop charger for lithium and LiFePO4 battery packs. Outputs cover 29.2V 2A, 4A and 5A as well as 14.6V 5A and 10A, from a universal 100-240Vac 50-60Hz input, with 90W to 600W power options. It charges e-bike, scooter, drone, electric tool and robot battery packs. The charge profile is CC-CV-trickle with a stop-charge point, the enclosure is fanless PC fireproof material cooled by free air convection, and a red/green LED indicates charging and completion.

Key Features

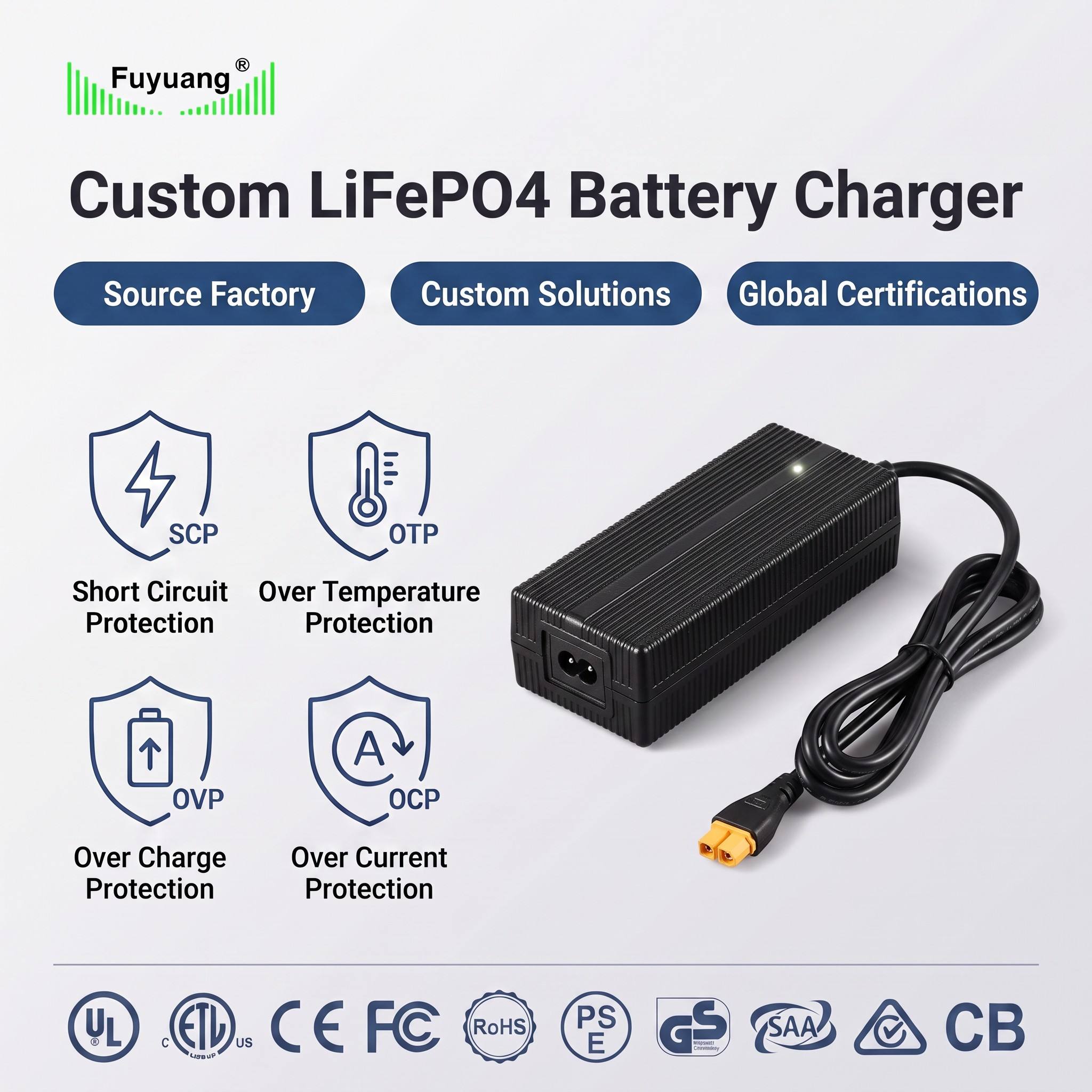

• Charge mode: CC-CV-trickle charge with stop charge • Output options: 29.2V 2A / 4A / 5A and 14.6V 5A / 10A • Fanless construction, cooling by free air convection • Efficiency above 89% with high-speed charging • Red / green LED charging indicator • Protection: short circuit, overload, over-voltage, over-temperature, OVP, OTP, OLP, over-current • PC fireproof material housing, eco-friendly design • OEM and ODM design service

Technical Specifications

• Model: FY2922000 • Product name: lithium / LiFePO4 battery charger • Input: 100-240Vac, 50-60Hz • Output options: 29.2V 2A / 29.2V 4A / 29.2V 5A / 14.6V 5A / 14.6V 10A • Power range: 90W / 120W / 150W / 200W / 450W / 600W • Charge mode: CC-CV-trickle charge / stop charge • Efficiency: above 89% • LED / LCD indicator: red / green • Housing material: PC fireproof material • Protection: short circuit, overload, over-voltage, over-temperature • Colour: black • Originated: China, Guangdong • MOQ: 100 PCS

Applications

• E-bikes and scooters • Electric motorcycles • Drones • Electric tools • Service and industrial robots • Lithium battery packs for 12V to 72V systems

Customization & Service

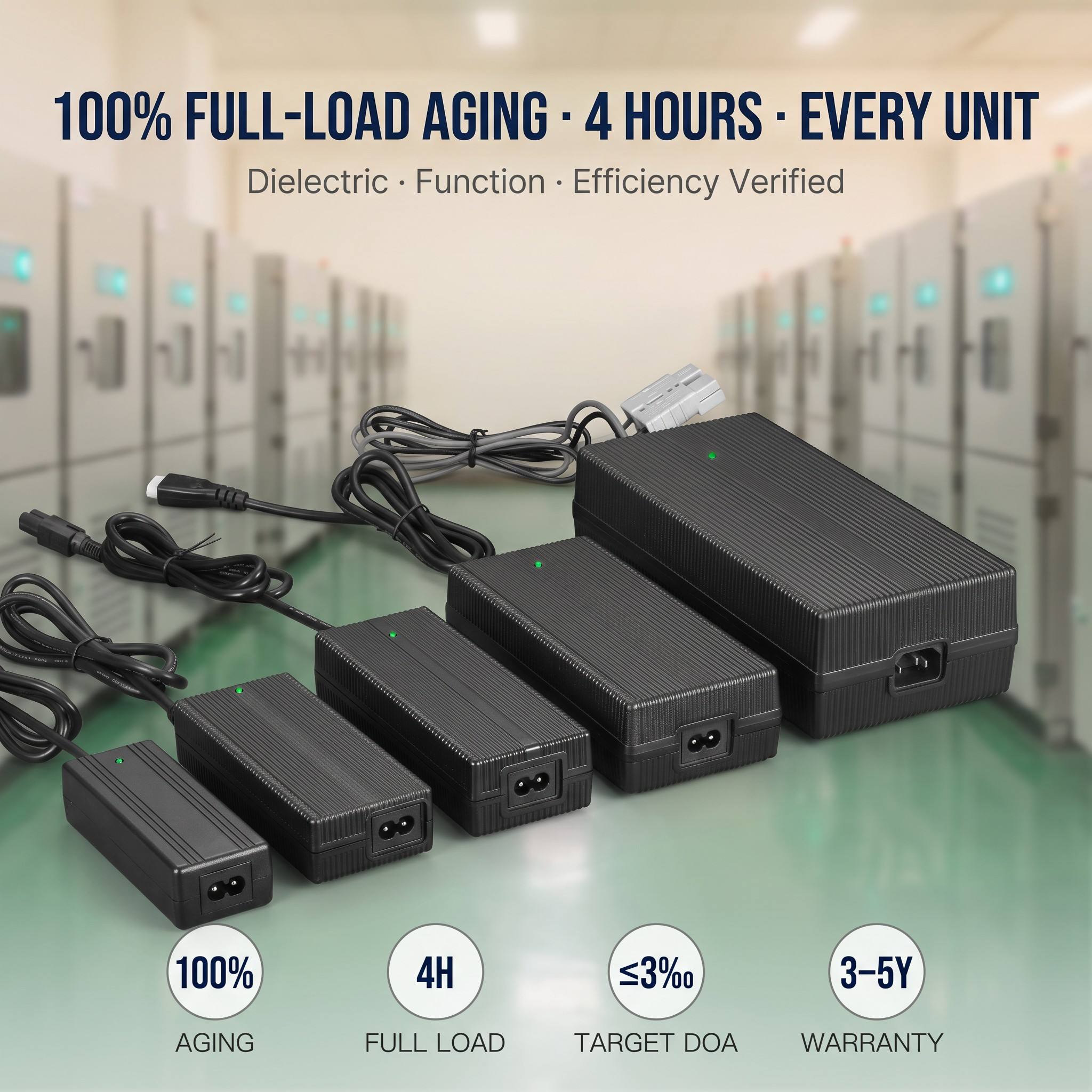

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
