Fuyuang 24V-60V LiFePO4 Lithium Lead Acid Battery Charger 2A-10A for Electric Wheelchair and Mobility Scooter

Fuyuang 24V-60V LiFePO4 Lithium Lead Acid Battery Charger 2A-10A for Electric Wheelchair and Mobility Scooter

Name: Fuyuang 24V-60V LiFePO4 Lithium Lead Acid Battery Charger 2A-10A for Electric Wheelchair and Mobility Scooter
Brand: Fuyuang
Rating: 5.0 (24 reviews)

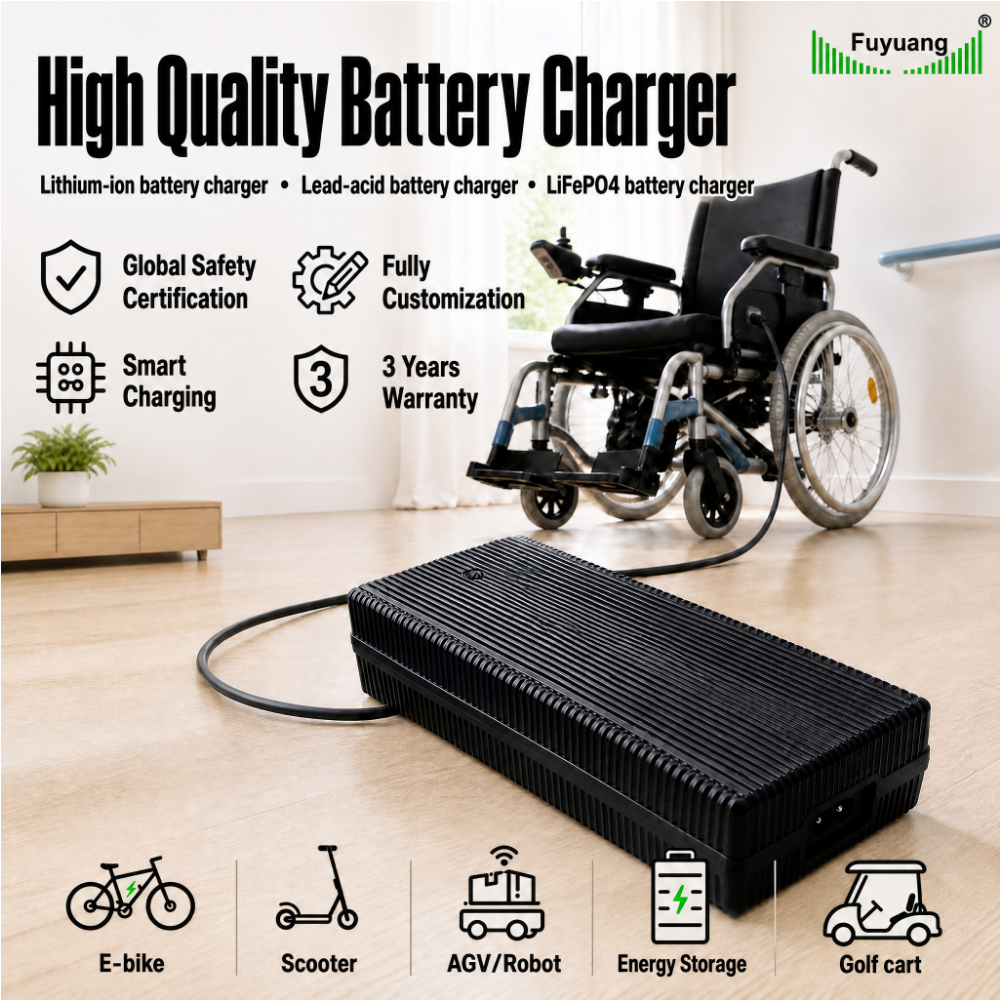

The FY5845000 is a desktop smart battery charger made for electric wheelchairs, mobility scooters and similar personal mobility vehicles. It runs from a 100-240Vac 50/60Hz input and is offered from 24V to 60V battery systems with 2A to 10A output, covering 58.4V 5A, 58.8V 5A, 54.6V 5A, 50.4V 5A, 29.2V 10A and 29.4V 10A variants on the same platform. LiFePO4, lithium-ion and lead-acid packs are all supported. Charging follows a CC-CV-trickle profile with automatic stop, and the unit can be supplied with a 2-pin or 3-pin XLR plug to match common wheelchair charge ports. A fanless PC fireproof housing keeps charging quiet, and over-voltage, over-current, overload, over-temperature and short-circuit protection are built in. The charger comes from Fuyuan Electronic Co., Ltd, a power supply manufacturer established in 2005 with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year product warranty.

Model:
FY5845000
Brand:
Fuyuang
Code:
FY5845000


Availability:

Product Overview

The FY5845000 is a desktop smart charger developed for electric wheelchairs, mobility scooters and personal mobility equipment. It accepts 100-240Vac 50/60Hz input and charges 24V, 36V, 48V and 60V battery systems at 2A to 10A, including 58.4V 5A, 58.8V 5A, 54.6V 5A and 29.2V 10A outputs. The charger works with LiFePO4, lithium-ion and lead-acid batteries and uses CC-CV-trickle charging with automatic stop. A 2-pin or 3-pin XLR plug matches typical wheelchair charging ports, and the quiet fanless housing runs by free air convection.

Key Features

• Purpose-built for electric wheelchairs and mobility scooters • Universal 100-240Vac 50/60Hz input • Outputs from 2A to 10A across 24V, 36V, 48V and 60V battery systems • CC-CV-trickle charging with stop charge function • Charging efficiency above 89% • Fanless cooling by free air convection, no noise • Over-voltage, over-current, overload, over-temperature and short-circuit protection • 2-pin or 3-pin XLR DC plug with red/green LED indicator

Technical Specifications

• Model: FY5845000 • Input: 100-240Vac, 50/60Hz • Output: 58.4V 5A • Platform outputs: 58.4V 5A / 58.8V 5A / 58.8V 4.5A / 54.6V 5A / 50.4V 5A / 50.4V 4.5A / 29.2V 10A / 29.4V 10A / 58.8V 4A / 58.4V 4A / 50.4V 4A • Platform power: 90W / 120W / 150W / 200W / 450W / 600W • Battery compatibility: LiFePO4, lithium-ion, lead-acid • Charge mode: CC-CV-Trickle Charge, stop charge • Charging efficiency: above 89% • Housing: PC fireproof material, black • Indicator: red/green LED • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• Electric wheelchairs and mobility scooters • E-bikes and scooters • Robots and AGV equipment • Electric tools • Drones • Medical mobility equipment

Customization & Service

OEM and ODM projects are welcome on this platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. A CNAS-standard EMC laboratory supports pre-compliance testing during development, which helps shorten the certification path for new mobility charger projects. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
