Fuyuang 1500W IP67 Waterproof Battery Charger 58.4V-84V for Golf Cart, AGV, Robot, Drone and Forklift

Fuyuang 1500W IP67 Waterproof Battery Charger 58.4V-84V for Golf Cart, AGV, Robot, Drone and Forklift

Name: Fuyuang 1500W IP67 Waterproof Battery Charger 58.4V-84V for Golf Cart, AGV, Robot, Drone and Forklift
Brand: Fuyuang
Rating: 5.0 (83 reviews)

The Fuyuang FY8400000 is a 1500W high-power smart battery charger with an IP67 waterproof and dustproof aluminium alloy enclosure, built for robots, golf carts, AGVs, drones, forklifts and mobility vehicles that work outdoors or in wet industrial environments. A 100-240Vac 50/60Hz input feeds outputs of 58.4V 25A, 67.2V 22A or 84V 17A for LiFePO4, lithium-ion and lead-acid batteries. The unit measures 273 x 156 x 135 mm and carries full protection against over-charging, over-current, over-voltage and short circuit, with ring terminal, Anderson and custom connectors available. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY8400000
Brand:
Fuyuang
Code:
FY8400000


Availability:

Product Overview

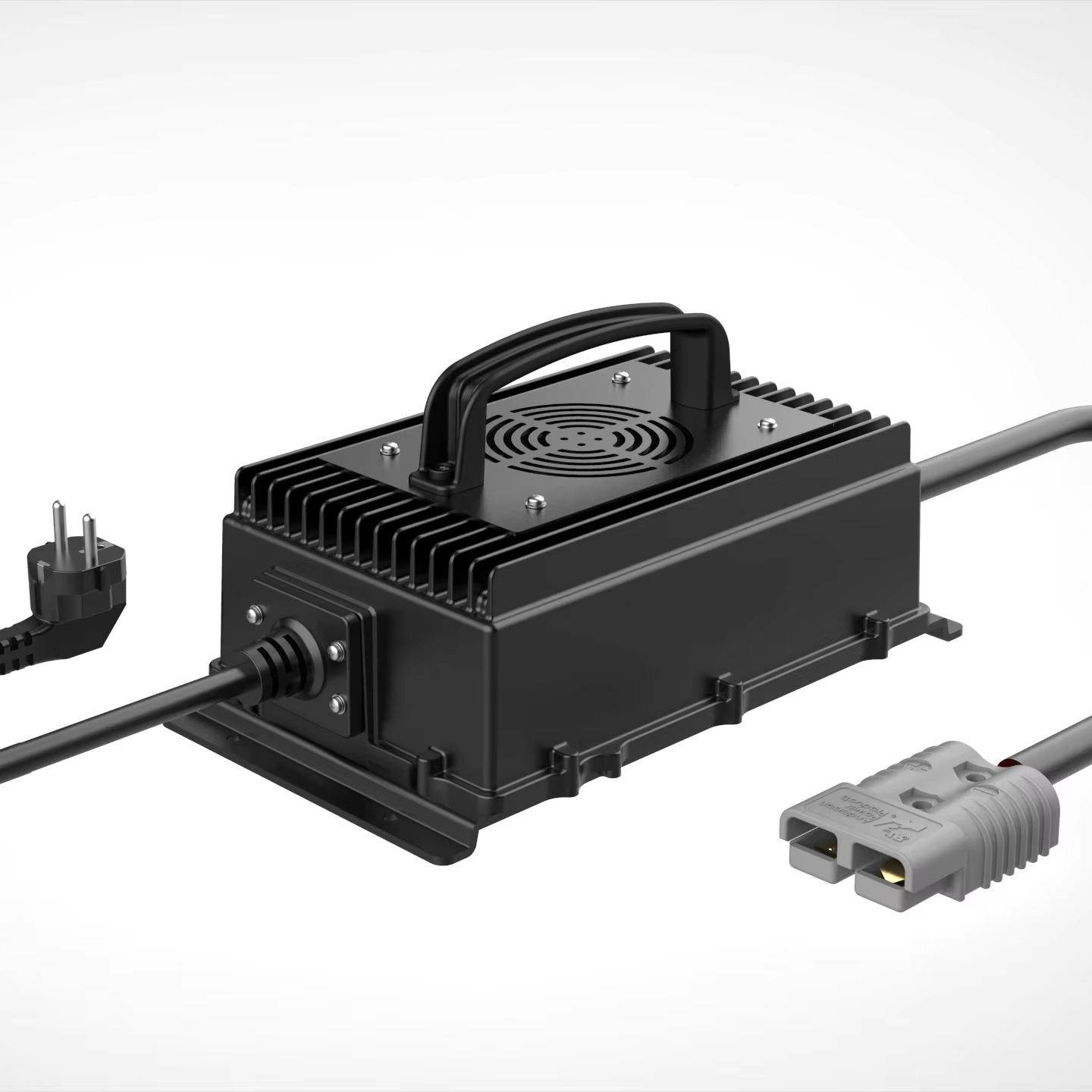

The FY8400000 is a 1500W sealed charger for heavy-duty applications such as golf carts, AGVs, floor-care machines, forklifts, drones and service robots. The IP67 aluminium alloy housing protects the electronics from water, dust and impact. Outputs of 58.4V 25A, 67.2V 22A and 84V 17A cover LiFePO4, lithium-ion and lead-acid battery banks, and the 100-240Vac input works on any mains supply. Connectors can be specified as ring terminal, Anderson or a custom design.

Key Features

• 1500W high power output in an IP67 waterproof and dustproof enclosure • Sealed aluminium alloy housing for outdoor and industrial use • Outputs 58.4V 25A, 67.2V 22A and 84V 17A • Suitable for LiFePO4, lithium-ion and lead-acid battery chemistries • Universal 100-240Vac 50/60Hz input • Protection: fireproof, over-charging, over-current, over-voltage and short circuit • Connectors: ring terminal / Anderson / custom • Compact footprint of 273 x 156 x 135 mm; colour black

Technical Specifications

• Model: FY8400000 • Product: 1500W IP67 waterproof and dustproof smart battery charger • Input: 100-240Vac 50/60Hz • Output: 58.4V 25A / 67.2V 22A / 84V 17A • Output power: 1500W • Battery chemistry: LiFePO4 / lithium-ion / lead-acid • Size: 273*156*135 mm • Housing material: aluminium alloy; colour black • Certification: UL, CE, PSE, UKCA, KC, FCC, SAA, RoHS • MOQ: 10 PCS

Applications

• Golf carts and club carts • AGVs, AMRs and robotics • Forklifts and industrial vehicles • Drones and unmanned systems • Electric tools and household appliances • Medical devices and mobility equipment

Customization & Service

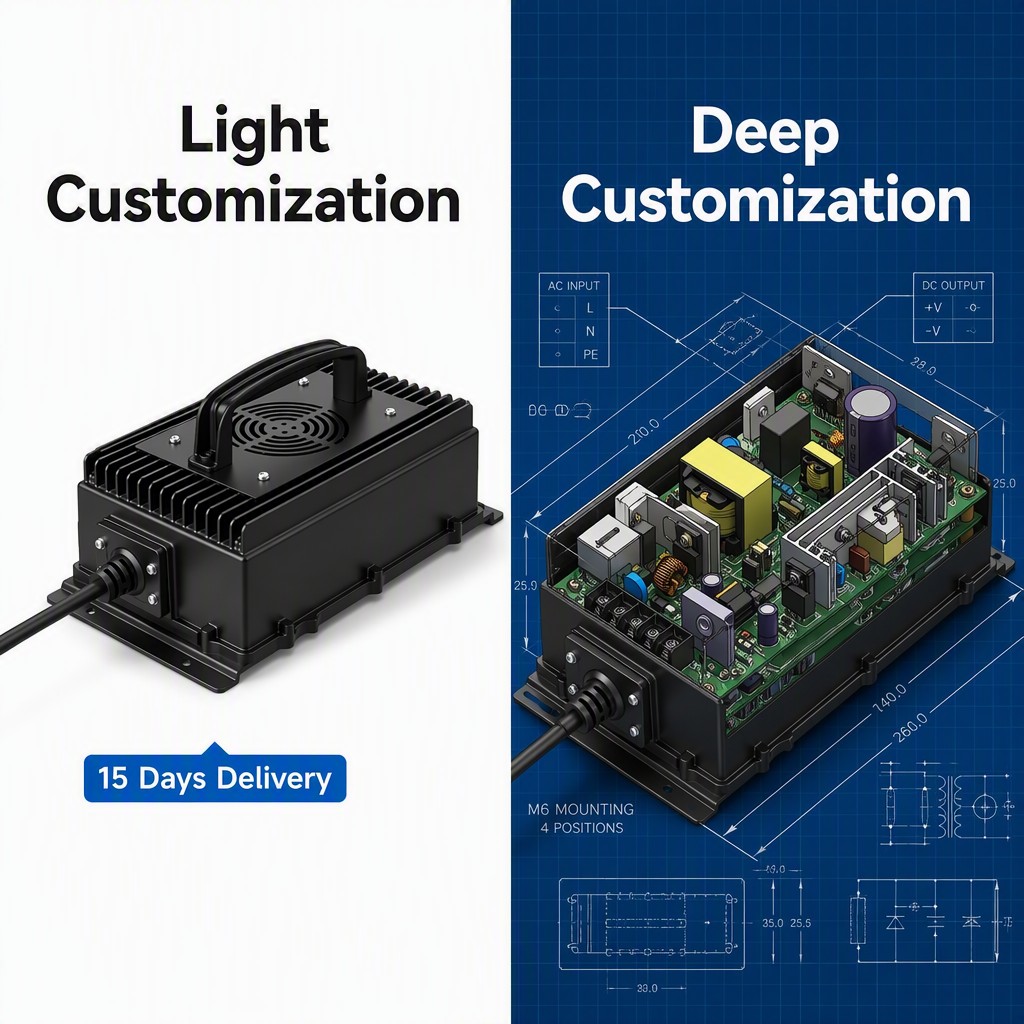

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 10 PCS. Certifications held on this platform include UL, CE, PSE, UKCA, KC, FCC, SAA and RoHS.
