Fuyuang 14.6V-58.8V LiFePO4 Lithium Battery Charger 2A-10A 300W for E-bike, Scooter, AGV and Golf Cart

Fuyuang 14.6V-58.8V LiFePO4 Lithium Battery Charger 2A-10A 300W for E-bike, Scooter, AGV and Golf Cart

Name: Fuyuang 14.6V-58.8V LiFePO4 Lithium Battery Charger 2A-10A 300W for E-bike, Scooter, AGV and Golf Cart
Brand: Fuyuang
Rating: 5.0 (48 reviews)

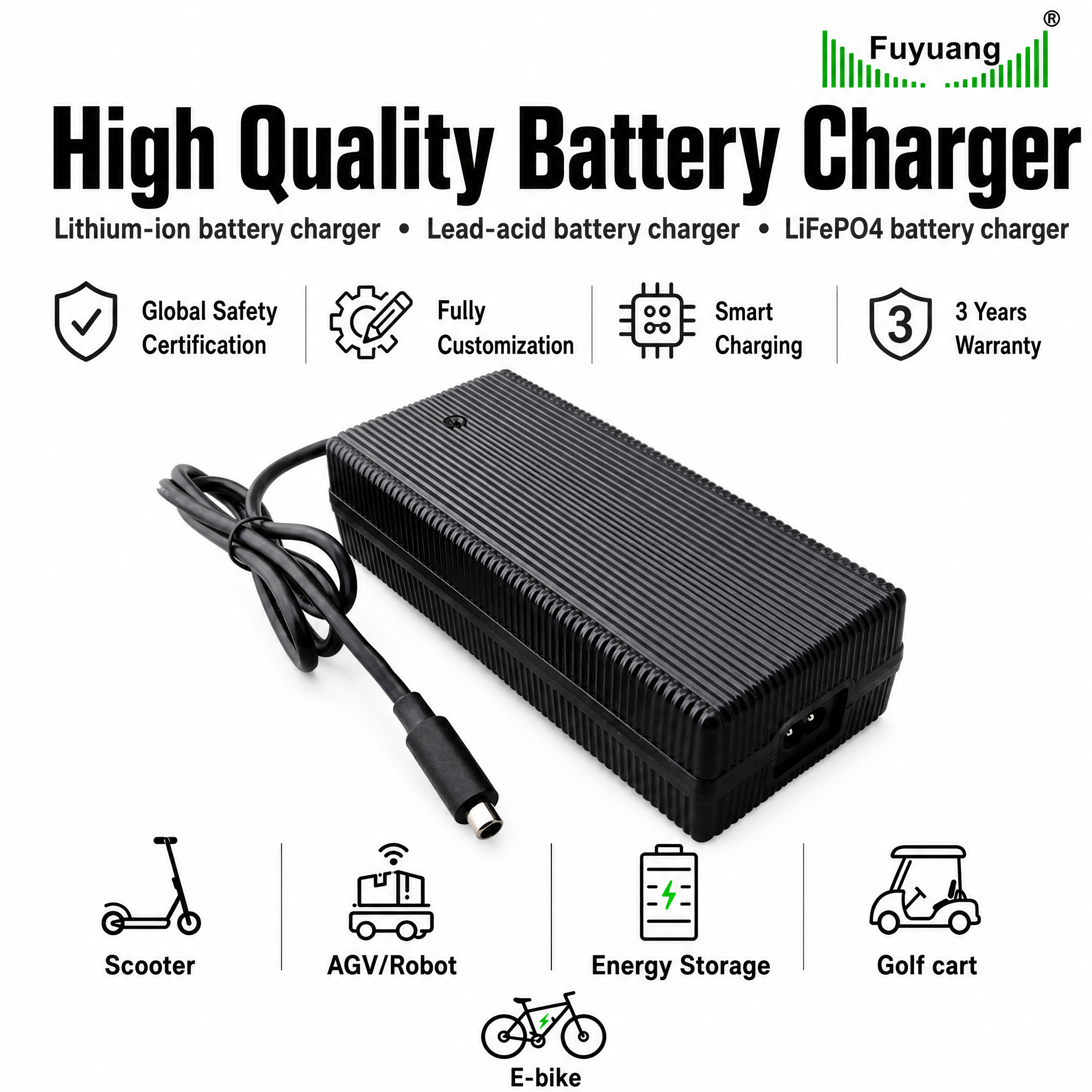

The FY5464000 is a multi-voltage desktop charger for LiFePO4 and lithium battery packs. Output options include 14.6V 8A for 4S packs, 29.2V 6A and 29.4V 8A for 8S packs, 42V 4A, 54.6V 4A and 58.4V 3.5A, and 58.8V 4A, so the same design serves 12V through 48V battery systems. Charging follows a CC-CV-trickle profile with stop charge and runs from a universal 100-240Vac 50/60Hz input. Over-voltage, over-current, overload, over-temperature and short-circuit protection are included, and free-air convection cooling keeps the unit quiet without drawing dust into the housing. This charger is made by Fuyuan Electronic Co., Ltd, a manufacturer founded in 2005 with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models developed from 60W to 10KW, and a 3-year warranty.

Model:
FY5464000
Brand:
Fuyuang
Code:
FY5464000


Availability:

Product Overview

The FY5464000 is a multi-voltage charger for LiFePO4 and lithium-ion packs, with outputs of 14.6V 8A, 29.2V 6A, 29.4V 8A, 42V 4A, 54.6V 4A, 58.4V 3.5A and 58.8V 4A. This range covers 12V, 24V, 36V and 48V battery systems with one charger family. It runs from 100-240Vac 50/60Hz input and charges with a CC-CV-trickle profile and automatic stop. Typical deployments include e-bikes, scooters, AGVs, golf carts and industrial battery packs.

Key Features

• Multi-voltage outputs from 14.6V to 58.8V • Current options from 2A to 10A within the platform • Covers 12V, 24V, 36V and 48V battery systems • Universal 100-240Vac 50/60Hz input • CC-CV-trickle charge mode with stop charge • Fanless cooling by free air convection, no noise • Over-voltage, over-current, overload, over-temperature and short-circuit protection • Housing in PC fireproof material with red/green LED indicator

Technical Specifications

• Model: FY5464000 • Input: 100-240Vac, 50/60Hz • Outputs: 54.6V 4A / 58.8V 4A / 58.4V 3.5A / 42V 4A / 29.4V 8A / 29.2V 6A / 14.6V 8A • Voltage range: 14.6V to 58.8V • Platform power: 90W / 120W / 150W / 200W / 450W / 600W • Battery compatibility: LiFePO4, lithium-ion • Charge mode: CC-CV-Trickle Charge, stop charge • Charging efficiency: above 89% • Housing: PC fireproof material, black • Certification: UL, cUL, FCC, CE, GS, CB, UKCA, KC, PSE, SAA, CCC, NOM, RoHS, REACH • MOQ: 100 PCS

Applications

• E-bikes and scooters • Automated guided vehicles (AGVs) • Golf carts • Robots • Electric tools • Drones

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance work so certification testing can be prepared early. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
