Fuyuang 12V-72V Lithium LiFePO4 Lead-acid Battery Charger with LED Display 24W-3000W for Golf Cart, AGV and RV

Fuyuang 12V-72V Lithium LiFePO4 Lead-acid Battery Charger with LED Display 24W-3000W for Golf Cart, AGV and RV

Name: Fuyuang 12V-72V Lithium LiFePO4 Lead-acid Battery Charger with LED Display 24W-3000W for Golf Cart, AGV and RV
Brand: Fuyuang
Rating: 5.0 (89 reviews)

The FY420000 is a smart battery charger with an LED indicator and LED display that shows charging status in real time. Output options include 12.6V 5A, 14.6V 10A, 29.2V 10A, 29.4V 5A, 42V 5A, 54.6V 3.5A, 58.4V 5A, 67.2V 3A, 69.3V 5A and 84V 4A, and the platform spans 24W to 3000W across 12V to 72V battery systems. LiFePO4, lithium-ion and lead-acid batteries are supported, and charging runs at 95% efficiency with cooling by natural air convection. Protection covers fireproof, low tension, over-charging, over-current, over-voltage and short circuit conditions. DC connector choices include 5.5x2.5mm, 5.5x2.1mm, XLR, Anderson, crocodile clip and ring terminal. Fuyuan Electronic Co., Ltd has manufactured chargers since 2005, operates 108,000 m2 of production space, runs a CNAS-standard EMC laboratory, and has developed 3,000+ models from 60W to 10KW. A 3-year warranty applies.

Model:
FY420000
Brand:
Fuyuang
Code:
FY420000


Availability:

Product Overview

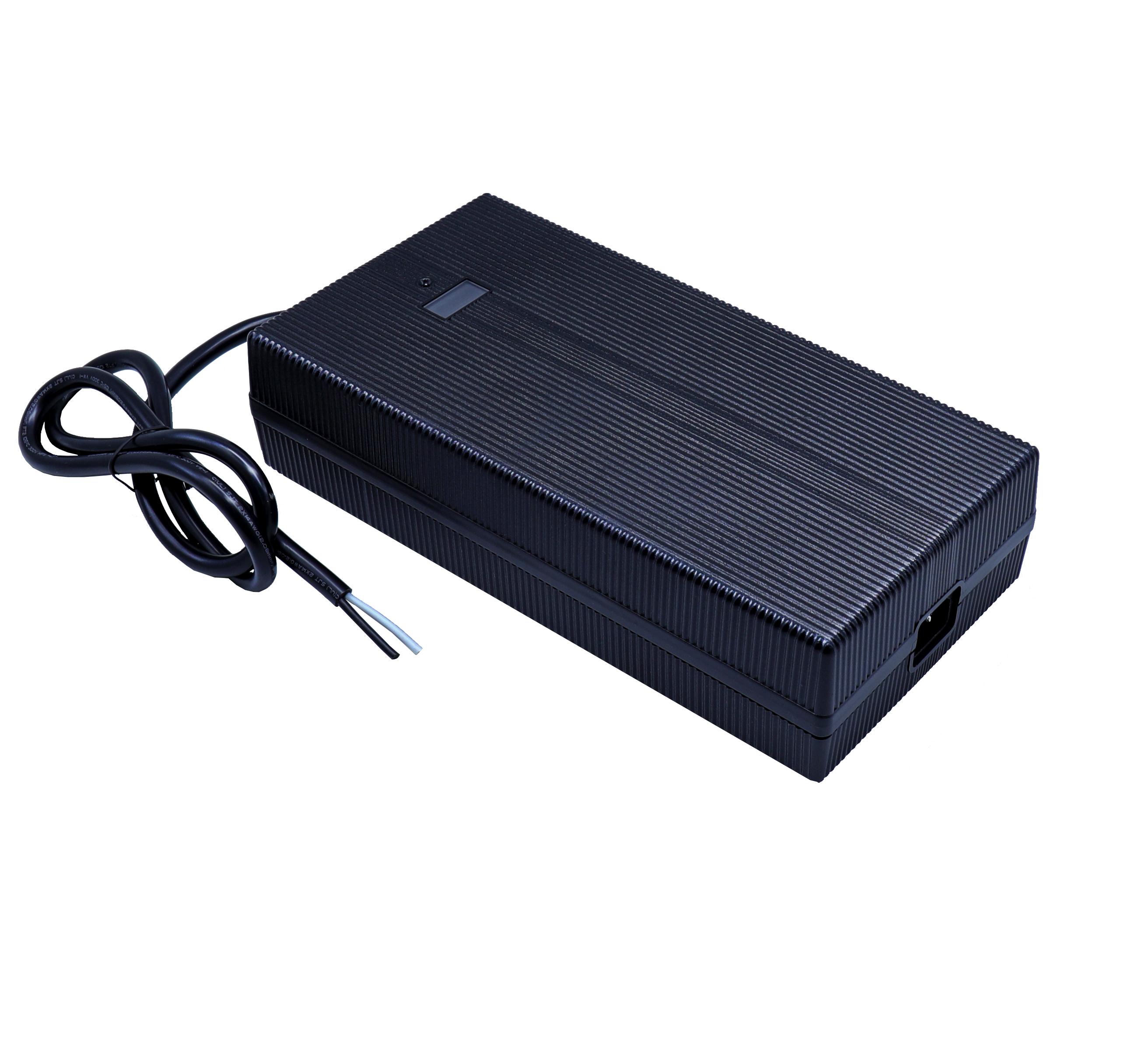

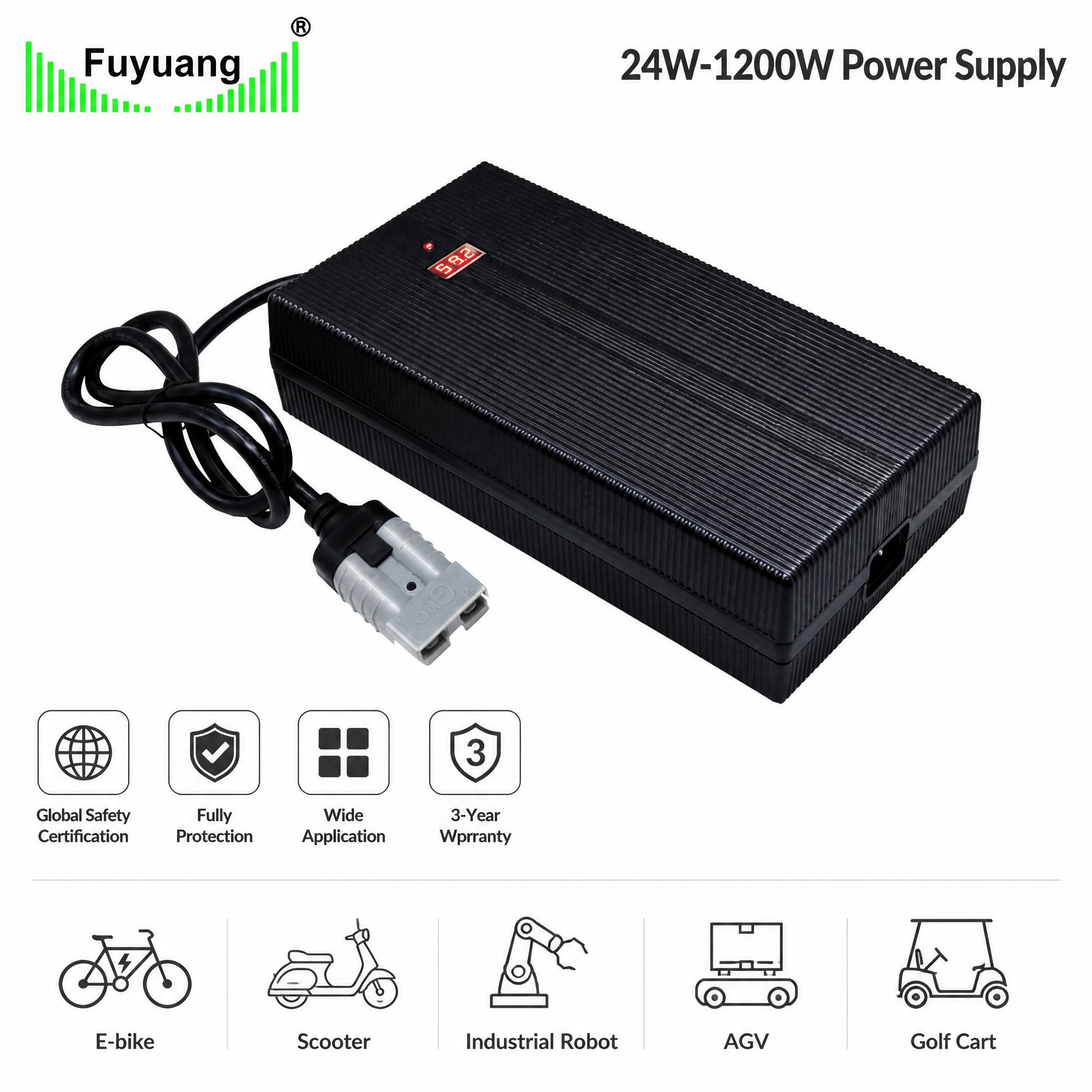

The FY420000 is a smart battery charger equipped with an LED indicator and LED display for real-time charging monitoring. It covers 12V to 72V battery systems with outputs from 12.6V 5A to 84V 4A, and platform power from 24W to 3000W. It suits LiFePO4, lithium-ion and lead-acid batteries and is used for golf carts, AGVs, AMRs, e-bikes, scooters, RVs, marine equipment, robots, solar storage and industrial vehicles. Cooling is by natural air convection with no fan.

Key Features

• LED indicator and LED display for real-time charging monitoring • Wide output range from 12.6V 5A to 84V 4A • Platform power from 24W to 3000W • Supports LiFePO4, lithium-ion and lead-acid batteries • 95% charging efficiency with cooling by natural air convection • Protection: fireproof, low tension, over-charging, over-current, over-voltage and short circuit • DC connector options: 5.5x2.5mm, 5.5x2.1mm, XLR, Anderson, crocodile clip, ring terminal • Multiple housing materials: ABS, aluminium alloy and PC fireproof material

Technical Specifications

• Model: FY420000 • Input: AC 100-240Vac, 50/60Hz, customizable • Outputs: 12.6V 5A / 14.6V 10A / 29.2V 10A / 29.4V 5A / 42V 5A / 54.6V 3.5A / 58.4V 5A / 67.2V 3A / 69.3V 5A / 84V 4A • Rated output: 42V 2A, 84.0W, customizable • Platform power: 24W / 60W / 75W / 120W / 150W / 200W / 300W / 400W / 600W / 800W / 1000W / 1200W / 1500W / 3000W • Battery compatibility: LiFePO4, lithium-ion, lead-acid • Charging efficiency: 95% • Housing: ABS, aluminium, aluminium alloy or PC fireproof material • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

• Golf carts • AGVs and AMRs • E-bikes and scooters • RV campers • Marine equipment • Robots and drones • Solar energy storage • Industrial and medical equipment

Customization & Service

Fuyuan Electronic Co., Ltd supports OEM and ODM projects on this platform, including custom output voltage and current, custom DC connectors and AC plugs, private labeling, LOGO printing and custom packaging. The CNAS-standard EMC laboratory supports pre-compliance testing to help shorten certification timelines. Every unit is covered by a 3-year warranty and receives 4-8 hours of full-load burn-in plus 100% factory inspection. Standard MOQ is 100 PCS.
