Fuyuang 12V-72V 2A-10A LiFePO4 and Lead Acid Battery Charger with Auto Cutoff

Fuyuang 12V-72V 2A-10A LiFePO4 and Lead Acid Battery Charger with Auto Cutoff

Name: Fuyuang 12V-72V 2A-10A LiFePO4 and Lead Acid Battery Charger with Auto Cutoff
Brand: Fuyuang
Rating: 5.0 (95 reviews)

The Fuyuang FY2942000 is a custom battery charger for 12V to 72V LiFePO4, lithium and lead acid batteries. Outputs include 12V 5A, 12V 10A, 24V 10A, 29.4V 5A, 42V 5A, 54.6V 5A, 58.4V 8A and 67.2V 3A, with a 100-240V 50/60Hz input and 60W to 1200W power options. The charger combines OVP, OCP, OTP and SCP with a timer, auto cutoff and reverse-polarity protection, so unattended charging is safe. It operates from -29 to 45.5 degrees Celsius, uses a fanless naturally cooled desktop case, and offers a wide choice of DC connectors. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2942000
Brand:
Fuyuang
Code:
FY2942000


Availability:

Product Overview

The FY2942000 is a desktop charger for 12V, 24V, 36V, 48V, 60V and 72V battery systems, supporting LiFePO4, lithium and lead acid chemistries. It runs from a 100-240V 50/60Hz input and provides outputs from 12V 5A to 67.2V 3A. It is used on electric scooters, e-bikes, drones, robotics and industrial equipment. The protection set includes over-voltage, over-current, over-temperature, short circuit, timer, auto cutoff and reverse-polarity, with an LED charge indicator and 4-8 hours of full-load burn-in on every unit before shipment.

Key Features

• Supports LiFePO4, lithium and lead acid battery types • Output options from 12V 5A to 67.2V 3A • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse-polarity • Operating temperature range -29 to 45.5 degrees Celsius • Fanless desktop design with LED charge indicator • Wide DC connector choice: 5525, 5521, XLR, XT60, Anderson, crocodile clip, ring terminal • 3-year warranty with 4-8 hours full load burn-in • Fully customisable for OEM and ODM projects

Technical Specifications

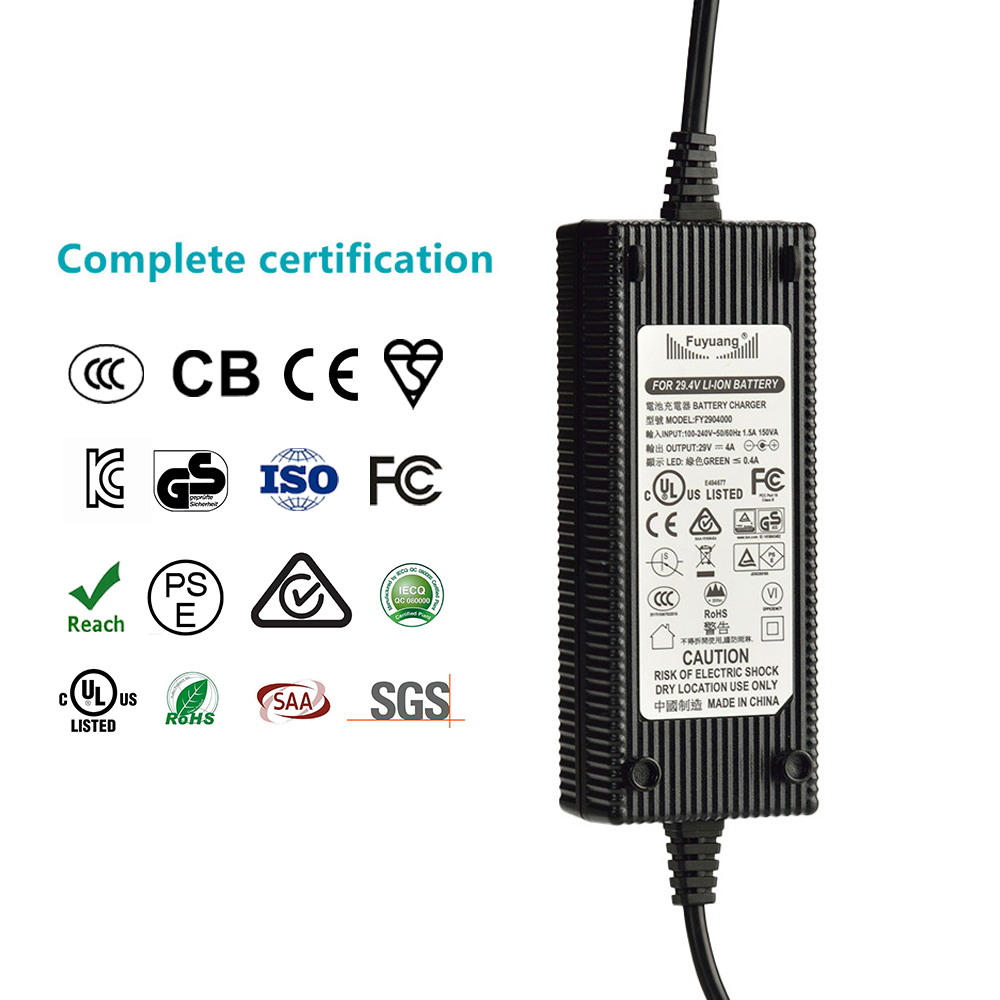

• Model: FY2942000 • Product name: 12V 24V 36V 48V 60V 72V 84V LiFePO4, lithium and lead-acid battery charger • Input: 100-240V, 50/60Hz • Output options: 12V 5A / 12V 10A / 29.4V 5A / 24V 10A / 42V 5A / 54.6V 5A / 67.2V 3A / 58.4V 8A • Power range: 60W / 75W / 80W / 100W / 120W / 150W / 200W / 210W / 300W / 400W / 600W / 800W / 1000W / 1200W • Battery type: LiFePO4, lithium, lead acid • Operating temperature: -29 to 45.5 degrees Celsius • DC connectors: 5525 / 5521 / XLR / XT60 / Anderson / crocodile clip / ring terminal / customisable • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse-polarity • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

• Electric scooters and e-bikes • Electric cars and light electric vehicles • Drones • Robotics and AGV • Industrial battery systems • Electric tools

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
