Fuyuang 12.6V-29.4V 2A-4A Lithium Battery Charger for Robot, Drone and Industrial Packs

Fuyuang 12.6V-29.4V 2A-4A Lithium Battery Charger for Robot, Drone and Industrial Packs

Name: Fuyuang 12.6V-29.4V 2A-4A Lithium Battery Charger for Robot, Drone and Industrial Packs
Brand: Fuyuang
Rating: 5.0 (96 reviews)

The Fuyuang FY2922000 is a lithium battery charger for robots, drones and industrial battery packs. Outputs cover 29.2V 2A, 29.4V 2A, 29V 2A, 25.2V 2A, 16.8V 2A and 12.6V 4A from a 100-240Vac 50-60Hz input, with power options from 90W to 600W. It is used across 12V, 24V and 29.4V systems for service robots, drones, electric tools, e-bikes and scooters. Charging is CC-CV-trickle with stop charge, protection covers short circuit, overload, over-voltage, over-temperature, OVP, OTP, OLP and over-current, and the housing is PC fireproof material with a red/green LED. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, a CNAS-standard EMC laboratory, 3,000+ models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY2922000
Brand:
Fuyuang
Code:
FY2922000


Availability:

Product Overview

The FY2922000 is a compact charger for robot, drone and industrial battery packs. It delivers 29.2V 2A as the base rating, with 29.4V 2A, 29V 2A, 25.2V 2A, 16.8V 2A and 12.6V 4A variants, all from a universal 100-240Vac 50-60Hz input. Target applications are service and industrial robots, drones, AGVs, electric tools, e-bikes and scooters. The charger is fanless with a no-noise design, and the CC-CV-trickle profile with stop charge keeps packs healthy during unattended charging.

Key Features

• Charges robot, drone and industrial lithium battery packs • Output options: 29.2V 2A / 29.4V 2A / 29V 2A / 25.2V 2A / 16.8V 2A / 12.6V 4A • Charge mode: CC-CV-trickle charge with stop charge • Fanless no-noise design, high-speed charging • Red / green LED charge indicator • Protection: short circuit, overload, over-voltage, over-temperature, OVP, OTP, OLP, over-current • Works with lithium and LiFePO4 batteries • PC fireproof material housing, eco-friendly design

Technical Specifications

• Model: FY2922000 • Product name: lithium / LiFePO4 battery charger • Input: 100-240Vac, 50-60Hz • Output options: 29.2V 2A / 29.4V 2A / 29V 2A / 25.2V 2A / 16.8V 2A / 12.6V 4A • Power range: 90W / 120W / 150W / 200W / 450W / 600W • Charge mode: CC-CV-trickle charge / stop charge • Efficiency: above 89% • LED / LCD indicator: red / green • Housing material: PC fireproof material • Protection: short circuit, overload, over-voltage, over-temperature • Certification: UL, CE, UKCA, SAA, PSE, KC • MOQ: 100 PCS

Applications

• Service and industrial robots • Industrial drones • Electric tools • E-bikes and scooters • AGV and AMR • Lithium battery packs for 12V to 29.4V systems

Customization & Service

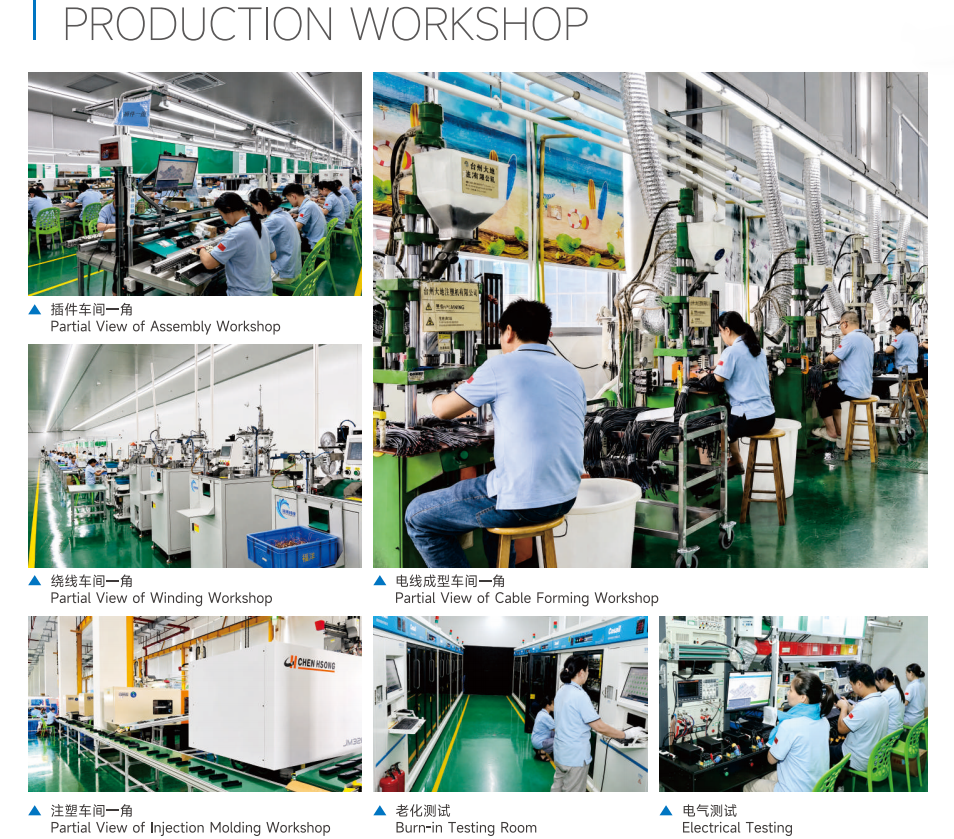

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, including custom output voltage and current, private labeling, LOGO printing and custom DC connector and AC plug selection. Engineering is supported by an in-house CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle can be kept short. Every unit is 100% factory inspected, receives 4-8 hours of full-load burn-in, and is covered by a 3-year warranty. Standard MOQ is 100 PCS. Fuyuan has manufactured power supplies since 2005, operates 108,000 m2 of production space in Dongguan and Yongzhou, and has developed 3,000+ models from 60W to 10KW.
