Fuyuang 1000W Four-Channel Multi-Bank Battery Charger 12.6V-126V for Marine, AGV and UPS Systems

Fuyuang 1000W Four-Channel Multi-Bank Battery Charger 12.6V-126V for Marine, AGV and UPS Systems

Name: Fuyuang 1000W Four-Channel Multi-Bank Battery Charger 12.6V-126V for Marine, AGV and UPS Systems
Brand: Fuyuang
Rating: 5.0 (30 reviews)

The Fuyuang FY5840000 is a 1000W multi-bank battery charger that charges up to four battery banks from one unit. Each channel runs independently, with outputs covering 12.6V 8A, 14.6V 8A, 29.2V 7A, 43.8V 5A, 58.4V 3A, 67.2V 2A, 73V 2A, 84V 3A and 126V 5A, so mixed battery voltages can be maintained side by side. A 100-240Vac 50/60Hz input and fanless free-air convection cooling keep installation simple and quiet, while a fuse on both input and output adds double-layer safety. Protection covers OVP, OCP, OTP, SCP, timer, auto cutoff and reverse-polarity. The aluminium alloy housing is supplied in silver. Manufactured by Fuyuan Electronic Co., Ltd since 2005, with 108,000 m2 of production space, 450 employees, a CNAS-standard EMC laboratory, 3,000+ developed models from 60W to 10KW, and a 3-year warranty on this product.

Model:
FY5840000
Brand:
Fuyuang
Code:
FY5840000


Availability:

Product Overview

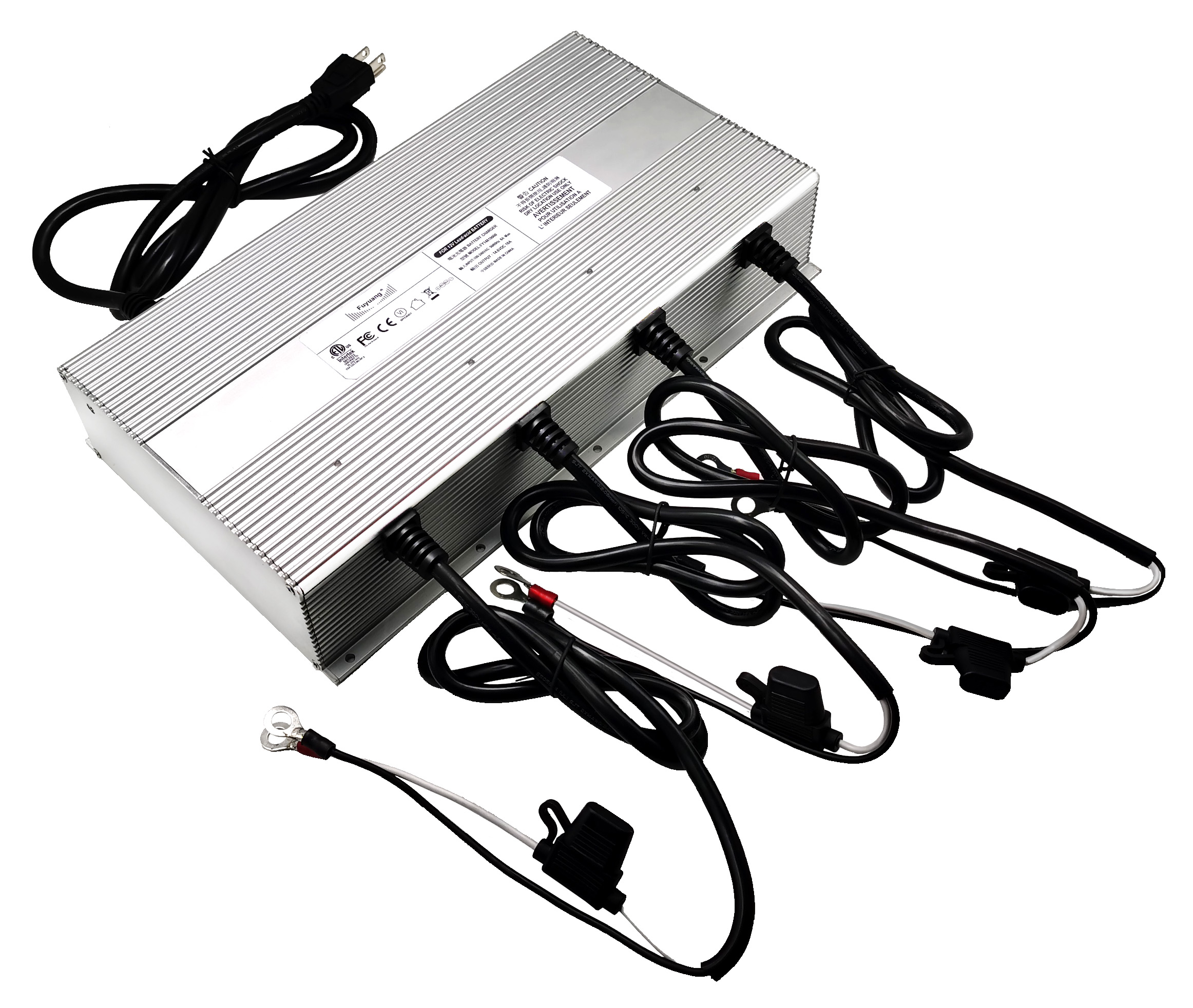

The FY5840000 is a multi-bank charger for installations that maintain several battery strings at once, such as marine vessels, AGV fleets, security and UPS systems and industrial cabinets. Four independent channels each hold their own voltage and current setting. The 1000W platform covers output voltages from 12.6V to 126V, so 12V, 24V, 36V, 48V, 72V and 84V battery packs can be charged from one unit. Fanless cooling and full protection make the charger suitable for continuous industrial duty.

Key Features

• Multi-bank design with four independent charging channels • 1000W total output with per-channel voltages from 12.6V to 126V • Output variants: 12.6V 8A / 14.6V 8A / 29.2V 7A / 43.8V 5A / 58.4V 3A / 67.2V 2A / 73V 2A / 84V 3A / 126V 5A • Fanless design, cooled by free air convection with zero noise • Fuse on both input and output, EMI/EMS compliant • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff and reverse-polarity • DC connectors: 5525 / 5521 / XLR / XT60 / Anderson / crocodile clip / ring terminal • Aluminium alloy housing in silver; plug types AU, EU, UK, US, JP

Technical Specifications

• Model: FY5840000 • Input: 100-240Vac 50/60Hz • Output power: 1000W • Channel outputs: 12.6V 8A / 14.6V 8A / 29.2V 7A / 43.8V 5A / 58.4V 3A / 73V 2A / 67.2V 2A / 84V 3A / 126V 5A • Number of banks: up to 4 independent channels • Housing material: aluminium alloy; colour silver • Protection: OVP, OCP, OTP, SCP, timer, auto cutoff, reverse-polarity • Certification: UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA, KCC • MOQ: 100 PCS

Applications

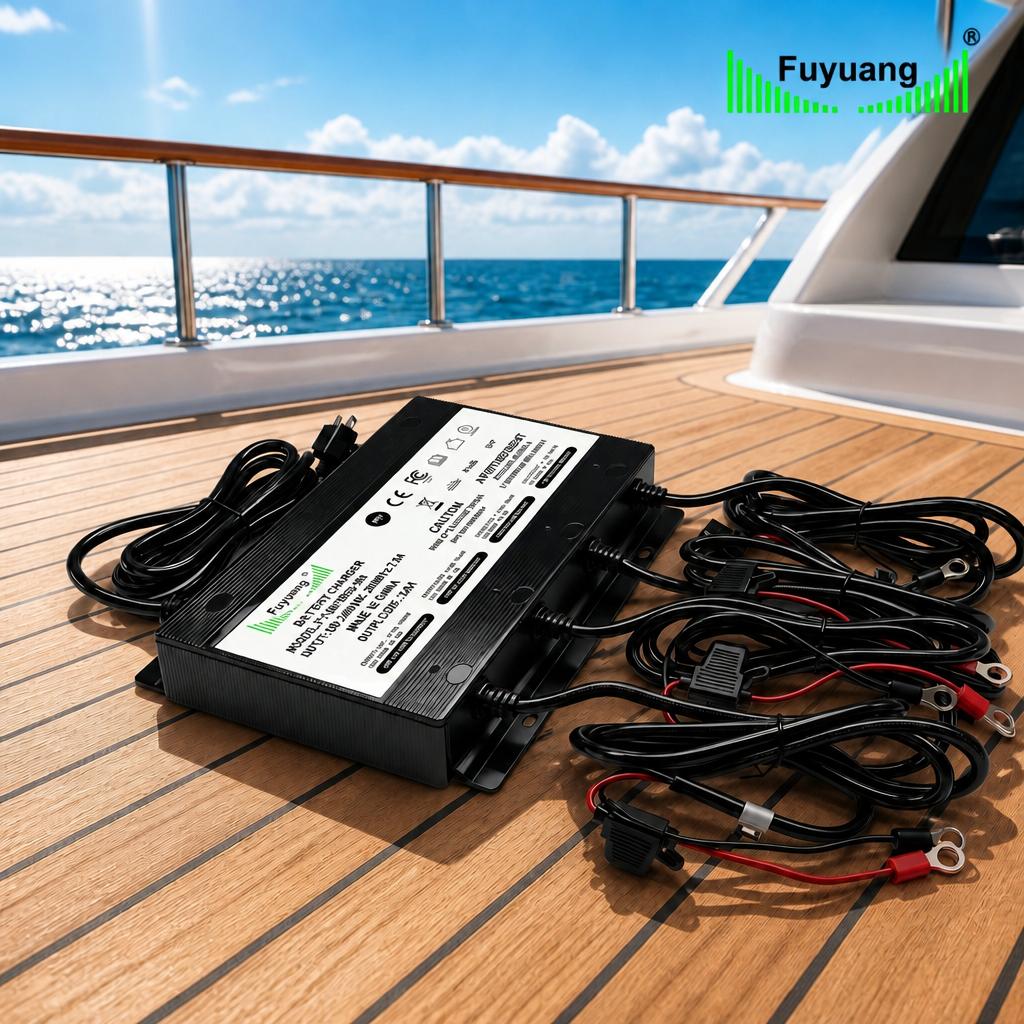

• Marine and multi-battery-bank vessels • AGVs, AMRs and robotics fleets • UPS and backup power systems • Industrial equipment • Medical devices and mobility aids • Electric tools and scooters • Household appliances and security systems

Customization & Service

Fuyuan Electronic Co., Ltd accepts OEM and ODM projects on this platform, covering custom output voltage and current, charging profiles, DC connectors, AC plugs, cable length, housing colour, private labeling, LOGO printing and packaging. Engineering work is supported by a CNAS-standard EMC laboratory, so compliance testing can be prepared before formal certification and the development cycle shortened; custom projects can reach engineering completion in as little as 10 days. Every unit is covered by a 3-year warranty, is 100% factory inspected and receives 4-8 hours of full-load burn-in. Standard MOQ for this item is 100 PCS. Certifications held on this platform include UL, CE, GS, ETL, SAA, KC, FCC, PSE, RoHS, REACH, UKCA and KCC.
